Fagor FA-640STX 4-Burner Gas Cooktop User Manual

Sarrera

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Fagor FA-640STX 4-Burner Gas Cooktop. Please read this manual thoroughly before using the appliance and keep it for future reference. This cooktop is designed to offer superior cooking performance with its four powerful sealed burners and universal ignition system.

Segurtasun informazio garrantzitsua

OHARRA: Eskuliburu honetako informazioa zehatz-mehatz betetzen ez bada, sute bat edo leherketa bat sor daiteke, kalte pertsonalak, kalte pertsonalak edo heriotza eraginez.

• Ez biltegiratu edo erabili gasolina edo bestelako lurrun eta likido sukoiak aparatu honen edo beste edozein aparaturen inguruan.
• ZER EGIN GAS USINA IZAN BADUZU:
  1. Ez saiatu inolako aparaturik pizten.
  2. Ez ukitu etengailu elektrikorik; ez erabili telefonorik zure eraikinean.
  3. Deitu berehala zure gas hornitzaileari bizilagun baten telefonotik. Jarraitu gas hornitzailearen argibideei.
  4. Ezin baduzu zure gas-hornitzailearekin harremanetan jarri, deitu suhiltzailera.
• Instalazioa eta zerbitzua instalatzaile kualifikatu batek, zerbitzu-agentziak edo gas hornitzaileak egin behar ditu.
• Ensure adequate ventilation when operating the cooktop.
• Ez utzi inoiz sukaldeko plaka zaindu gabe funtzionatzen ari den bitartean.
• Utzi haurrak aparatutik urrun erabiltzen diren bitartean.

Konfigurazioa eta Instalazioa

The Fagor FA-640STX cooktop is designed for built-in installation. Proper installation is crucial for safety and optimal performance. Refer to the detailed installation guide provided with your appliance for specific cutout dimensions and clearance requirements.

• Gas hornidura: Ensure the cooktop is connected to the correct gas supply (Natural Gas or LPG). An LPG conversion kit is included for use with liquid propane gas. Conversion should only be performed by a qualified technician.
• Konexio elektrikoa: The cooktop requires a 120 Volt electrical connection for the universal ignition system.
• Aireztapena: Install the cooktop in an area with adequate ventilation, preferably under a range hood.

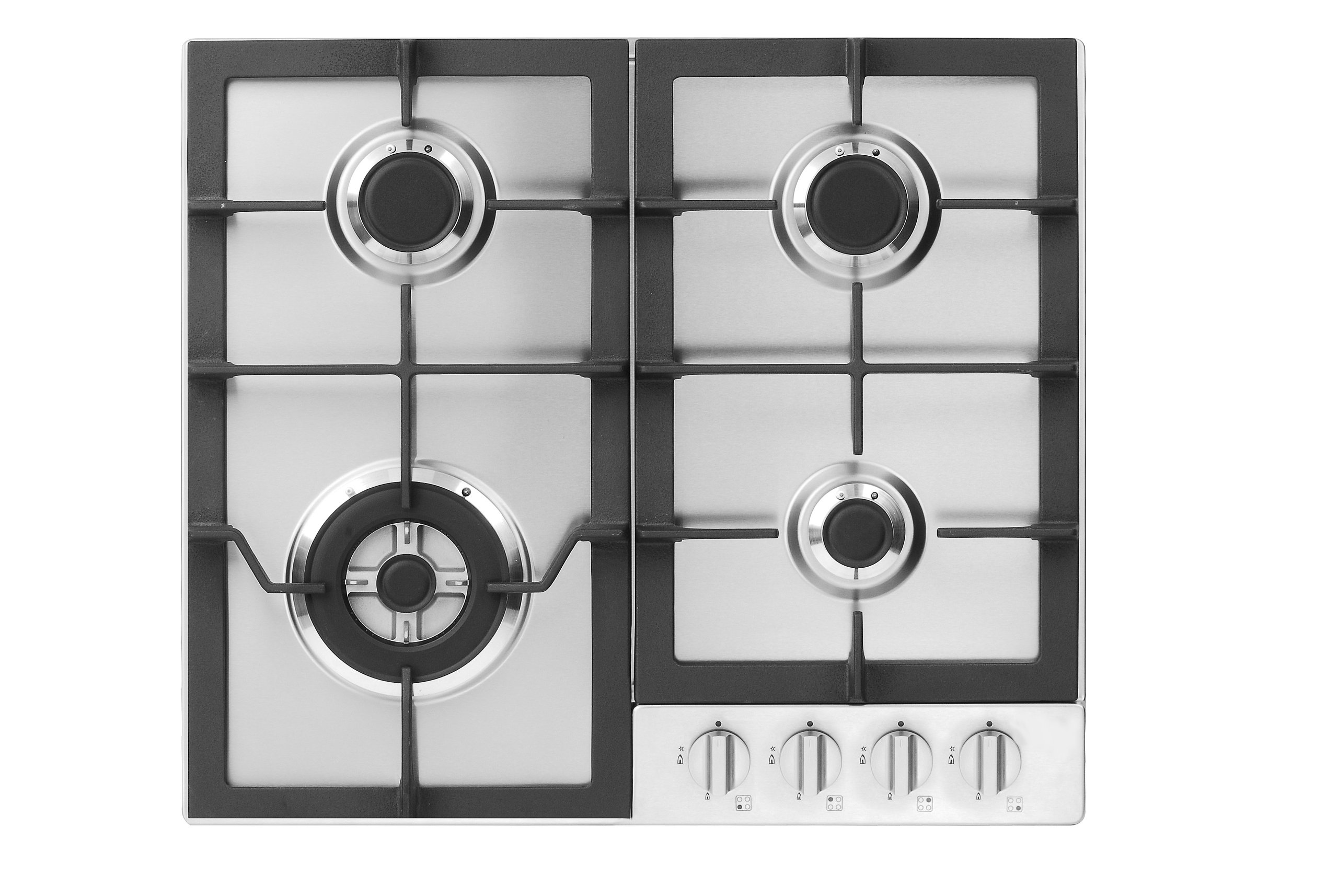

Image: Fagor FA-640STX 4-Burner Gas Cooktop. This image shows the stainless steel surface, four sealed burners with their grates, and the front-mounted metallic control knobs.

Funtzionamendu-argibideak

Your Fagor FA-640STX cooktop features four powerful sealed burners and a universal ignition system for reliable performance.

Erregailu bat piztea

1. Ensure all burner caps and grates are correctly positioned.
2. Push down and turn the desired metallic control knob counter-clockwise to the "HIGH" position. You will hear a clicking sound as the universal ignition system sparks.
3. Once the burner ignites, continue to hold the knob down for a few seconds to allow the flame failure safety device to engage.
4. Release the knob and adjust the flame to your desired cooking level.

Erregailu motak

• Standard Sealed Burners: Provide consistent heat for various cooking tasks.
• Triple Crown Burner (16,000 BTU/h): Located typically at the front or center, this high-power burner is ideal for rapid boiling, searing, and wok cooking.

Suaren Hutsegitearen Segurtasun Gailua

Each burner is equipped with a flame failure safety device. If a flame accidentally extinguishes during operation, this device will automatically cut off the gas supply to that burner, preventing gas leaks. If a flame goes out, turn the control knob to the "OFF" position and wait for at least one minute before attempting to re-ignite.

Mantentzea eta Garbiketa

Garbiketa eta mantentze erregularrak zure sukaldeko plakaren iraupena eta errendimendu optimoa bermatuko ditu.

• Garbitu aurretik: Always ensure the cooktop is cool and all control knobs are in the "OFF" position. Disconnect power if performing deep cleaning.
• Altzairu herdoilgaitzezko gainazala: Clean with a soft cloth and a mild detergent or a specialized stainless steel cleaner. Always wipe in the direction of the grain to prevent scratching. Avoid abrasive cleaners or scouring pads.
• Erregailu itxiak: The sealed design helps contain spills. Clean burner caps and rings with warm soapy water. Ensure they are completely dry before reassembling. Do not immerse the ignition electrodes in water.
• Interlocking Continuous Grates: These grates can be removed for cleaning. Wash with warm soapy water or place in a dishwasher if recommended by the manufacturer (check specific product details). Ensure they are dry before placing them back on the cooktop.
• Kontrol-mantokiak: The metallic knobs can be pulled off for cleaning. Wash with warm soapy water and dry thoroughly.

Arazoak konpontzea

Zerbitzuarekin harremanetan jarri aurretik, berriroview arazo eta irtenbide ohikoenak hauek dira:

Zehaztapenak

Note: Specifications are subject to change without notice. Refer to your product packaging or Fagor's official webinformazio berrienaren gunea.

Bermearen informazioa

Specific warranty details for the Fagor FA-640STX Gas Cooktop are typically provided with the product at the time of purchase. Please refer to the warranty card or documentation included in your product packaging for terms, conditions, and registration information. Keep your proof of purchase for warranty claims.

Bezeroarentzako Arreta

For further assistance, technical support, or to inquire about replacement parts, please contact Fagor Commercial customer service or visit their official webgunea.
