KeylessOption Key Fob Replacement for Toyota Camry/Corolla (2007-2010)

Sarrera

This manual provides essential information for the KeylessOption KPT1621 key fob replacement, designed for specific Toyota Camry and Corolla models. It covers compatibility, package contents, programming requirements, and operational guidelines to ensure proper use.

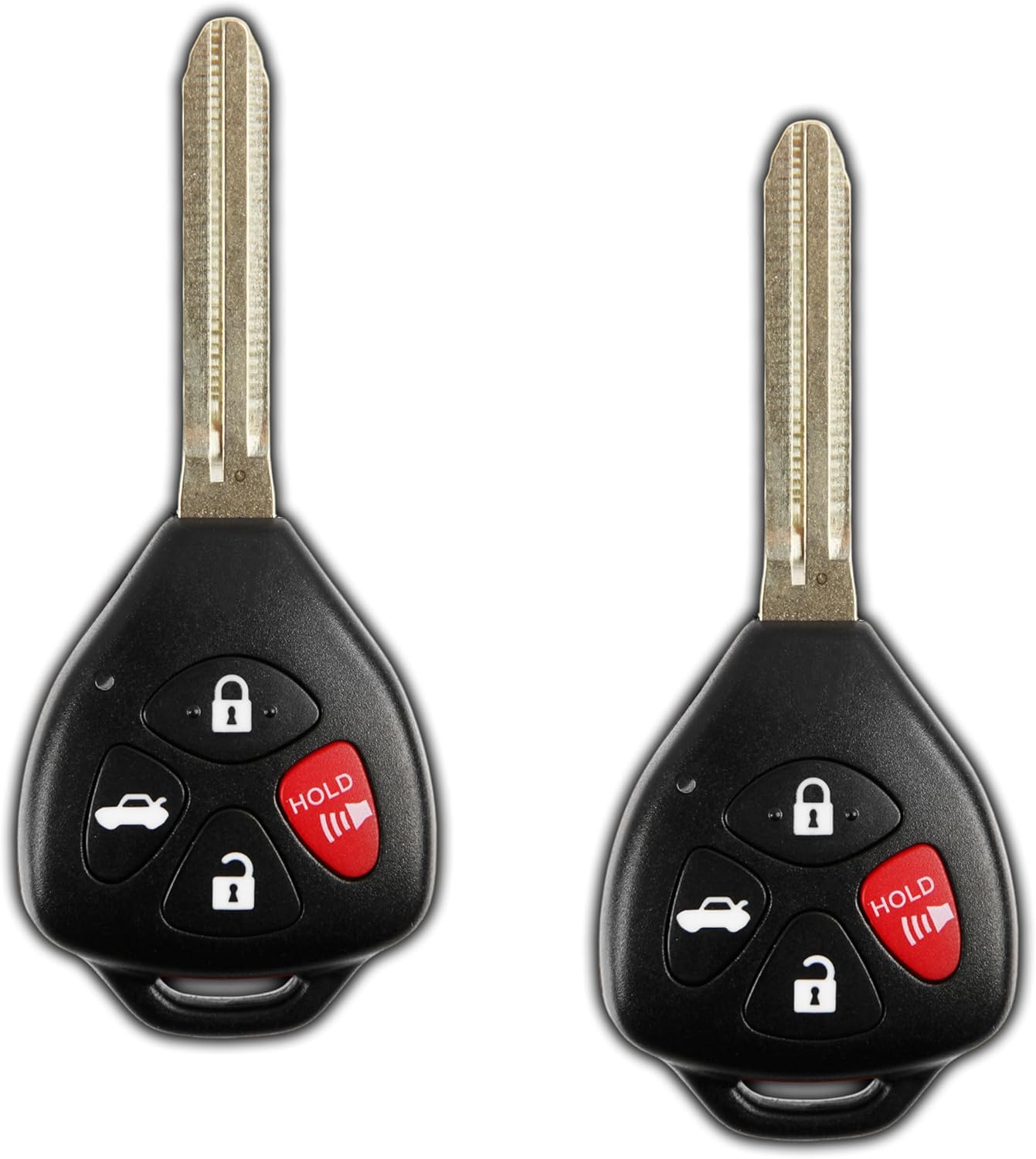

This image displays two KeylessOption KPT1621 key fobs, showing their front face with the four control buttons and the integrated key blade.

Bateragarritasuna

This key fob is compatible with the following vehicle models and years:

• Toyota Camry: 2007, 2008, 2009, 2010
• Toyota Corolla: 2007, 2008, 2009, 2010

Bateragarritasun ohar garrantzitsuak:

• Your original key must have a small dot or dimple at the base of the key where it meets the head.
• If your original key has a small "G" stamped on it, this replacement key will EZ lana.
• Replaces Part Numbers: 89070-12380, 89070-42670
• FCC ID: HYQ12BBY

This image illustrates the back of a key fob, highlighting the location to check for compatibility markings and listing the compatible FCC ID (HYQ12BBY) and part numbers (89070-06231, 8907006231, 89070-06232) and chip type (4D67).

Paketearen edukia

Pakete bakoitzak elementu hauek ditu:

• KeylessOption Key Fob Replacement (quantity as purchased)
• Pre-installed CR2032 Lithium Cell Batteries
• Key Ring Loops

This image displays the typical contents of the KeylessOption key fob package, including the key fobs, key ring loops, and pre-installed CR2032 batteries.

Konfigurazioa eta Programazioa

Professional programming by a dealer or locksmith is required for this key fob to function with your vehicle.

This key fob is not self-programmable. Attempting to program it without specialized equipment may result in damage or improper function. Contact a certified automotive locksmith or your local Toyota dealership for programming services.

This image emphasizes the requirement for professional programming by a locksmith or dealership for the key fob to operate correctly.

Funtzionamendu-argibideak

Once programmed, the key fob provides remote access to your vehicle's locking and alarm functions. The buttons on the key fob perform the following actions:

• Blokeatzeko botoia: Press once to lock all vehicle doors.
• Desblokeatzeko botoia: Press once to unlock the driver's door, press twice to unlock all doors.
• Trunk Release Button: Press and hold to open the vehicle's trunk.
• Panic Button (HOLD): Sakatu eta eutsi ibilgailuaren alarma-sistema aktibatzeko. Sakatu berriro desaktibatzeko.

This image illustrates the functions of each button on the 4-button key fob: Lock, Unlock, Trunk, and Panic.

Mantentzea

Bateria ordezkatzea

The key fob uses a CR2032 lithium coin cell battery. When the remote's range decreases or it stops responding, the battery may need replacement.

1. Kontu handiz bereizi giltza-erregulagailuaren bi erdiak casing using a small flat-head screwdriver or a coin.
2. Kendu CR2032 bateria zaharra.
3. Sartu CR2032 bateria berri bat alde positiboa (+) gora begira duela.
4. Align the two halves of the key fob and snap them back together securely.

Ensure proper battery orientation to avoid damage to the key fob.

Arazoak konpontzea

• Key Fob Not Responding:
  • Check battery: Replace the CR2032 battery if it's old or depleted.
  • Reprogramming: If the battery was replaced or the fob was dropped, it might require reprogramming by a locksmith or dealer.
  • Compatibility: Double-check that your vehicle and original key are compatible with this model (refer to the Compatibility section).
• Sorta mugatua:
  • Weak battery: Replace the CR2032 battery.
  • Interference: Ensure no strong radio frequency sources are nearby.
• Key Blade Not Working in Ignition:
  • This key fob requires professional cutting and programming of the transponder chip for ignition functionality. If only the remote functions were programmed, the key blade will not start the car.

Zehaztapenak

Bermea eta Laguntza

This KeylessOption product is an aftermarket replacement. For specific warranty information or technical support, please contact KeylessOption directly through their official webwebgunea edo bezeroarentzako arreta-zerbitzuko kanalak. Gorde erosketa-agiria berme-erreklamazioetarako.
