1. Sarrera
This manual provides essential information for the safe and efficient use of your EBL AAA Rechargeable Batteries and C807 Smart Battery Charger. Please read this manual thoroughly before operating the product and retain it for future reference.
Paketearen edukia:
- EBL AAA NiMH Rechargeable Batteries (8 Counts)
- EBL C807 Battery Charger for AA/AAA NiMH/NiCd Batteries (1)
- Micro USB Charging Cable (1)
- Battery Storage Cases (2)
This image displays the complete package contents, including the white C807 charger, eight EBL AAA 1100mAh rechargeable batteries, and a white Micro USB charging cable. Two clear plastic battery storage cases are also visible.
2. Konfigurazioa
The EBL C807 charger is designed for ease of use and wide compatibility. Follow these steps to set up your charger and begin charging your batteries.
2.1 Connecting the Charger:
Connect the Micro USB charging cable to the charger's input port. The charger can be powered by various sources, including a power bank, wall adapter, car charger, or PC USB port. Ensure the power source provides sufficient current for optimal charging.

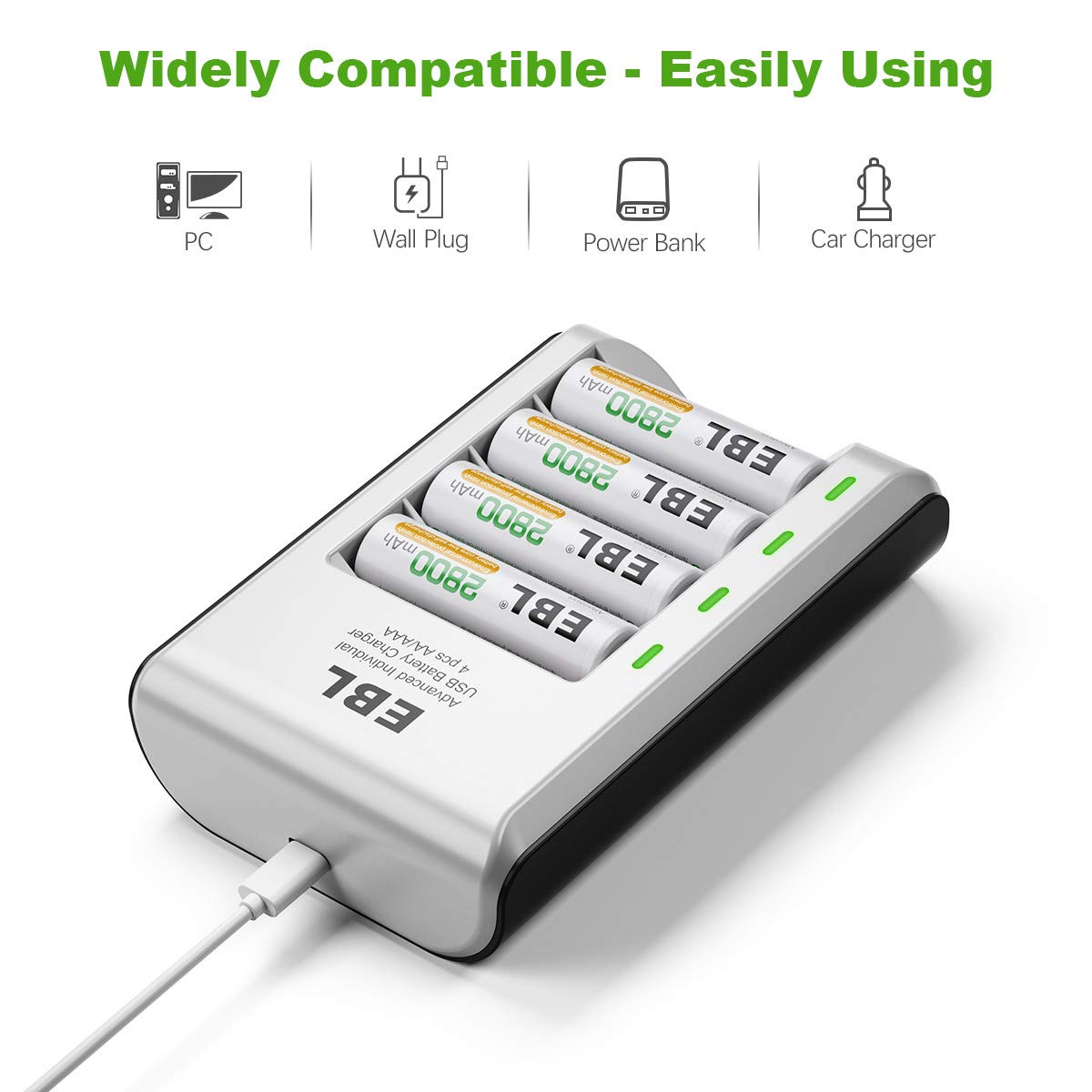

This image shows the EBL C807 charger connected via its Micro USB port, with icons above indicating its compatibility with PC, Wall Plug, Power Bank, and Car Charger, highlighting its versatile power options.
2.2 Inserting Batteries:
The C807 charger supports both AA and AAA Ni-MH/Ni-Cd rechargeable batteries. It can charge 1, 2, 3, or 4 batteries simultaneously. Insert the batteries into the charging slots, ensuring correct polarity (+ and - ends match the markings on the charger).
This image illustrates the C807 charger's ability to charge different battery sizes (AA and AAA) simultaneously and independently. It shows batteries of varying capacities inserted into the four charging slots, with green indicator lights suggesting active charging.
3. Funtzionamendu-argibideak
The C807 charger features smart and easy-to-understand LED indicators to show the charging status of each battery independently.
3.1 Charging Process:
- When a battery is inserted and charging, the corresponding LED indicator will glow GORRIA.
- Bateria guztiz kargatuta dagoenean, LED adierazlea piztuko da BERDEA.
The included EBL AAA batteries come pre-charged with 15%~20% capacity by solar energy, allowing for immediate use upon receipt.
This image highlights the smart LED independent charging feature of the C807 charger. It clearly labels that a RED light indicates "Charging" and a GREEN light indicates "Charge completed," providing a visual guide for users.
4. Mantentzea
Proper maintenance ensures the longevity of your EBL batteries and charger.
4.1 Battery Storage:
Use the provided battery storage cases to keep your batteries organized and protected when not in use or when traveling. This helps prevent accidental short circuits and keeps them clean.
This image displays two clear plastic battery storage cases, each holding multiple EBL AAA rechargeable batteries. The cases are designed for convenient and secure storage, making it easier to collect and transport batteries.
4.2 Cleaning the Charger:
Periodically wipe the charger and battery contacts with a dry, soft cloth to remove dust or debris. Do not use liquid cleaners or immerse the charger in water.
4.3 Arreta Orokorra:
Avoid exposing the charger and batteries to extreme temperatures, direct sunlight, or high humidity. Do not attempt to charge alkaline or Lithium batteries with this charger.
5. Arazoak
If you encounter issues with your EBL C807 charger or batteries, refer to the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Battery not charging (no LED light or constant red) | Incorrect battery insertion, poor contact, battery fully charged, or battery fault. | Ensure correct polarity. Clean battery contacts and charger terminals. If the light is green, the battery is already charged. Try a different battery to confirm charger function. |
| Battery pops out of charging spot | Improper seating of the battery in the slot. | Ensure the battery is firmly seated in the charging slot. Gently press down until it clicks into place, if applicable. |
| Batteries do not hold a charge for long | Battery aging, improper charging, or high discharge rate in device. | Recharge batteries fully. Ensure the charger is connected to a stable power source. Consider replacing older batteries if performance significantly degrades over time. |
| Kargagailua ez da pizten | No power supply, faulty cable, or charger malfunction. | Check power outlet and USB connection. Try a different USB cable or power adapter. |
Note: The EBL C807 charger incorporates multiple protection features including short-circuit protection, over-voltage protection, over-charge protection, over-current protection, over-heat protection, and reverse polarity protection for safe operation.
This image visually represents the various safety protections built into the EBL C807 charger, including short-circuit, over-voltage, over-charge, over-current, over-heat, and reverse polarity protection, ensuring a safer charging experience.
6. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | EBL |
| Modelo zenbakia | 4336302306 (C807) |
| Bateria mota bateragarriak | AA/AAA Ni-MH/Ni-Cd Rechargeable Batteries |
| Bateriak barne | 8 AAA 1100 mAh NiMH Rechargeable Batteries |
| Irteera boltage | 1.2 Volt |
| Paketearen neurriak | 5 x 3.8 x 2.4 hazbete |
| Elementuaren pisua | 0.27 kilogramo (9.59 ontza) |
| Kolorea | Green, Red (referring to indicator lights) |
| Fabrikatzailea | EBL |
| Eskuragarri dagoen lehen data | 17ko irailaren 2014a |
| Ziurtagiria | ETL Ziurtagiria |
7. Bermea eta Laguntza
For any product inquiries, technical support, or warranty claims, please contact EBL customer service directly. Refer to the official EBL webgunea edo erosketa-dokumentazioa kontsultatu harremanetarako informazio eguneratuena lortzeko.
A digital version of the user guide may be available for download from the manufacturer's website or the product listing page. (Link to PDF: EBL User Guide PDF)
Please note: Specific warranty terms and conditions may vary. It is recommended to register your product (if applicable) and retain your proof of purchase for warranty purposes.
