Hikvision DS-7316HQHI-SH 16-Channel Tribrid DVR User Manual

1. Sarrera

The Hikvision DS-7316HQHI-SH is a 16-channel Tribrid Digital Video Recorder (DVR) designed for advanced surveillance systems. This DVR supports Turbo HD, analog, and 1080P IP cameras, offering versatile compatibility for various security setups. It features H.264 video compression for efficient storage and supports auto-detection of camera types. This manual provides essential information for the proper installation, operation, and maintenance of your DVR system.

2. Segurtasun-argibideak

Please read these safety instructions carefully before operating the device to prevent injury or damage.

• Ziurtatu elikadura hornidura boltage is stable and meets the device's requirements.
• Do not place the device in direct sunlight, near heat sources, or in environments with high humidity or dust.
• Avoid placing heavy objects on top of the DVR.
• Use only Hikvision-approved accessories and power adapters.
• Deskonektatu energia mantentze-lan edo instalazio prozedurak egin aurretik.
• Properly ground the device to prevent electrical shock.

3. Paketearen edukia

Verify that all items are present in the package. If any items are missing or damaged, contact your supplier.

• Hikvision DS-7316HQHI-SH DVR Unit
• Elikatze-moldagailua
• USB sagua
• SATA Cables (for HDD connection)
• Torlojuak (HDD instalatzeko)
• Hasierako gida azkarra

4. Produktua amaitu daview

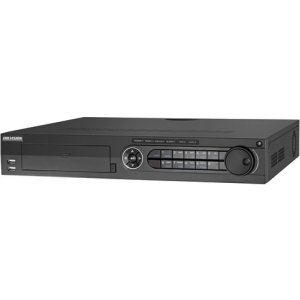

4.1 Aurreko panela

The front panel of the DVR provides access to essential controls and indicators. It typically includes:

• USB atakak: For connecting a mouse, USB flash drive, or external storage.
• Egoeraren Adierazleak: LEDs for power, HDD activity, and network status.
• Kontrol-botoiak: Navigation and selection buttons for menu operation.
• IR hargailua: For remote control (if applicable).

4.2 Atzeko panelaren konexioak

The rear panel houses all the necessary ports for connecting cameras, monitors, network, and power. Key connections include:

• Bideoaren sarrera: BNC connectors for 16 Turbo HD/Analog cameras.
• Bideo irteera: HDMI eta VGA atakak monitorearekin konektatzeko.
• Audio sarrera/irteera: RCA konektoreak audio gailuetarako.
• LAN ataka: RJ45 Ethernet port for network connection.
• USB atakak: Periferikoentzako USB ataka gehigarriak.
• Alarma I/O: Terminal blocks for alarm input and output devices.
• Potentzia sarrera: DC 12V power jack.

5. Konfigurazioa

5.1 Hardwarearen instalazioa

1. Hard Disk Drive (HDD) Installation:
   • Kendu eta kendu DVRaren goiko estalkia.
   • Connect the SATA data cable and power cable to the HDD.
   • Align the HDD with the screw holes at the bottom of the DVR chassis and secure it with the provided screws.
   • Jarri goiko estalkia berriro eta finkatu torlojuekin.
2. Kameraren konexioak: Connect your Turbo HD, analog, or IP cameras to the corresponding video input ports on the rear panel using BNC connectors. For IP cameras, ensure they are connected to the same network as the DVR.
3. Monitorearen konexioa: Konektatu monitore bat atzeko paneleko HDMI edo VGA irteera atakara.
4. Saguaren konexioa: Connect the USB mouse to a USB port on the front or rear panel.
5. Sare-konexioa: Connect an Ethernet cable from your router/switch to the LAN port on the DVR.
6. Potentzia-konexioa: Connect the power adapter to the DVR's power input and then plug it into a power outlet.

5.2 Hasierako piztea eta konfigurazioa

After connecting all hardware, power on the DVR. The system will boot up, and you will be prompted to set up basic configurations.

1. Create Admin Password: Follow the on-screen prompts to create a strong administrator password.
2. Activate HDD: The newly installed HDD will need to be initialized or formatted by the DVR. Navigate to Menu > HDD > HDD Management diskoa formateatzeko.
3. Sarearen ezarpenak: Configure network parameters (IP address, subnet mask, gateway, DNS) to enable remote access and IP camera integration. You can use DHCP or static IP.
4. Data eta ordua: Ezarri data, ordua eta ordu-zona zuzenak.
5. Kameraren detekzioa: The DVR will automatically detect connected Turbo HD and analog cameras. For IP cameras, you may need to add them manually via Menu > Camera > IP Camera.

6. Funtzionamendu-argibideak

6.1 Erabiltzaile interfazearen nabigazioa

Use the connected USB mouse to navigate the DVR's graphical user interface (GUI). Right-click to access the main menu, and left-click to select options.

• Zuzenean View: Displays real-time video feeds from all connected cameras.
• Menu nagusia: Provides access to all system settings, recording, playback, and advanced features.
• Erreprodukzioa: Re aukera ematen duviewgrabatutako fooatage.
• Babeskopia: For exporting recorded video to a USB device.

6.2 Grabaketa-konfigurazioa

To configure recording settings:

1. Joan zaitez Main Menu > Record > Parameters.
2. Select the desired camera and configure settings such as resolution, frame rate, and bit rate.
3. Nabigatu Main Menu > Record > Schedule to set up continuous, motion-detection, or alarm-triggered recording schedules for each camera.

6.3 Erreprodukzioa

To play back recorded footage:

1. Zuzenetik view, right-click and select Erreprodukzioa, edo joan Menu nagusia > Erreproduzitu.
2. Hautatu gorde nahi dituzun kamera(k) eta data/ordu tarteaview.
3. Use the timeline and control buttons (play, pause, fast forward, rewind) to navigate through the footage.

6.4 Urruneko sarbidea

To access your DVR remotely:

• Ensure the DVR is connected to the internet and network settings are correctly configured.
• Download and install the Hik-Connect app on your mobile device or the iVMS-4200 client software on your computer.
• Register an account and add your DVR using its serial number or QR code.
• Follow the app/software instructions to view zuzeneko jarioak, grabazioak erreproduzitu eta ezarpenak urrunetik kudeatu.

7. Mantentzea

7.1 Disko gogorraren kudeaketa

Regularly check the status of your hard drive to ensure optimal recording performance. Go to Main Menu > HDD > HDD Management to view disk status, remaining capacity, and perform formatting if necessary. It is recommended to format the HDD periodically (e.g., every 6-12 months) to maintain performance, after backing up any critical data.

7.2 Firmware eguneraketak

Keep your DVR's firmware updated to benefit from new features, security enhancements, and bug fixes. Download the latest firmware from the official Hikvision website. Update the firmware via USB or network through Main Menu > Maintenance > Upgrade.

7.3 Garbiketa

Periodically clean the exterior of the DVR with a soft, dry cloth. Ensure ventilation openings are free from dust to prevent overheating. Do not use liquid cleaners or aerosols directly on the device.

8. Arazoak

9. Zehaztapenak

10. Bermea eta Laguntza

Hikvision products typically come with a limited warranty. For detailed warranty information, please refer to the warranty card included with your product or visit the official Hikvision website. For technical support, product registration, or service inquiries, please contact Hikvision customer support or your authorized dealer.

Ofiziala Webgunea: www.hikvision.com
