User Manual for HMF 49203-11 Furniture Safe

1. Produktua amaitu daview

The HMF 49203-11 Furniture Safe is designed to provide secure storage for your valuables at home or in the office. This robust safe features a solid single-walled steel body and door, equipped with a high-security double-bit lock. Its compact design allows for discreet placement within furniture or direct mounting to a wall or floor.

Figure 1: The HMF 49203-11 Furniture Safe with its door open, showing the interior and the double-bit key inserted into the lock.

Ezaugarri nagusiak hauek dira:

• High-security double-bit lock with double bolt locking mechanism.
• Solid single-walled steel body and door, with a 4mm door thickness.
• Pre-drilled holes for secure wall or floor mounting.
• Right-hand door hinge with concealed hinges for enhanced security.
• Compact dimensions suitable for furniture integration.

2. Segurtasun-argibideak

Please read and understand all safety instructions before installing and operating your safe. Failure to follow these instructions may result in injury or damage to the safe or its contents.

• Always keep the keys in a secure location away from the safe and out of reach of unauthorized persons.
• Do not store the keys inside the safe.
• Ensure the safe is securely mounted to a wall or floor to prevent unauthorized removal.
• Avoid placing the safe in areas with extreme temperatures or high humidity.
• Do not attempt to force the lock if the key does not turn smoothly.
• Keep children away from the safe and its keys.

3. Paketearen edukia

Egiaztatu behean zerrendatutako elementu guztiak zure paketean daudela:

• 1 x HMF Furniture Safe
• 2 x Double-bit Keys
• 4 x Finkatzeko torlojuak
• 4 x Wall Plugs (Anchors)
• 1 x Shelf (removable)

4. Konfigurazioa eta instalazioa

For optimal security, it is highly recommended to securely fix the safe to a wall or floor using the provided mounting hardware.

4.1 Kokapena aukeratzea

Select a discreet and secure location for your safe. Ensure the surface (wall or floor) is strong enough to support the weight of the safe and its contents.

4.2 Muntatzeko jarraibideak

1. Markatu zulatzeko puntuak: Place the safe in the desired mounting position. Using a pencil, mark the locations of the pre-drilled holes on the back or bottom of the safe onto the wall or floor.


2. Irudia: Atzealdea view of the safe, highlighting the pre-drilled holes for secure mounting.

2. Zulatzeko zuloak: Using an appropriate drill bit for your wall/floor material, drill holes at the marked points. Ensure the depth and diameter of the holes match the provided wall plugs.
3. Txertatu hormako tapoiak: Insert the wall plugs into the drilled holes. Tap them gently with a hammer until they are flush with the surface.
4. Secure the Safe: Align the safe's holes with the installed wall plugs. Insert the fixing screws through the safe's holes and tighten them firmly into the wall plugs using a suitable screwdriver or wrench.

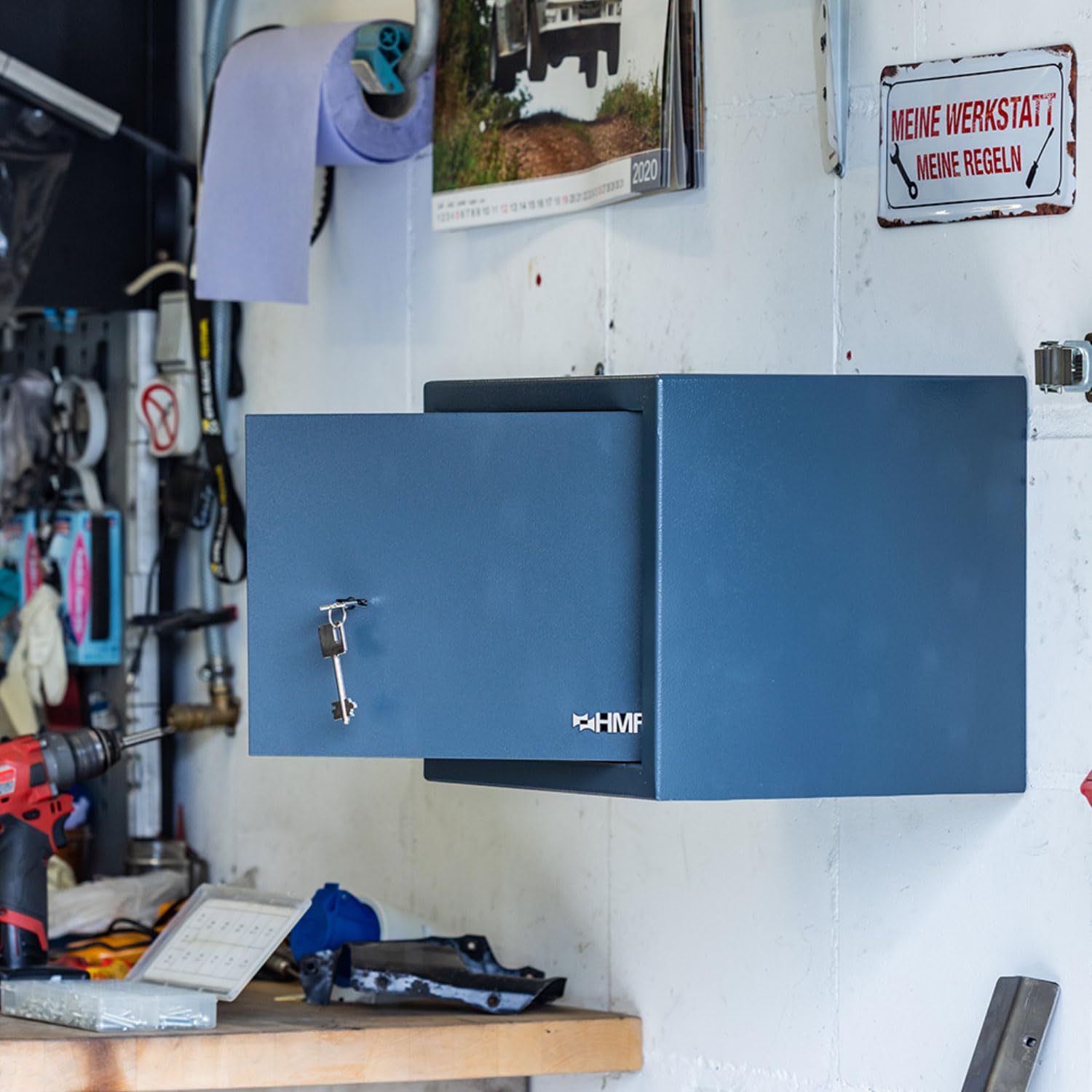

Figure 3: The HMF safe securely installed on a wall, demonstrating a typical mounting scenario.
5. Proba egonkortasuna: After tightening, gently try to move the safe to ensure it is securely fixed and cannot be easily dislodged.

5. Funtzionamendu-argibideak

Your HMF safe operates with a traditional double-bit key lock, providing reliable security.

5.1 Kutxa gotorra irekitzea

1. Insert one of the provided double-bit keys into the keyhole on the safe door.

4. irudia: Zehaztutako irudia view of the double-bit key properly inserted into the safe's lock mechanism.
2. Turn the key clockwise (or counter-clockwise, depending on the specific lock mechanism) until you hear the locking bolts retract.
3. Ireki atea.


Figure 5: The safe door is fully open, revealing the interior compartment and the key still in the lock.

5.2 Kutxa gotorra ixtea eta blokeatzea

1. Ensure the door is fully closed and flush with the safe body.

Figure 6: The safe door is securely closed and locked, presenting a flush exterior.
2. Insert the key into the keyhole (if not already there) and turn it counter-clockwise (or clockwise) until the locking bolts extend and the door is secured.
3. Remove the key and store it in a safe, separate location.

6. Mantentzea

Regular maintenance will ensure the longevity and proper functioning of your HMF safe.

• Garbiketa: Garbitu kutxa gotorraren kanpoaldea oihal leun eta lehor batekinamp oihal. Saihestu akabera kaltetu dezaketen garbitzaile edo disolbatzaile urratzaileak erabiltzea.
• Blokeatzeko mekanismoa: Periodically apply a small amount of graphite powder or a non-greasy lubricant to the keyhole to ensure smooth operation of the lock. Do not use oil-based lubricants.
• Bisagrak: Check the door hinges for any signs of wear or looseness. Tighten screws if necessary.
• Arreta gakoa: Handle the keys with care. Avoid bending or damaging them. If a key is damaged, contact HMF support for assistance.

7. Arazoak

If you encounter any issues with your HMF safe, refer to the following common problems and solutions:

If the problem persists, please contact HMF customer support.

8. Zehaztapenak

9. Bermea eta Laguntza

HMF products are manufactured to high-quality standards. For information regarding warranty coverage and terms, please refer to the documentation provided with your purchase or visit the official HMF webgunea.

For technical support, spare parts, or any other inquiries, please contact HMF customer service. You can find contact information on the HMF Brand Store on Amazon edo haien ofizialaren bidez webgunea.
