vhbw Micro USB Charger Cable Instruction Manual

Sarrera

This manual provides essential information for the safe and effective use of your vhbw Micro USB Charger Cable. Please read these instructions carefully before using the product and retain them for future reference. This charger is designed to provide power to compatible Sony Handycam DCR-HC series camcorders.

Paketearen edukia

Egiaztatu behean zerrendatutako elementu guztiak zure paketean sartuta daudela:

• 1 x Charging Block
• 1 x USB Cable with Micro-USB connection (40 cm length)

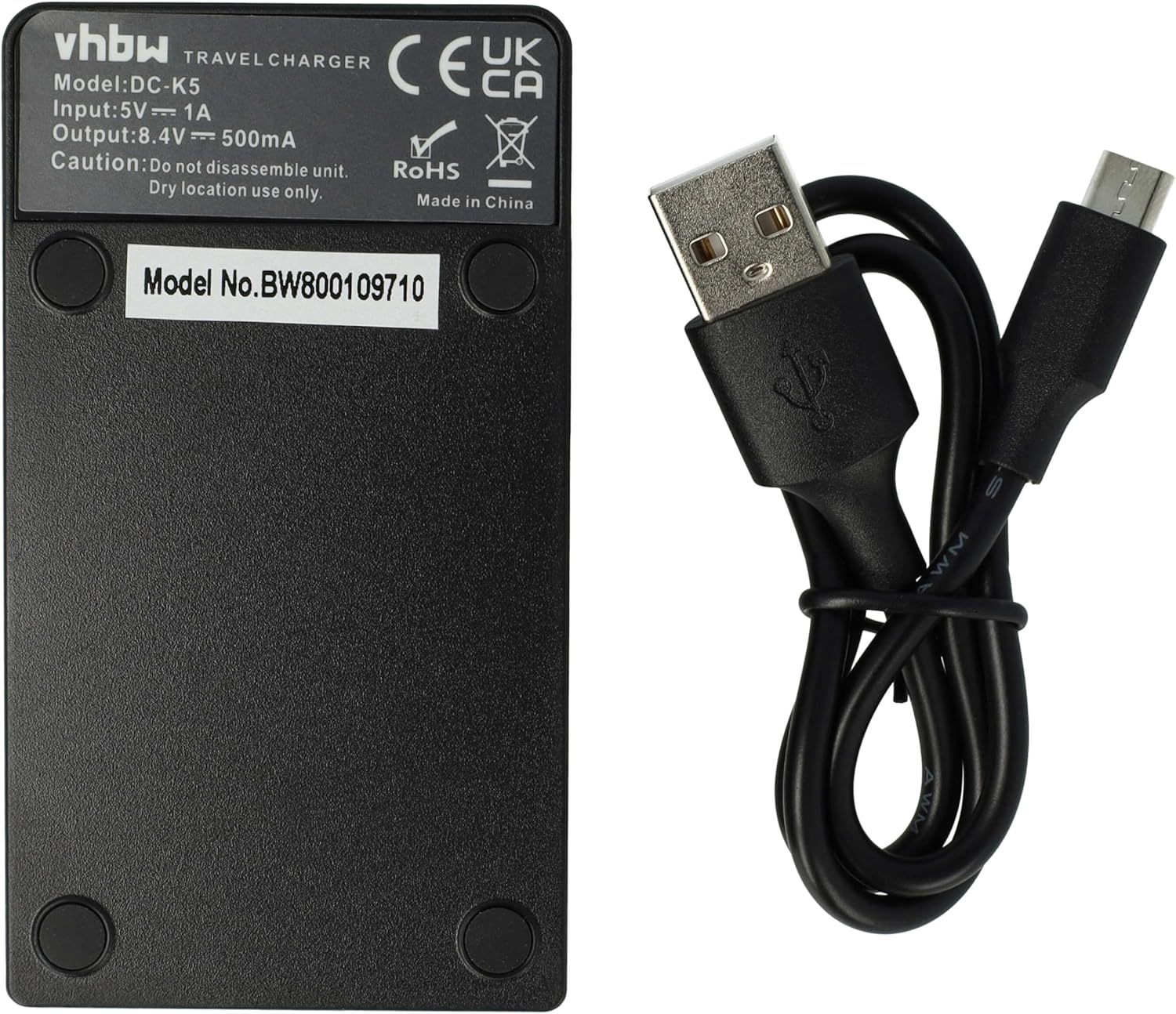

Image: The vhbw charging block and the included micro USB cable.

Konfigurazioa

Follow these steps to set up your vhbw Micro USB Charger Cable:

1. Konektatu USB kablea: Insert the micro-USB end of the cable into the corresponding port on the charging block.
2. Konektatu energiara: Insert the standard USB-A end of the cable into a compatible USB power source (e.g., a wall adapter, computer USB port, or power bank).
3. Sartu bateria: Carefully insert your compatible Sony Handycam battery into the charging slot of the charging block, ensuring correct polarity.

Image: Close-up of the micro-USB and standard USB-A connectors of the cable.

Irudia: Xehetasun handikoa view of the battery charging slot on the vhbw charging block.

Funtzionamendu-argibideak

Once the charger is set up and the battery is inserted, the charging process will begin automatically. The charging block typically features an indicator light (often an LED) that changes color or state to show the charging status (e.g., red for charging, green for fully charged). Refer to the specific indicator on your charging block for its status.

When the battery is fully charged, remove it from the charging block and disconnect the charger from the power source.

Mantentzea

To ensure the longevity and proper functioning of your charger, follow these maintenance guidelines:

• Biltegiratzea: Store the charger and cable in a dry location when not in use. Avoid humid or excessively hot environments.
• Garbiketa: Use a soft, dry cloth to clean the charger and cable. Do not use liquid cleaners or solvents.
• Manipulazioa: Do not disassemble the unit. Avoid dropping or subjecting the charger to strong impacts.
• Kableen zainketa: Do not bend or crimp the cable excessively. Always pull by the plug, not the cable, when disconnecting.

Arazoak konpontzea

If you encounter issues with your charger, consider the following common solutions:

• Kargagailua ez dabil:
  • Ensure the USB cable is securely connected to both the charging block and the power source.
  • Try a different USB power source (e.g., another wall adapter or computer port).
  • Verify that the power source is active and providing power.
• Bateria ez da kargatzen:
  • Ensure the battery is correctly inserted into the charging slot with the correct polarity.
  • Confirm that the battery is compatible with this charger model.
  • Check if the battery itself is damaged or at the end of its lifespan.
• Adierazle-argia ez dago piztuta:
  • Follow the steps for "Charger Not Working" above.
  • Some chargers only illuminate the indicator when a battery is present and charging.

Arazoak jarraitzen badu, jarri harremanetan bezeroarentzako laguntza-zerbitzuarekin laguntza gehiago lortzeko.

Zehaztapenak

Image: The back label of the vhbw charging block, displaying input and output specifications.

Bateragarritasuna

This vhbw Micro USB Charger Cable is compatible with the following Sony Handycam camcorder models:

• Sony Handycam DCR-HC53E
• Sony Handycam DCR-HC5E
• Sony Handycam DCR-HC62
• Sony Handycam DCR-HC62E
• Sony Handycam DCR-HC65
• Sony Handycam DCR-HC65E
• Sony Handycam DCR-HC7

Please ensure your device model is listed above for proper compatibility.

Bermea eta Laguntza

For information regarding warranty coverage or technical support, please refer to the retailer or manufacturer's official webgunea. Gorde erosketa-agiria erosketaren frogagiri gisa.
