Valeo 715280 HVAC Air Adjustment Control Motor User Manual

1. Produktua amaitu daview

The Valeo 715280 HVAC Air Adjustment Control Motor is an essential component designed for automotive heating, ventilation, and air conditioning (HVAC) systems. This motor is responsible for precisely controlling the air blend or air distribution within the vehicle's cabin, ensuring optimal temperature and airflow for passenger comfort.

Ezaugarri nagusiak hauek dira:

• Original Equipment (OE) Replacement: Engineered to be an exact replacement for the original part, ensuring a perfect fit and straightforward installation.
• Efficiency and Comfort: Designed to contribute to the efficiency and autonomy of the HVAC system, enhancing cabin comfort while potentially reducing energy consumption.
• Kalitate handiko eraikuntza: Manufactured using premium materials for exceptional precision, reliability, and long-term durability.

Figure 1: The Valeo 715280 HVAC Air Adjustment Control Motor, showing the main motor unit and a separate actuator arm.

2. Segurtasun informazioa

Please read and understand all safety instructions before attempting installation or maintenance. Failure to follow these instructions may result in personal injury or damage to the vehicle.

• Instalazio profesionala gomendatzen da: Installation of automotive components, especially those related to electrical and HVAC systems, should ideally be performed by a qualified technician.
• Deskonektatu energia: Always disconnect the vehicle's battery before working on electrical components to prevent electrical shock or short circuits.
• Erabili tresna egokiak: Ensure you have the correct tools for the job to avoid damaging the motor or surrounding vehicle components.
• Babes-ekipoak jantzi: Use appropriate personal protective equipment, such as gloves and eye protection, during installation.
• Vehicle Specific Instructions: Refer to your vehicle's service manual for specific instructions regarding the removal and installation of HVAC components.

3. Paketearen edukia

Upon opening the package, verify that all components are present and undamaged. The standard package for the Valeo 715280 HVAC Air Adjustment Control Motor typically includes:

• 1x Valeo 715280 HVAC Air Adjustment Control Motor
• 1x Actuator Arm (may be pre-attached or separate, depending on application)

Piezaren bat falta edo hondatuta badago, jarri harremanetan zure hornitzailearekin berehala.

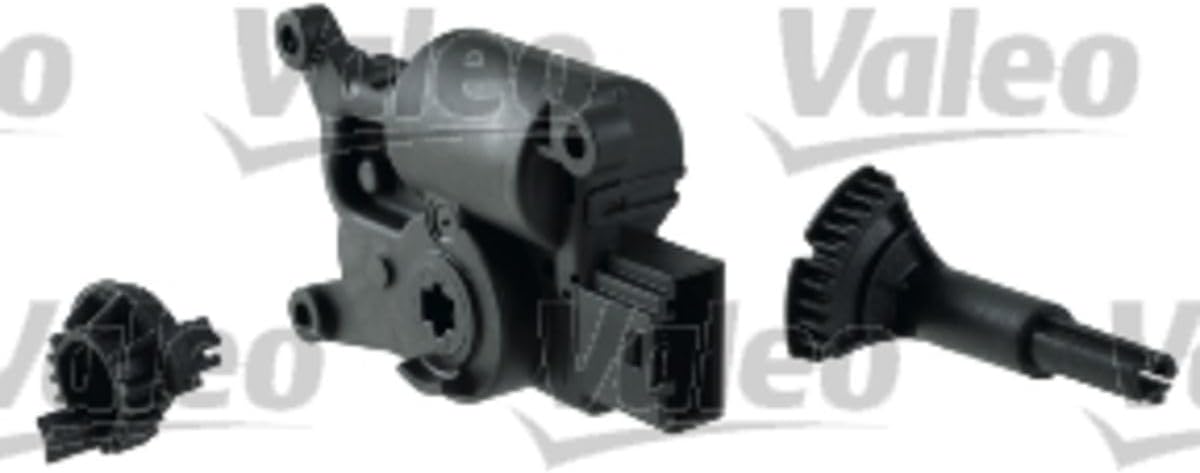

2. irudia: Gehiegizko batview of the motor and its associated parts, illustrating the complete assembly.

4. Konfigurazioa eta instalazioa

The Valeo 715280 motor is designed as an Original Equipment (OE) replacement, meaning it should fit directly into the designated location in your vehicle's HVAC system. However, the exact installation procedure varies significantly between vehicle makes and models. It is highly recommended to consult your vehicle's specific service manual or seek professional assistance for installation.

Instalazio Urrats Orokorrak (Kontsultatu Ibilgailuaren Eskuliburua Xehetasunetarako):

1. Access the HVAC System: Locate and gain access to the existing HVAC air adjustment control motor. This may involve removing dashboard panels, glove compartments, or other interior trim.
2. Deskonektatu energia: Deskonektatu ibilgailuaren bateria arrisku elektrikoak saihesteko.
3. Motor zaharra kendu: Disconnect the electrical connector and any mounting screws or clips securing the old motor. Carefully remove the old motor and its actuator arm.
4. Prepare New Motor: If the actuator arm is separate, attach it to the new Valeo 715280 motor, ensuring it is correctly oriented.
5. Motor berria instalatu: Position the new motor in the designated location. Ensure the actuator arm engages correctly with the blend door or flap mechanism. Secure the motor with its mounting screws or clips.
6. Konektatu elektrizitatea: Konektatu berriro konektore elektrikoa motor berrira.
7. Proba funtzionaltasuna: Before reassembling the interior, reconnect the vehicle's battery and test the HVAC system to ensure the new motor operates correctly and controls airflow as expected.
8. Berriz muntatu: Once functionality is confirmed, reassemble any removed interior panels or trim.

Figure 3: Detail of the electrical connector, which must be securely attached during installation.

5. Motorra martxan jartzea

The Valeo 715280 HVAC Air Adjustment Control Motor operates automatically in response to commands from the vehicle's climate control system. Its function is to move internal blend doors or flaps within the HVAC unit to direct airflow or mix hot and cold air to achieve the desired cabin temperature and distribution.

• Tenperatura kontrola: When you adjust the temperature setting in your vehicle, the climate control system sends a signal to the motor, which then moves a blend door to allow more or less hot/cold air into the cabin.
• Airearen banaketa: When you select different airflow modes (e.g., defrost, floor, vent), the motor adjusts flaps to direct air to the appropriate vents.

No direct user interaction with the motor itself is required after proper installation. Its operation is integrated with the vehicle's climate control interface.

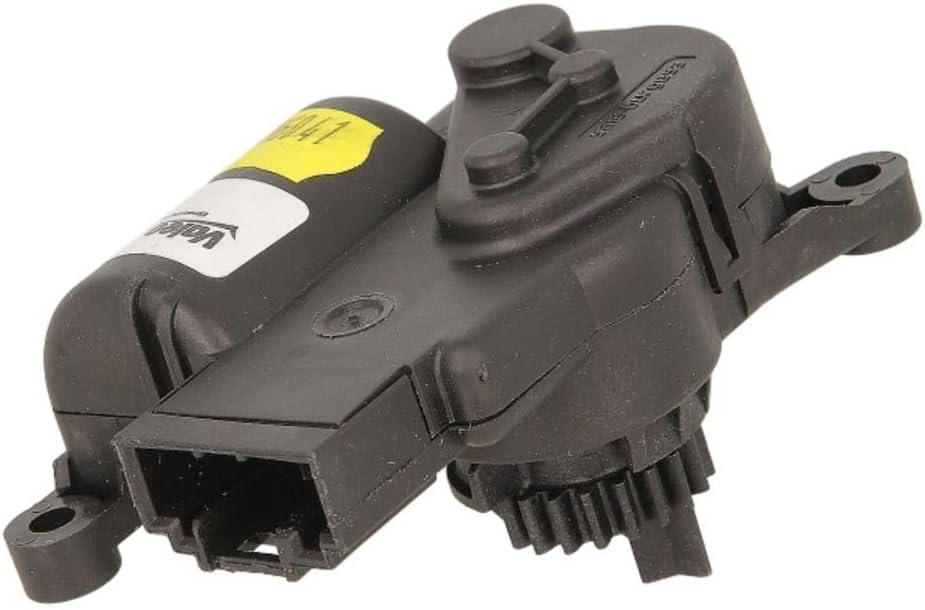

4 irudia: Alboko aldeafile of the motor, showing its compact design and product identification label.

6. Mantentzea

The Valeo 715280 HVAC Air Adjustment Control Motor is designed for long-term reliability and typically requires no routine maintenance. As a sealed electronic and mechanical unit, it is not user-serviceable.

• Mantendu eremua garbi: Ensure the area around the motor within the HVAC system remains free of debris, dust, or obstructions that could impede the movement of blend doors or the motor's operation.
• Saihestu kutsatzaileak: Protect the motor from excessive moisture, chemicals, or extreme temperatures beyond normal automotive operating conditions.
• Regular HVAC System Checks: Periodically have your vehicle's entire HVAC system inspected by a qualified technician to ensure all components, including the air adjustment motor, are functioning optimally.

7. Arazoak

If you experience issues with your vehicle's climate control system after installing the Valeo 715280 motor, consider the following troubleshooting steps. Always consult a professional technician for complex diagnostics and repairs.

• No Airflow Adjustment / Incorrect Temperature:
  • Konexio elektrikoa egiaztatu: Ensure the motor's electrical connector is securely plugged in.
  • Egiaztatu fusibleak: Verify that the relevant HVAC system fuses in your vehicle's fuse box are intact and not blown.
  • Verify Actuator Arm Engagement: Confirm that the motor's actuator arm is properly engaged with the blend door mechanism. If it's dislodged, the motor will operate but not move the door.
  • Eskaneatu Diagnostiko Arazo Kodeak (DTCak): A professional diagnostic scan tool can often identify specific fault codes related to HVAC actuators.
• Clicking or Ticking Noise from Dashboard:
  • This often indicates a motor attempting to move a door that is stuck, or the motor itself is failing internally. Inspect for obstructions in the blend door's path.
• Motorrak ez du erantzuten:
  • Ensure the vehicle's climate control system is powered on and functioning.
  • If all connections and fuses are good, the motor itself may be faulty and require replacement.

For persistent issues, it is advisable to consult a certified automotive technician.

8. Zehaztapenak

9. Bermea eta Laguntza

Valeo products are manufactured to high-quality standards. For specific warranty information regarding your Valeo 715280 HVAC Air Adjustment Control Motor, please refer to the documentation provided with your purchase or visit the official Valeo webgunea. Berme-baldintzek normalean erabilera normalaren ondoriozko fabrikazio-akatsak estaltzen dituzte.

For technical support, installation queries, or warranty claims, please contact your authorized Valeo distributor or the retailer from whom the product was purchased. When contacting support, please have your product model number (715280) and purchase details readily available.

Sareko baliabideak: Informazio gehiago eta produktuaren xehetasunak lortzeko, bisita dezakezu official Valeo webgunea.
