Winjet CTWJ-0043-BC: Nissan Frontier 1998-04 Altezza Tail Lights

Produktua amaituview

This manual provides detailed instructions for the installation, operation, and maintenance of your Winjet CTWJ-0043-BC Altezza Tail Lights, designed specifically for the Nissan Frontier 1998-2004 models. These tail lights are engineered to provide enhanced visibility and a modern aesthetic for your vehicle, ensuring compliance with SAE/DOT standards for street use.

Ezaugarri nagusiak:

• Completed set includes Left and Right Sides.
• SAE/DOT Compliance for street use, ensuring legal and safe operation.
• Constructed from High Quality OEM Grade ABS Plastic for durability.
• Designed for bolt-on installation, requiring no modification for a plug-and-play setup.
• Waterproof design for reliable performance in various weather conditions.

Bateragarritasuna

These tail lights are compatible with the following vehicle model:

• Nissan Frontier: 1998, 1999, 2000, 2001, 2002, 2003, 2004

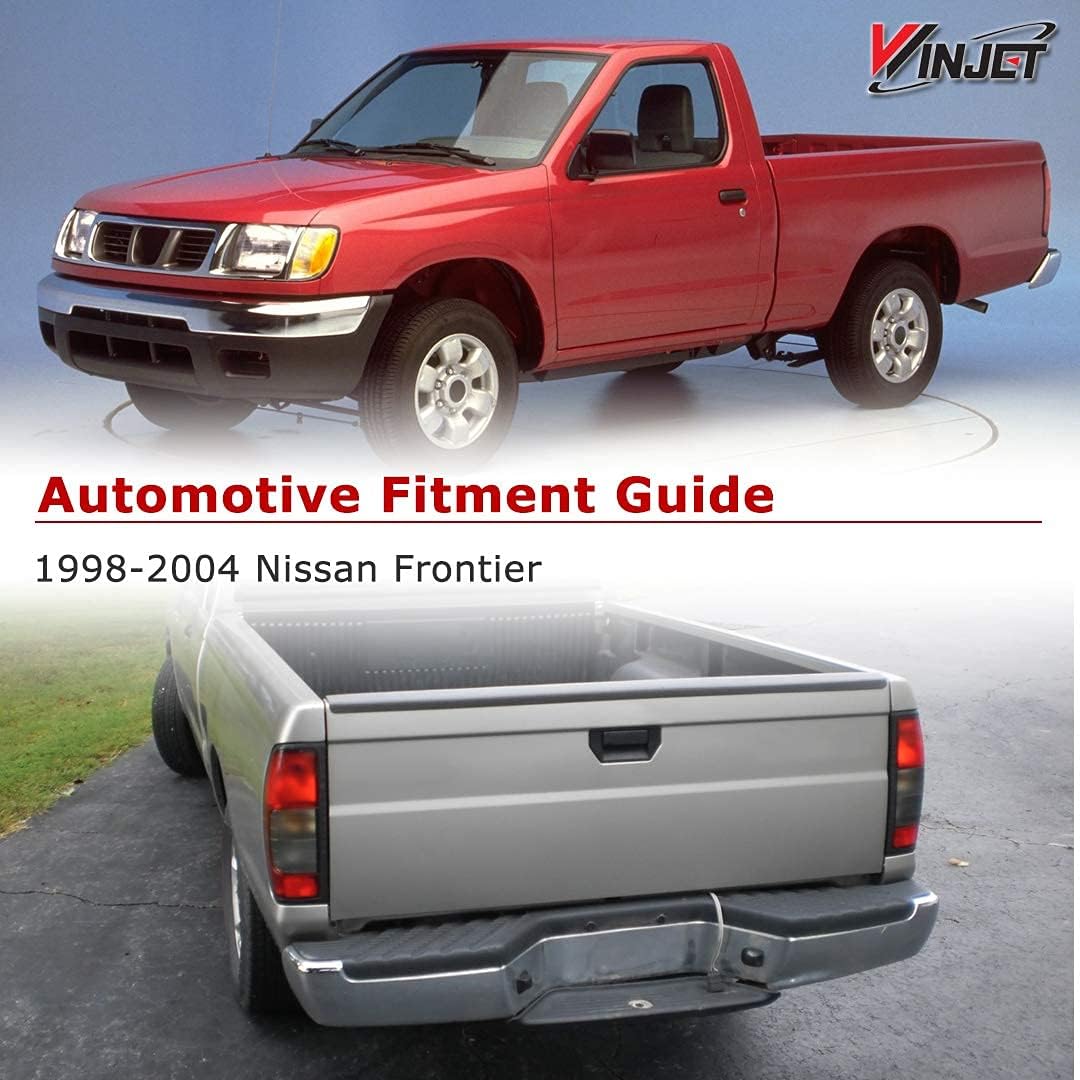

1. irudia: Automotive Fitment Guide. This image illustrates the compatible vehicle model, the Nissan Frontier from 1998 to 2004, ensuring proper fitment for the tail light assembly.

Konfigurazioa eta Instalazioa

The Winjet Altezza Tail Lights are designed for a straightforward, bolt-on installation process. No complex wiring or vehicle modifications are typically required.

Beharrezko tresnak:

• Basic hand tools (e.g., socket wrench, screwdriver) as needed for existing tail light removal.

Instalazio urratsak:

1. Prestaketa: Ensure the vehicle's ignition is off and the parking brake is engaged. For safety, disconnect the negative terminal of the vehicle's battery.
2. Remove Old Tail Lights: Locate and remove the screws or fasteners holding the existing tail light assembly in place. Carefully pull the assembly away from the vehicle body.
3. Deskonektatu kableatuak: Disconnect the electrical harness from the old tail light assembly. Note the position of each bulb (running lights, turn signals, reverse lights) if you need to transfer them.
4. Transfer Bulbs (if applicable): If your new Winjet tail lights do not come with pre-installed bulbs, carefully transfer the bulbs from your original tail light assembly to the corresponding sockets on the new Winjet assembly. Ensure a secure fit.
5. Connect New Tail Lights: Connect the vehicle's electrical harness to the new Winjet tail light assembly. The design ensures the same harness can be used without rewiring.
6. Atzeko argi berriak muntatu: Align the new tail light assembly with the mounting points on the vehicle body. Secure it in place using the original screws or fasteners. Ensure a snug fit to prevent moisture ingress.
7. Proba funtzionaltasuna: Reconnect the vehicle's battery. Test all light functions: running lights, brake lights, turn signals, and reverse lights, to ensure proper operation before driving.

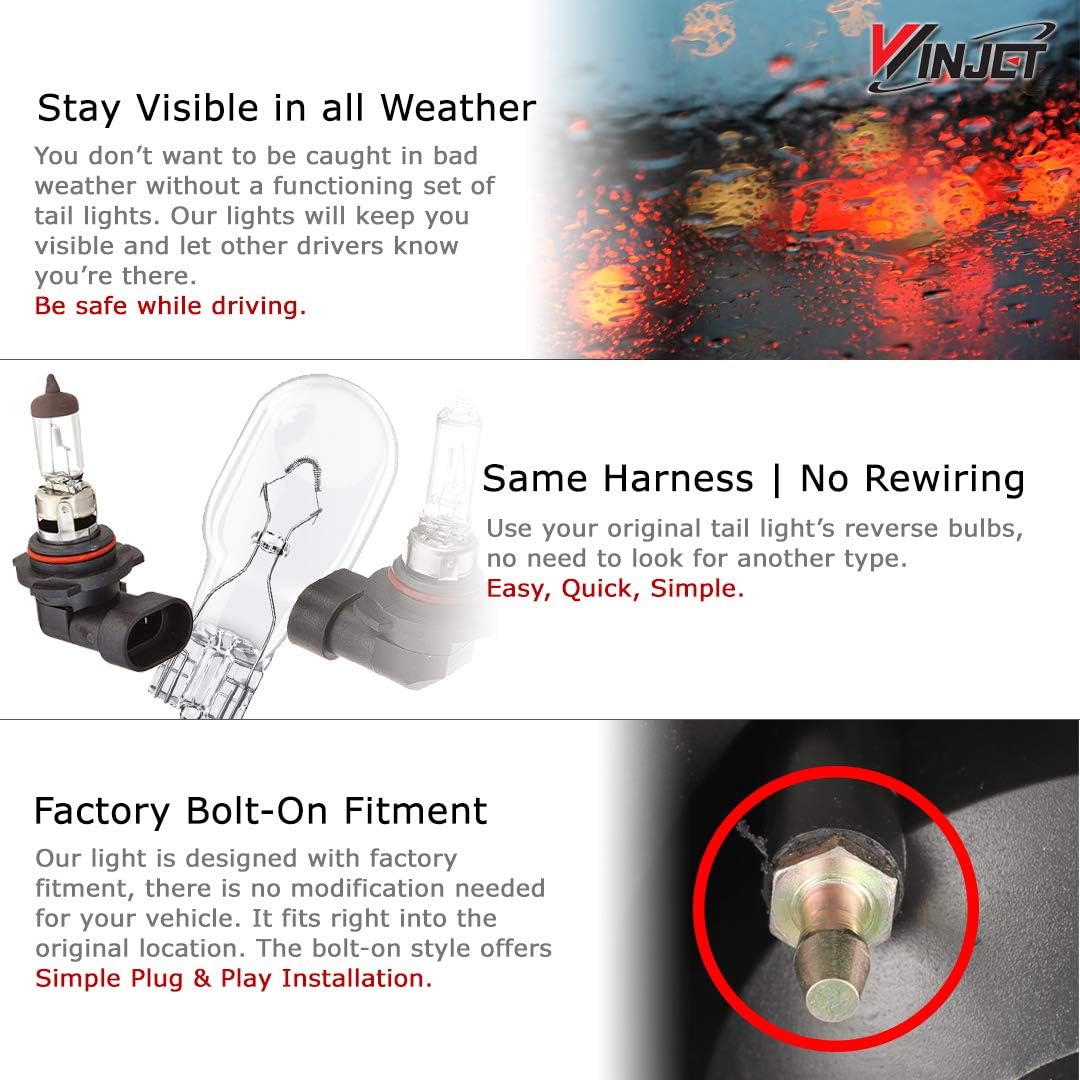

2. irudia: Installation Features. This image highlights the "Same Harness | No Rewiring" feature, showing standard light bulbs, and the "Factory Bolt-On Fitment" with a close-up of a mounting bolt, simplifying the installation process.

Funtzionamendu-argibideak

Once installed, the Winjet Altezza Tail Lights operate in conjunction with your vehicle's existing electrical system. They are designed to function automatically when the vehicle's lighting controls are activated.

Argiaren funtzioak:

• Argi martxagarriak: Illuminate when the vehicle's headlights or parking lights are on, providing rear visibility.
• Seinaleak: Flash when the turn signal lever is activated, indicating a change in direction.
• Balazta-argiak: Illuminate brightly when the brake pedal is pressed, signaling deceleration or stopping.
• Atzeko argiak: Illuminate when the vehicle is shifted into reverse gear, providing illumination and warning to others.

3. irudia: Tail Light Functions. This diagram clearly labels the positions of the Running Lights, Turn Signals, and Reverse Lights within the tail light assembly, illustrating their respective functions.

Mantentzea

To ensure the longevity and optimal performance of your Winjet Altezza Tail Lights, follow these simple maintenance guidelines:

• Ohiko garbiketa: Clean the outer lens with a soft cloth and mild automotive soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the lens.
• Ikuskatu kalteak ikusteko: Periodically check the tail light assemblies for any cracks, moisture inside the lens, or loose connections. Address any issues promptly.
• Bonbillaren ordezkoa: If a bulb burns out (for models using replaceable bulbs), replace it with the correct type and wattage as specified by your vehicle's manufacturer or the original bulb. Ensure the replacement bulb is securely seated.
• Kableatuen ikuskapena: Occasionally inspect the wiring harness for any signs of wear, fraying, or corrosion.

Arazoak konpontzea

If you encounter issues with your Winjet Altezza Tail Lights, refer to the following common troubleshooting steps:

Irtenbide hauek saiatu ondoren arazoa konpontzen ez bada, komeni da automobilgintzako teknikari kualifikatu batekin kontsultatzea.

Zehaztapenak

Bermearen informazioa

Winjet provides a 12 hilabeteko bermea for this product. This warranty covers manufacturing defects and ensures the product functions as intended under normal use. Please retain your proof of purchase for warranty claims.

For specific terms and conditions of the warranty, please refer to the official Winjet webwebgunean edo jarri harremanetan bezeroarentzako laguntzarekin.

Bezeroarentzako Arreta

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Winjet customer support through their official channels. Refer to the Winjet webgunea kontaktu-informazio eguneratuena lortzeko.

Fabrikatzailea: Winjet

Webgunea: www.winjetinc.com

ASIN: B01A1500AI

Lehen eskuragarri dagoen data: 24ko martxoaren 2016a
