Hiland Fire Pit Burner Replacement Kit

1. Produktua amaitu daview

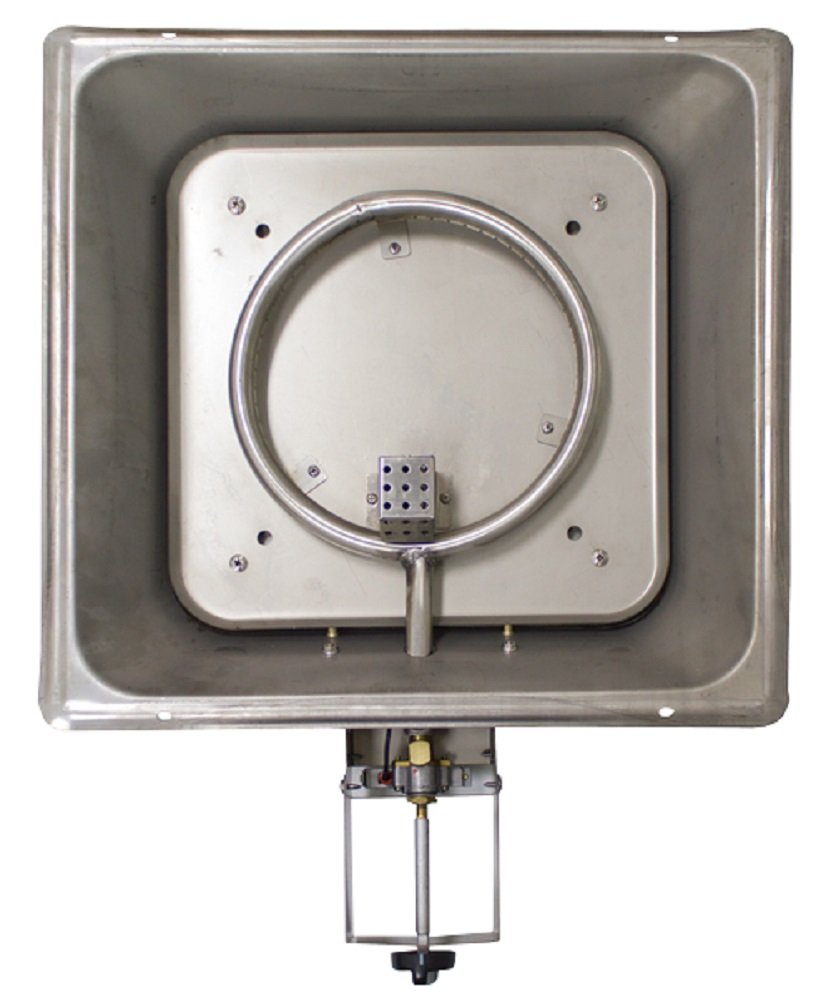

The Hiland Fire Pit Burner Replacement Kit, Model DGH-BURNER, is a complete solution for your outdoor fire pit. This kit includes all necessary components for instant startup, featuring integrated ignition, a regulator, a thermocouple, a burner ring, and a burner pan. Constructed from durable stainless steel, it is designed for use with liquefied petroleum gas (propane) and provides up to 41,000 BTUs of heat output. This burner is specifically designed to fit Hiland models GSF-DGH and GSF-DGHSS.

Ezaugarri nagusiak:

• Complete fire pit burner with all components necessary for instant start up
• Integrated ignition for easy lighting
• Altzairu herdoilgaitzezko eraikuntza iraunkorra
• Includes plastic control knob
• Thermocouple safety device for enhanced safety
• Regulator included for gas flow control
• Compatible with Hiland models GSF-DGH and GSF-DGHSS
• Power source type: Propane

2. Segurtasun informazio garrantzitsua

Read and understand all safety warnings and instructions before installing or operating this fire pit burner. Failure to follow these instructions could result in fire, explosion, property damage, personal injury, or death.

• Ziurtatu material erregarrietatik urruntze egokia. Maintain a safe distance from walls, furniture, and other flammable objects.
• Use only approved fuel types. This unit is designed for Liquefied Petroleum Gas (Propane) only. Do not use natural gas or any other fuel.
• Follow all installation and maintenance instructions. Incorrect installation or maintenance can be dangerous.
• Keep the area well-ventilated. Never operate the fire pit in an enclosed space.
• Do not store or use the fire pit indoors. Produktu hau kanpoko erabilerarako da.
• Regularly check for gas leaks. Use a soapy water solution to check all gas connections for bubbles, indicating a leak.
• Mesedez, egiaztatu zure tokiko legeak erosi aurretikasinproduktu hau g. Regulations regarding outdoor fire pits vary by location.
• Keep children and pets away from the fire pit during operation.
• Ez utzi inoiz piztutako su-hobi bat arretarik gabe.

3. Paketearen edukia

Instalazioarekin jarraitu aurretik, egiaztatu osagai guztiak daudela eta kalterik gabe daudela.

• Stainless Steel Burner Pan
• Circular Burner Ring
• Integrated Ignition System
• Gas Regulator with Hose
• Thermocouple Safety Device
• Plastikozko Kontrol-Kutla

4. Konfiguratzeko argibideak

4.1 Hasi aurretik

• Ensure the fire pit area is clear of all combustible materials.
• Confirm that your existing fire pit table is compatible with the dimensions of this burner (20"D x 20"W x 4"H).
• Have appropriate tools ready (e.g., wrench for gas connections).
• Ensure the propane tank is full and in good condition.

4.2 Instalazio-urratsak

1. Prepare the Fire Pit: If replacing an old burner, ensure the gas supply is turned off at the source and disconnect the old burner. Carefully remove any existing fire media (lava rocks, glass) and the old burner unit.
2. Place the New Burner: Carefully lower the Hiland DGH-BURNER replacement kit into the designated opening in your fire pit table. Ensure it sits securely and is level.
3. Connect the Gas Line: Connect the provided gas regulator hose to your propane tank. Ensure all connections are hand-tight, then use a wrench to tighten them securely. Ez estutu gehiegi.
4. Secure Propane Tank: Place the propane tank in its designated compartment within the fire pit table (if applicable). Ensure the compartment door can close properly.
5. Perform a Leak Test: Before first use, or after any gas connection is made or disturbed, perform a leak test. Mix a solution of soapy water (50% soap, 50% water). With the propane tank valve open, apply the solution to all gas connections. If bubbles appear, there is a leak. Immediately turn off the gas, tighten the connection, and retest. Do not operate the fire pit if a leak is detected.
6. Add Fire Media: Once the burner is securely installed and leak-tested, you may add fire media (e.g., fire glass, lava rocks) around the burner ring. Ensure the ignition element and burner holes are not obstructed.

5. Funtzionamendu-argibideak

5.1 Erregailua piztea

1. Ensure the fire pit area is clear and safe.
2. Open the valve on your propane tank.
3. Turn the control knob on the fire pit burner to the 'ON' or 'LOW' position.
4. Press and hold the ignition button. You should hear a clicking sound. Keep holding the button until the burner ignites.
5. Once lit, continue to hold the ignition button for 10-15 seconds to allow the thermocouple to heat up and engage the safety valve. Release the button.
6. If the burner does not light within 5 seconds, turn the control knob to 'OFF', wait 5 minutes for gas to dissipate, and repeat the lighting procedure. If the integrated ignition fails, use a long-stem lighter to ignite the burner while holding the control knob in the 'ON' position.
7. Egokitu sugarraren altuera kontrol-botoia erabiliz nahi duzun mailara.

5.2 Shutting Down the Burner

1. Turn the control knob on the fire pit burner to the 'OFF' position.
2. Close the valve on your propane tank.
3. Allow the burner and fire media to cool completely before covering or storing.

6. Mantentzea

Regular maintenance ensures the longevity and safe operation of your Hiland Fire Pit Burner.

• Garbiketa: Clean the burner and pan regularly with a soft cloth and mild soap. Avoid abrasive cleaners that could damage the stainless steel finish. Ensure all components are dry before use.
• Ikuskapena: Periodically inspect the gas hose and connections for any signs of wear, cracks, or damage. Check the burner holes for obstructions (e.g., debris, insect nests).
• Biltegiratzea: When not in use for extended periods, especially during inclement weather, cover the fire pit or store the burner in a dry, protected area. Disconnect the propane tank and store it upright in a well-ventilated outdoor space.
• Termoparea: Ensure the thermocouple is clean and positioned correctly to sense the flame. A dirty or misaligned thermocouple can cause the flame to extinguish unexpectedly.

7. Arazoak

Ikusi beheko taula arazo ohikoenak eta haien irtenbideak ikusteko.

8. Produktuaren zehaztapenak

9. Bermea eta bezeroarentzako laguntza

For warranty information, technical assistance, or to purchase replacement parts, please contact Hiland customer support. Keep your purchase receipt and model number (DGH-BURNER) readily available when contacting support.

Kontaktu informazioa normalean fabrikatzailearen webgunean aurki daiteke. webgunean edo produktuaren ontzian.
