Sarrera
This manual provides detailed instructions for the installation, operation, and maintenance of your TMEZON Wireless Security Camera Network System. Please read this manual thoroughly before use to ensure proper functionality and safety.
Paketearen edukia
Please verify that all items are present in your package. If any items are missing or damaged, contact customer support.
- 1 x 8-Channel 1080P HD WiFi NVR (with 2TB HDD pre-installed)
- Wireless IP Cameras (Quantity may vary, typically 4 or 8 for an 8-channel system)
- NVR eta kameretarako energia-egokigailuak
- USB sagua
- Ethernet kablea
- HDMI kablea
- Muntatzeko torlojuak eta tapoiak
- Erabiltzailearen eskuliburua (dokumentu hau)

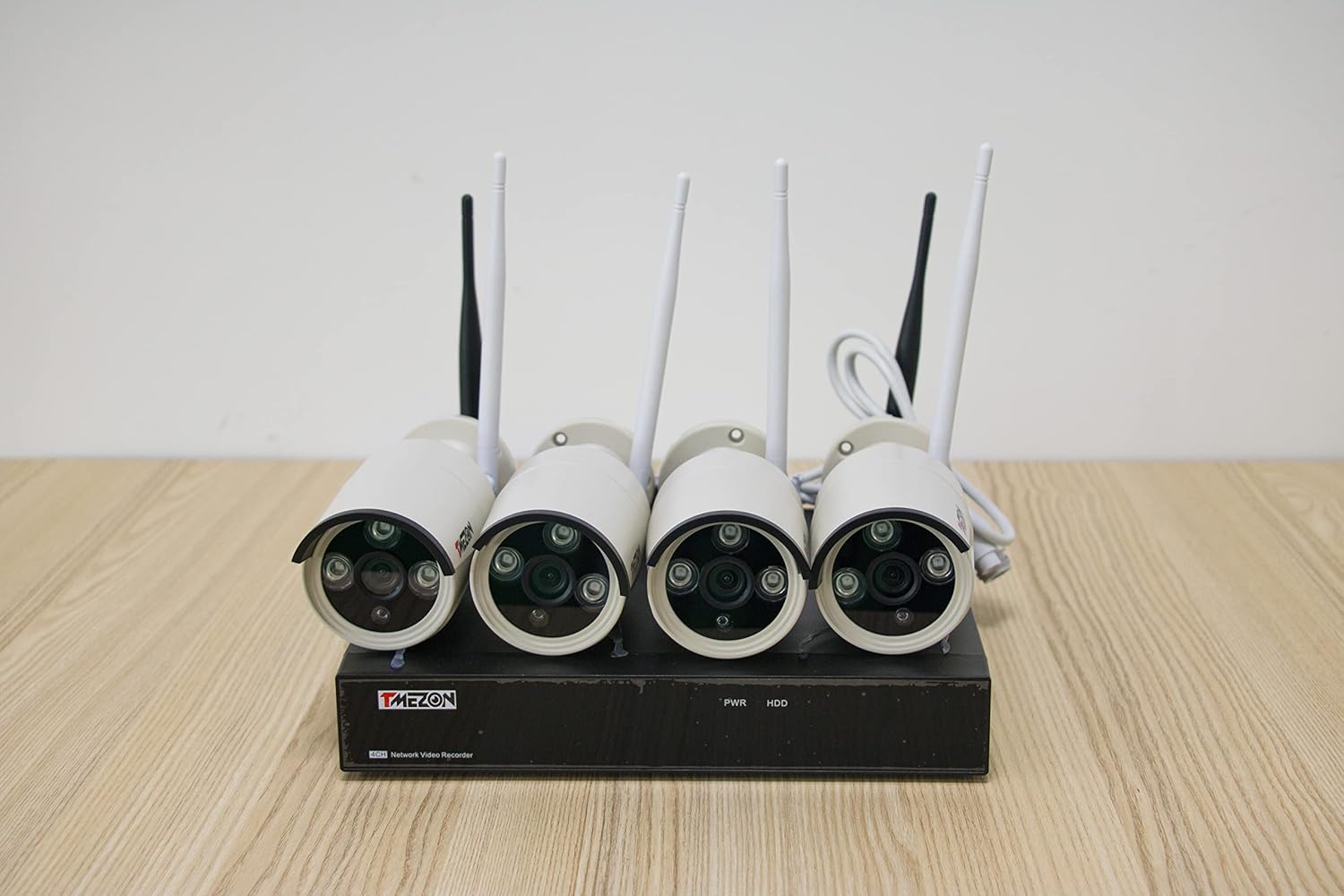

Irudiaren deskribapena: Goitik behera bat view of the TMEZON NVR unit with four wireless security cameras connected. The NVR has "TMEZON" branding and indicators for PWR and HDD. Each camera has two antennas and a lens assembly.
Sistemaren konfigurazioa
1. NVR konexioa
Konektatu NVR elikatze-iturri batera hornitutako korronte-egokigailua erabiliz.
Connect the NVR to a monitor or TV using an HDMI or VGA cable.
Connect the USB mouse to the NVR's USB port for navigation.
Urrunekorako viewing, connect the NVR to your router using the Ethernet cable.
Irudiaren deskribapena: A diagram illustrating the rear panel connections of the TMEZON NVR. Labels indicate ports for VGA, HDMI, WAN (Ethernet), USB (for mouse), and DC 12V power input. Corresponding icons show connections to a 1080P monitor, an Ethernet router, a USB mouse, and a DC power adapter.
2. Kameraren instalazioa
Mount the wireless IP cameras in desired locations. Ensure they are within range of the NVR's WiFi signal.
Konektatu kamera bakoitza dagokion korronte-egokitzailera.
The cameras will automatically pair with the NVR upon power-up. If pairing issues occur, refer to the troubleshooting section.
3. Hasierako Konfigurazioa
Follow the on-screen prompts to set up the NVR, including language, date/time, and password.
The system comes with a 2TB HDD for continuous recording. Ensure it is recognized and formatted by the NVR.
Operating Your Security System
Zuzenean View
After setup, the NVR will display live feeds from all connected cameras on the monitor.
Grabaketa
The system is configured for continuous recording to the 2TB HDD. You can adjust recording schedules and motion detection settings via the NVR menu.
Erreprodukzioa
Sartu grabatutako footage through the NVR's playback menu. You can search by date, time, or event.
Remote Access (Smartphone Quick View)
Download the official TMEZON app on your smartphone or tablet.
Register an account and add your NVR device by scanning the QR code or manually entering the device ID.
Ensure your NVR is connected to the internet via the Ethernet port for remote viewfuntzionaltasuna.
Gaueko Ikusmena
The 2.0MP IP cameras feature night vision technology, automatically switching to infrared mode in low-light conditions to provide clear surveillance.
Irudiaren deskribapena: A visual comparison demonstrating the difference between 1080P and 720P video resolution. The 1080P image of a house appears sharper and more detailed than the 720P image, highlighting the superior clarity of the system's cameras.
Mantentze-jarraibideak
- Keep the NVR and cameras clean and free from dust. Use a soft, dry cloth.
- Ensure proper ventilation for the NVR to prevent overheating.
- Regularly check camera lenses for obstructions or dirt that may impair image quality.
- Aldian behin berriroview foo grabatuatage to ensure the system is functioning as expected.
- Keep the NVR firmware updated for optimal performance and security. Check the manufacturer's webeguneraketak egiteko gunea.
Ohiko arazoak konpontzea
No Image on Monitor
Check power connections for both NVR and monitor.
Verify HDMI/VGA cable connections.
Ziurtatu sarrera-iturri zuzena hautatuta dagoela monitorearen bidez.
Cameras Not Connecting
Ensure cameras are powered on and within range of the NVR.
Check for physical obstructions or strong interference sources.
If necessary, manually pair cameras through the NVR's menu (refer to the NVR's specific pairing instructions).
Urruneko sarbidea ez dabil
Confirm the NVR is connected to your router via Ethernet and has internet access.
Egiaztatu zure telefonoak Interneteko konexio egonkorra duela.
Ensure the correct device ID is entered in the app.
Check firewall settings on your router if issues persist.
Irudiaren kalitate eskasa
Kamera-lenteak garbitu.
Ensure cameras are securely mounted and not vibrating.
Check for strong light sources directly facing the camera, which can cause glare.
Produktuaren zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | MZ-WF-8013P/20-A1 |
| Konektibitatea | Haririk gabeko (WiFi) |
| Bideo Ebazpena | 1080p, 960p |
| Kanal kopurua | 8 |
| Biltegiratze Ahalmena | 2 TB HDD (pre-installed) |
| Energia iturria | Kable elektrikoa |
| Gailu bateragarriak | Cameras, Personal Computers, Smartphones |
| Argi gutxiko teknologia | Night color (Infrared Night Vision) |
| Produktuaren neurriak | 14.17 x 11.22 x 8.27 hazbete |
| Elementuaren pisua | 12.82 kilo |
Bermea eta Bezeroarentzako Arreta
For warranty information, please refer to the documentation included with your purchase or visit the official TMEZON webgunea.
If you encounter any issues not covered in this manual or require further assistance, please contact TMEZON customer support. Contact details are typically available on the product packaging or the official webgunea.
