COTEK SP-4000-148 Uhin Sinusoidal Puruko Inbertsorearen Erabiltzaile Eskuliburua

1. Sarrera

The COTEC SP-4000-148 is a high-frequency pure sine wave inverter designed to convert 48VDC battery power into 120VAC household electricity. This inverter delivers a continuous output of 4000W, making it suitable for various applications requiring stable and clean AC power. Its robust design and advanced features ensure reliable performance and protection for your connected devices.

Ezaugarri nagusiak:

• Uhin sinusoidal puruaren irteera elektronika sentikorrerako.
• Urrutiko agintea pizteko / itzaltzeko gaitasuna (Terminal Berdea).
• Sarrera eta irteera guztiz isolatuta segurtasun handiagoa lortzeko.
• Temperature & load controlled cooling fan.
• Erabiltzaileentzako interfazea, 3 koloretako LED egoera-adierazleekin.
• Irteerako maiztasuna (50/60 Hz) DIP etengailuaren bidez hauta daiteke.
• Irteera boltagDIP etengailuaren bidez hauta daiteke.
• Power saving mode adjustable via variable resistor.
• Comprehensive input protections: Reverse Polarity (Fuse), Under Voltage, Over Voltage.
• Extensive output protections: Short Circuit, Overload, Over Temperature.
• 1. motako barruko aluminiozko itxitura.
• E13 / UL / CE / FCC onespena.

2. Segurtasun informazioa

Read all instructions and warnings carefully before installing or operating the inverter. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.

Segurtasun-neurri orokorrak:

• Arrisku elektrikoa: Inbertsore honek bolumen handia sortzen dutage AC power. Treat the output terminals with the same respect as any utility AC outlet.
• Pertsonal kualifikatua: Instalazioa eta mantentze-lanak langile kualifikatuek bakarrik egin behar dituzte.
• Aireztapena: Ziurtatu aireztapen egokia dagoela inbertsorearen inguruan. Ez blokeatu aireztapen-irekidurak. Gehiegi berotzeak kalteak edo sutea eragin ditzake.
• Ingurumena: Do not expose the inverter to rain, snow, spray, or any liquids. Do not operate in areas with flammable fumes or gases.
• Lurreratzea: The inverter must be properly grounded. Refer to the installation section for grounding instructions.
• Bateriaren segurtasuna: Work near lead-acid batteries is dangerous. Batteries can generate explosive gases. Ensure proper ventilation and wear eye protection.
• DC Sarrera: Connect the DC input cables with correct polarity. Reverse polarity will blow the internal fuse and void the warranty.
• Gainkarga: Do not exceed the inverter's rated output power. Overloading can damage the inverter and connected appliances.
• Mantentzea: Before performing any maintenance or cleaning, disconnect all power sources (DC and AC).

3. Produktua amaitu daview

The COTEC SP-4000-148 inverter features a robust aluminum enclosure and clearly labeled connection points for ease of installation and operation. Familiarize yourself with the components before proceeding with installation.

3.1. irudia: Orokorrean view of the COTEC SP-4000-148 Pure Sine Wave Inverter. This image shows the blue aluminum casing and the grey end caps with ventilation slots.

Front Panel (AC Output Side):

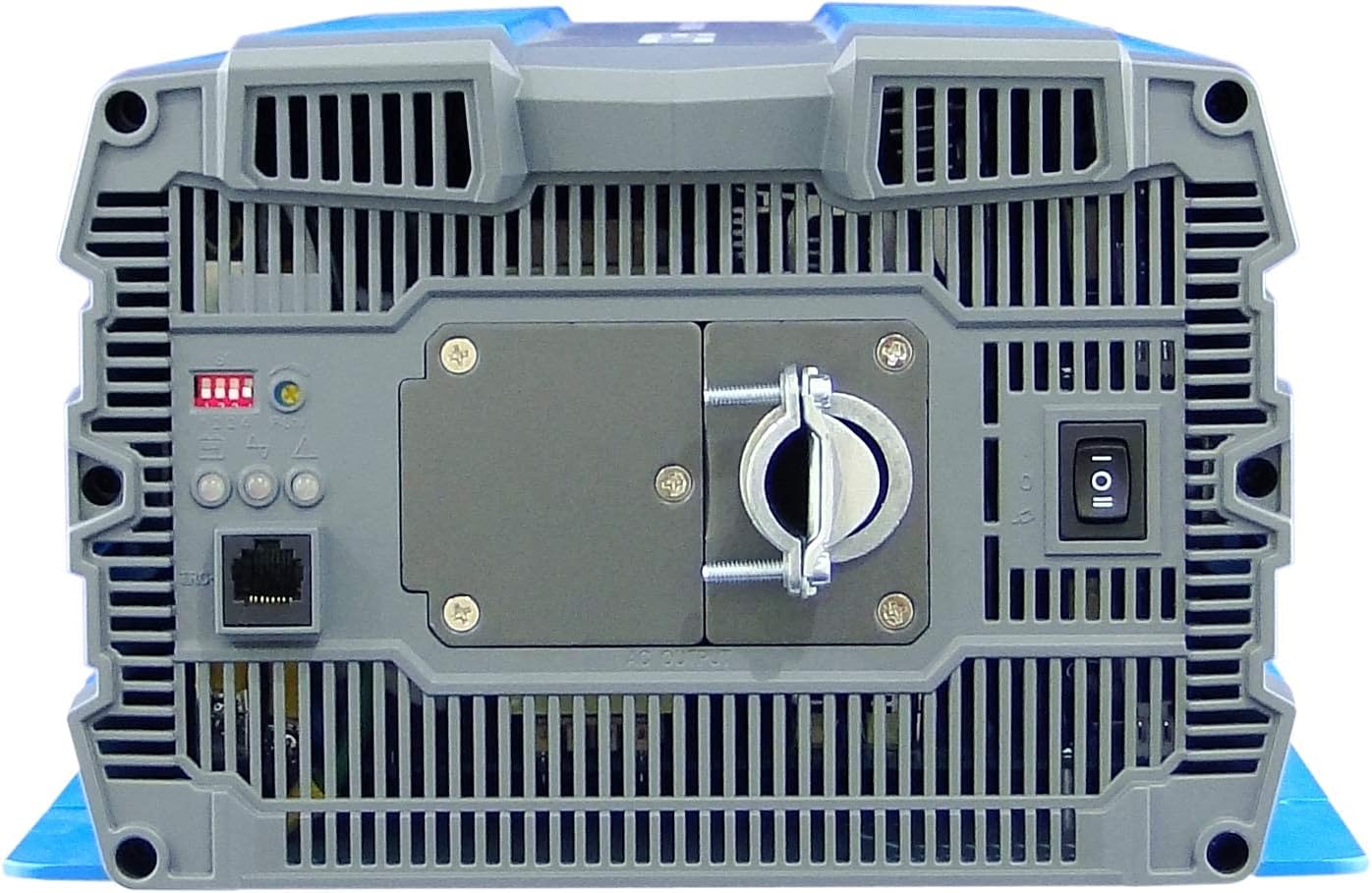

Figure 3.2: Front panel of the inverter. This view highlights the AC output terminal, the remote control terminal (green), LED status indicators, DIP switches, and the main power switch.

• AC irteerako terminala: Hardwire connection for 120VAC output.
• Remote Control Terminal (Green): For connecting an optional remote ON/OFF switch.
• LED egoera adierazleak: Provide visual feedback on inverter status (Power, Fault, Overload).
• DIP etengailuak: Used to select output frequency (50/60 Hz) and output voltage.
• Power Saving Mode Resistor: Adjustable resistor for fine-tuning power saving mode.
• Energiaren etengailu nagusia: Inbertsorearen potentzia kontrolatzen du.

Rear Panel (DC Input Side):

Figure 3.3: Rear panel of the inverter. This view shows the DC input terminals (red for positive, black for negative) and the chassis ground connection point.

• DC sarrera terminalak: Heavy-duty terminals for connecting to the 48VDC battery bank. Ensure correct polarity (Red for Positive, Black for Negative).
• Chassis Ground Terminal: Inbertsorearen lurrerako konexioa egiteko.
• Cooling Fan Vents: Ensure these vents are not obstructed for proper heat dissipation.

4. Instalazioa

Proper installation is crucial for the safe and efficient operation of your inverter. Follow these steps carefully.

4.1 Inbertsorea muntatzea

• Aukeratu leku lehor eta ondo aireztatua, eguzki-argitik, bero-iturrietatik eta hezetasunetik urrun.
• Mount the inverter on a non-combustible surface.
• Ensure there is at least 6 inches (15 cm) of clear space around all sides of the inverter for proper airflow.
• Use appropriate fasteners to secure the inverter firmly to the mounting surface.

4.2 DC sarrerako konexioa

OHARRA: Ensure the battery bank is disconnected or isolated before making any connections. Use appropriately sized cables and fuses/breakers.

1. Connect the positive (+) DC cable (typically red) from your 48VDC battery bank to the red positive (+) terminal on the inverter's rear panel.
2. Connect the negative (-) DC cable (typically black) from your 48VDC battery bank to the black negative (-) terminal on the inverter's rear panel.
3. Ensure all DC connections are tight and secure to prevent loose connections and arcing.
4. Install an external DC fuse or circuit breaker between the battery bank and the inverter's positive terminal, as close to the battery as possible. Consult the specifications for appropriate fuse sizing.

4.3 AC irteerako konexioa

The SP-4000-148 uses a hardwire AC output connection.

1. Ensure the inverter is OFF and all DC power is disconnected.
2. Connect your AC load wiring to the designated AC output terminal block on the front panel.
3. Follow all local electrical codes for AC wiring.
4. Ensure all AC connections are secure.

4.4 Lurreratzea

The inverter chassis must be properly grounded.

1. Connect a ground wire from the chassis ground terminal on the inverter's rear panel to a reliable earth ground point.
2. Ensure the ground connection is secure and meets all local electrical codes.

4.5 Urrutiko Agintearen Konexioa (Aukerakoa)

If using an optional remote control, connect it to the green terminal block on the front panel according to the remote control's instructions.

5. Funtzionamendua

Once the inverter is properly installed and all connections are secure, you can begin operation.

5.1 Piztu/Itzaltzea

1. Ensure all DC and AC connections are correct and secure.
2. If an external DC breaker is installed, ensure it is closed (ON).
3. Flip the main power switch on the inverter's front panel to the 'ON' position.
4. The LED indicators will illuminate, and the cooling fan may briefly activate.
5. To power off, flip the main power switch to the 'OFF' position.

5.2 LED egoera-adierazleak

The inverter features 3-color LED indicators to display its operational status:

• LED berdea: Funtzionamendu normala adierazten du.
• LED horia: Indicates a warning or abnormal condition (e.g., low battery, minor overload). Refer to troubleshooting.
• LED gorria: Indicates a fault or critical error (e.g., severe overload, over-temperature, short circuit). The inverter will typically shut down. Refer to troubleshooting.

5.3 DIP Switch ezarpenak

The DIP switches on the front panel allow configuration of output frequency and voltage. Refer to the detailed specifications or the label on the inverter for specific switch positions for desired settings.

• Irteerako maiztasuna: Select between 50 Hz or 60 Hz.
• Irteera boltage: Select desired AC output voltage (adibidez, 100V, 110V, 115V, 120V).

OHARRA: Always power off the inverter before changing DIP switch settings.

5.4 Energia aurrezteko modua

The power saving mode can be adjusted via the variable resistor on the front panel. This mode reduces standby power consumption when no load or a very light load is detected. Adjust the resistor to set the threshold for entering/exiting power saving mode.

6. Mantentzea

Mantentze-lan erregularrak zure inbertsorearen iraupena eta errendimendu optimoa bermatzen ditu.

• Garbiketa: Aldian-aldian garbitu inbertsorearen kanpoaldea oihal lehor eta leun batekin. Ziurtatu aireztapen-irekiduretan hautsik eta hondakinik ez dagoela. Ez erabili garbitzaile likidorik.
• Konexioaren egiaztapenak: Annually inspect all DC and AC connections for tightness. Loose connections can cause overheating and damage.
• Bateria mantentzea: Follow the battery manufacturer's recommendations for maintenance, including checking electrolyte levels (for flooded batteries) and terminal cleanliness.
• Ingurumena: Ziurtatu funtzionamendu-ingurunea zehaztutako tenperatura eta hezetasun tarteen barruan mantentzen dela.

7. Arazoak

Atal honek zure inbertsorearekin izan ditzakezun arazo ohikoenei irtenbideak eskaintzen ditu.

8. Zehaztapenak

The following table details the technical specifications for the COTEC SP-4000-148 Pure Sine Wave Inverter.

Figure 8.1: Detailed technical specifications for the COTEC SP-4000 series, including input, output, protection, and environmental parameters.

Marrazki mekanikoak:

Figure 8.2: Mechanical drawings providing dimensions for the COTEC SP-4000 series inverter, useful for installation planning.

9. Bermea eta Laguntza

COTEK products are manufactured to high-quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official COTEC webwebgunean bermearen baldintza zehatzak ikusteko.

Bezeroarentzako laguntza:

For technical assistance, troubleshooting, or warranty claims, please contact COTEC customer support through their official channels. Have your product model number (SP-4000-148) and purchase information ready when contacting support.

• Webgunea: www.cotek.com.tw (Adibample, please verify official webgunea)
• Posta elektronikoa: support@cotek.com (Example)
• Telefonoa: +1-XXX-XXX-XXXX (Example)
