1. Segurtasun informazioa
Please read all instructions carefully before using your new Haier Mini Fridge. Keep this manual for future reference. Failure to follow these instructions may result in property damage or personal injury.
- Ziurtatu gailua behar bezala lurrarekin lotuta dagoela.
- Ez erabili etxetresna elektrikoa kablea edo entxufea hondatuta.
- Saihestu material sukoiak aparatutik gertu jartzea.
- Ez gorde substantzia lehergarririk (adibidez, aerosol latak, propultsatzaile sukoi batekin) aparatu honetan.
- Deskonektatu tresna garbitu edo mantentze-lanak egin aurretik.
- Mantendu aireztapen-zuloak oztoporik gabe.
2. Produktua amaitu daview
The Haier 150-Can Mini Fridge is designed for convenient beverage storage. It features a glass door, adjustable thermostat, and an automatic LED interior light.
Ezaugarri nagusiak:
- Edukiera: Stores up to 150 standard beverage cans.
- Termostato erregulagarria: Allows precise temperature control for optimal cooling.
- Automatic LED Interior Light: Illuminates the interior for easy viewing.
- Reversible Glass Door: Kokapen aukera malguak eskaintzen ditu.
- Giltza eta giltza: Gordetako elementuentzako segurtasuna eskaintzen du.
- Four Full-Width Glass Shelves: Durable and easy to clean, allowing for organized storage.
3. Konfigurazioa eta instalazioa
3.1 Paketatzea
Kontu handiz kendu ontziratzeko material guztiak. Ziurtatu ez dagoela piezarik falta edo kaltetuta. Mantendu ontziratzeko materialak haurren eskura ez dauden lekuetan.
3.2 Jartzea
Place the mini fridge on a flat, stable surface away from direct sunlight and heat sources. Allow at least 4 inches of space around the back and sides for proper ventilation. This appliance is designed for freestanding installation.
3.3 Atea alderantzikatzea (aukerakoa)
The door hinges are reversible, allowing the door to open from either the left or right side. Refer to the detailed diagram in the full product manual for specific instructions on reversing the door. This process typically involves unscrewing hinges, moving the door, and reattaching hinges on the opposite side.
3.4 Energia-konexioa
Plug the appliance into a dedicated, grounded 115 Volt AC outlet. Do not use extension cords or adapter plugs. Allow the unit to stand upright for at least 2-4 hours before plugging it in to allow refrigerating fluids to settle.
4. Funtzionamendu-argibideak
4.1 Tenperatura Kontrola

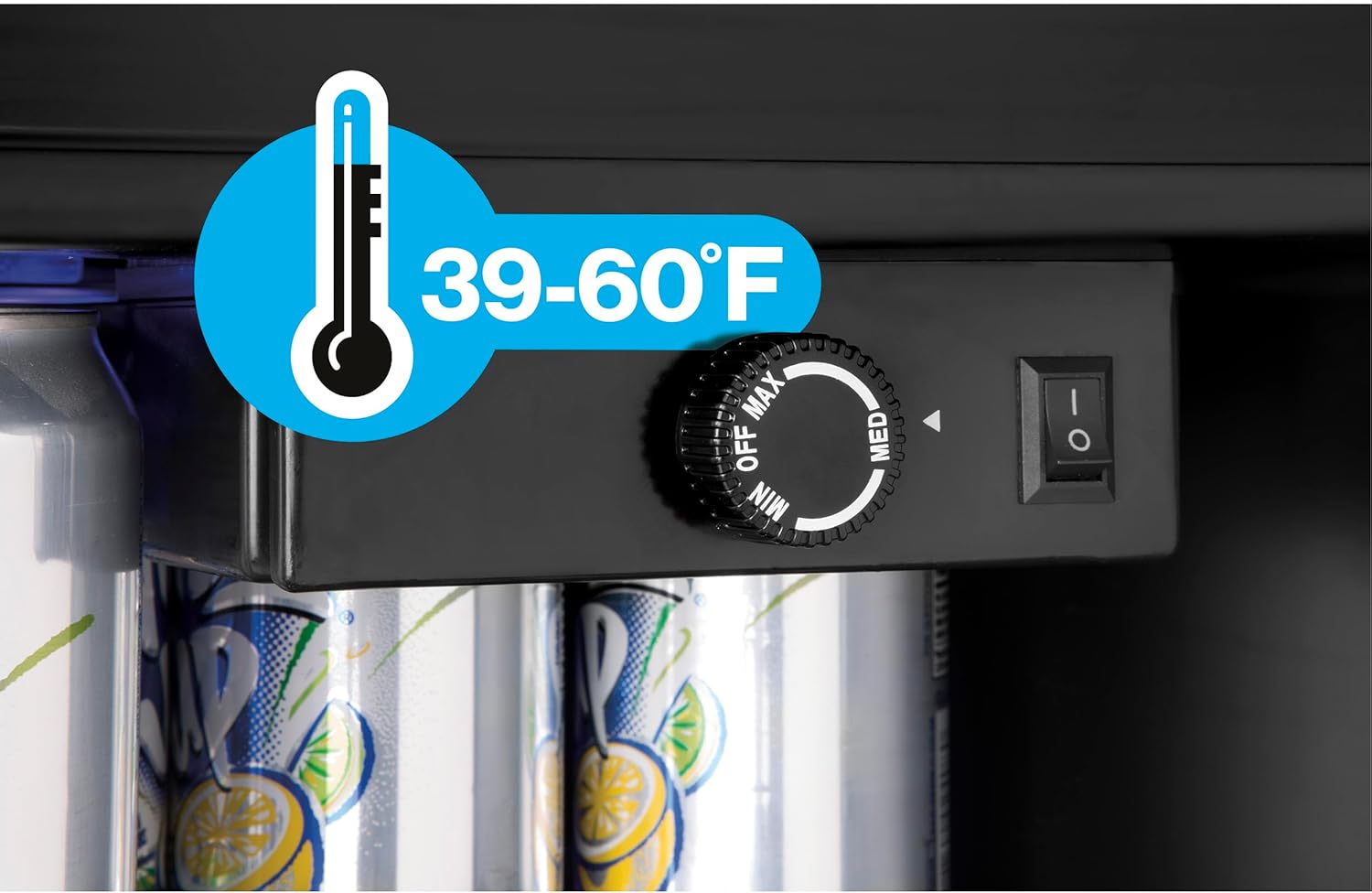

The mini fridge features an adjustable thermostat located inside the unit, typically at the top. Turn the dial to adjust the cooling temperature. Settings range from MIN (least cold) to MAX (coldest). The recommended operating temperature range is 39-60°F (3.9-15.6°C).
4.2 Barruko LED argia
The unit is equipped with an automatic LED interior light that illuminates when the door is opened. There is also a manual ON/OFF switch for the light, usually located near the thermostat control.
4.3 Lock and Key
To secure the contents of your mini fridge, use the provided lock and key. The lock mechanism is located at the bottom of the door. Insert the key and turn to lock or unlock.
5. Loading and Storage
The mini fridge comes with four full-width glass shelves. These shelves can be adjusted to accommodate various sizes of beverages, from standard cans to taller bottles. To adjust a shelf, carefully lift it and slide it out, then reposition it into the desired slots.
6. Mantentzea eta Zainketa
6.1 Garbiketa
Always unplug the appliance before cleaning. Clean the interior and exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or solvents. The glass shelves can be removed and washed with warm, soapy water.
6.2 Desizoztea
This unit features an automatic defrost system, minimizing the need for manual defrosting. If excessive frost builds up, unplug the unit and allow the frost to melt naturally. Do not use sharp objects to remove frost.
6.3 Potentzia Outage
Potentzia bat izanez gerotage, eduki atea itxita barneko tenperatura ahalik eta denbora gehien mantentzeko. Saihestu atea beharrezkoa ez bada irekitzea.
7. Arazoak
Bezeroarentzako arreta-zerbitzura deitu aurretik, egiaztatu ohiko arazo hauek:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Aparatuak ez du funtzionatzen. | Ez dago konektatuta; etengailu magnetotermikoa jauzi egin du; korrontea itzali datage. | Ziurtatu entxufea ondo lotuta dagoela; egiaztatu etengailu magnetotermikoa; egiaztatu elikatze-iturria. |
| Tenperatura ez da nahikoa hotza. | Thermostat set too warm; door not closed properly; excessive door openings; poor ventilation; too many items. | Adjust thermostat to a colder setting; ensure door is sealed; reduce frequency of door openings; ensure adequate space around unit; do not overload. |
| Ezohiko zaratak. | Unit not level; normal operating sounds (compressor, refrigerant flow). | Adjust leveling feet; these sounds are normal for refrigeration units. |
| Gehiegizko izozteak pilatzea. | Door left open; high humidity; door seal issue. | Ensure door is closed tightly; check door gasket for damage; manually defrost if necessary. |
8. Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | Haier |
| Modelo zenbakia | HEBF100BXS |
| Edukiera | 150 Cans / 7.5 Cubic Feet |
| Neurriak (L x W x H) | 21.25" x 20.5" x 31.38" |
| Elementuaren pisua | 67 kilo |
| Kolorea | Altzairu herdoilgaitza |
| Instalazio mota | exentu |
| Desizozteko sistema | Automatikoa |
| liburukiatage | 115 Volt |
| Apala Mota | Glass (4 Full-Width) |
| Ateko materiala | Beira |
| Ezaugarri bereziak | Lock & Key, LED Interior Light, Adjustable Thermostat, Reversible Door |
9. Bermea eta Laguntza
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Haier webgunea. Gorde erosketa-agiria erosketaren frogagiri gisa, berme-erreklamazioetarako.
Lineako laguntza: www.haierappliances.com/support
