Sarrera
The STANLEY FATMAX Express Folding Workbench (Model FMST1-75672) is a portable and robust work surface designed for various tasks. It features a high load capacity and quick setup, making it suitable for both professional and DIY use. This manual provides instructions for safe and efficient operation, maintenance, and troubleshooting.
Segurtasun Informazioa
- Always ensure the workbench is fully open and stable before placing items on it.
- Ez gainditu 450 kg-ko gehienezko karga-gaitasuna (1003.1 lb).
- Distribute weight evenly across the work surface.
- Keep hands and fingers clear of moving parts during setup and folding.
- Use appropriate personal protective equipment (PPE) when working with tools on the workbench.
- Do not use the workbench as a step stool or ladder.
- Store the workbench in a dry, secure location when not in use.
Paketearen edukia
Egiaztatu osagai guztiak paketean daudela:
- 1 x STANLEY FATMAX Express Folding Workbench (FMST1-75672)
Piezaren bat falta edo hondatuta badago, jarri harremanetan bezeroarentzako laguntzarekin.
Konfigurazio Argibideak
The STANLEY FATMAX Express Folding Workbench is designed for quick and easy setup. Follow these steps to unfold and prepare your workbench for use:
- Unfolding the Workbench:
Place the folded workbench on a flat, stable surface. Hold the integrated carry handle and gently pull the legs outwards until they lock into place. Ensure all four legs are fully extended and stable.
Image: A person demonstrating the unfolding process of the workbench, showing the legs extending from the main body.
Image: A person kneeling to finalize the setup of the workbench, ensuring stability before use.
- Egonkortasuna egiaztatzea:
Before placing any items on the workbench, gently push down on the work surface to confirm that all legs are securely locked and the workbench is stable. The workbench should not wobble.
Video: Workbench Setup and Folding Demonstration
Video: A demonstration showing the quick and easy process of unfolding and folding the STANLEY FATMAX Express Folding Workbench.
Funtzionamendu-argibideak
The workbench provides a versatile surface for various tasks. Here are key operational features:
- Erabilera orokorra:
Place your materials and tools on the work surface. The large 85cm x 61cm platform accommodates a variety of projects. Always ensure items are placed securely to prevent movement during work.
Image: A person using a tape measure and pencil to mark a piece of wood placed on the workbench, demonstrating general use.
- Clamping Compatibility:
The workbench features 'dog bench' holes and x-shaped grooves designed for use with STANLEY FATMAX clamps. Insert clamps into the designated holes or grooves to secure wood, metal, or plastic items at various angles for cutting, drilling, or assembly.
Irudia: Gertutik view of a STANLEY FATMAX clamp holding a piece of wood firmly to the workbench surface, illustrating the clampezaugarria.
Image: Another perspective showing a STANLEY FATMAX clamp engaged with the workbench, securing a workpiece for stability during tasks.
- Tolestura biltegiratzeko eta garraiatzeko:
To fold the workbench, ensure all items are removed from the surface. Locate the release mechanism (often integrated with the carry handle) and activate it to collapse the legs. Fold the workbench into its compact unit. Use the integral carry handle for easy transportation.
Mantentzea
- Garbiketa: Wipe down the work surface and legs with a damp cloth after each use to remove dust, debris, and spills. Avoid abrasive cleaners that could damage the surface.
- Ikuskapena: Periodically inspect the workbench for any signs of wear, damage, or loose components. Ensure all locking mechanisms for the legs are functioning correctly.
- Biltegiratzea: Store the folded workbench in a dry environment, away from extreme temperatures and direct sunlight, to prolong its lifespan.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Lan-mahaia ezegonkorra edo ezegonkorra da. | Hankak ez daude guztiz luzatuta edo blokeatuta. Gainazal irregularra. | Ensure all legs are fully extended and locked into place. Move the workbench to a flat, level surface. |
| Tolestu edo zabaltzeko zailtasuna. | Mekanismoa oztopatua edo zurruna. | Check for any debris obstructing the folding mechanism. Apply a small amount of silicone lubricant to hinges if stiff. |
| Clamps do not hold material securely. | Okerra clamp placement or incompatible clamps. | Ziurtatu clamps are properly seated in 'dog bench' holes or x-shaped grooves. Use STANLEY FATMAX compatible clamps. |
Zehaztapenak
| Modelo zenbakia | FMST1-75672 |
| Marka | STANLEY |
| Materiala | Metala |
| Irekitako neurriak (L x Z x A) | 85 cm x 61 cm x 80 cm (33.5"S x 24"Z x 31.5"A gutxi gorabehera) |
| Tolestutako neurriak (L x W x H) | 85 cm x 61 cm x 11 cm (33.5"S x 24"Z x 4.3"A gutxi gorabehera) |
| Elementuaren pisua | 10.5 kg (23.1 lb) |
| Gehienezko Karga Edukiera | 450 kg (1003.1 lb) |
| Muntaia Beharrezkoa | Ez |

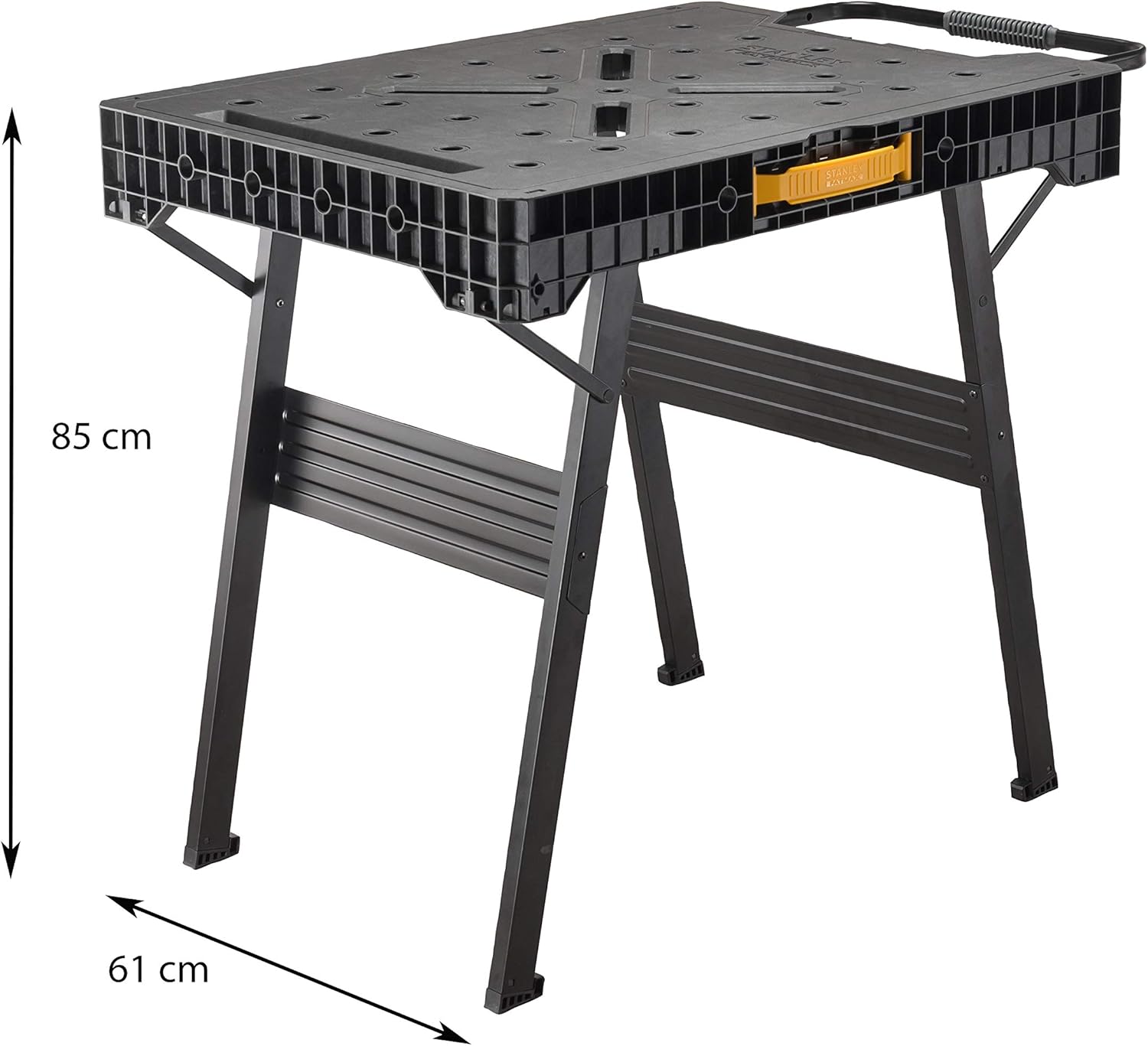

Image: A visual representation of the workbench with key dimensions (85 cm and 61 cm) indicated.
Bermea eta Laguntza
For warranty information, technical support, or to purchase replacement parts, please visit the official STANLEY webwebgunera edo jarri harremanetan bezeroarentzako arreta-zerbitzuarekin. Gorde erosketa-agiria erosketaren frogagiri gisa.
Lineako laguntza: Visit the STANLEY Store on Amazon
