Sarrera
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Pabobo Kid Sleep Alarm Clock, model KS0031. Please read this manual thoroughly before using the product to ensure proper function and safety.
The Pabobo Kid Sleep Alarm Clock is designed to help children learn to tell time and establish healthy sleep routines. It features both digital and analog time displays, a visual sleep/wake indicator, and customizable alarm sounds.
Segurtasun Informazioa
- Mantendu gailua uretatik eta hezetasunetik urrun.
- Ez jarri muturreko tenperatura edo eguzki-argia zuzenean.
- Erabili zehaztutako bateria mota soilik. Ziurtatu polaritate zuzena bateriak sartzerakoan.
- Mantendu bateriak haur txikien eskura.
- Ez saiatu gailua zeuk desmuntatzen edo konpontzen. Arazorik izanez gero, jarri harremanetan laguntza-zerbitzuarekin.
- Produktu hau barrualdean erabiltzeko bakarrik dago pentsatuta.
Produktua amaituview
The Pabobo Kid Sleep Alarm Clock combines an analog clock, a digital display, and a visual sleep/wake indicator to assist children in understanding time and sleep cycles.
1. irudia: Aurrealdea view of the Pabobo Kid Sleep Alarm Clock.
Ezaugarri nagusiak:
- Ordu bikoitza bistaratzea: Features both an analog clock face and a digital time display for easy learning.
- Loaren entrenatzailea: A visual indicator (sleeping child / awake child) helps children understand when it's time to sleep and when it's okay to wake up.
- Alarma progresiboa: Three selectable alarm sounds (chirping birds, cuckoo, train) that increase in volume.
- Atzeratzea Funtzioa: Press the large button on the top for a two-minute snooze and a temporary backlight.
- Gaueko argia: A mini night light emits a reassuring glow.
Konfigurazioa
1. Bateriaren instalazioa
The clock operates on one battery, which is included. To install or replace the battery:
- Kokatu bateriaren konpartimendua erlojuaren atzealdean.
- Ireki bateriaren konpartimenduaren estalkia.
- Sartu bateria, polaritate zuzena ziurtatuz (+/-).
- Itxi bateriaren konpartimenduaren estalkia ondo.
2. irudia: Atzekoa view with battery compartment and controls.
2. Ordua ezartzea
To set the current time on your alarm clock:
- Use the time setting knob (usually located on the back) to adjust the analog hands to the correct time.
- The digital display will synchronize or can be set separately using dedicated buttons (refer to specific button labels on the back, e.g., "SET" buttons).

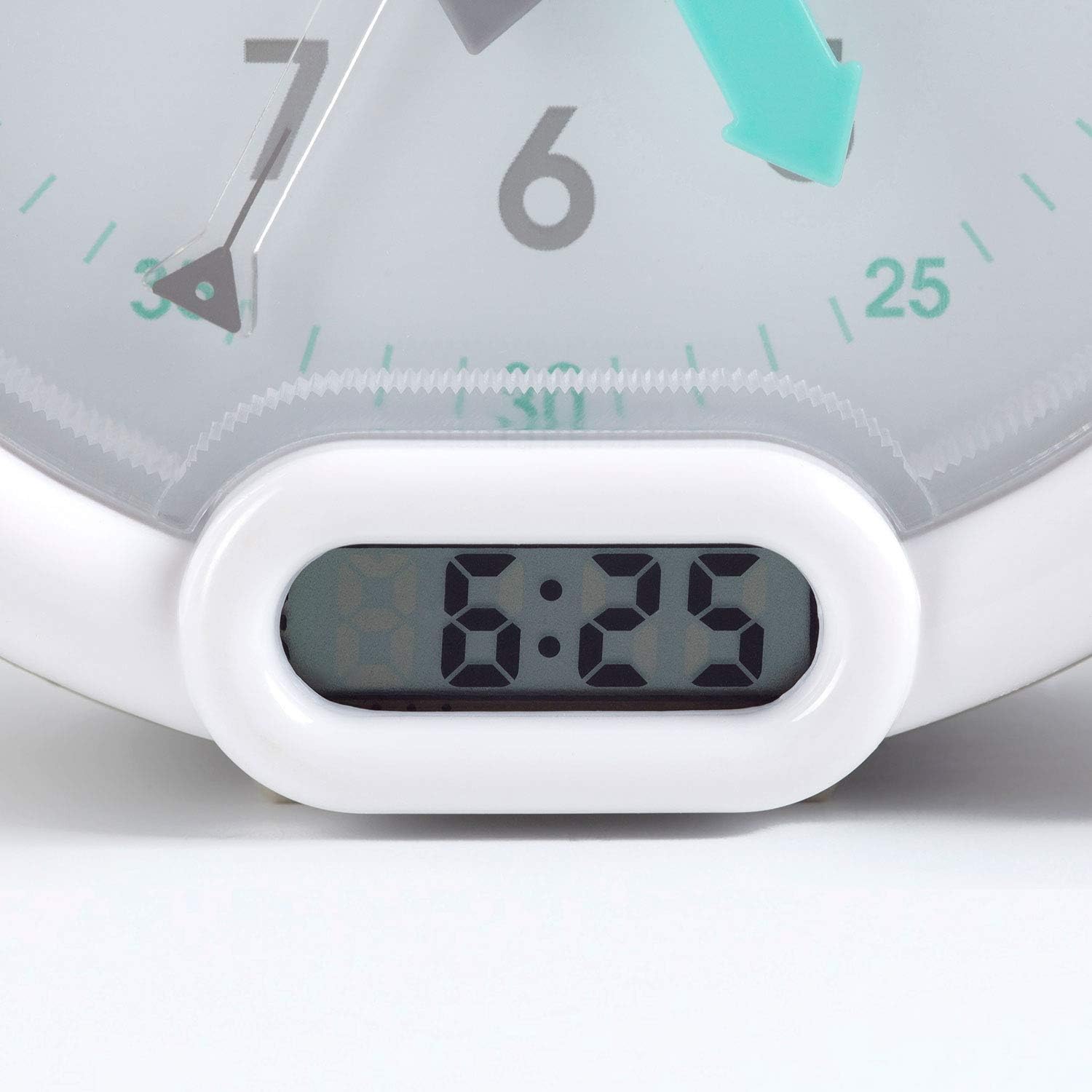

3. irudia: Digital time display.
Funtzionamendu-argibideak
1. Alarma ezartzea
The alarm can be set to one of three sounds: chirping birds, cuckoo, or train. The alarm volume increases progressively.
- Locate the alarm setting controls on the back of the clock.
- Adjust the alarm time using the designated knob or buttons.
- Select your preferred alarm sound using the sound selection switch.
- Ensure the alarm is activated (ON position).
2. Using the Sleep Trainer
The sleep trainer feature visually indicates when it's time to sleep and when it's time to wake up.
- Sleeping Child Lit: When the image of the sleeping child is lit, it indicates that children should remain in bed and continue sleeping.
- Awake Child Lit: When the image of the awake child is lit, it signals that it is time to wake up.
4. irudia: Sleep indicator (sleeping child).
5. irudia: Awake indicator (awake child).
The sleep/wake times for this indicator are typically set independently from the alarm time, using specific controls on the back of the clock.
3. Snooze and Backlight Function
Press the large button on the top of the clock to activate the snooze function for two minutes. This button also provides a short glowing light, allowing the child to see the time during the night.
6. irudia: Clock with backlight activated.
Mantentzea
- Garbiketa: Garbitu erlojua zapi leun eta lehor batekin. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
- Bateria ordezkatzea: Replace the battery when the display dims or the alarm function becomes unreliable. Dispose of used batteries responsibly.
- Biltegiratzea: Erlojua denbora luzez gordetzen baduzu, kendu bateria isuriak saihesteko.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Clock not turning on / display blank. | Bateria hilda edo gaizki instalatuta. | Check battery polarity. Replace battery. |
| Alarma ez da jotzen. | Alarm not set or turned off. Low battery. | Ensure alarm is set and activated. Replace battery. |
| Sleep/wake indicator not changing. | Incorrect sleep/wake time settings. | Verify and adjust the sleep/wake indicator settings. |
| Clock makes clicking noise. | Mechanical movement noise (common for analog clocks). | This may be normal for the analog mechanism. If excessively loud or new, contact support. |
Zehaztapenak
| Marka: | Pabobo |
| Modelo zenbakia: | KS0031 |
| Kolorea: | Grisa |
| Bistaratzeko mota: | Analogikoa, Digitala |
| Produktuaren neurriak: | 6.3"Z x 5.12"A |
| Energia iturria: | Battery Powered (1 battery included) |
| Materiala: | Plastikoa |
| Muntatze mota: | Mahaigaineko muntaia |
| Elementuaren pisua: | 14.1 ontza (0.88 libra) |
| Ezaugarri berezia: | Adjustable, Backlit, Sleep Trainer |
Bermearen informazioa
This Pabobo Kid Sleep Alarm Clock comes with a Bizi osorako bermea. For details regarding warranty claims and coverage, please refer to the official Pabobo webwebgunean edo jarri harremanetan bezeroarentzako laguntzarekin.
Bezeroarentzako Arreta
If you encounter any issues or have questions not covered in this manual, please contact Pabobo customer support for assistance.
- Lineako laguntza: Visit the official Pabobo webMaiz egiten diren galderen eta harremanetarako aukeren gunea.
- Posta elektronikoa: [Insert Pabobo Support Email Here, if available]
- Telefonoa: [Insert Pabobo Support Phone Number Here, if available]
Please have your model number (KS0031) and purchase information ready when contacting support.
