Sarrera
This manual provides instructions for the proper use and care of your Helios 77M-4 50mm F1.8 vintage lens. Designed for Sony E-mount cameras, this manual focus lens offers a classic photographic experience with its distinct optical characteristics. Please read this manual thoroughly before using the lens to ensure optimal performance and longevity.
Lentearen osagaiak
Familiarize yourself with the main components of your Helios 77M-4 lens.

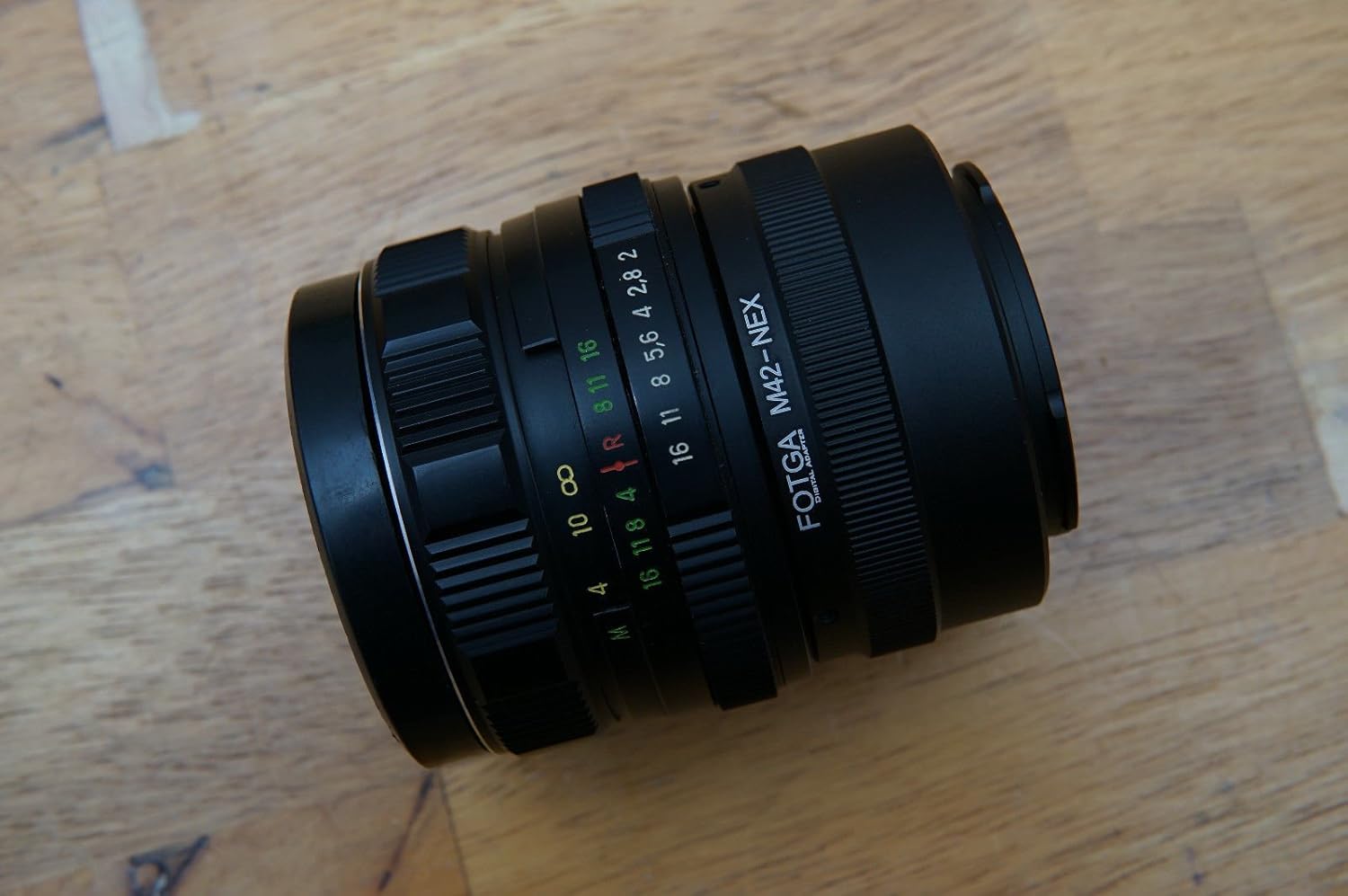

Image: The Helios 77M-4 50mm F1.8 lens, displaying its manual focus ring, aperture ring, and depth of field scale. This view highlights the robust construction and clear markings essential for manual operation.
- Fokatzeko eraztuna: Used to adjust the focus manually.
- Irekidura-eraztuna: Used to set the desired aperture (f-stop).
- Depth of Field Scale: Provides an indication of the depth of field at various apertures.
- Muntatzeko eraztuna: Connects the lens to the camera body.
Konfigurazioa
Lentea muntatzea
- Ziurtatu kamera itzalita dagoela.
- Remove the rear lens cap from the Helios 77M-4 lens and the body cap from your Sony E-mount camera.
- Align the white index mark on the lens barrel with the corresponding white index mark on the camera body.
- Sartu lentea kameraren euskarrian eta biratu erlojuaren orratzen noranzkoan klik egin arte. Ez behartu lentea.
- Once mounted, remove the front lens cap.
Image: The Helios 77M-4 lens securely attached to a Sony E-mount camera body. This illustrates the correct mounting position, ready for use.
Kameraren ezarpenak
Since this is a manual lens, you will need to adjust your camera settings:
- Ezarri zure kamera Eskuliburua (M) or Aperture Priority (A) modua.
- Gaitu "Release without lens" or "Shoot without lens" in your camera's menu, as the camera will not detect an electronic connection to the lens.
- Consider using "Focus Peaking" eta "Magnified View" features on your camera for easier manual focusing. Refer to your camera's manual for specific instructions on these features.
Lentearen funtzionamendua
Irekiera doitzea
The aperture is controlled directly on the lens using the aperture ring. Rotate the ring to select your desired f-stop. A wider aperture (smaller f-number like F1.8) allows more light and creates a shallower depth of field, ideal for portraits. A narrower aperture (larger f-number) allows less light and creates a deeper depth of field, suitable for landscapes.
Eskuzko fokatzea
To focus, rotate the focus ring on the lens barrel until your subject appears sharp in the viewfinder or on the LCD screen. Utilize your camera's focus peaking and magnification features for precise focusing, especially at wider apertures.
- Fokuaren gailurra: Highlights in-focus areas with a colored outline.
- Handituta View: Zooms in on a portion of the image for critical focus assessment.
Mantentzea
Lentea garbitzea
- Use a soft, lint-free microfiber cloth specifically designed for optical surfaces to clean the front and rear elements.
- Orban egoskorren kasuan, aplikatu lenteak garbitzeko soluzio kantitate txiki bat oihalaren gainean, ez zuzenean lentearen gainean.
- Erabili putz egiteko eskuila bat hauts-partikulak kentzeko garbitu aurretik, marradurak saihesteko.
- Ez erabili inoiz material urratzaileak edo produktu kimiko gogorrak.
Biltegiratzea
- Lentea erabiltzen ez duzunean, jarri beti aurreko eta atzeko lenteen estalkiak.
- Gorde lentea leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik babestuta.
- If storing for extended periods, consider using a dehumidifying agent to prevent fungus growth.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Camera does not recognize lens / Cannot take photos | Manual lens, no electronic contacts. | Enable "Release without lens" or "Shoot without lens" in camera settings. |
| Irudiak lausoak dira | Incorrect focus or camera shake. | Ensure proper manual focus using focus peaking/magnification. Use a faster shutter speed or tripod to prevent camera shake. |
| Images are too dark/bright | Incorrect exposure settings (aperture, shutter speed, ISO). | Adjust aperture on the lens. Adjust shutter speed and ISO on the camera to achieve desired exposure. |
| Dust or smudges on images | Lentearen elementu zikinak. | Clean lens elements carefully using a blower brush and microfiber cloth. |
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Eredua | Helios 77M-4 |
| Fokua | 50 mm |
| Gehieneko irekiera | F1.8 |
| Lente mota | Lente lehen estandarra |
| Muntaketa bateragarriak | Sony E-Mount (NEX, A7 series, 6500, a6300, a6000, a5100, a5000, a3000) |
| Foku mota | Eskuzko fokua |
| Fabrikatzailea | 77M-4 (as per product data) |
Bermea eta Laguntza
This product is a vintage lens. Specific warranty information may vary depending on the seller and purchase conditions. Please refer to your purchase documentation for details regarding any applicable warranty.
For technical support or inquiries, please contact the retailer or the original manufacturer if contact information is available. As a vintage item, direct manufacturer support may be limited.
