Insten 4-in-1 Joy-Con Charging Dock for Nintendo Switch and OLED Model

1. Sarrera

This manual provides instructions for the Insten 4-in-1 Joy-Con Charging Dock. This device is designed to charge up to four Nintendo Switch Joy-Con controllers simultaneously, ensuring they are ready for use. It is compatible with both the original Nintendo Switch and the OLED Model.

2. Segurtasun informazioa

• Ez jarri kargatzeko oinarria uretan edo hezetasun gehiegizkoan.
• Saihestu gailua kolpe gogorrak erortzea edo jasaten.
• Do not attempt to disassemble or modify the charging dock.
• Use only the provided USB cable or a certified equivalent for power.
• Mantendu haurren eskura.
• Ziurtatu kargatzeko oinarriaren inguruan behar bezala aireztatuta dagoela erabiltzen ari den bitartean.

3. Paketearen edukia

• 1 x Insten 4-in-1 Joy-Con Charging Dock
• 1 x USB kargatzeko kablea

4. Konfigurazioa

1. Place the charging dock on a stable, flat surface.
2. Connect the small end of the included USB charging cable to the Micro USB port on the back of the charging dock.
3. Connect the standard USB end of the cable to a powered USB port (e.g., a Nintendo Switch dock, computer, or USB wall adapter).

The charging dock is now ready for use.

Figure 1: Connecting the USB cable to the charging dock. The image also shows the dock's dimensions (4.8" height, 3.3" diameter) and the 2.25 ft USB cable length.

5. Funtzionamendu-argibideak

5.1 Charging Joy-Cons

1. Ensure the charging dock is powered on and connected to a USB power source.
2. Slide your Joy-Con controllers into the available slots on the charging dock. Ensure they click into place securely. The dock supports up to four Joy-Cons simultaneously.
3. The LED indicators on the top of the dock will illuminate to show the charging status.

Figure 2: Four Joy-Con controllers (two red, two blue) inserted into the charging dock, illustrating simultaneous charging capability. The image highlights that Joy-Cons can be easily slid in for quick charging.

5.2 LED Charging Indicators

The Insten 4-in-1 Joy-Con Charging Dock features individual LED indicators for each charging slot. These indicators provide visual feedback on the charging status of your Joy-Cons:

• Argi urdina: Indicates that the Joy-Con controller is currently charging.
• Argi berdea: Indicates that the Joy-Con controller is fully charged.

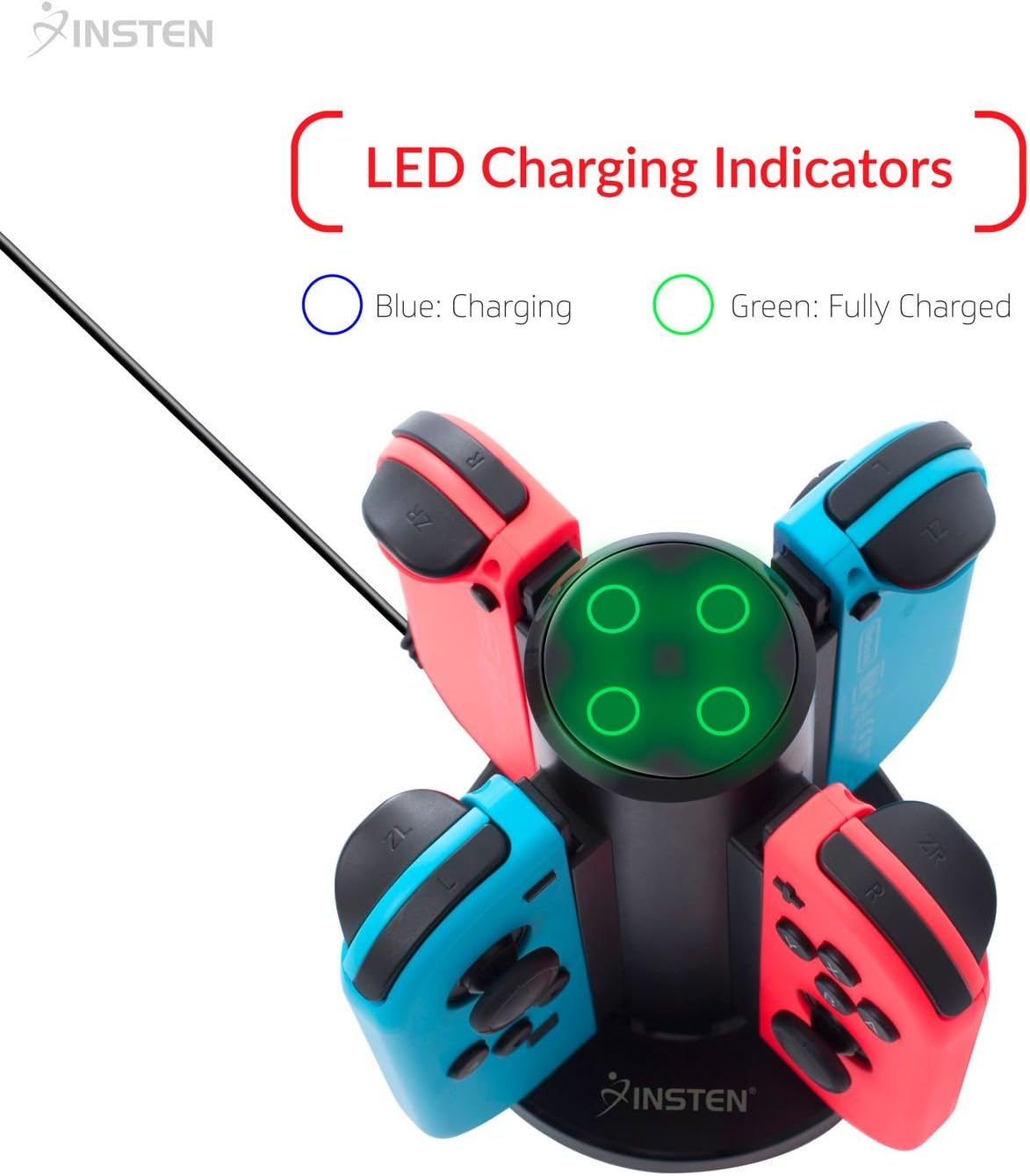

Figure 3: Close-up of the Insten Joy-Con Charging Dock's top, showing the LED charging indicators. The image clarifies that a blue light signifies charging, and a green light signifies a full charge.

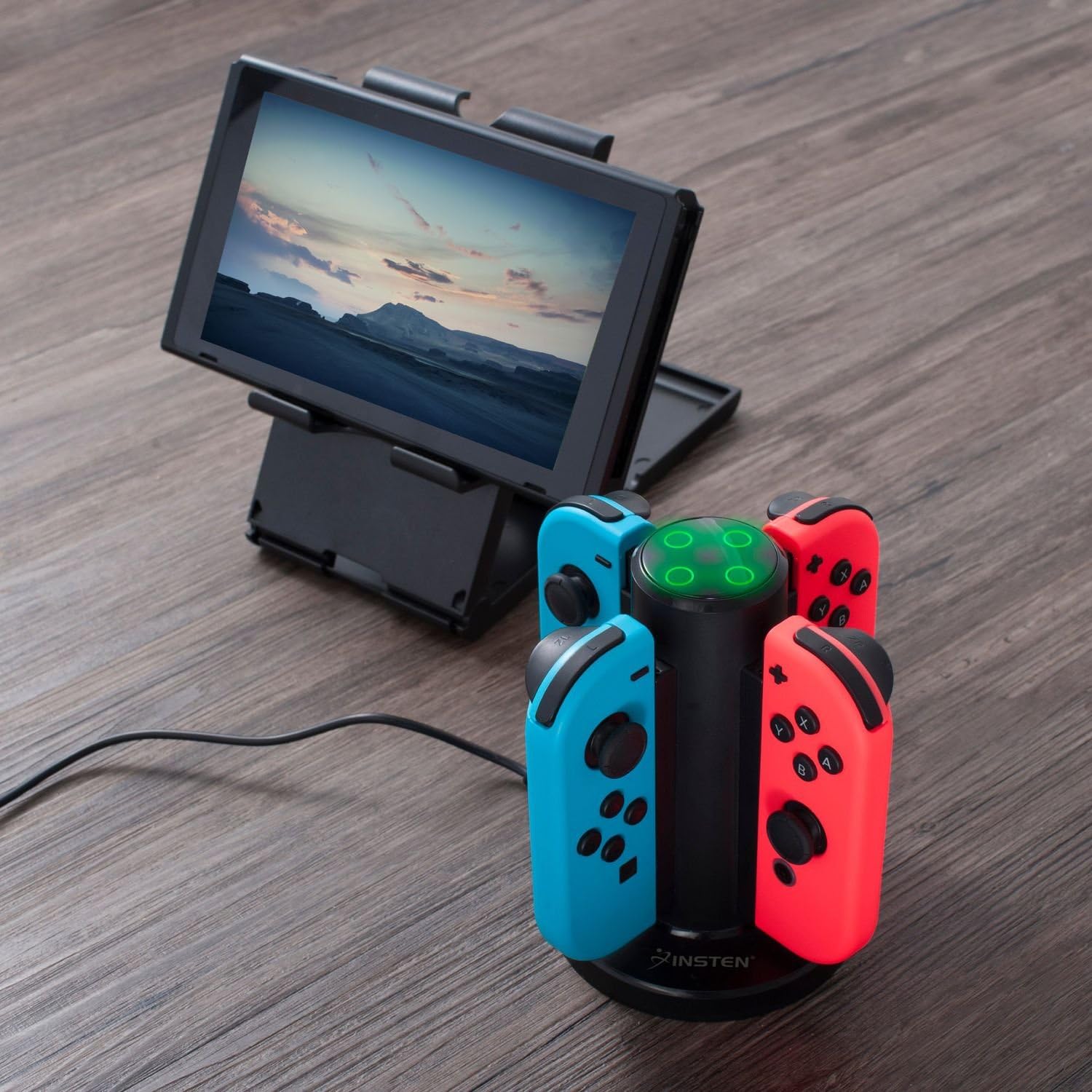

Figure 4: The Insten Joy-Con Charging Dock actively charging four Joy-Con controllers (red and blue) on a wooden surface, positioned next to a Nintendo Switch console on a separate stand. The LED indicators on the dock are illuminated green, indicating fully charged controllers.

6. Mantentzea

• To clean the charging dock, disconnect it from the power source and wipe it with a soft, dry cloth.
• Ez erabili garbitzaile edo disolbatzaile urratzailerik.
• Store the charging dock in a cool, dry place when not in use.

Figure 5: The underside of the Insten Joy-Con Charging Dock, highlighting its wide stable base (3.3" diameter) and non-slip grip for secure placement during use and maintenance.

7. Arazoak

• Joy-Cons not charging: Ensure the USB cable is securely connected to both the charging dock and the power source. Try a different USB port or power adapter. Verify Joy-Cons are correctly inserted into the slots.
• LED adierazleak ez dira pizten: Check the power connection. If the Joy-Cons are already fully charged, the LEDs will be green or off depending on the specific charge cycle.
• Karga motela: Ensure the power source provides sufficient output (e.g., a wall adapter rather than a low-power USB port on a computer).

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information or technical support, please refer to the product packaging or contact Insten customer service through their official website or the retailer where the product was purchased. Please have your product model number (B0753FLMVG) and purchase date available.
