1. Sarrera
This manual provides essential instructions for the safe and effective use, assembly, operation, maintenance, and troubleshooting of your yuwell Ultra Lightweight Transport Wheelchair, Modern model. Please read this manual thoroughly before initial use and retain it for future reference.
2. Segurtasun informazioa
WARNING: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is a mobility aid and should be used according to the instructions provided.
- Always ensure all locking mechanisms are engaged before use.
- Ez gainditu 180 lb-ko (gutxi gorabehera 81 kg) gehienezko pisu-ahalmena.
- Ensure the user is properly seated and secured with the seat belt.
- Exercise caution on uneven surfaces or inclines.
- Regularly inspect the wheelchair for any signs of wear or damage.
3. Produktua amaitu daview
The yuwell Ultra Lightweight Transport Wheelchair is designed for ease of transport and maneuverability. It features an aluminum alloy frame, breathable net fabric seat, and convenient folding capabilities.
3.1. irudia: Orokorrean view of the yuwell Transport Wheelchair.
Ezaugarri nagusiak:
- Lightweight Aluminum Alloy Frame: Waterproof, corrosion-resistant, and durable.
- Superior Maneuverability: Designed for narrow indoor layouts.
- Hand Brakes: For easy control and enhanced safety for the caregiver.
- Super-Light Folding Design: Facilitates transport and storage.
- Breathable Seat: Net fabric designed for comfort and to prevent bedsores.
- Removable Back Cushion: For easy cleaning and washing.

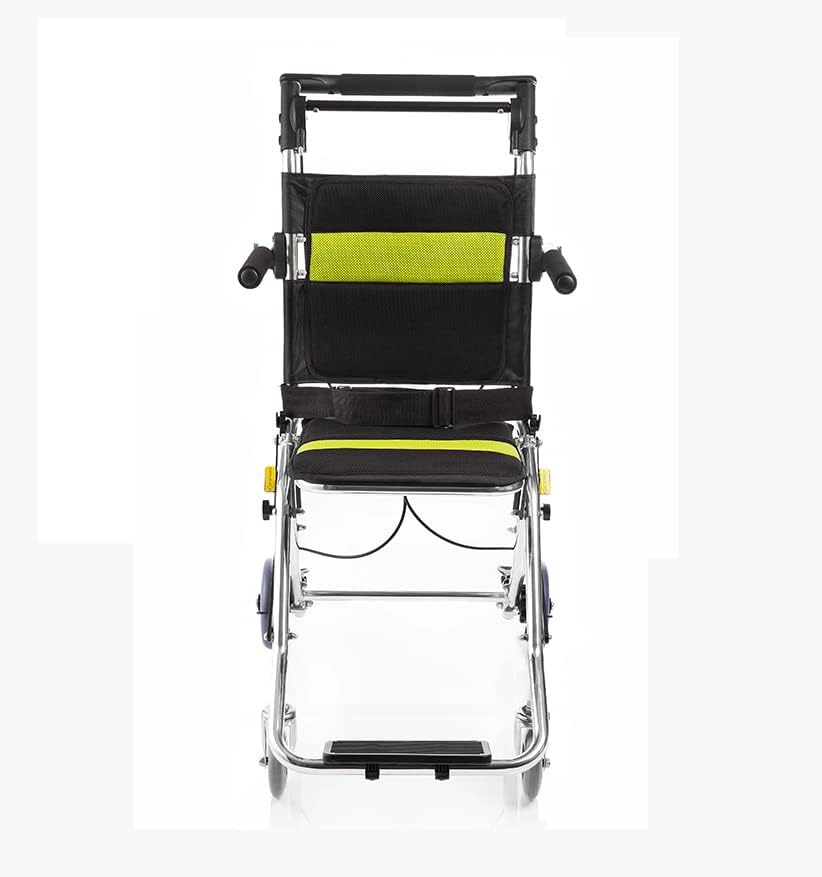

3.2. irudia: Aurrealdea view.
3.3. irudia: Aldea view.
3.4. irudia: Atzealdea view.
4. Konfigurazioa eta zabalpena
To prepare the wheelchair for use, follow these steps:
- Place the folded wheelchair on a flat, stable surface.
- Gently pull the armrests outwards to begin unfolding the frame.
- Push down firmly on the seat rails until the seat is fully flat and locked into position.
- Ensure all components are securely locked before placing a user in the chair.

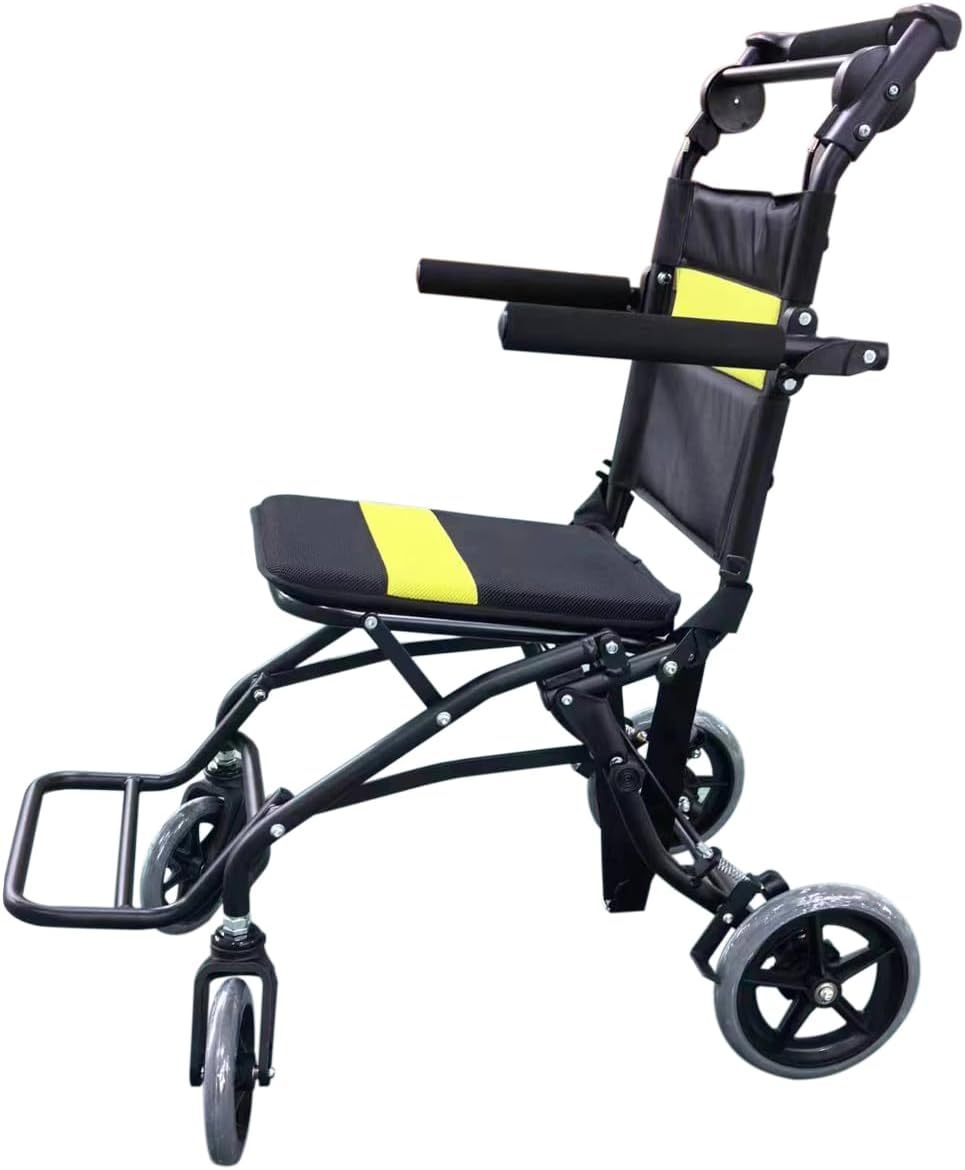

Figure 4.1: Unfolding the wheelchair.
5. Funtzionamendu-argibideak
5.1 Seating the User
Ensure the wheelchair is fully unfolded and the brakes are engaged before assisting a user into the seat. Fasten the widened seat belt for safety and comfort.
Figure 5.1: Widened seat belt for security and comfort.
5.2 Balaztak erabiltzea
The wheelchair is equipped with both hand brakes for the caregiver and foot brakes for parking.
- Hand Brakes: Located on the push handles, these allow the caregiver to control speed and stop the wheelchair. Squeeze the levers to engage the brakes.
- Foot Brakes: For parking, step on the foot brake levers located near the rear wheels on both sides. Ensure both are engaged when the wheelchair is stationary.
Figure 5.2: Engaging the hand brake.
Figure 5.3: Engaging the foot brake for parking.
5.3 Oin-euskarriak
The footrests are flippable for easy access and can be adjusted for user comfort. Ensure the user's feet are securely placed on the footrests during transport.
Figure 5.4: Flippable pedal for convenience.
5.4 Maneuvering
The 6-inch front wheels provide 360-degree rotation, allowing for superior maneuverability, especially in tight spaces.

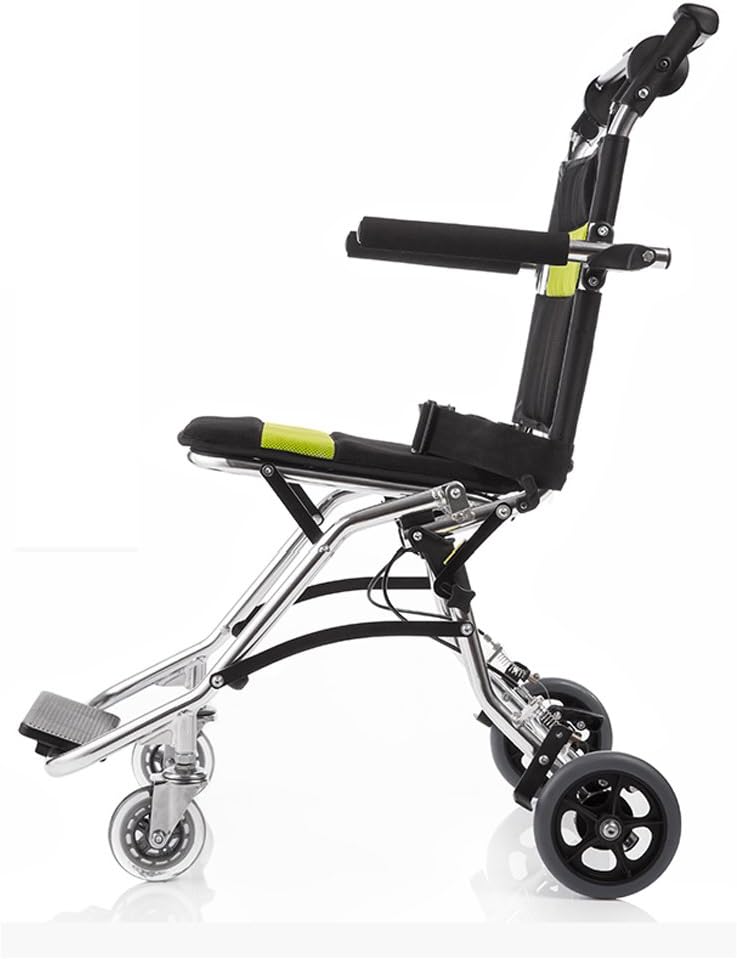

Figure 5.5: 6-inch front wheel for enhanced maneuverability.
6. Tolestura eta biltegiratzea
Gurpil-aulkia tolestu garraiatzeko edo biltegiratzeko:
- Ensure the user is out of the wheelchair and the footrests are flipped up.
- Pull up on the center of the seat fabric to begin collapsing the frame.
- Push the armrests inwards until the wheelchair is fully folded.
- The compact design allows it to fit easily into car trunks or small storage spaces.
Figure 6.1: Folded dimensions for compact storage.
Figure 6.2: Transporting the folded wheelchair in its bag.
7. Mantentzea
- Garbiketa: The removable back cushion and breathable seat fabric can be cleaned with mild soap and water. Wipe the frame with a damp oihal. Saihestu garbitzaile urratzaileak.
- Ikuskapena: Regularly check all bolts, screws, and locking mechanisms to ensure they are tight and functioning correctly. Inspect tires for wear and tear.
- Biltegiratzea: Store the wheelchair in a dry, clean environment when not in use.
8. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Wheelchair difficult to push or steer | Wheels obstructed, low tire pressure (if applicable), or debris in wheel bearings. | Check for obstructions. Clean wheels and bearings. Ensure proper tire inflation (if applicable). |
| Brakes not engaging effectively | Brake cables loose or worn brake pads. | Adjust brake cable tension. Inspect and replace worn brake pads if necessary. |
| Uncomfortable back support | User posture or rigid back bar. | Adjust user's seating position. Consider adding additional padding or a cushion to the backrest for enhanced comfort. |
| Tolesteko/zabaltzeko zailtasuna | Mekanismoa zurrun edo oztopatua. | Ensure no parts are obstructing the folding mechanism. Apply a small amount of lubricant to moving joints if necessary. |
9. Zehaztapenak
- Marka: yuwell
- Eredua: Modernoa
- Materiala: Aluminioa
- Elementuaren pisua: Libra 19.4 (gutxi gorabehera 8.8 kg)
- Kolorea: Green (as per product details, actual product may vary slightly)
- Paketearen neurriak: 25.91 x 18.9 x 10.24 hazbete
- Erabiltzaileen gehieneko pisua: 180 kilo
10. Bermea eta Laguntza
For warranty information or technical support, please contact yuwell customer service through the official yuwell store on Amazon or their official website. Please have your product model (Modern) and ASIN (B0764KC7S1) available when contacting support.
Fabrikatzailea: YUWELL
Lehenengo data eskuragarri: 5ko otsailaren 2018a
