Loewy 40 Black Charcoal BBQ User Manual

Sarrera

Thank you for choosing the Barbecook Loewy 40 Black Charcoal BBQ. This classic original charcoal barbecue is designed for ease of use and efficient grilling, featuring a simple design and a reinforced frame. It incorporates an ingenious QuickStart system for easy ignition and an adjustable air inlet for precise heat control. The enamel finish provides durability and shock absorption, ensuring a long-lasting product.

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new charcoal barbecue. Please read it thoroughly before first use and keep it for future reference.

Segurtasun Informazioa

OHARRA: Segurtasun-jarraibide hauek ez betetzeak sute, leherketa edo erredura arriskua eragin dezake, eta horrek kalte materialak, lesio pertsonalak edo heriotza eragin ditzake.

• KANPOKO ERABILERA BAKARRIK. Do not operate this barbecue indoors or in any enclosed area.
• Mantendu haurrak eta maskotak barbakoatik urrun uneoro.
• Use on a stable, level, non-combustible surface.
• Ez utzi inoiz piztutako barbakoa zaindu gabe.
• Keep the barbecue at a safe distance from combustible materials such as wood decks, fences, and overhanging branches.
• Use only charcoal briquettes or lump charcoal as fuel. Do not use gasoline, kerosene, or alcohol for lighting or relighting.
• Utzi barbakoa guztiz hozten mugitu edo garbitu aurretik.
• Always have a fire extinguisher or a bucket of sand readily available in case of fire.
• Jantzi babes eskularruak osagai beroak maneiatzen dituzunean.

Paketearen edukia

Please ensure all components are present and undamaged before assembly. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Main Barbecue Unit (Base and Bowl)
• Stainless Steel Grid (Cooking Grate)
• Haizetakoa
• Assembly Hardware (Screws, Nuts, etc.)
• Erabiltzailearen eskuliburua (dokumentu hau)

Konfigurazioa eta Muntaketa

Assembly is required for the Barbecook Loewy 40. Please follow these general steps. Refer to the included assembly diagram for detailed instructions specific to your model.

1. Deskonprimitu osagai guztiak eta jarri gainazal garbi eta lau batean.
2. Attach the main barbecue bowl to the central column/base using the provided hardware. Ensure all connections are secure.
3. Install the windshield around the rim of the barbecue bowl. This helps protect the flame from wind and directs heat.
4. Place the stainless steel cooking grid into the designated slots in the bowl. Note that the grid is height-adjustable.
5. Ensure all parts are firmly connected and the barbecue is stable before use.

Figure 1: Fully assembled Barbecook Loewy 40 Charcoal BBQ, ready for use.

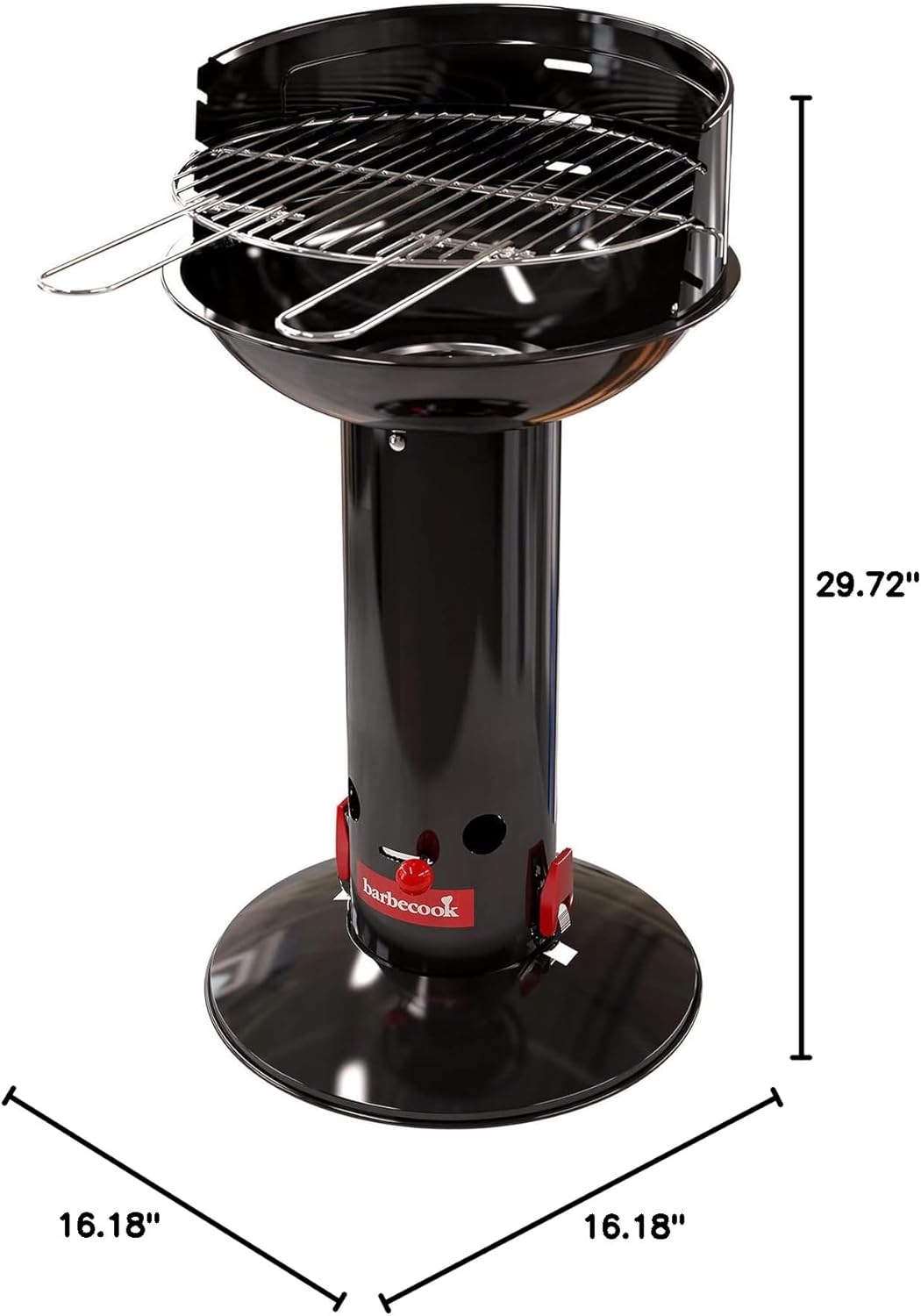

Figure 2: Dimensions of the Barbecook Loewy 40, showing its compact design at 16.18"D x 16.18"W x 29.72"H.

Funtzionamendu-argibideak

1. Lighting the Charcoal (QuickStart System)

The Barbecook Loewy 40 features an innovative QuickStart system for easy and efficient charcoal ignition.

1. Place charcoal briquettes or lump charcoal into the charcoal bowl. Do not overfill.
2. Locate the QuickStart ignition port at the base of the central column.
3. Insert a crumpled piece of newspaper or a firelighter into the QuickStart tube from the bottom.
4. Light the paper/firelighter through the opening. The design of the QuickStart system will create a chimney effect, drawing air through the charcoal and igniting it quickly and evenly.
5. Allow the charcoal to ash over (turn grey) before placing food on the grill. This typically takes 15-20 minutes.

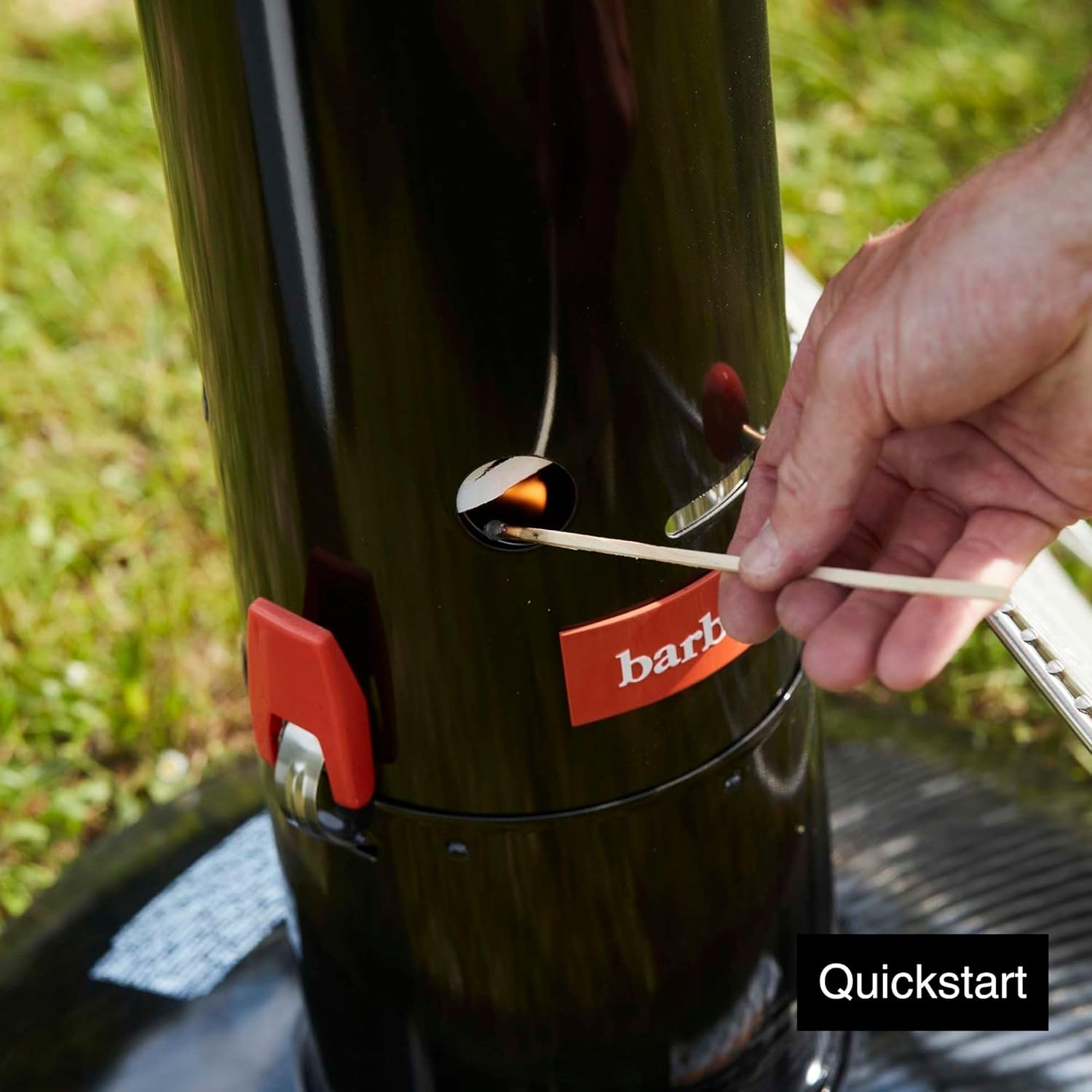

Figure 3: Using the QuickStart system to ignite charcoal with a match, demonstrating the ease of starting the barbecue.

4. irudia: hurbileko planoa view of glowing charcoal, indicating it is ready for grilling after the QuickStart process.

2. Heat Control (Adjustable Air Inlet)

The barbecue features an adjustable air inlet to control the intensity of the heat.

• Increasing Heat: Open the air inlet wider to allow more oxygen to reach the charcoal, increasing the burn rate and heat.
• Dekretuaasing Heat: Close the air inlet partially to restrict oxygen flow, reducing the burn rate and heat.

3. Grill Height Adjustment

The chrome-plated cooking grid offers 3 positions for height adjustment, allowing you to control the cooking temperature relative to the charcoal.

• Higher Position: For slower cooking or keeping food warm.
• Beheko posizioa: For searing or faster cooking.
• To adjust, carefully lift the grid using the handles and place it into the desired set of notches on the barbecue bowl.

Figure 5: The height-adjustable grill with 3 levels, allowing for versatile cooking temperatures.

Figure 6: The durable stainless steel grid, shown with food cooking, highlighting its robust construction.

Figure 7: The integrated windshield, designed to protect the flame and enhance heat retention during grilling.

Mantentzea eta Garbiketa

Regular cleaning and maintenance will extend the life of your Barbecook Loewy 40 BBQ.

• Erabilera bakoitzaren ondoren: Allow the barbecue to cool completely. Remove the cooking grid and clean it with a grill brush. For stubborn residue, soak in warm, soapy water.
• Errautsak botatzea: Once cooled, carefully remove the ash from the charcoal bowl. Dispose of ash in a non-combustible container.
• Kanpoko garbiketa: Wipe down the exterior enamel surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners that could damage the finish. The enamel is designed to be immune to shock and easy to clean.
• Biltegiratzea: Store the barbecue in a dry, covered area when not in use to protect it from the elements.

Arazoak konpontzea

Zehaztapenak

Bermea eta Laguntza

Bermeari buruzko informazio zehatza lortzeko, jo fabrikatzailearen informazio ofizialera. website or the original purchase documentation provided with your Barbecook Loewy 40 BBQ.

For technical support, replacement parts, or any other inquiries, please contact Barbecook customer support through their official channels. Contact information can typically be found on the manufacturer's webgunea edo zure erosketa-agiria.
