Intelbras XPE 1013 Plus Electronic Intercom System User Manual

1. Sarrera

The Intelbras XPE 1013 Plus Electronic Intercom System is a universal 13-key intercom designed for efficient and secure communication within condominiums. This device integrates seamlessly with ANATEL standard central branch positions, offering advanced features to enhance property security and user convenience. Its robust design and easy installation make it an ideal solution for modern residential complexes.

Ezaugarri nagusiak hauek dira:

• Universal compatibility with ANATEL standard central branch positions.
• Instalazio eta mantentze erraza.
• Door lock opening via apartment command or personal password.
• Direct communication with apartments from the gate.
• Two inputs for external buttons and two inputs for open door sensors.
• Interlocking control for pedestrian entry (e.g., airlock or cage system).
• Tamper detection for enhanced security.
• Full-range internal power supply (90 to 240 VAC, automatic).

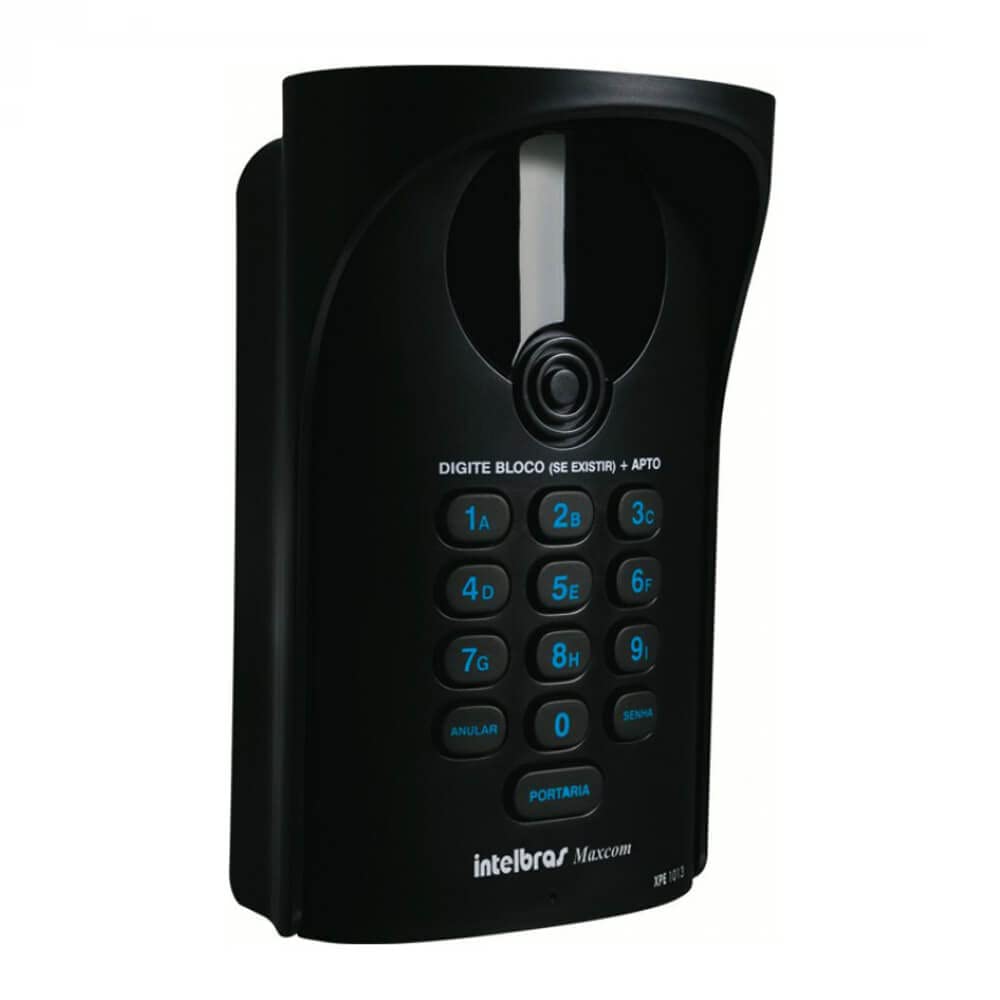

1. irudia: Aurrealdea view of the Intelbras XPE 1013 Plus Intercom, showing the keypad and speaker.

2. Konfigurazioa eta instalazioa

The XPE 1013 Plus is designed for straightforward installation. For optimal performance and safety, professional installation is recommended.

2.1. Mounting the Intercom

Choose a suitable location at the condominium gate or entrance, ensuring it is protected from direct weather exposure if possible. Mount the intercom securely using appropriate fasteners.

2. irudia: Angeludun view of the Intelbras XPE 1013 Plus Intercom, highlighting its compact design.

2.2. Konexio elektrikoak

1. Elikatze-iturria: Connect the intercom to a 90-240 VAC power source. The internal power supply is full-range and automatic.
2. Central Branch Connection: Connect the intercom to the central branch position of your condominium's PABX system. Ensure correct polarity and wiring according to the central's manual.
3. Button Inputs: Connect external door opening buttons to the designated inputs (2 available).
4. Sentsoreen sarrerak: Connect open door sensors to the designated inputs (2 available) for monitoring door status.
5. Blokeo kontrola: Wire the electric lock to the intercom's lock control output.

3. irudia: Aldea view of the Intelbras XPE 1013 Plus Intercom, showing its profile eta muntaketa puntuak.

2.3. Hasierako programazioa

Refer to the detailed programming guide for your specific central branch system. Basic programming includes:

• Assigning apartment numbers to corresponding internal extensions.
• Setting up personal access passwords for residents.
• Configuring the 'Portaria' (Concierge) button to dial a specific extension.

3. Funtzionamendu-argibideak

3.1. Calling an Apartment

1. To call an apartment, visitors should enter the apartment number using the keypad. If the system uses block numbers, first enter the block number, then the apartment number.
2. The intercom will connect to the corresponding apartment's internal phone.
3. Residents can then communicate with the visitor.

3.2. Opening the Door Lock

• From the Apartment: During a call, the resident can dial a specific code on their internal phone to open the door lock. Consult your central branch system's manual for the exact code.
• Using a Personal Password: Authorized users can enter their personal password directly on the intercom's keypad to open the door.

3.3. Calling the Concierge (Portaria)

Sakatu PORTARIA button on the intercom keypad to establish direct communication with the concierge or security desk.

3.4. Interlocking Control (Eclusa/Gaiola)

The intercom supports interlocking control for pedestrian entry systems. This feature ensures that only one gate or door can be opened at a time, enhancing security. Configuration details for this feature are typically managed through the central branch system.

4. Mantentzea

The Intelbras XPE 1013 Plus is designed for durability and ease of maintenance.

• Garbiketa: Erabili biguna, damp cloth to clean the intercom's surface. Avoid abrasive cleaners, solvents, or excessive moisture, which can damage the device.
• Ikuskapena: Periodically inspect the intercom for any signs of physical damage, loose connections, or wear and tear.
• Software eguneraketak: Consult Intelbras' official support channels for any available firmware updates that may improve performance or add new features.

5. Arazoak

If you encounter issues with your XPE 1013 Plus intercom, consider the following troubleshooting steps:

• Potentziarik gabe: Check the power connection and ensure the power outlet is functional. Verify that the internal power supply is receiving voltage.
• Komunikaziorik ez: Ensure all wiring to the central branch system is secure and correctly connected. Verify the central branch system is operational.
• Door Lock Not Opening: Check the wiring to the electric lock. Confirm that the correct apartment code or personal password is being used. Ensure the lock mechanism itself is not faulty.
• TampAlarma: The intercom features tamper detection. If a tamper alarm is indicated, inspect the device for signs of unauthorized opening or removal. Contact technical support if the issue persists after inspection.
• Teklatuak ez du erantzuten: Check for physical obstructions or damage to the keypad. If unresponsive, a reset may be required (consult technical support).

For persistent issues, contact Intelbras technical support or a qualified technician.

6. Zehaztapenak

7. Bermea eta Laguntza

7.1. Bermearen informazioa

The Intelbras XPE 1013 Plus typically comes with a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and duration, please refer to the warranty card included with your product or visit the official Intelbras website. Extended warranty plans may also be available for purchase, offering coverage for 12 or 24 months against failures and defects.

7.2. Laguntza Teknikoa

For technical assistance, troubleshooting, or service requests, please contact Intelbras customer support through their official website or the contact information provided in your product documentation. Ensure you have your product model (XPE 1013 Plus) and any relevant purchase details ready when contacting support.
