Einhell TC-MS 2513 L Miter Saw 220V User Manual

1. Sarrera

Thank you for choosing the Einhell TC-MS 2513 L Miter Saw. This precision tool is designed for cutting wood and coated panels with accuracy and efficiency. This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your miter saw. Please read these instructions carefully before using the product for the first time and keep them for future reference.

1.1 Segurtasun Jarraibide Orokorrak

• Beti erabili babes pertsonaleko ekipamendu (EPI) egokia, besteak beste, segurtasun-betaurrekoak, entzumen-babesak eta hauts-maskara.
• Ziurtatu pieza ondo dagoela clampmoztu aurretik ed.
• Keep hands clear of the cutting area and rotating blade.
• Disconnect the power supply before making any adjustments, changing blades, or performing maintenance.
• Operate the saw in a well-lit and well-ventilated area.
• Ez erabili zerra damp edo baldintza hezeak.
• Mantendu haurrak eta ingurukoak operazio-eremutik urrun.
• Use only sharp, undamaged saw blades suitable for the material being cut.

2. Produktua amaitu daview

The Einhell TC-MS 2513 L Miter Saw features a high-quality turntable for precise angle adjustments, a durable carbide-tipped saw blade for excellent cutting results, and a laser guide for accurate cuts. It also includes a dust collector for a cleaner workspace and auxiliary clamps for securing long workpieces.

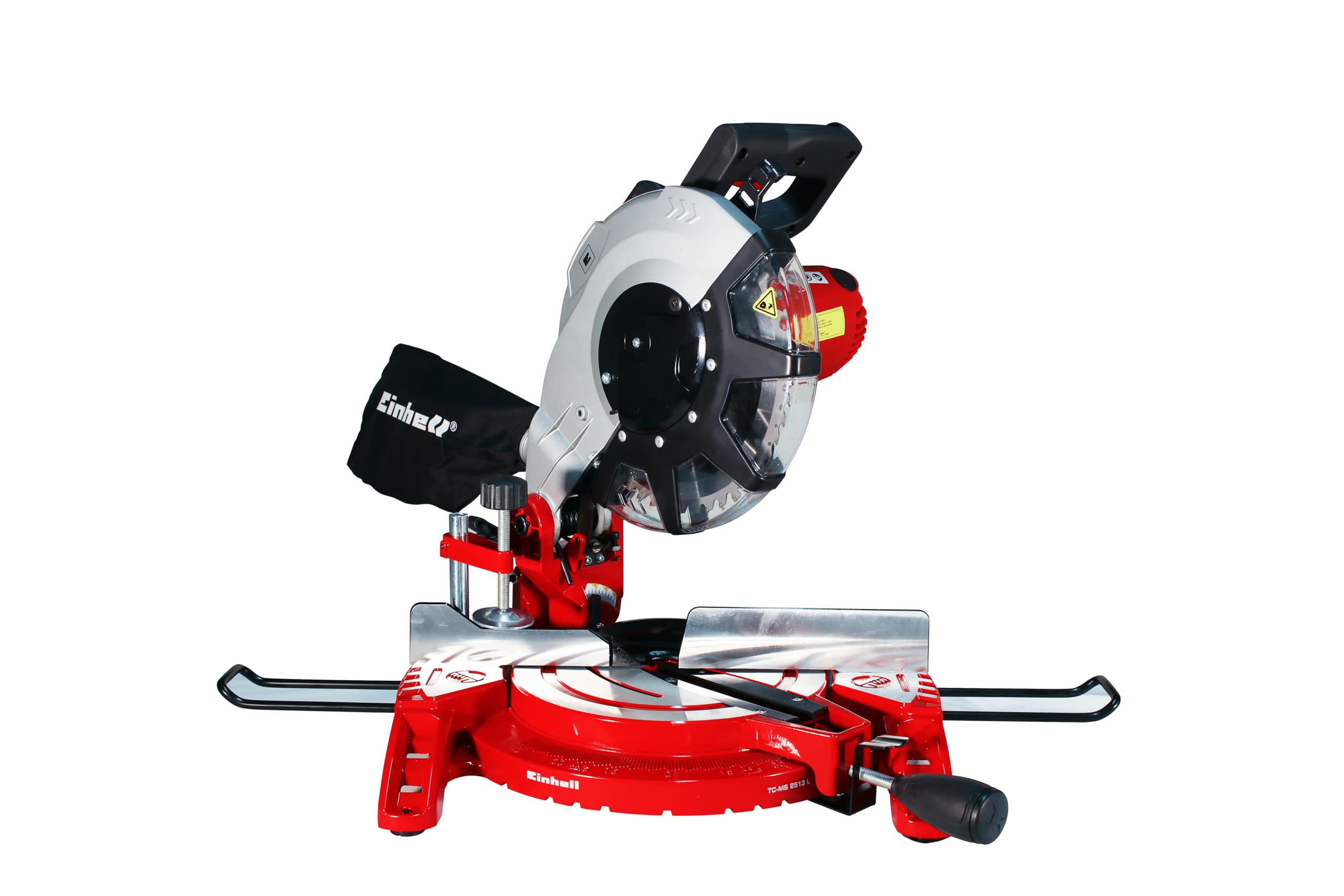

1. irudia: Aurrealdea view of the Einhell TC-MS 2513 L Miter Saw, showing the main components including the saw head, blade guard, turntable, and base.

2.1 Osagaiak

1. Saw Head with Motor and Blade Guard
2. Handle with Power Switch
3. Laser Gida
4. Turntable with Angle Scale
5. Base Plaka
6. Pieza Clamps (Auxiliary Grips)
7. Hautsa Biltzeko Poltsa
8. Blade Locking Button
9. Alaka doitzeko palanka
10. Piezen euskarriak

Figure 2: Included accessories: workpiece supports, clamp, and dust collection bag.

3. Konfigurazioa

3.1 Desontziratzea eta muntatzea

• Kontu handiz kendu osagai guztiak ontzitik.
• Ensure all parts listed in the manual are present and undamaged.
• Attach the workpiece supports to the base plate if not already installed.
• Mount the dust collection bag to the designated port.

3.2 Blade Installation (if not pre-installed)

1. OHARRA: Disconnect the saw from the power supply before installing or changing the blade.
2. Press and hold the blade locking button to prevent the blade from rotating.
3. Erabili emandako giltza pala eusteko torlojua askatzeko.
4. Kontu handiz kendu kanpoko brida eta pala zaharra.
5. Place the new carbide-tipped saw blade onto the spindle, ensuring the rotation direction arrow on the blade matches the arrow on the blade guard.
6. Reattach the outer flange and tighten the retaining screw securely.
7. Release the blade locking button.

3.3 Hasierako doikuntzak

• Turntable Angle: Loosen the locking knob for the turntable. Rotate the turntable to the desired angle using the scale. Tighten the locking knob to secure the position. Pre-defined angles can be quickly selected.
• Alaka angelua: Loosen the bevel adjustment lever. Tilt the saw head to the desired bevel angle. Secure the lever.
• Laser gida: The integrated laser guide assists in precise cutting. Ensure it is clean and functional before use.

4. Funtzionamendu-argibideak

4.1 Oinarrizko funtzionamendua

1. Place the workpiece firmly against the fence and secure it with the workpiece clamp. For long workpieces, use the auxiliary supports.
2. Adjust the miter and/or bevel angle as required for your cut.
3. Lower the saw head slightly to align the laser line with your cut mark.
4. Ensure the blade is not touching the workpiece before starting the motor.
5. Press the power switch on the handle to start the motor. Allow the blade to reach full speed.
6. Poliki eta etengabe jaitsi zerraren burua lan-piezatik. Ez behartu ebakia.
7. Ebaketa amaitutakoan, askatu etengailua eta utzi xafla erabat gelditzen zerraren burua altxatu aurretik.
8. Remove the cut workpiece.

4.2 Laser gida erabiltzea

The laser guide projects a line onto the workpiece, indicating the exact cutting path. Activate the laser by pressing its dedicated switch (if available, or it may activate with the main power). Align this line with your pencil mark for highly accurate cuts.

4.3 Hauts bilketa

The included dust collection bag helps to keep your workspace clean by collecting sawdust during operation. Regularly empty the dust bag to maintain optimal collection efficiency. For enhanced dust extraction, the saw can be connected to an external dust extractor system (adapter may be required).

5. Mantentzea

5.1 Garbiketa

• Deskonektatu beti entxufea garbitu aurretik.
• Clean the saw regularly to remove sawdust and debris. Use a brush or compressed air.
• Ez erabili garbitzaile edo disolbatzaile oldarkorrik.
• Empty the dust collection bag frequently.
• Keep the ventilation slots on the motor housing clear to prevent overheating.

5.2 Palak ordezkatzea

Refer to section 3.2 "Blade Installation" for detailed instructions on how to safely replace the saw blade. Always use sharp, undamaged blades of the correct size and type for your saw.

5.3 Lubrifikazioa

Periodically apply a small amount of machine oil to moving parts, such as the pivot points of the saw head and turntable, to ensure smooth operation. Avoid lubricating the blade or motor components.

6. Arazoak

If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact Einhell customer support.

7. Zehaztapenak

8. Bermea eta Laguntza

Einhell products are manufactured to high-quality standards and undergo strict quality controls. This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Einhell webzure eskualdeko berme-baldintza zehatzak ikusteko, bisitatu webgunea.

For technical support, spare parts, or service inquiries, please contact your local Einhell service center or the retailer where you purchased the product.

Einhell Alemania AG
www.einhell.com
