Rossmax CF155 Blood Pressure Monitor User Manual

1. Sarrera

Thank you for choosing the Rossmax CF155 Blood Pressure Monitor. This device is designed for accurate and convenient measurement of blood pressure and pulse rate at home. It incorporates advanced technologies to ensure reliable readings and user comfort.

Ezaugarri nagusiak hauek dira:

• Mugimenduak detektatzeko teknologia
• Real Fuzzy Technology for optimal cuff inflation
• Hipertentsioaren Arriskuaren Adierazlea
• Bihotz-taupada irregularrak (IHB) detekzioa
• 90-reading memory storage with average of last three readings
• One-touch automatic operation
• Large LCD screen (55 x 63 mm)
• Latex-free universal cone cuff

2. Segurtasun informazioa

Segurtasun-argibide garrantzitsuak:

• Kontsultatu zure medikuari odol-presioaren neurketen interpretazioari buruz. Autodiagnostikoa eta neurketetan oinarritutako tratamendua arriskutsuak izan daitezke.
• Do not adjust medication based on readings from this monitor without consulting your doctor.
• Gailu hau helduentzat bakarrik da. Mantendu haurren eskura ez dagoen leku batean.
• Do not use this device on an injured arm or an arm undergoing medical treatment.
• Avoid taking measurements in a moving vehicle or on an airplane.
• Do not use this device in the presence of flammable gases.
• Erabili baimendutako piezak eta osagarriak soilik.
• If you experience discomfort during inflation, press the START/STOP button to immediately deflate the cuff.

3. Produktua amaitu daview

The Rossmax CF155 Blood Pressure Monitor consists of the main unit with an LCD display and an arm cuff. Familiarize yourself with the components before use.

3.1 Unitate Nagusia

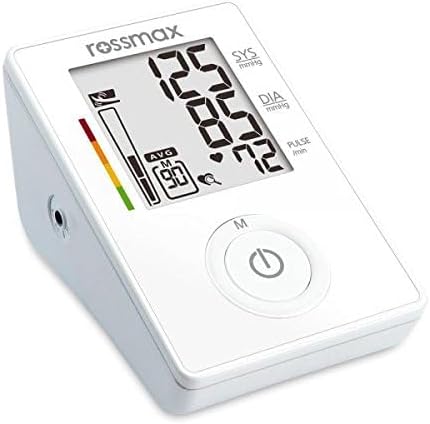

Image: The Rossmax CF155 main unit, showing the large LCD display with blood pressure and pulse readings, and the power button.

3.2 beso-eskumuturra

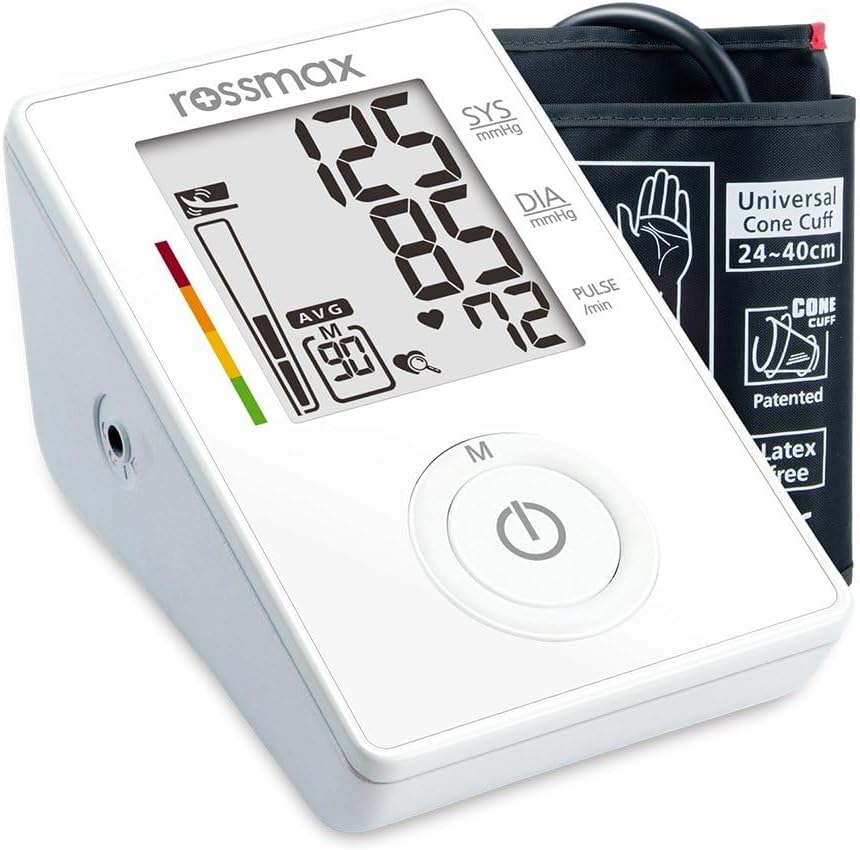

Image: The Rossmax CF155 monitor alongside its universal cone arm cuff, illustrating the complete product package.

The cuff is designed for arm circumferences between 24-40 cm.

4. Konfigurazioa

4.1 Bateriaren instalazioa

1. Open the battery cover on the back of the monitor.
2. Sartu lau AAA pila, polaritate zuzena (+/-) ziurtatuz.
3. Itxi bateriaren estalkia ongi.

The monitor requires 4 AAA batteries, which are included.

4.2 Mahuka-konexioa

1. Locate the air jack on the side of the main unit.
2. Firmly insert the air tube connector from the cuff into the air jack.

5. Funtzionamendu-argibideak

5.1 Neurketa aurretik

• Saihestu jatea, alkohola edatea, erretzea, ariketa fisikoa egitea eta bainatzea neurketa baino 30 minutu lehenago.
• Atseden hartu gutxienez 15 minutuz neurketa egin aurretik.
• Take measurements in a quiet environment.
• Kendu jantzi estuak goiko besotik.

5.2 Eskumuturra aplikatzea

1. Eseri eroso bizkarra babestuta eta oinak lurrean jarrita.
2. Place the cuff on your bare upper arm, approximately 1-2 cm above your elbow joint. The air tube should run down the center of your arm.
3. Bildu eskumuturra besoaren inguruan ondo, ez oso estua ez oso soltea ziurtatuz.
4. Jarri besoa mahai batean, eskumuturra zure bihotzaren maila berean egon dadin.

Image: Close-up of the monitor display, showing typical blood pressure readings (SYS, DIA, PULSE) and indicators for cuff pressure and memory.

5.3 Neurketa bat egitea

1. Sakatu HASI/GELDITU botoia. Eskumuturra automatikoki puztuko da.
2. Egon geldi eta isilik neurketa egiten ari den bitartean.
3. Once the measurement is complete, the systolic pressure, diastolic pressure, and pulse rate will be displayed on the LCD screen.
4. The monitor will automatically store the reading in its memory.
5. Sakatu HASI/GELDITU button again to turn off the device, or it will automatically shut off after 1 minute of inactivity.

5.4 Adierazleak ulertzea

• Hypertension Risk Indicator: A color-coded bar on the left side of the display indicates the risk level of your blood pressure reading according to WHO guidelines.
• Irregular Heartbeat (IHB) Detection: If an irregular heartbeat is detected during the measurement, an IHB symbol will appear on the display. If this symbol appears frequently, consult your physician.
• Mugimenduen detekzioa: If excessive body movement is detected during measurement, a movement symbol will appear. This may indicate an inaccurate reading.

6. Memoriaren funtzioak

The Rossmax CF155 stores up to 90 readings and can display the average of the last three measurements.

6.1 Accessing Memory

1. With the monitor off, press the M botoia.
2. The display will show the average of the last three readings.
3. Sakatu M button repeatedly to scroll through individual past readings, from most recent to oldest.

6.2 Clearing Memory

To clear all stored readings, press and hold the M button for approximately 5 seconds while in memory mode. The display will show "CL" (Clear) and then turn off, indicating the memory has been erased.

7. Mantentzea

7.1 Garbiketa

• Garbitu monitorearen eta eskumuturrekoaren aldea oihal leun eta lehor batekin.
• Beharrezkoa bada, erabili oihal bat arinki bustitaampened with water or a mild detergent. Do not use abrasive cleaners or immerse the device in water.

7.2 Biltegiratzea

• Store the device in a clean, dry place, away from direct sunlight, extreme temperatures, and humidity.
• Do not store the device with the cuff tightly rolled or folded, as this may damage the air tube.

7.3 Bateria ordezkatzea

When the low battery indicator appears on the display, replace all four AAA batteries with new ones. Do not mix old and new batteries or different types of batteries.

8. Arazoak

9. Zehaztapenak

10. Bermea eta laguntza

Rossmax products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or contact your local Rossmax distributor. Keep your purchase receipt as proof of purchase.

For technical support or service inquiries, please contact the retailer where you purchased the device or visit the official Rossmax webzure eskualdeko harremanetarako informazioa lortzeko gunea.
