XPOWER FC-100 Air Mover and Circulator User Manual

Sarrera eta Bukatuview

The XPOWER FC-100 is a heavy-duty industrial high-velocity whole room air mover and circulator utility floor fan designed for efficient air movement. It is ideal for drying, cooling, and ventilation in various environments, including homes, offices, workshops, and garages. This unit combines powerful performance with convenient features for versatile use.

• Indartsua eta eraginkorra: Delivers 1100 CFM (Cubic Feet Per Minute) while consuming only 0.6 Amps. Features an advanced high-torque motor and a unique grille design for focused airflow up to 120+ feet.
• Convenient & Versatile: Equipped with 4 adjustable speeds, a 3-hour set-and-forget timer, and a grab-and-go handle. Its durable housing and heavy-duty wrap-around cord design ensure longevity and ease of transport. The unit is fully assembled, requires low maintenance, and is stackable for compact storage.
• Teknologia aurreratua: Incorporates a powerful high-torque induction motor, a unique spiral grille, exclusive fan blade technology, and 360-degree directional airflow capabilities.
• Safety & Service Standards: ETL / CETL safety certified, ensuring compliance with recognized safety standards. It includes a 1-year limited warranty, backed by XPOWER’s California-based customer service team for comprehensive support.

1. irudia: Aurrealdea view of the XPOWER FC-100 Air Mover, showcasing its compact design and powerful fan blades.

Konfigurazioa

The XPOWER FC-100 Air Mover comes fully assembled and ready for use. Follow these simple steps to set up your unit:

1. Desegin: Kontu handiz atera aire-mugitzailea bere paketetik.
2. Lekua: Place the unit on a stable, flat surface. Ensure there is adequate space around the fan for optimal airflow.
3. Potentzia-konexioa: Unwind the power cord from the integrated wrap-around design. Plug the power cord into a standard 120V AC electrical outlet.
4. Egokitu norabidea: Utilize the adjustable stand to tilt the fan to your desired angle for targeted airflow. The unit supports 360-degree rotation.

Figure 2: The XPOWER FC-100 Air Mover positioned on its sturdy stand, ready for operation.

Funtzionamendu-argibideak

The XPOWER FC-100 offers intuitive controls for easy operation.

Potentzia eta Abiadura Kontrola

1. Aktibatu: Locate the speed control knob on the unit. Turn the knob clockwise from the 'OFF' position to select one of the four available speeds (1, 2, 3, or 4).
2. Abiadura doitzea: Rotate the knob to increase or decrease the fan speed as needed. Speed 1 is the lowest setting, and Speed 4 is the highest.
3. Itzali: Rotate the speed control knob counter-clockwise to the 'OFF' position.

Tenporizadorearen funtzioa

The integrated 3-hour timer allows you to set the unit to operate for a specific duration.

1. Ezarri tenporizadorea: Locate the timer knob. Rotate the knob clockwise to set the desired operating time (up to 180 minutes, or 3 hours).
2. Etengabeko funtzionamendua: To operate the fan continuously without a timer, set the timer knob to the 'ON' position.
3. Itzaltze automatikoa: The unit will automatically turn off once the set timer duration has elapsed.

Directional Airflow

The XPOWER FC-100 features a 360-degree directional airflow design, allowing you to precisely target air movement.

• Inklinazioa doitu: Loosen the adjustment knobs on the sides of the fan's stand. Tilt the fan body to the desired angle.
• Posizio segurua: Tighten the adjustment knobs firmly to secure the fan in place.
• Zirkulazio optimoa: For whole-room circulation, position the fan to bounce air off walls or ceilings. For drying, direct the airflow directly at the target area.

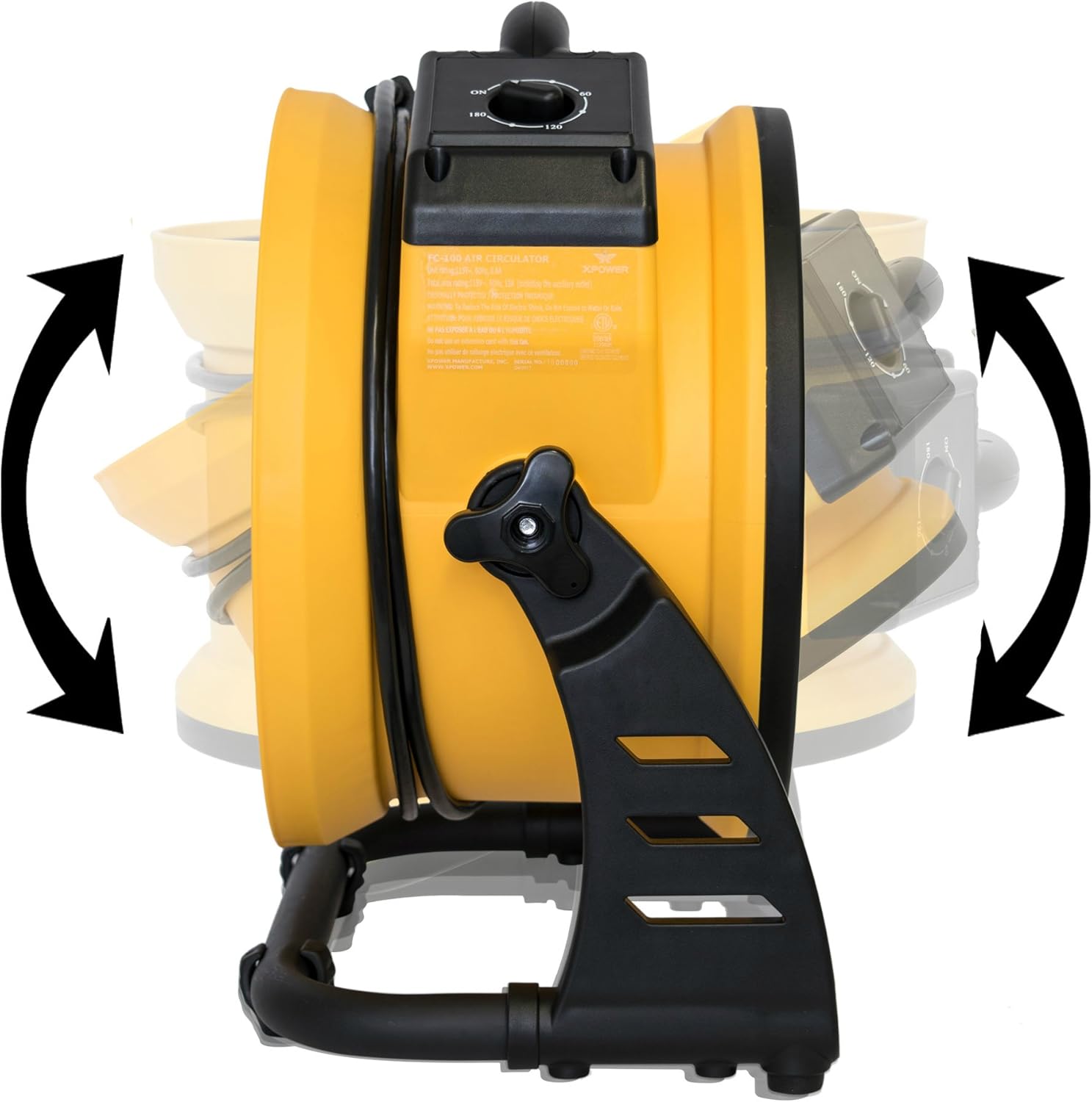

3. irudia: Aldea view of the XPOWER FC-100, illustrating its 360-degree rotational capability for versatile airflow direction.

Figure 4: Diagram demonstrating the focused and extended airflow of the FC-100, reaching distances of up to 120 feet.

Figure 5: Illustration of how the FC-100 recirculates air to create a gentle and consistent stream, shortening drying times.

Mantentzea

The XPOWER FC-100 is designed for low maintenance. Regular cleaning will ensure optimal performance and longevity.

1. Deskonektatu energia: Deskonektatu beti unitatea entxufetik mantentze-lanak egin aurretik.
2. Kanpoko garbiketa: Garbitu unitatearen kanpoaldea leun batekin, damp oihal. Saihestu produktu kimiko gogorrak edo garbitzaile urratzaileak erabiltzea.
3. Parrillaren garbiketa: Periodically inspect the intake and exhaust grilles for dust, debris, or obstructions. Use a vacuum cleaner with a brush attachment or a soft brush to gently remove any buildup. Do not insert fingers or foreign objects into the grilles.
4. Kable biltegiratzea: Utilize the integrated wrap-around cord design for neat and secure storage of the power cord when the unit is not in use.

Arazoak konpontzea

If you encounter any issues with your XPOWER FC-100, refer to the following common troubleshooting steps:

• Unitatea ez da pizten:
  • Ziurtatu kablea ondo konektatuta dagoela funtzionatzen duen entxufe elektriko batera.
  • Check if the speed control knob is turned to an active speed setting (1-4) and not in the 'OFF' position.
  • Verify that the timer is not set to '0' or has not expired. Set it to 'ON' for continuous operation or to a desired time.
  • Check your circuit breaker or fuse box to ensure the outlet has power.
• Aire fluxu murriztua:
  • Inspect the intake and exhaust grilles for any obstructions (dust, lint, debris). Clean as described in the Maintenance section.
  • Ensure the fan is operating at a higher speed setting if more airflow is desired.
• Ezohiko zarata edo bibrazioa:
  • Ziurtatu unitatea gainazal egonkor eta lau batean jartzen dela.
  • Check for any loose parts or foreign objects inside the fan grilles. Disconnect power before inspecting.

If these steps do not resolve the issue, please contact XPOWER customer service for further assistance.

Zehaztapenak

Bermea eta Laguntza

The XPOWER FC-100 Air Mover comes with a 1 urteko berme mugatua from the manufacturer, XPOWER Manufacture, Inc. This warranty covers defects in materials and workmanship under normal use.

For any warranty claims, technical support, or customer service inquiries, please contact XPOWER’s California-based customer service team. They are dedicated to providing comprehensive support and ensuring a first-class customer experience.

Informazio gehiago eta harremanetarako datuak aurki ditzakezu webgune ofizialean XPOWER Store on Amazon.
