Benro 3-Way Geared Head (GD3WH)

Sarrera

The Benro GD3WH 3-Way Geared Head is engineered for photographers requiring precise control over camera movement. It is particularly well-suited for studio still life, macro, and landscape photography, where minute adjustments are critical for achieving the desired composition. This manual provides essential information for setting up, operating, and maintaining your GD3WH geared head.

Kutxan dagoena

• 1 x Benro 3-Way Geared Head (GD3WH)
• 1 x Arca-Swiss Style PU70 Quick-Release Plate

Konfigurazioa

Follow these steps to properly set up your Benro GD3WH geared head and attach your camera.

1. Attach Quick-Release Plate to Camera: Secure the Arca-Swiss style PU70 quick-release plate to the base of your camera. Ensure the screw is tightened firmly to prevent any movement. The plate features a standard 1/4"-20 camera screw with a D-ring for easy attachment.
2. Mount Geared Head to Tripod: Screw the Benro GD3WH geared head onto your tripod's mounting screw. Ensure it is securely fastened.
3. Attach Camera to Geared Head: Align the quick-release plate on your camera with the clamp on the geared head. Slide the plate into the clamp and secure it using the locking mechanism. Verify that the camera is firmly attached and cannot accidentally detach.

Funtzionamendu-argibideak

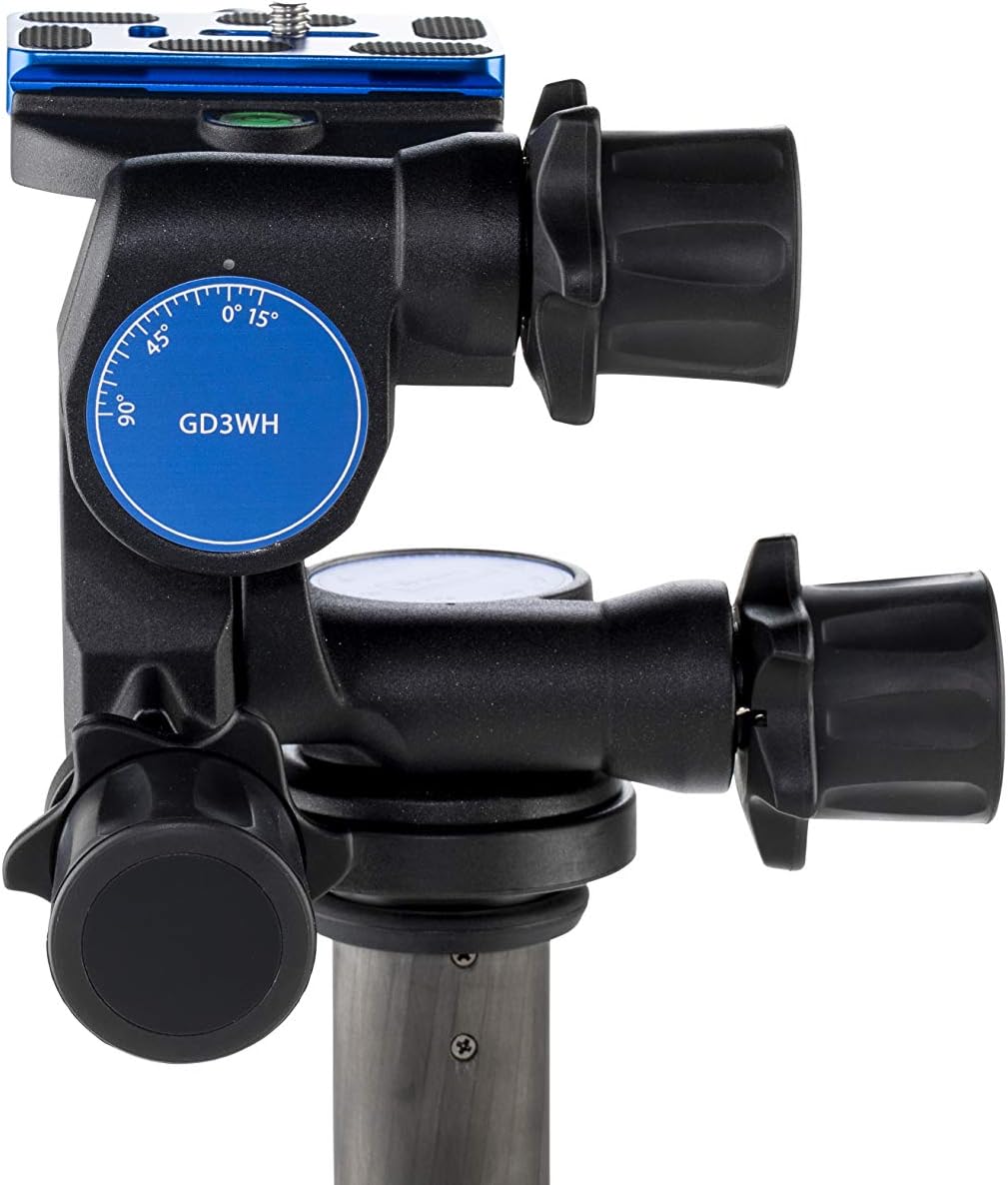

The GD3WH offers independent geared adjustments for precise camera positioning. Familiarize yourself with the controls for optimal use.

• Precise Geared Control: The head features independent geared adjustments for pan, tilt, and roll axes. Use the smaller control knobs for ultra-fine positioning. Turning these knobs allows for minute movements without any drift, ensuring absolute precision for your shots.
• Quick Rough Positioning: For larger adjustments, the geared head is equipped with large control knobs that have individual release mechanisms. By disengaging these, you can rapidly approximate angles before engaging the gears for fine-tuning.
• Berdinketa: Three integrated bubble levels assist in achieving accurate alignment. One is located on the quick-release plate clamp, and two others are positioned on the side and front of the head. Use these to ensure your camera is perfectly level in any shooting scenario.
• 360° Panning Base: The base of the geared head allows for a full 360° rotation, enabling seamless panoramic shots.

Mantentzea

To ensure the longevity and optimal performance of your Benro GD3WH geared head, follow these maintenance guidelines:

• Garbiketa: Regularly wipe down the geared head with a soft, dry cloth to remove dust and debris. For stubborn dirt, use a slightly damp zapi batekin garbitu eta ondo lehortu. Saihestu produktu kimiko gogorrak edo material urratzaileak erabiltzea.
• Lubrifikazioa: The internal geared mechanisms are factory-lubricated. Do not attempt to disassemble or lubricate internal components unless specifically instructed by Benro customer support.
• Biltegiratzea: Store the geared head in a dry, cool environment, away from direct sunlight and extreme temperatures. If storing for extended periods, consider using a protective bag.
• Ikuskapena: Periodically check all knobs, screws, and moving parts for any signs of wear or looseness. Tighten any loose screws carefully.

Arazoak konpontzea

If you encounter any issues with your Benro GD3WH geared head, refer to the following common troubleshooting tips:

• Mugimendu gogorra: If the geared movements feel stiff, check for any accumulated dust or debris in the gear mechanisms. Clean as per maintenance instructions. Do not force the knobs.
• Kameraren ezegonkortasuna: Ensure the quick-release plate is securely attached to your camera and the camera is properly clamped onto the geared head. Verify that the tripod itself is stable and all leg locks are engaged.
• Bubble Levels Inaccurate: While rare, if you suspect the bubble levels are inaccurate, compare them against a known level surface. If persistent issues occur, contact customer support.

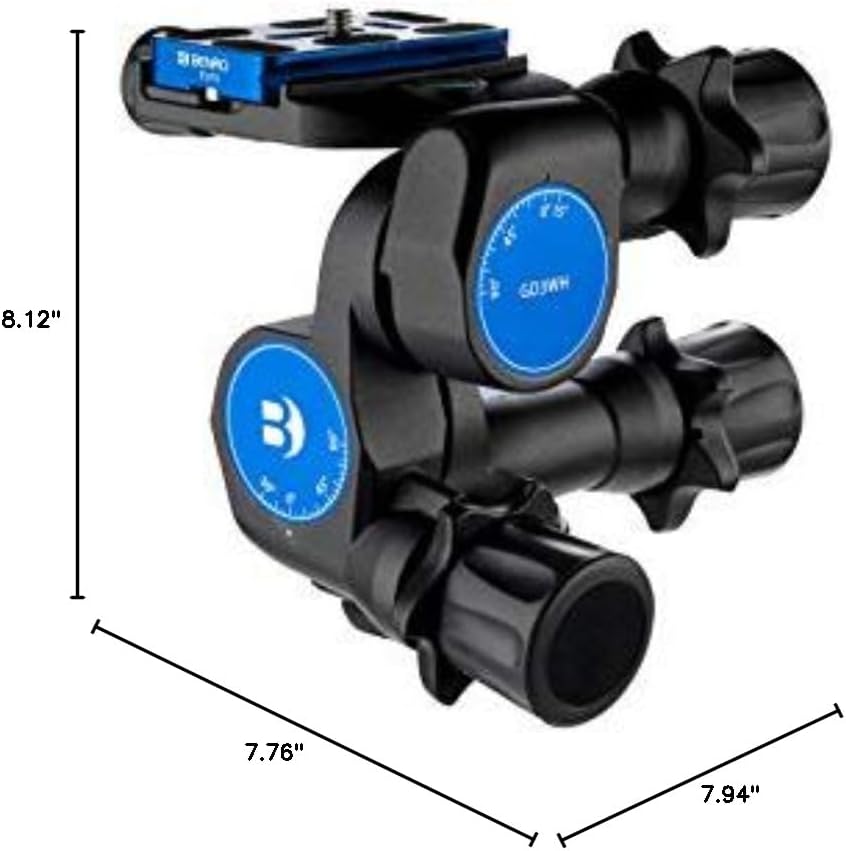

Zehaztapenak

Bermea eta Laguntza

For warranty information and customer support, please refer to the documentation included with your product or visit the official Benro webgunea. Era berean, bisitatu dezakezu Benro Store on Amazon produktuaren xehetasun gehiago eta laguntza-baliabideak lortzeko.
