Sarrera
This manual provides essential information for the safe and effective use, installation, and maintenance of your Oregon 72EXL084G PowerCut Chainsaw Chain. The Oregon 72EXL chain features a reshaped cutter and proprietary grind technology designed for superior performance, sharpness, and consistency. This low-vibration, full chisel cutter chain is engineered to maximize cutting efficiency with reduced effort.

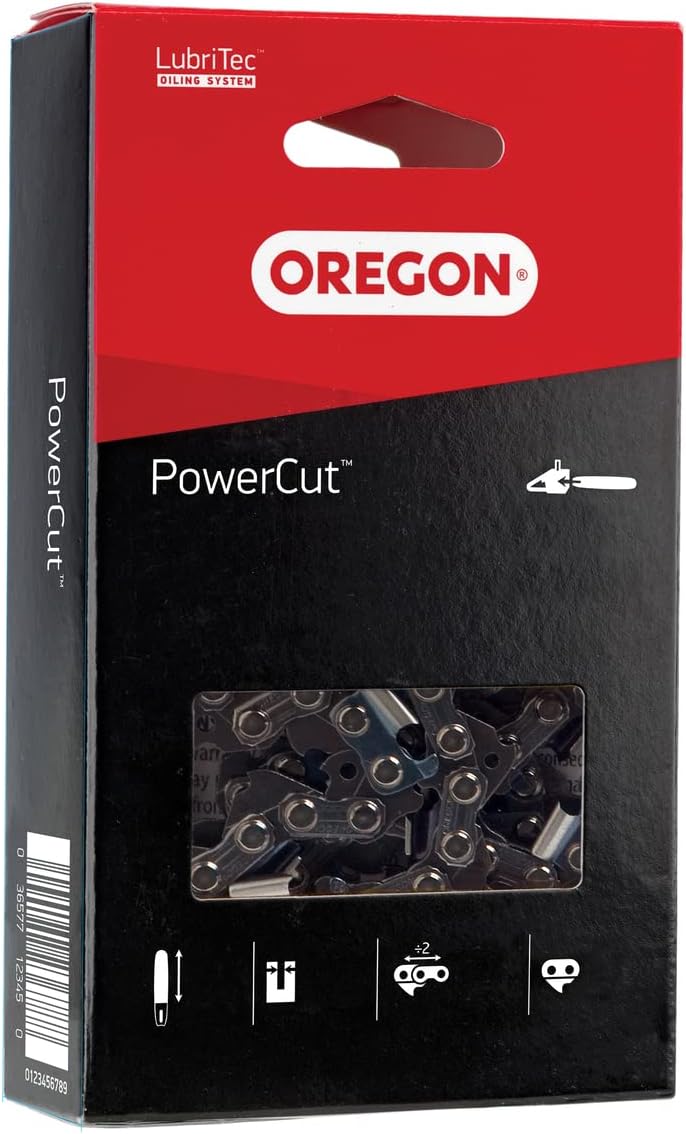

Image: Packaging for the Oregon 72EXL084G PowerCut Chainsaw Chain, showing the product inside.
Segurtasun Informazioa
Always prioritize safety when handling chainsaw chains. Improper installation, use, or maintenance can lead to serious injury. Refer to your chainsaw's instruction manual for specific safety guidelines related to chain installation and operation.
- Always wear appropriate personal protective equipment (PPE), including gloves, eye protection, hearing protection, and sturdy footwear, when handling or working with chainsaw chains.
- Ensure the chainsaw is turned off and the spark plug cap is disconnected (for gasoline saws) or the battery is removed (for electric saws) before performing any installation or maintenance.
- Inspect the chain for damage before each use. Do not use a damaged chain.
- Keep hands and body clear of the chain when the saw is operating.
Konfigurazioa eta Instalazioa
The Oregon 72EXL084G PowerCut Chainsaw Chain is designed for chainsaws with engine sizes ranging from 50 to 100 cc. It features a 3/8-inch pitch, .050-inch gauge, and 84 drive links, suitable for a 24-inch guide bar.
Chain Installation Steps:
- Ensure the chainsaw is powered off and secured.
- Remove the guide bar cover and old chain, if applicable.
- Place the new Oregon 72EXL chain around the drive sprocket and guide bar, ensuring the cutters are facing the correct direction (towards the nose of the bar on the top side).
- Fit the guide bar onto the mounting studs and adjust the chain tension. The chain should be snug against the bottom of the guide bar, but still able to be pulled freely by hand.
- Estutu gida-barren azkoinak ongi.
- Check chain tension again after tightening. Refer to your chainsaw's manual for precise tensioning instructions.
Irudia: Gertutik view of the Oregon PowerCut Chainsaw Chain, highlighting the individual links and cutters.
Image: The Oregon PowerCut Chainsaw Chain properly installed on a guide bar, ready for use.
Funtzionamendu-jarraibideak
Once the chain is correctly installed and tensioned, ensure your chainsaw is properly fueled and lubricated. The Oregon 72EXL chain features LubriTec technology, which helps keep the chain and guide bar oiled for reduced friction and extended life. Always ensure your chainsaw's oil reservoir is adequately filled with appropriate bar and chain oil.
The chain's Blued Cutters provide enhanced protection against corrosion, contributing to the chain's longevity. The exclusive OCS-01 Steel construction further ensures greater durability and performance under demanding conditions.
Always follow your chainsaw manufacturer's operating instructions and safety precautions. Avoid forcing the saw, and let the chain do the cutting. Regularly check chain tension during operation, especially during the initial break-in period, as new chains may stretch slightly.
Mantentzea
Proper maintenance is crucial for the performance and lifespan of your Oregon PowerCut chain.
Zorroztea:
The 72EXL chain is designed for easier sharpening with features like Expanded Top-Plate Filing Indicators eta depth gauge filing indicators. These visual guides assist in achieving accurate sharpening angles. The Gold Loop Start Indicator helps identify the starting point for sharpening, ensuring consistency across all cutters.
- Use the correct size round file for your chain (typically 7/32 inch for 3/8-inch pitch).
- Maintain the recommended filing angle and depth gauge setting.
- Sharpen all cutters evenly to ensure balanced cutting.
- Refer to Oregon's sharpening guides or consult a professional if unsure.
Lubrifikazioa:
The integrated LubriTec system relies on a continuous supply of bar and chain oil from your chainsaw. Regularly check and refill your chainsaw's oil reservoir to ensure adequate lubrication for both the chain and guide bar.
Garbiketa eta biltegiratzea:
- After each use, clean the chain to remove sap, sawdust, and debris.
- Store the chain in a dry environment to prevent rust and corrosion.
- If storing for an extended period, lightly oil the chain to protect it.
Arazoak konpontzea
If you encounter issues with your Oregon 72EXL084G chain, consider the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Chain cuts slowly or unevenly | Dull cutters, incorrect sharpening angle, unevenly sharpened cutters, improper chain tension. | Sharpen the chain using the correct file and angles. Ensure all cutters are sharpened evenly. Adjust chain tension. |
| Chain binds or smokes | Insufficient lubrication, incorrect chain tension, damaged guide bar. | Check bar and chain oil level and ensure proper oil flow. Adjust chain tension. Inspect guide bar for wear or damage. |
| Gehiegizko bibrazioa | Damaged chain, incorrect chain tension, worn sprocket. | Inspect chain for damaged links or cutters. Adjust chain tension. Check drive sprocket for wear. |
| Katea gida-barratik ateratzen da | Loose chain tension, worn guide bar, worn sprocket. | Adjust chain tension. Inspect guide bar and sprocket for wear and replace if necessary. |
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|
| Modelo zenbakia | 72EXL084G |
| Marka | Oregon |
| Kate Mota | PowerCut (72EXL) |
| Zelaia | 3/8 hazbetekoa |
| Neurgailua | .050 hazbete |
| Disko-lotura kopurua | 84 |
| Katearen Luzera | 24 hazbetekoa |
| Recommended Saw Size | 50-100 cc |
| Elementuaren pisua | 14.4 ontza |
| Produktuaren neurriak | 3.5 x 1.38 x 6 hazbete |
| Fabrikatzailea | Oregon Tool |
| GTIN | 05400591001977 |
Bermearen informazioa
For detailed warranty information regarding the Oregon 72EXL084G PowerCut Chainsaw Chain, please refer to the official Oregon website or contact Oregon customer service. Warranty terms and conditions may vary.
Bezeroarentzako Arreta
If you require further assistance, have questions about your Oregon PowerCut Chainsaw Chain, or need to purchase replacement parts, please visit the official Oregon website or contact their customer support department. You can find contact information and additional resources on the Oregon Store.
