1. Sarrera
This manual provides essential instructions for the safe assembly, operation, and maintenance of your Vipack Tipi Bed 90x200 White, model TIBE9014. Please read this manual thoroughly before assembly and retain it for future reference.

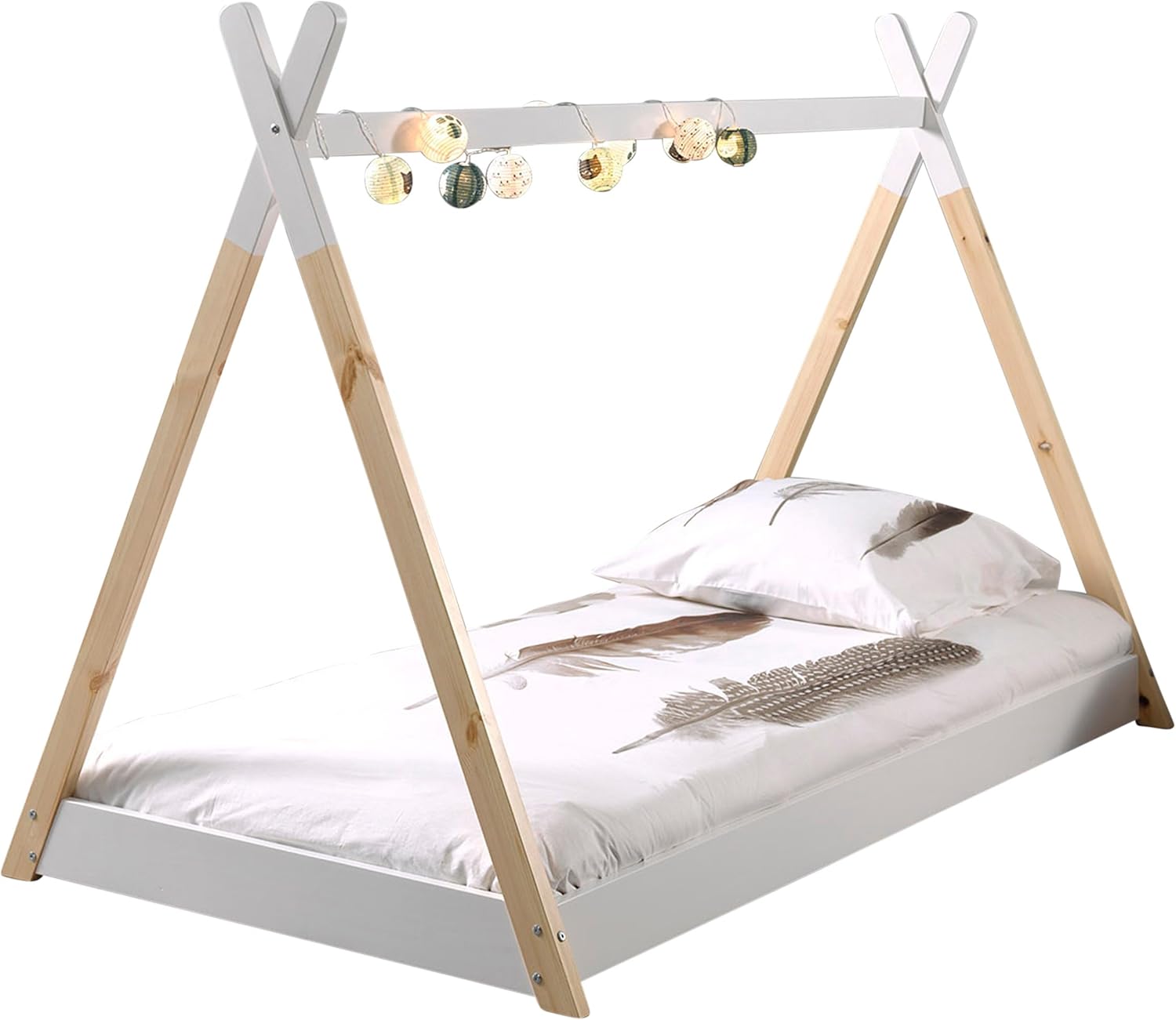

Figure 1: Assembled Vipack Tipi Bed 90x200 White. Note: Mattress and decorations are not included.
2. Segurtasun informazioa
- Jarraitu beti muntaketa-argibideak arretaz. Muntaketa okerrak ezegonkortasuna eta lesioak sor ditzake.
- Erabili aurretik, ziurtatu torloju eta osagarri guztiak ondo estutu direla. Aldian-aldian egiaztatu eta berriro estutu behar izanez gero.
- Do not allow children to climb on the bed frame or use it as a play structure other than for sleeping.
- Mantendu pieza txikiak haurren eskura ez dauden lekuan muntatzen ari den bitartean, itotzea saihesteko.
- Place the bed on a flat, stable surface.
- The bed is designed for a mattress size of 90 x 200 cm. Using an incorrectly sized mattress may create gaps that pose a safety risk.
- Keep the bed away from heat sources and open flames.
3. Osagaien zerrenda
Muntaketa hasi aurretik, egiaztatu pieza guztiak daudela eta kalterik gabe daudela. Pieza bat falta bada edo kaltetuta badago, ez jarraitu muntaketarekin eta jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
- Solid Pine Frame components (60 x 30 mm)
- White-painted top ends and crossbar
- Bed frame side rails (approx. 12 cm high)
- Oinarri-ohola
- Metal fittings (screws, bolts, etc.)
- Muntaketa argibideak (dokumentu hau)
Oharra: Mattress and decorative items are not included with the bed.
4. Muntatzeko jarraibideak
The Vipack Tipi Bed is designed for easy self-assembly. It is recommended that two adults assemble the bed to ensure safety and stability.
- Deskonprimitu osagaiak: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Refer to the components list to ensure all parts are present.
- Ohe-egitura muntatu: Connect the bed frame side rails using the provided metal fittings. Ensure the frame is stable and square. The bed frame is approximately 12 cm high.
- Instalatu ohol-oinarria: The slatted base is designed to be screwed to the support rails of the bed frame. This design ensures air circulation beneath the mattress. Securely attach the slatted base to the frame using the designated screws.
- Attach Tipi Frame: Assemble the solid pine tipi frame components. The top ends and crossbar are painted white. Attach these to the bed frame using the appropriate metal fittings. Ensure all connections are tight and secure.
- Azken egiaztapena: Once assembled, double-check all screws and bolts to ensure they are fully tightened. The bed should be stable and free from wobbling.

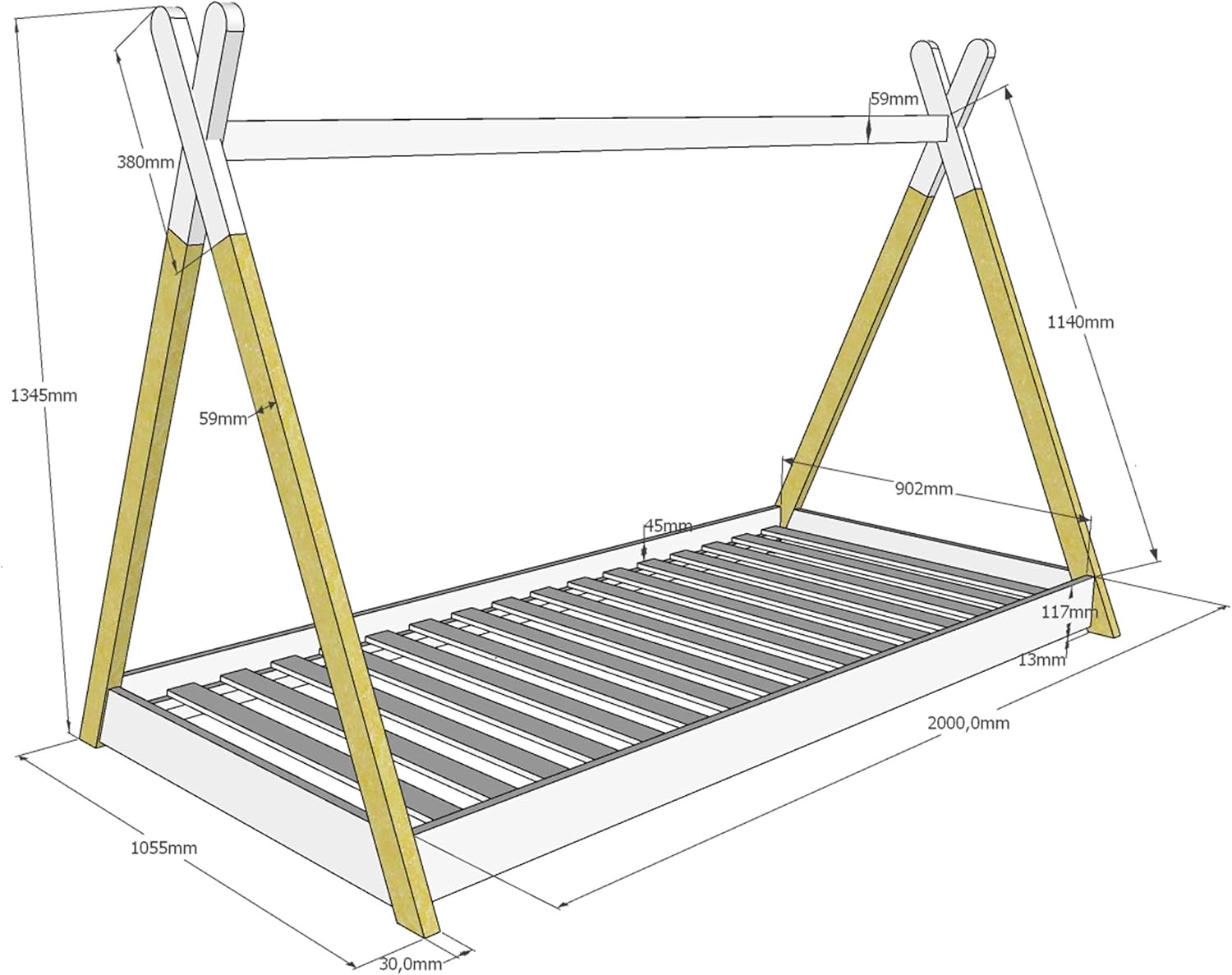

Figure 2: Technical drawing illustrating bed dimensions and structural components for assembly.
Figure 3: Bed frame with slatted base installed, ready for mattress placement.
5. Funtzionamendua
The Vipack Tipi Bed is designed for sleeping. Once assembled, place a compatible mattress (90 x 200 cm) into the bed frame. The mattress insertion depth is 5 cm. The slatted base provides support and allows for air circulation, contributing to mattress longevity and hygiene.
Ensure the bed is placed in a suitable location, away from windows, heaters, and other potential hazards. The ground clearance is approximately 1.5 cm.
6. Mantentzea eta Zainketa
- Garbiketa: Garbitu ohe-egitura oihal leun batekin,amp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the painted and natural wood surfaces.
- Fittings Check: Periodically (e.g., every 3-6 months) check all screws and bolts to ensure they remain tight. Re-tighten any loose fittings to maintain the bed's structural integrity.
- Egurraren zainketa: The bed is made from solid pine. Protect it from excessive moisture and direct sunlight to prevent warping or fading.
- Oinarri listoiduna: Ensure the slatted base remains clean and free of debris to maintain proper air circulation.
7. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Ohea ezegonkorra edo ezegonkorra sentitzen da. | Loose fittings or uneven placement. | Check and tighten all screws and bolts. Ensure the bed is on a flat, level surface. |
| Slats are creaking. | Loose screws on the slatted base or friction between slats and frame. | Re-tighten screws securing the slatted base. If creaking persists, a thin piece of felt or fabric can be placed between the slats and the frame at friction points. |
| Piezak falta edo hondatuta iristean. | Bidalketa-kalteak edo ontziratze-erroreak. | Do not proceed with assembly. Contact Vipack customer support immediately for replacement parts. |
8. Zehaztapenak
- Marka: Vipack
- Modelo zenbakia: TIBE9014
- Kolorea: White / Natural Pine
- Materiala: Pinu Egur trinkoa
- Koltxoiaren neurri bateragarria: 90 x 200 cm
- Produktuaren neurriak (L x W x H): 206 x 106.5 x 133.5 cm
- Elementuaren pisua: 23 kg
- Bed Frame Height: 12 cm inguru
- Mattress Insertion Depth: 5 cm
- Lurzoruaren sakea: 1.5 cm inguru
- Frame Wood Dimensions: 60 x 30 mm
- Akabera mota: Margotua (Zuria)
- Muntaia: Required (Self-assembly)
9. Bermea eta Laguntza
Specific warranty information for Vipack products may vary by region and retailer. Please refer to your purchase documentation or contact the retailer where you purchased the bed for detailed warranty terms and conditions.
For technical support, missing parts, or any questions regarding your Vipack Tipi Bed, please contact Vipack customer service or your authorized dealer. Contact information can typically be found on the Vipack official webgunea edo zure dendariaren bidez.
