1. Sarrera
Thank you for choosing the Taylor Digital Thermohygrometer Model 5566. This device is designed to provide accurate and reliable measurements of both temperature and relative humidity (RH) in various environments such as labs, offices, and storage areas. Its clear LCD display ensures easy readability of current conditions. This manual provides essential information for the proper setup, operation, and maintenance of your thermohygrometer.
Ezaugarri nagusiak hauek dira:
- Measures temperature from -58°F to 158°F (-50°C to 70°C).
- Measures relative humidity from 10% to 95% RH.
- Pantaila LCD handia eta irakurterraza.
- Switchable temperature units (°F/°C).
- Versatile mounting options: wall-mount or desktop stand.
2. Konfigurazioa
2.1 Paketatzea
Carefully remove the thermohygrometer from its packaging. Inspect the device for any signs of damage. Retain the packaging for future storage or transport.
2.2 Bateriaren instalazioa
The Taylor Digital Thermohygrometer requires two (2) AAA batteries for operation. These batteries are typically included with the device.
- Bilatu bateriaren konpartimentuaren estalkia unitatearen atzealdean.
- Irristatu edo askatu estalkia konpartimentua irekitzeko.
- Sartu bi AAA pila, konpartimentuaren barruan adierazten den polaritate zuzena (+ eta -) ziurtatuz.
- Jarri bateriaren konpartimenduaren estalkia ongi.
2.3 Muntatzeko aukerak
The thermohygrometer offers flexible placement options:
- Mahaigaineko erabilera: Flip out the integrated stand located on the back of the unit to place it on any flat surface.
- Horman muntatzea: Use the keyhole slot on the back of the unit to hang it securely on a wall hook or screw. Ensure the mounting surface is stable.

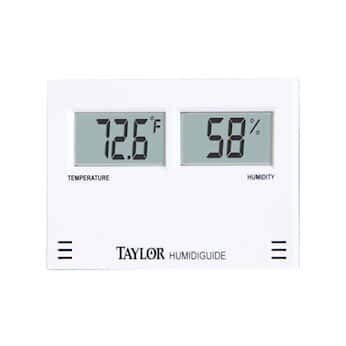

Image: The Taylor Digital Thermohygrometer, illustrating its compact design and clear LCD display for temperature and humidity readings. The device is shown from the front, highlighting its primary function.
3. Funtzionamendu-argibideak
3.1 Piztea
Once batteries are installed, the device will automatically power on and begin displaying readings. There is no separate power button.
3.2 Bistaratuview
LCD pantailak bi irakurketa nagusi erakusten ditu:
- Tenperatura: Shown in a 3.5-digit, 0.75" H format.
- Hezetasun erlatiboa (RH): Shown in a 2-digit, 0.75" H format.
3.3 Tenperatura Unitatearen Hautaketa (°F/°C)
To switch between Fahrenheit (°F) and Celsius (°C) temperature units:
- Locate the °F/°C switch or button, usually on the back or side of the unit.
- Press or slide the switch to toggle between the two temperature scales. The display will update immediately.
3.4 Neurketak irakurtzea
The device continuously monitors and updates the temperature and humidity readings. For accurate measurements, ensure the device is placed in a location free from direct sunlight, drafts, or extreme temperature fluctuations. The response time for readings is typically less than 1 minute.
4. Mantentzea
4.1 Garbiketa
To clean the thermohygrometer, use a soft, dry cloth. For stubborn marks, a slightly damp xaboi leun batekin zapi bat erabil daiteke, eta ondoren zapi lehor bat. Ez use abrasive cleaners, solvents, or immerse the device in water.
4.2 Bateria ordezkatzea
When the display becomes dim or the readings become erratic, it is time to replace the batteries. Follow the battery installation steps outlined in Section 2.2. Always replace both AAA batteries simultaneously with new ones.
4.3 Biltegiratzea
If the device will not be used for an extended period, remove the batteries to prevent leakage and potential damage. Store the thermohygrometer in a cool, dry place, away from direct sunlight and extreme temperatures.
5. Arazoak
If you encounter issues with your Taylor Digital Thermohygrometer, please refer to the following common problems and solutions:
- Pantailarik ez edo pantaila iluna:
Irtenbidea: Check if the batteries are installed correctly with the correct polarity. Replace both AAA batteries with fresh ones. - Inaccurate temperature or humidity readings:
Irtenbidea: Ensure the device is not exposed to direct sunlight, heat sources, cold drafts, or high humidity areas (e.g., directly above a humidifier). Allow the device to stabilize in its intended environment for at least 15-30 minutes. If readings remain consistently off, try replacing the batteries. - Display shows '---' or 'LO/HI':
Irtenbidea: This may indicate that the temperature or humidity is outside the device's measurable range. Move the device to an environment within the specified operating range.
6. Zehaztapenak
| Ezaugarri | Zehaztapena |
|---|---|
| Modelo zenbakia | 5566 |
| Tenperatura tartea | -58°F eta 158°F (-50°C eta 70°C) |
| Hezetasun-barrutia | % 10 eta % 95 RH |
| RH Zehaztasuna | ±5% RH from 35% to 75% RH; ±8% RH above 95% RH; ±10% RH below 34% RH |
| Erantzun Denbora | <1 minutu |
| Bistaratzeko mota | LCD (2-digit, 0.75" H for RH; 3.5-digit, 0.75" H for temperature) |
| Bateria mota | 2 x AAA bateria |
| Muntatze Mota | Wall-mount or Desktop Stand |
| Fabrikatzailea | COLE-PARMER |
7. Bermea eta Laguntza
Taylor products are manufactured to high-quality standards. For specific warranty information regarding your Taylor Digital Thermohygrometer Model 5566, please refer to the warranty card included with your purchase or visit the official Taylor website. In case of any issues not covered in the troubleshooting section, or for technical support, please contact the manufacturer or your retailer.
