Mean Well RSP-2400-12 2000W-ko irteera bakarreko elikatze-iturriaren erabiltzailearen eskuliburua

1. Sarrera

This manual provides detailed instructions for the installation, operation, and maintenance of the Mean Well RSP-2400-12 2000W Single Output Power Supply. The RSP-2400-12 is a high-efficiency power supply featuring a built-in active Power Factor Correction (PFC) function, forced air cooling, and remote control capabilities for voltage trimming and ON/OFF functions. Please read this manual thoroughly before use to ensure safe and optimal performance.

2. Segurtasun-argibideak

• Instalazioa eta mantentze-lanak langile kualifikatuek bakarrik egin behar dituzte.
• Ziurtatu unitatearen lurreratze egokia deskarga elektrikoak saihesteko.
• Do not operate the power supply in environments with excessive moisture, dust, or extreme temperatures outside the specified range.
• Ensure adequate ventilation around the unit. Do not block the air intake or exhaust vents.
• Before any installation or maintenance, disconnect the AC input power.
• Avoid touching internal components when the unit is powered on or recently powered off, as high voltages may still be present.

3. Produktua amaitu daview

The Mean Well RSP-2400-12 is a robust 2000W power supply designed for various industrial and commercial applications. It features a compact design with clearly labeled input and output terminals.

3.1. irudia: Aurrealdea view of the Mean Well RSP-2400-12 power supply, showing the casing, ventilation grilles, and product label.

3.1 Mechanical Specifications and Connections

Refer to the diagram below for mechanical dimensions, AC input terminal assignments, control pin assignments, and the internal block diagram.

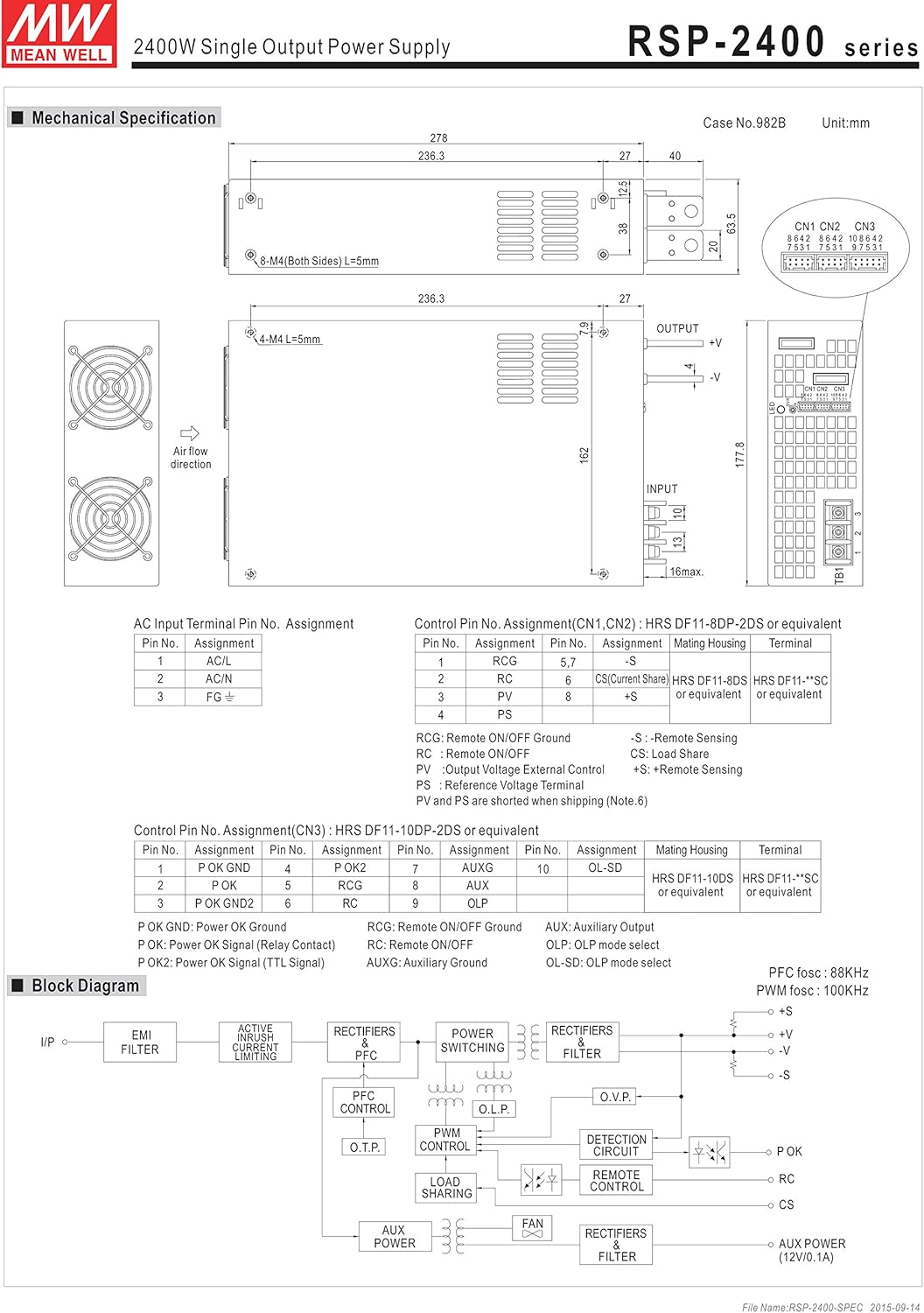

Figure 3.2: Detailed diagram showing the mechanical dimensions, AC input terminal assignments, control pin assignments (CN1, CN2, CN3), and a block diagram of the power supply's internal components.

AC Input Terminal Pin Assignment:

Control Pin Assignment (CN1, CN2):

These pins are used for remote sensing and remote ON/OFF functions. Refer to Figure 3.2 for pin locations.

Control Pin Assignment (CN3):

These pins are used for remote ON/OFF, power OK signal, and auxiliary output. Refer to Figure 3.2 for pin locations.

Blokeatzea diagrama:

The internal block diagram illustrates the power supply's architecture, including the EMI filter, active current sharing, PFC control, PWM control, detection circuit, and fan control. This design ensures stable and efficient power delivery.

4. Konfigurazioa eta instalazioa

4.1 Muntaketa

Mount the power supply in a location that allows for proper airflow and heat dissipation. The unit utilizes forced air cooling via a built-in DC fan. Ensure the airflow direction (indicated in Figure 3.2) is not obstructed. The dimensions are 10.94 x 7 x 2.5 inches (L x W x H).

4.2 AC sarrerako konexioa

1. Connect the AC Live (L) wire to Pin 1 (AC/L).
2. Connect the AC Neutral (N) wire to Pin 2 (AC/N).
3. Connect the Frame Ground (FG) wire to Pin 3 (FG).

Ensure all connections are secure and comply with local electrical codes. Use appropriate wire gauges for the expected current.

4.3 DC Output Connection

Connect your load to the DC output terminals. Observe correct polarity (+V and -V). For optimal performance and to minimize voltage drop, use thick, short cables for the DC output.

4.4 Lurreratzea

Proper grounding is essential for safety and to minimize electromagnetic interference. Connect the FG terminal to a reliable earth ground.

5. Funtzionamendu-argibideak

5.1 Piztu/Itzaltzea

Once all connections are made and verified, apply AC input power. The unit will power on. To power off, disconnect the AC input power or use the remote ON/OFF function.

5.2 Irteera Voltage Mozketa

Irteerako bolumenatage (Vo) can be trimmed by an external control signal. Refer to the product datasheet for specific instructions on connecting the external control signal to the designated control pins (CN1/CN2/CN3) to adjust the output voltage bere zehaztutako tartean.

5.3 Remote ON/OFF Function

The RSP-2400-12 supports remote ON/OFF control. This function allows the power supply to be turned on or off remotely using an external signal. Refer to the diagram below for connection examples.

Figure 5.1: Graphs illustrating the power supply's derating curve based on ambient temperature and static characteristics based on input voltage. Also includes detailed diagrams and tables for implementing the remote ON/OFF function using external voltage sources or auxiliary outputs.

Remote ON/OFF Connection Methods:

The remote ON/OFF control is available via applying voltage in CN1 & CN2 & CN3. The table below summarizes the connection methods:

Figure 5.1 illustrates examples of connecting remote ON/OFF using an external voltage source (A) and using the internal 12V auxiliary output (B and C).

5.4 Load Considerations

The power supply's performance is affected by ambient temperature and input voltage. Refer to the Derating Curve and Static Characteristics graphs in Figure 5.1 to understand the maximum permissible load under different operating conditions. Ensure the load does not exceed the power supply's rated capacity, especially at higher ambient temperatures.

6. Mantentzea

The RSP-2400-12 is designed for reliable operation with minimal maintenance. However, periodic checks can extend its lifespan and ensure optimal performance.

• Garbiketa: Keep the power supply free from dust and debris. Use a soft, dry cloth or compressed air to clean the vents and casing. Ensure the unit is powered off and disconnected from AC input before cleaning.
• Fan ikuskapena: Periodically check the cooling fan for proper operation and ensure it is free from obstructions. A malfunctioning fan can lead to overheating and reduced lifespan.
• Ingurumen-baldintzak: Ziurtatu funtzionamendu-ingurunea tenperatura eta hezetasun-tarte jakin batzuen barruan mantentzen dela, matxura goiztiarrak saihesteko.

7. Arazoak

If you encounter issues with your RSP-2400-12 power supply, consider the following common troubleshooting steps:

• Irteerarik ez Voltage:
  • Check if the AC input power is connected and active.
  • Verify that the remote ON/OFF function is not engaged (i.e., the unit is commanded to be ON).
  • Sarrerako eta irteerako kableatua egiaztatu konexio solteak edo kalteak dauden ikusteko.
• Gainkarga babesa:
  • If the power supply shuts down or cycles, it may be due to an overload. Reduce the load connected to the output.
  • Check for short circuits in the load.
• Tenperatura gaindiko babesa:
  • If the unit is hot and shuts down, it may be due to over-temperature. Ensure adequate ventilation and that the fan is operating correctly.
  • Ahal izanez gero, gutxitu giro-tenperatura.

If the problem persists after performing these checks, contact customer support.

8. Zehaztapenak

Below are the key technical specifications for the Mean Well RSP-2400-12 power supply:

9. Bermea eta Laguntza

The Mean Well RSP-2400-12 power supply comes with a 5 urteko bermea fabrikatzailearengandik. Berme honek materialen eta fabrikazioaren akatsak estaltzen ditu erabilera normalaren pean.

For warranty claims, technical support, or further assistance, please contact your authorized Mean Well distributor or the seller (EverSale) directly. Ensure you have your product model number (RSP-2400-12) and proof of purchase available when contacting support.
