Venicci Gusto 2 in 1 Travel System User Manual

Sarrera

Welcome to the user manual for your Venicci Gusto 2 in 1 Travel System. This system is designed to provide a versatile and comfortable solution for transporting your child from birth up to approximately 3 years of age. It includes a robust frame, a luxurious newborn carrycot, and a multi-functional toddler seat unit, along with essential accessories for convenience and safety.

Please read this manual carefully before assembly and use to ensure proper operation and to maximize the lifespan of your travel system. Keep this manual for future reference.

Osagaiak amaitu diraview

Your Venicci Gusto 2 in 1 Travel System package typically includes the following items:

• Special edition frame
• Newborn carrycot with mattress
• Toddler seat unit
• Bumper barra
• Seat unit footmuff
• Mosquito cover
• Aldatzeko poltsa
• Euri estalkia
• Kopako euskarria

Image: The Venicci Gusto Travel System configured with the newborn carrycot, showcasing its navy fabric and black frame.

Konfigurazioa eta Muntaketa

Follow these steps to assemble your Venicci Gusto Travel System:

1. Markoaren muntaia: Unfold the frame until it locks securely into place. Ensure all locking mechanisms are engaged.
2. Gurpilen eranskina: Attach the front and rear wheels by pushing them onto their respective axles until they click. Verify they are securely fastened by gently pulling on them.
3. Eskulekuaren doikuntza: The leatherette handlebar is height adjustable. Locate the adjustment buttons on either side of the handlebar and press them to raise or lower the handle to your desired height. Release the buttons to lock it in place.
4. Attaching the Carrycot: Align the carrycot with the frame's attachment points and press down firmly until you hear a click, indicating it is securely locked. Ensure the carrycot is stable before placing your child inside. The carrycot can be easily detached by pressing the release buttons on the sides and lifting it off.
5. Eserleku-unitatea lotzea: For older children (from 6 months), attach the seat unit in the same manner as the carrycot. The seat unit is reversible, allowing your child to face you or face forward.
6. Bumper Bar Attachment: Insert the bumper bar into the designated slots on the seat unit until it clicks.
7. Cup Holder Attachment: Clip the cup holder onto the side of the handlebar or frame as desired.

Irudia: Gertutik view of the cup holder attached to the stroller frame, demonstrating its placement.

Funtzionamendu-argibideak

Using the Carrycot

• Aireztapena: The carrycot features an optimized ventilation system. Ensure vents are clear for proper airflow.
• Bizkarralde erregulagarria: For older infants who prefer to sit up, the carrycot includes an adjustable backrest. Follow the instructions provided with the carrycot for safe adjustment.
• Kulunkatzeko modua: The carrycot has a unique rocking mode when placed on a flat surface off the frame.

Using the Seat Unit

Image: The Venicci Gusto Travel System configured with the toddler seat unit, showing its upright position.

• Reversible Seat: The seat unit can be easily reversed to allow your child to face you or face the world. To reverse, detach the seat unit, turn it, and reattach.
• Etzanda dauden posizioak: The seat unit offers full recline positions suitable from 6 months. Use the recline mechanism, typically located at the back of the seat, to adjust the angle.
• Arnes sistema: Always secure your child using the 5-point safety harness. Adjust the straps to ensure a snug fit without being too tight. The harness features adjustable straps and a buckle system.
• Hanka-euskarri erregulagarria: The leg rest can be adjusted to provide comfort for your child as they grow.

Tolestura eta zabaltzea

The Venicci Gusto features a quick, easy, and compact-fold frame.

1. Tolesgarria: Ensure the seat unit or carrycot is removed (if applicable). Follow the specific folding instructions for the frame, usually involving pressing release buttons and collapsing the frame. The detachable wheels can be removed for an even more compact fold.
2. Zabaltzen: Release the folding lock and extend the frame until it clicks into its fully open position.

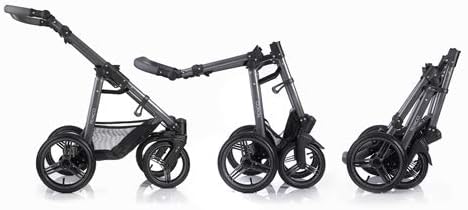

Image: A sequence of three images illustrating the compact folding process of the Venicci Gusto stroller frame.

Balazta Sistema

The stroller is equipped with a reliable foot-operated brake system.

• Balazta erabiltzea: Press down on the 'STOP' side of the brake pedal, typically located near a rear wheel, until the stroller is stationary.
• Erreleasing the Brake: Press down on the 'GO' side of the brake pedal to release the brake and allow the stroller to move.

Irudia: Gertutik view of the foot-operated brake pedal on the Venicci Gusto stroller, showing 'GO' and 'STOP' indicators.

Autoko eserlekuen bateragarritasuna

The Venicci Gusto Travel System is compatible with Maxi-Cosi Infant Car Seats. Adapters (sold separately) may be required to attach the car seat to the frame. Always refer to the car seat's instruction manual for proper installation.

Erosketa Saskia

The spacious shopping basket located under the seat unit provides convenient storage for groceries and essentials. Do not overload the basket beyond its recommended weight limit.

Mantentzea

Regular maintenance will help keep your Venicci Gusto Travel System in optimal condition.

• Oihalaren osagaiak garbitzea: The fabric components (carrycot lining, seat unit, footmuff, changing bag) should be cleaned according to the care labels. Typically, spot cleaning with a mild detergent and warm water is recommended. Do not machine wash unless specified.
• Cleaning Frame and Wheels: Garbitu markoa eta plastikozko piezak iragarkiarekinamp cloth. For wheels, remove any debris and clean with water. Lubricate moving parts (e.g., wheel axles) periodically with a silicone-based lubricant to ensure smooth operation.
• Biltegiratzea: Store the travel system in a dry, well-ventilated area away from direct sunlight and extreme temperatures.
• Ikuskapenak: Regularly check all screws, rivets, and locking mechanisms to ensure they are secure. Inspect the harness for any signs of wear or damage.

Arazoak konpontzea

If you encounter any issues with your Venicci Gusto Travel System, please refer to the following common solutions:

• Kotxetxoa ez da ondo tolesten/zabaltzen: Check for any obstructions in the folding mechanism. Ensure all components (carrycot/seat unit) are removed if required for folding. Lubricate moving parts if necessary.
• Wheels squeaking or not turning freely: Remove any hair or debris from the wheel axles. Apply a silicone-based lubricant to the axles.
• Balazta ez da sartzen/deskonektatzen: Check for obstructions around the brake mechanism. Ensure the brake pedal is fully pressed for engagement or release.
• Seat unit/carrycot not attaching securely: Ensure the attachment points on both the frame and the component are clean and free of debris. Press down firmly until a click is heard.

If the problem persists, please contact Venicci customer support.

Zehaztapenak

Bermea eta Laguntza

For specific warranty information, please refer to the documentation provided with your purchase or visit the official Venicci website. In case of any issues, defects, or questions not covered in this manual, please contact Venicci customer support for assistance.

Manufacturer: Venicci
