TMEZON 4-Channel HD-TVI DVR Security System User Manual

1. Sarrera

This manual provides comprehensive instructions for the installation, operation, and maintenance of your TMEZON 4-Channel HD-TVI DVR Security System. This system includes a 4-channel 1080N Digital Video Recorder (DVR) and four 720P weatherproof cameras, designed for reliable surveillance in various environments. Please read this manual thoroughly before setup and retain it for future reference.

2. Paketearen edukia

Egiaztatu behean zerrendatutako elementu guztiak zure paketean sartuta daudela. Elementuren bat falta bada edo hondatuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

• 1 x 4-Channel HD-TVI DVR (with 1TB HDD pre-installed)
• 4 x 720P Weatherproof CCTV Cameras
• 4 x 60ft BNC kable
• 1 x Power Supply for DVR
• 1 x 1-to-4 Power Splitter Cable for Cameras
• 1 x USB sagua
• Muntatzeko torlojuak eta tapoiak

Irudia: Gainetikview of the TMEZON security system package contents, including the DVR, four cameras, cables, power supplies, and accessories.

3. Produktua amaitu daview

3.1 DVR Features

• 4-Channel 1080N HD-TVI Recording
• Pre-installed 1TB Hard Disk Drive (HDD) for continuous recording
• Multiple recording modes: continuous, scheduled, motion-triggered
• Video output: HDMI, VGA
• USB ports for mouse and backup
• Network interface for remote access

3.2 Kameraren Ezaugarriak

• 720P HD Resolution (1280TVL)
• Weatherproof design for indoor and outdoor use
• Automatic IR-Cut filter for clear day and night vision
• 3.6mm lente finkoa
• 3-axis mounting bracket for flexible positioning

Image: Illustrates the camera's flexible 3-axis mounting bracket, allowing for wall or ceiling installation and angle adjustment.

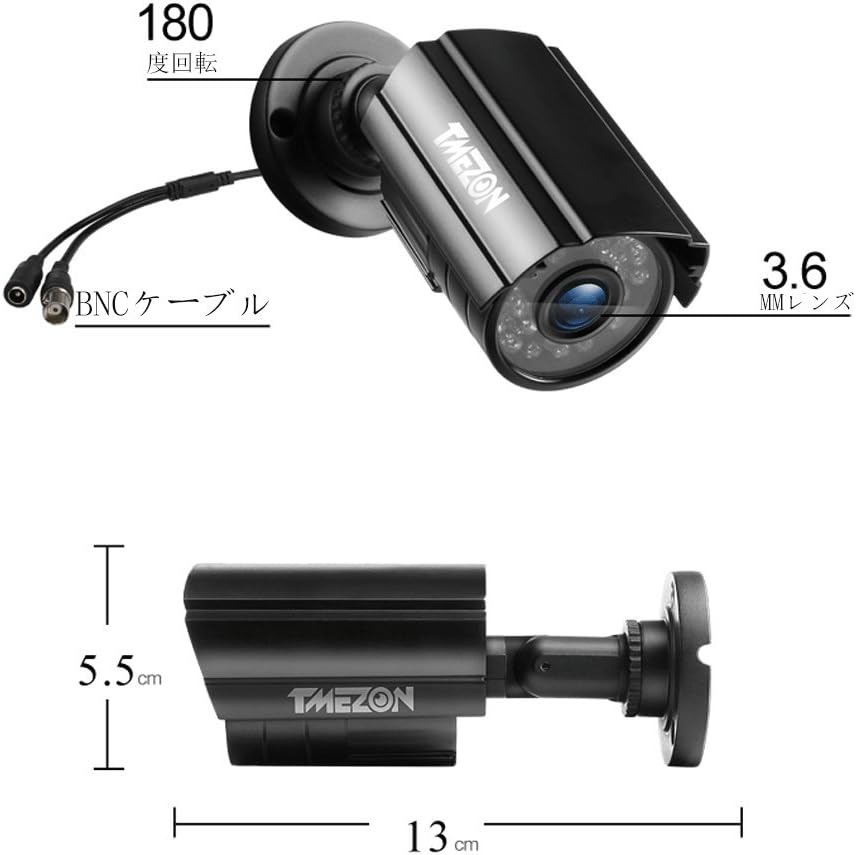

Image: Shows the physical dimensions of the camera, approximately 13 cm in length and 5.5 cm in height, with a 3.6mm lens.

Image: Depicts the camera's night vision capabilities and its weatherproof design, suitable for outdoor installation even in adverse weather conditions.

4. Konfigurazio gida

Follow these steps to set up your TMEZON security system:

1. Konektatu kamerak DVRra: Connect each camera to a BNC input port on the DVR using the provided BNC cables.
2. Power Cameras: Connect the 1-to-4 power splitter cable to the camera power adapter. Then, connect each camera to the splitter cable. Plug the camera power adapter into an electrical outlet.
3. Konektatu DVRa monitorearekin: Connect the DVR to a monitor or TV using an HDMI or VGA cable.
4. Konektatu USB sagua: Plug the USB mouse into one of the DVR's USB ports.
5. Konektatu DVR sarera (aukerakoa): Urrunekorako viewing, connect the DVR's LAN port to your router using an Ethernet cable.
6. Power DVR: Connect the DVR power adapter to the DVR and then to an electrical outlet. The system will power on.

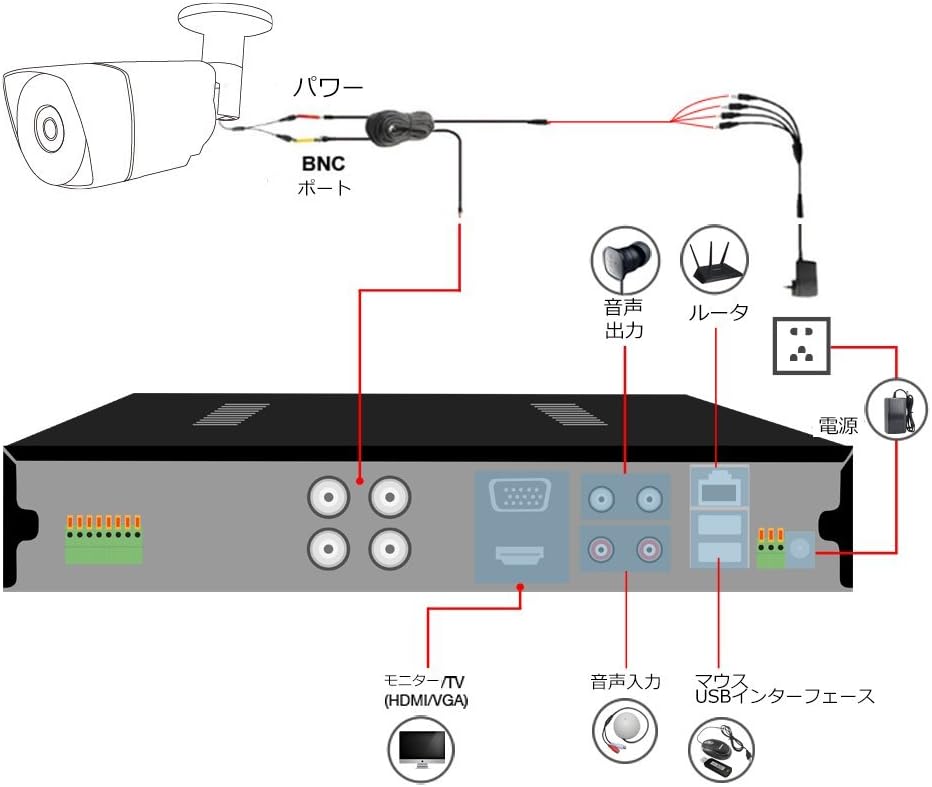

Image: A detailed diagram illustrating the connection points for the DVR, including camera inputs, power, monitor outputs (HDMI/VGA), audio input/output, USB ports for mouse, and network connection to a router.

5. Funtzionamendu-argibideak

5.1 Initial Setup and Configuration

Upon first power-on, the DVR will guide you through an initial setup wizard. This typically includes setting the date/time, creating a password, and configuring network settings if connected to a router.

5.2 urrunekoa Viewing

To access your security system remotely via smartphone or PC:

1. Ensure the DVR is connected to your network.
2. Download the free "XMEYE" application from your smartphone's app store (iOS/Android).
3. Register an account and add your DVR device using its unique ID (usually found on the DVR or in the system information menu).
4. Orain egin dezakezu view live feeds and playback recordings from anywhere with an internet connection (WiFi, 2G/3G/4G).

Image: Illustrates the capability for quick remote monitoring using various devices such as smartphones, tablets, and personal computers.

5.3 Mugimenduaren detekzioa eta alertak

The system supports customizable motion detection areas and alerts:

• Access the DVR's menu to configure motion detection settings for each camera.
• Definitu kameraren barruko eremu zehatzak view where motion should trigger an alert. This helps minimize false alarms.
• Set up email alerts or push notifications to your smartphone when motion is detected. These notifications can include images of the event.

Image: Demonstrates the motion detection feature, showing a grid overlay for custom detection areas, event recording, email alerts, and mobile notifications.

6. Mantentzea

Regular maintenance ensures optimal performance and longevity of your security system:

• Kamera garbiak: Aldian-aldian garbitu kameraren lenteak zapi leun eta lehor batekinamp cloth to remove dust and dirt that may obscure the view.
• Egiaztatu kableak: Inspect all cables for wear, damage, or loose connections. Secure any loose connections.
• Firmware eguneraketak: Egiaztatu fabrikatzailearena website for any available firmware updates for your DVR to ensure you have the latest features and security patches.
• Backup Recordings: Regularly back up important recordings from the DVR to an external USB drive.
• DVR Placement: Ensure the DVR is in a well-ventilated area to prevent overheating, especially during warmer months.

7. Arazoak

If you encounter issues with your TMEZON security system, refer to the following common problems and solutions:

• Bideo-pantailarik ez:
  • Check all power connections to the DVR and cameras.
  • Verify that the monitor is correctly connected to the DVR via HDMI or VGA and is set to the correct input source.
  • Ensure BNC cables are securely connected to both cameras and DVR.
  • Test cameras individually if possible to isolate a faulty camera or cable.
• Urrunekoa Viewing Not Working:
  • Confirm the DVR is connected to your router with an Ethernet cable and has a valid IP address.
  • Check your router's internet connection.
  • Ensure the "XMEYE" app is correctly configured with your DVR's device ID and your smartphone has internet access.
  • Verify that no firewall settings on your router are blocking the DVR's access.
• Irudiaren kalitate eskasa:
  • Kamera-lenteak garbitu.
  • Ensure cameras are within their effective range for night vision.
  • Check cable integrity; damaged cables can degrade signal quality.
• Motion Detection Not Triggering:
  • Review motion detection settings in the DVR menu. Adjust sensitivity and detection areas.
  • Ensure recording schedules are correctly set.

8. Zehaztapenak

9. Bermea eta Laguntza

TMEZONek eskaintzen du 2 urteko bermea eta a 30 eguneko dirua itzultzeko bermea for this product. If you encounter any issues or have questions regarding your security system, please do not hesitate to contact our customer support team.

Bezeroaren arretarako helbide elektronikoa: tmezoncctvsystem@yahoo.com

For purchases of two or more sets, please contact us for potential special discounts.
