Fanimation Celano V2 52-Inch 5-Blade Ceiling Fan Instruction Manual

1. Sarrera

The Fanimation Celano V2 ceiling fan is designed to provide efficient air circulation and integrated lighting for indoor spaces. This 52-inch fan features a dark bronze finish with cherry/dark walnut blades, an 18-watt LED light kit, and is operated via a handheld remote control. It offers three forward and reverse speeds for year-round comfort.

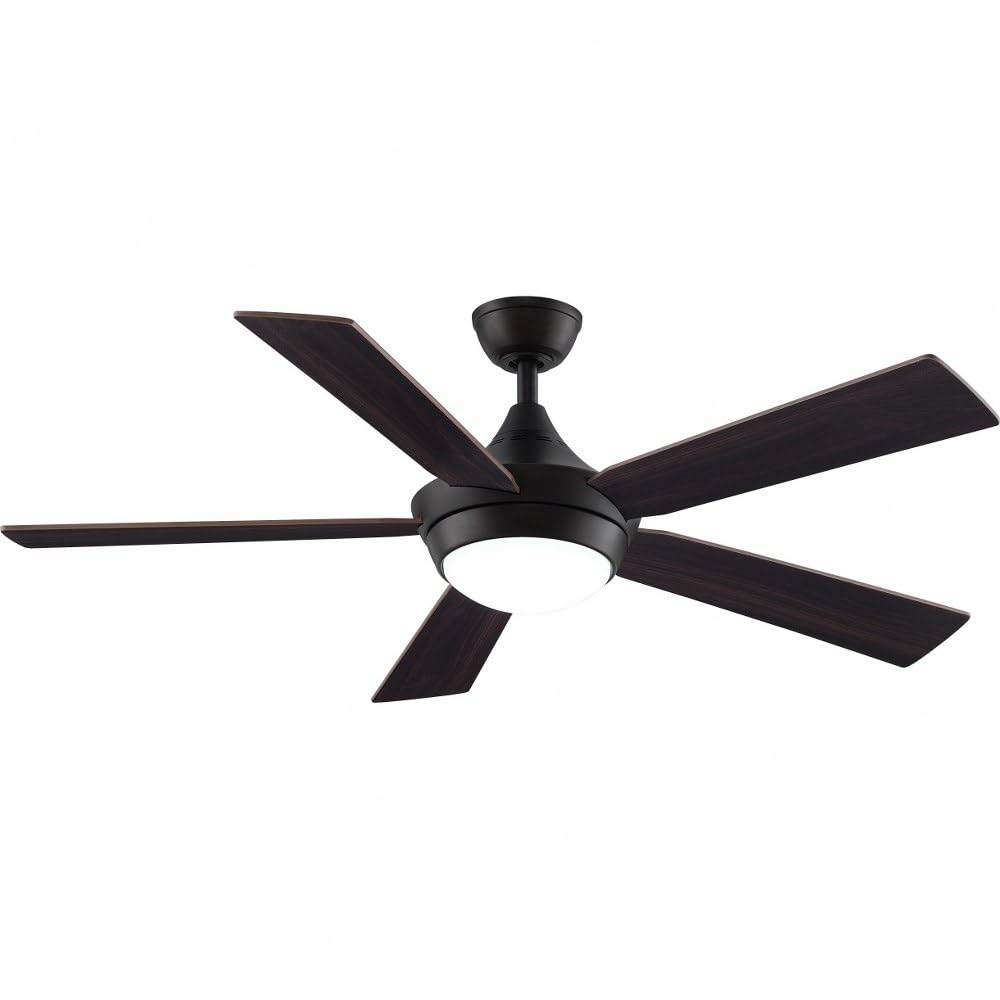

Image 1.1: Fanimation Celano V2 Ceiling Fan (Dark Bronze finish with Cherry/Dark Walnut blades)

2. Segurtasun informazioa

Irakurri arretaz argibide guztiak instalatu eta erabili aurretik. Argibide hauek ez jarraitzen badira, deskarga elektrikoak, sua edo lesio pertsonalak gerta daitezke.

• Segurtasun elektrikoa: Always disconnect power at the main circuit breaker before attempting any installation, repair, or cleaning. Ensure all electrical connections comply with local codes and ordinances.
• Muntaketa: Haizagailua egitura sendoko sabaiko habe batean edo haizagailuaren pisua (17.86 kilo inguru) eusteko gai den entxufe-kutxa batean muntatu behar da.
• Palaren tartea: Ensure there is adequate clearance between the fan blades and any obstacles, including walls and furniture.
• Likidoaren esposizioa: Keep the fan and its electrical components away from liquids to prevent electric shock and damage.
• Instalazio profesionala: If you are unfamiliar with electrical wiring or installation procedures, consult a qualified electrician.

3. Paketearen edukia

Instalazioa hasi aurretik, egiaztatu osagai guztiak daudela:

• Sabaiko haizagailuaren motorren muntaia
• 5 Fan Blades (Cherry/Dark Walnut)
• Light Kit with Opal Glass Diffuser
• TR500 Handheld Remote Control (battery included)
• Beheko haga (4.5 hazbete)
• Muntatzeko euskarria eta hardwarea
• Argibide eskuliburua

4. Konfigurazioa eta instalazioa

This section outlines the general steps for installing your Celano V2 ceiling fan. Specific details and diagrams are typically found in the detailed installation guide provided in the product packaging.

4.1 Aurreinstalazioa

• Itzali etengailuan.
• Ensure the mounting location is suitable for a ceiling fan and can support its weight.
• Deskonprimitu osagai guztiak eta egiaztatu ea kalterik dagoen.

4.2 Haizagailua muntatzea

1. Secure the mounting bracket to the ceiling outlet box and ceiling joist using appropriate hardware.
2. Assemble the downrod to the fan motor assembly.
3. Kontu handiz altxatu haizagailuaren multzoa eta zintzilikatu muntaketa-euskarritik.

4.3 Konexio elektrikoak

• Connect the fan's electrical wires to the household wiring according to the wiring diagram in the full manual. Ensure all connections are secure.
• Lurreratze egokia ezinbestekoa da segurtasunerako.

4.4 Palak eta argi-kit-a lotzea

1. Attach the five fan blades to the motor housing using the provided screws.
2. Install the LED light kit to the bottom of the fan motor assembly.
3. Secure the opal glass diffuser to the light kit.

Once installation is complete, restore power at the circuit breaker and test the fan's operation.

5. Funtzionamendua

The Celano V2 fan is controlled using the included TR500 handheld remote control.

5.1 Haizearen abiadura kontrola

• Use the remote control to select one of three fan speeds (low, medium, high).
• The fan delivers airflow up to 5,596 cubic feet per minute.

5.2 Aire-fluxu alderantzikagarria

• The fan features a reversible airflow function, typically controlled via a switch on the fan housing or the remote.
• Beheranzko aire-fluxua (udan): Haize freskagarria sortzen du.
• Goranzko aire-fluxua (negua): Sabaiaren ondoan harrapatuta dagoen aire beroa zirkulatzen du.

5.3 Light Kit Operation

• The remote control operates the integrated 18-watt LED light kit.
• The light provides warm 3000K illumination with a high Color Rendering Index (CRI) of 90.
• A sleep timer function may be available on the remote for the light or fan.

5.4 Etxe Adimendunaren Bateragarritasuna

The Celano V2 is compatible with WiFi and Bluetooth smart home systems. Control units for smart home integration are sold separately.

6. Mantentzea

Mantentze-lan erregularrak errendimendu optimoa bermatzen du eta zure sabaiko haizagailuaren bizitza luzatzen du.

• Garbiketa: Aldian-aldian garbitu haizagailuaren palak eta motorraren karkasa oihal leun eta lehor batekinamp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
• Palan ikuskatzea: Check fan blades for any cracks or damage. Ensure all blade screws are tight.
• Argi kit: The integrated LED light kit does not require bulb replacement. If the light fails, consult the troubleshooting section or contact support.
• Hauts-pilaketa: Dust can affect fan performance and appearance. Clean regularly.

7. Arazoak

If you experience issues with your Celano V2 ceiling fan, refer to the following common problems and solutions:

8. Zehaztapenak

9. Bermea eta Laguntza

9.1 Bermearen informazioa

The Fanimation Celano V2 ceiling fan comes with a 1 urteko fabrikatzailearen bermea. Please refer to the warranty card included with your product for specific terms and conditions, including coverage details and limitations.

9.2 Bezeroarentzako laguntza

For technical assistance, replacement parts, or warranty claims, please contact Fanimation customer support. Contact information can typically be found on the manufacturer's official webgunean edo produktuaren ontzian.

When contacting support, please have your model number (FP8062BDZ) and purchase date available.
