Steba DG 40 Multifunction Steam Oven

1. Segurtasun informazio garrantzitsua

Mesedez, irakurri arretaz argibide hauek tresna erabili aurretik eta gorde itzazu etorkizunean erreferentzia gisa. Erabilera okerrak tresna kaltetu dezake eta erabiltzaileari lesioak eragin.

• Ziurtatu beti tresna gainazal egonkor eta beroarekiko erresistente batean jartzen dela.
• Ez sartu aparatua, kablea edo entxufea uretan edo beste likido batzuetan.
• Mantendu haurrak eta maskotak gailutik urrun funtzionatzen ari diren bitartean.
• Ez ukitu gainazal beroak. Erabili labeko eskularruak edo eskularruak gauza beroak maneiatzean.
• Deskonektatu gailua korronte-hartunetik erabiltzen ez duzunean eta garbitu aurretik.
• Ensure proper ventilation around the oven during use.
• Do not operate the appliance with a damaged cord or plug. Contact customer service for repairs.
• Fabrikatzaileak gomendatutako osagarriak soilik erabili.

2. Produktua amaitu daview

The Steba DG 40 is a versatile multifunction steam oven designed for various cooking methods, including hot steam, convection, and traditional top/bottom heat. It features a generous 37-liter capacity and a powerful 2100-watt heating element, making it suitable for a wide range of culinary tasks.

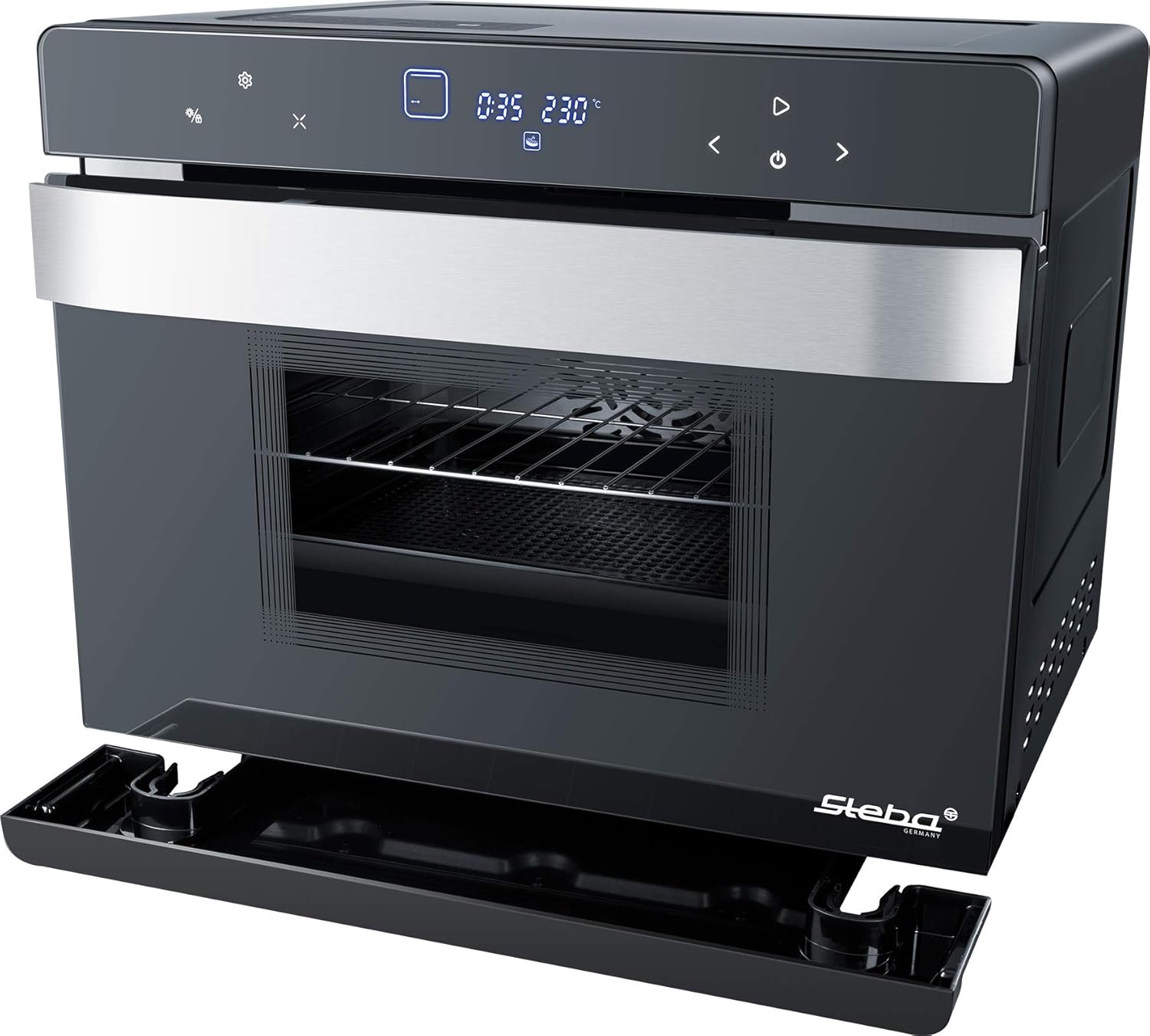

2.1. irudia: Aurrealdea view of the Steba DG 40 Multifunction Steam Oven, showcasinbere diseinu dotorea eta kontrol-panel digitala ditu.

Ezaugarri nagusiak:

• Hot Steam Function: For gentle and rapid cooking.
• Edukiera: Approximately 37 liters interior volume.
• Energia-eraginkortasuna: Effective casing insulation for low energy consumption.
• Programak: 49 automatic programs for baking, drying, steaming, and more.
• DIY Program: Customizable cooking settings.
• Errostegia: Capable of roasting up to 2 chickens.
• Berokuntza moduak: Top and bottom heat, hot air (convection), hot steam.
• Tenperatura kontrola: 230 °C-raino erregulagarria.
• Tenporizadorea: 7 orduko tenporizadorearen funtzioa.
• Ur depositua: 1450 ml-ko edukiera lurruna sortzeko.

3. Konfigurazioa

3.1 Paketatzea

1. Kontu handiz atera labea bere paketetik.
2. Remove all packaging materials, including any protective films or tapes from the interior and exterior of the appliance.
3. Check for any damage during transit. If damage is found, do not operate the appliance and contact your retailer.

3.2 Jartzea

• Place the oven on a flat, stable, and heat-resistant countertop.
• Ensure there is adequate space (at least 10 cm) around the appliance for proper ventilation. Do not place it directly against a wall or under cabinets that could be damaged by heat or steam.
• Avoid placing the oven near water sources or flammable materials.

Figure 3.1: Dimensions of the Steba DG 40 oven for proper placement.

3.3 Hasierako garbiketa

1. Garbitu iragarkiarekin labearen barruko eta kanpoko gainazalakamp oihal.
2. Wash the included accessories (baking sheet, grill rack, rotisserie spit) with warm soapy water, rinse, and dry thoroughly.
3. Before first use, run the oven empty for approximately 15 minutes at 200°C to burn off any manufacturing residues. Ensure the room is well-ventilated during this process.

3.4 Ur depositua betetzea

1. Locate the water tank, typically on the side or front of the appliance.
2. Remove the water tank and fill it with clean, fresh drinking water up to the maximum fill line. Do not use distilled water or other liquids.
3. Reinsert the water tank securely into its position.

3.5 Energia-konexioa

• Entxufatu korronte-kablea lurreko hartune elektriko batean.
• Ziurtatu liburukiatagTresnaren balorazioak zure tokiko energia-hornidurarekin bat dator.

4. Funtzionamendu-argibideak

4.1 Kontrol-panela amaituview

The Steba DG 40 features an intuitive digital control panel. While specific button functions may vary, common controls include power on/off, mode selection, temperature adjustment, timer settings, and program selection. Refer to the display for current settings and status indicators.

4.2 Oinarrizko funtzionamendua

1. Piztu: Sakatu pizteko botoia labea pizteko.
2. Aukeratu modua: Use the mode selection buttons to choose your desired cooking function (e.g., Steam, Convection, Top/Bottom Heat).
3. Ezarri Tenperatura: Adjust the temperature using the temperature control buttons. The maximum temperature is 230°C.
4. Ezarri tenporizadorea: Use the timer buttons to set the desired cooking duration, up to 7 hours.
5. Hasi sukaldatzen: Sakatu hasteko botoia sukaldaritza-prozesua hasteko.

4.3 Programa automatikoak erabiltzea

The oven comes with 49 pre-set automatic programs for various dishes. Select the desired program from the menu, and the oven will automatically set the optimal temperature and cooking time. Consult the recipe book (if included) for details on each program.

4.4 DIY Program

The DIY program allows you to customize and save your preferred cooking settings for frequently prepared dishes. Follow the on-screen prompts to set temperature, time, and cooking mode, then save your custom program.

4.5 Erretegiaren funtzioa

The rotisserie function is ideal for roasting poultry or larger cuts of meat, ensuring even cooking and a crispy exterior.

1. Securely attach the food (e.g., up to two chickens) to the rotisserie spit.
2. Sartu erregosi-txuleta labearen barruko zirrikituetan.
3. Select the rotisserie cooking mode and set the desired temperature and time.
4. Place a drip tray below the food to catch juices and fats.

Figure 4.1: Oven interior showing the rotisserie spit and baking tray.

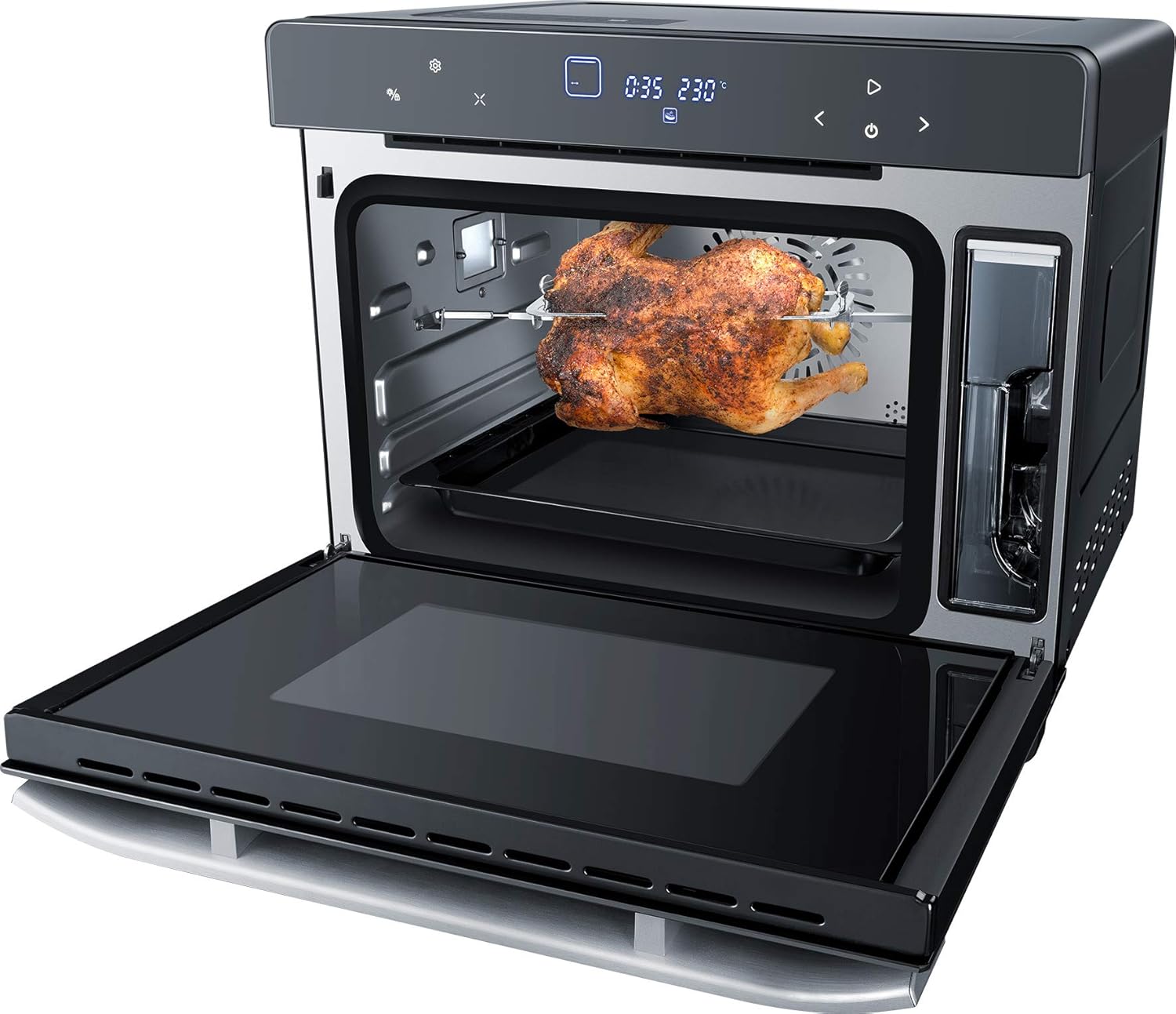

Figure 4.2: Roasted chicken cooking on the rotisserie inside the oven.

Figure 4.3: A roast cooking on a tray within the oven.

Figure 4.4: Croissants baking on a rack inside the oven.

5. Mantentzea eta Garbiketa

5.1 Garbiketa orokorra

1. Deskonektatu beti labea eta utzi guztiz hozten garbitu aurretik.
2. Garbitu kanpoaldea iragarkiarekinamp oihal bat eta detergente leun bat. Ez erabili garbitzaile urratzailerik edo produktu kimiko gogorrik.
3. Garbitu barrualdea iragarkiarekinamp cloth and a small amount of mild dish soap. For stubborn stains, a non-abrasive oven cleaner suitable for steam ovens may be used, following the product instructions carefully.
4. Remove and wash the baking sheet, grill rack, and rotisserie spit in warm soapy water.
5. Ensure all parts are dry before reassembling or storing the oven.

5.2 Water Tank Cleaning and Descaling

• Aldian-aldian hustu eta garbitu ur depositua, mineralak pilatzea saihesteko.
• For descaling, use a descaling solution specifically designed for steam ovens or a mixture of water and white vinegar (1:1 ratio). Follow the descaling instructions provided in the full manual or by the manufacturer.
• The oven features automatic defrosting, simplifying the process of thawing frozen foods.

6. Arazoak

If you encounter issues with your Steba DG 40 oven, please refer to the following common troubleshooting steps:

• Labea ez da pizten: Check if the power cord is securely plugged into a working outlet. Ensure the main power switch (if present) is on.
• Ez da lurrun ekoizpenik: Verify that the water tank is filled with water and correctly inserted. Check for any blockages in the steam nozzle.
• Janaria ez da modu uniformean egosten: Ensure food is placed centrally and not overcrowding the oven. Check if the selected temperature and cooking mode are appropriate for the dish.
• Pantailan agertzen diren errore kodeak: If an error code appears, consult the full user manual for specific meanings and solutions. If the issue persists, contact customer support.

7. Zehaztapenak

For detailed energy efficiency information, please refer to the official EPREL database: https://eprel.ec.europa.eu/qr/1878745

8. Bermea eta Laguntza

This Steba DG 40 Multifunction Steam Oven comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including the warranty period and coverage details. Keep your proof of purchase for any warranty claims.

Bezeroarentzako laguntza:

For technical assistance, spare parts, or warranty inquiries, please contact Steba customer service. Contact information can typically be found on the manufacturer's official webgunean edo produktuaren ontzian.

Fabrikatzailea: Steba
