CAFE CDT845P2NS1 24" Matte Collection Built-In Dishwasher User Manual

1. Sarrera

This user manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your CAFE CDT845P2NS1 24" Matte Collection Built-In Dishwasher. Designed for efficiency and performance, this appliance features advanced cleaning and drying technologies to ensure your dishes are spotless and ready for use. Please read this manual thoroughly before operating your dishwasher to ensure safe and optimal performance.

1. irudia: Aurrealdea view of the CAFE CDT845P2NS1 Built-In Dishwasher, showcasing its sleek matte finish and handle design.

2. Segurtasun informazio garrantzitsua

Jarraitu beti oinarrizko segurtasun neurriak tresna hau erabiltzean, sute, deskarga elektriko edo pertsonen lesio arriskua murrizteko.

• Irakurri argibide guztiak ontzi-garbigailua erabili aurretik.
• Konektatu behar bezala baloratutako, babestutako eta tamainako elikatze-zirkuitu batera.
• Ontzi-garbigailuetarako gomendatutako detergenteak eta garbigarriak bakarrik erabili.
• Ez erabili ontzi-garbigailua panel guztiak behar bezala kokatuta ez badaude.
• Utzi haurrak detergente eta garbigarritik urrun.
• Ez utzi haurrei tresnaren barruan edo gainean jolasten.
• Elementu zorrotzak heldulekuak altxatuta eraman behar dira, ebaki arriskua murrizteko.
• Do not wash plastic items unless marked "dishwasher safe."
• In case of a malfunction, disconnect the appliance from the power supply before attempting any repairs.

3. Instalazioa (Konfigurazioa)

Proper installation is crucial for the performance and longevity of your dishwasher. It is highly recommended that installation be performed by a qualified installer.

3.1 Desontziratzea eta kokatzea

Carefully remove all packaging materials. Ensure the dishwasher is placed on a level surface in its designated cabinet opening. The dimensions are 34"D x 24"W x 23"H.

3.2 Ur eta hustubide konexioak

Connect the water supply line to the dishwasher's inlet valve and the drain hose to the sink drain or garbage disposal. Ensure all connections are secure and leak-free.

3.3 Konexio elektrikoa

Connect the dishwasher to a dedicated 120 Volts electrical circuit as per local electrical codes. Ensure the power is off at the circuit breaker before making connections.

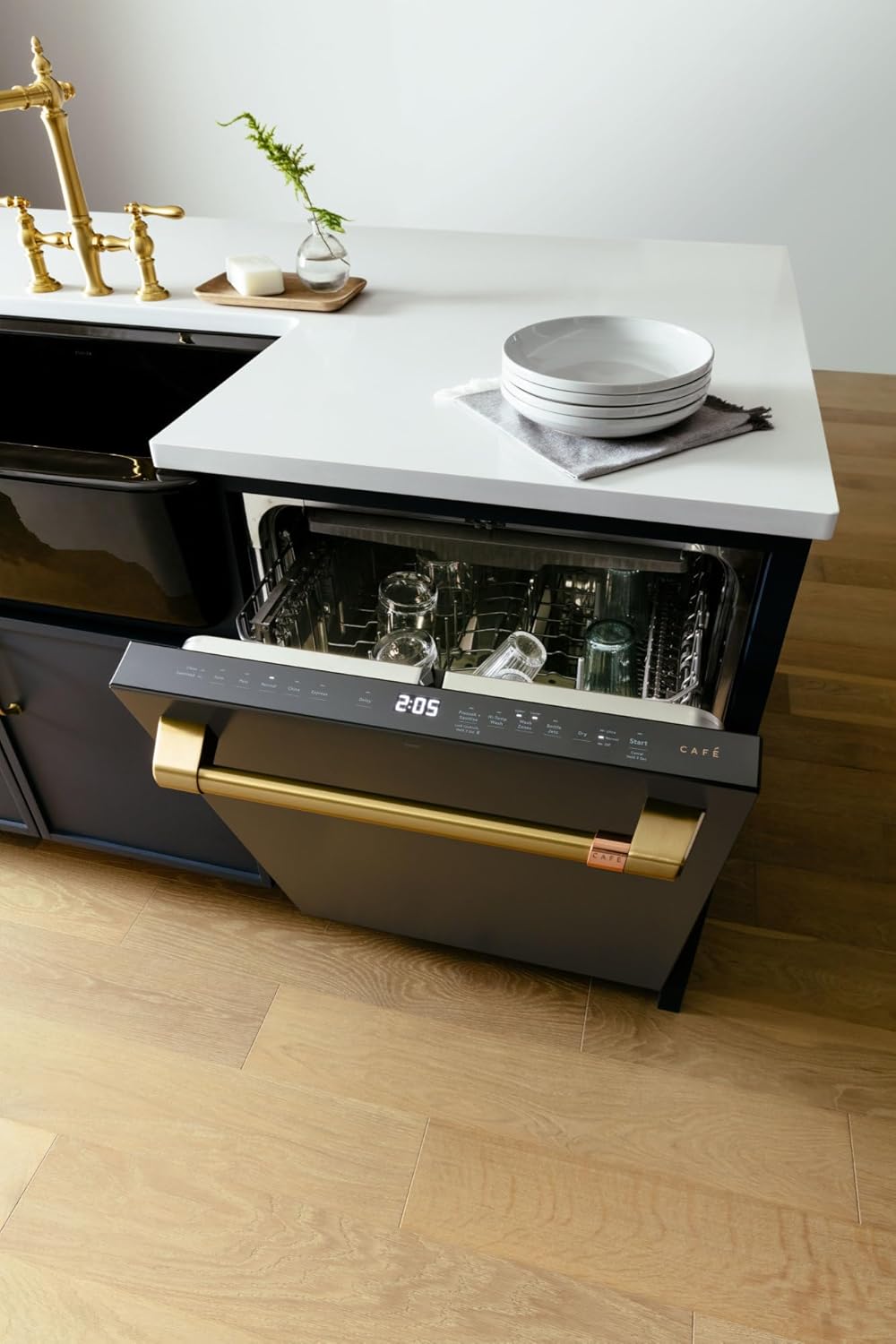

Figure 2: The dishwasher integrated into a kitchen setting, demonstrating its built-in form factor and how it complements kitchen cabinetry.

4. Funtzionamendu-argibideak

Your CAFE dishwasher is designed for intuitive operation, offering various settings to achieve optimal cleaning results.

4.1 Ontzi-garbigailua kargatzea

Proper loading maximizes cleaning performance. Utilize the 16 place settings capacity effectively. The lower wash arm provides excellent coverage for larger loads. Fold-down tines accommodate wide or odd-shaped items, and the third rack offers extra space for silverware and cookware. Adjustable upper shelves can be moved two inches up or down for loading flexibility, accommodating fine stemware or tall bakeware.

3. Irudia: Barrualdea view showing the flexible loading options, including the third rack for cutlery and adjustable upper shelves.

4.2 Detergentea eta garbigarri-laguntzailea gehitzea

Add the appropriate amount of dishwasher detergent to the dispenser. For enhanced drying and to prevent spots, fill the rinse aid dispenser with a suitable rinse aid product.

4.3 Garbiketa-ziklo bat hautatzea

The control panel is located on the top edge of the door. Select from various cycles and options:

• Ultra-Wash & Dry: Delivers excellent cleaning and drying results with 90+ cleaning jets.
• Steam + Sani: Loosens stubborn food residue and provides thorough sanitization, reducing 99.999% of bacteria.
• Wash Zones: Customize cycles to wash a half load on either the top or bottom rack, saving water and time.
• Rapid Cycle: For quick washing needs.
• Additional options include Pots, Normal, China, Express, Delay, Pre-soak, Hi-Temp Wash, Bottle Jets, and Dry settings.

Figure 4: The discreetly located control panel on the top edge of the door, showing cycle and option selections.

Figure 5: Visual representation of the Steam + Sani feature's effectiveness in reducing bacteria and cleaning tough residues.

4.4 Ziklo bat hastea

Close the dishwasher door firmly. Press the "Start" button to begin the selected wash cycle. The dishwasher will automatically proceed through the wash, rinse, and dry phases.

5. Zainketa eta Mantentzea

Mantentze-lan erregularrak zure ontzi-garbigailuak eraginkortasunez funtzionatzen jarraitzea eta bere bizitza luzatzea bermatzen du.

5.1 Barnealdea garbitzea

Periodically clean the interior of the dishwasher, including the spray arms and the filter area. The Hard Food Disposer helps manage food particles, but occasional cleaning of the filter can prevent blockages and odors.

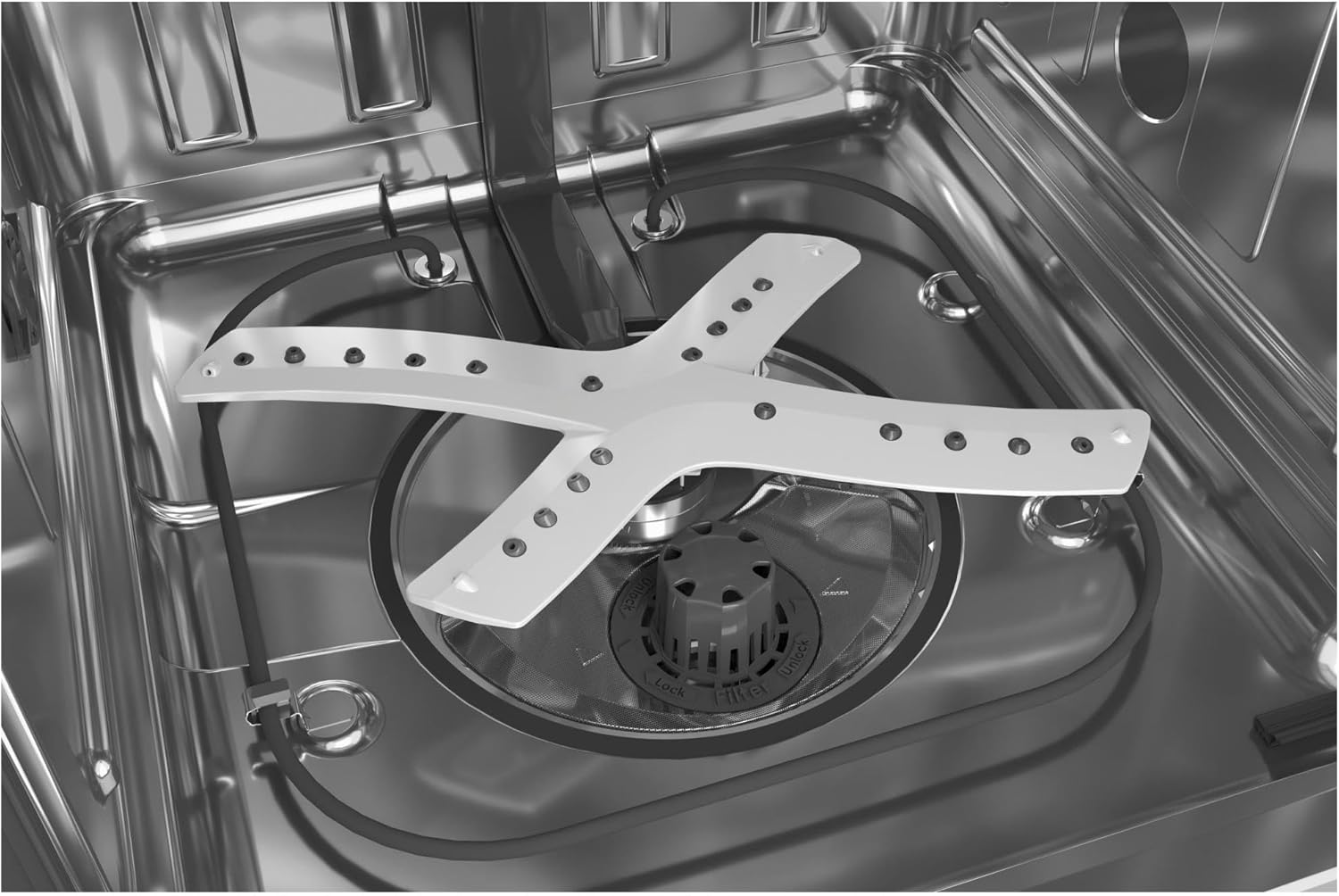

6. irudia: Xehetasuna view of the lower spray arm and the removable filter system, important for regular cleaning.

5.2 Kanpoaldea garbitzea

Garbitu kanpoko gainazalak leun batekin, damp cloth. For stainless steel finishes, use a specialized stainless steel cleaner. Avoid abrasive cleaners that can scratch the surface.

5.3 Winterizing (If Applicable)

If your dishwasher is in a location subject to freezing temperatures, it is important to winterize it. Consult a qualified technician for proper winterization procedures to prevent damage from freezing water.

6. Arazoak

Zerbitzura deitu aurretik, berriroview arazo ohikoenak eta haien balizko irtenbideak:

For more detailed troubleshooting or issues not listed here, please refer to the comprehensive troubleshooting guide available on the manufacturer's webwebgunean edo jarri harremanetan bezeroarentzako laguntzarekin.

7. Produktuaren zehaztapenak

8. Bermea eta bezeroarentzako laguntza

For warranty information, product registration, or technical assistance, please refer to the warranty card included with your purchase or visit the official TRUE (CAFE) website. You can also contact customer support directly for service inquiries or to order replacement parts.

Laguntza gehiago lortzeko, mesedez bisitatu: GE Store on Amazon
