HH Electronics Tessen TNP-1201 Bozgorailuen Kabinetearen Erabiltzaile Eskuliburua

Sarrera

This manual provides essential information for the safe and efficient operation of your HH Electronics Tessen TNP-1201 Speaker Cabinet. Please read this manual thoroughly before using the product to ensure proper setup, operation, and maintenance. Retain this manual for future reference.

1. irudia: Aurrealdea view of the HH Electronics Tessen TNP-1201 Speaker Cabinet, showcasing the protective grille and HH logo.

Segurtasun-argibide garrantzitsuak

• Irakurri argibideak: Irakurri eta ulertu segurtasun- eta funtzionamendu-argibide guztiak produktu hau erabili aurretik.
• Jarrai argibideak: Gorde jarraibide hauek etorkizuneko erreferentzia izateko.
• Kontuan izan abisuak: Errespetatu produktuaren eta funtzionamendu-argibideetako abisu guztiak.
• Jarraitu argibideak: Jarraitu funtzionamendu- eta erabilera-argibide guztiak.
• Ura eta hezetasuna: Ez erabili aparatu hau uraren ondoan.
• Garbiketa: Garbitu zapi lehor batekin bakarrik.
• Aireztapena: Ez blokeatu aireztapen-irekidurak. Instalatu fabrikatzailearen argibideen arabera.
• Beroa: Ez instalatu bero-iturri inongo ondoan, esate baterako, erradiadoreak, bero-erregistroak, sukaldeak edo beste aparatu batzuk (barne ampberoa sortzen duten argitzaileak).
• Elikatze-kablearen babesa: Babestu korronte-kablea oinez ibiltzetik edo atxilotzetik, batez ere entxufeetan, erosotasun-harguneetan eta aparatutik irteten diren puntuetan.
• Eranskinak: Erabili fabrikatzaileak zehaztutako eranskinak/osagarriak soilik.
• Muntaketa: Erabili fabrikatzaileak zehaztutako edo aparatuarekin saltzen den saskiarekin, euskarria, tripodea, euskarria edo mahaiarekin soilik. Orga bat erabiltzen denean, kontuz ibili saskia/aparatuaren konbinazioa mugitzean, iraultzeagatik zauririk ez izateko.
• Deskonektatu: Deskonektatu aparatu hau tximista-ekaitzetan edo denbora luzez erabiltzen ez duzunean.
• Zerbitzua: Jarri zerbitzu-zerbitzu guztiak zerbitzu-pertsonal kualifikatuari. Zerbitzua behar da aparatua edozein modutan hondatu denean, hala nola, elikatze-kablea edo entxufea hondatuta dagoenean, likidoa isuri denean edo objektuak aparatura erori direnean, aparatua euria edo hezetasuna jasan duenean, ez du normalean funtzionatzen. , edo erori egin da.

Produktua amaituview

The HH Electronics Tessen TNP-1201 is a high-performance speaker cabinet designed for live sound and stage applications. It features robust construction and advanced audio components to deliver clear and powerful sound reproduction.

Ezaugarri nagusiak:

• 1 x 12” Precision engineered high efficiency HH woofer with Kevlar fiber reinforced cones, highly detailed mid range for vocal clarity.
• Italian designed LaVoce 1” throat compression drivers, high open area steel grille with acoustic foam backing for maximum protection of drivers without compromising sound.
• High power handling without compression for dynamic performance, High quality, High power passive x-overs, with bi-amp bypass switch.
• 35 mm pole mount, 35° monitor angle, asymmetric profile to prevent standing wave distortion.
• High open area steel grille with acoustic foam backing for maximum protection of drivers without compromising sound.

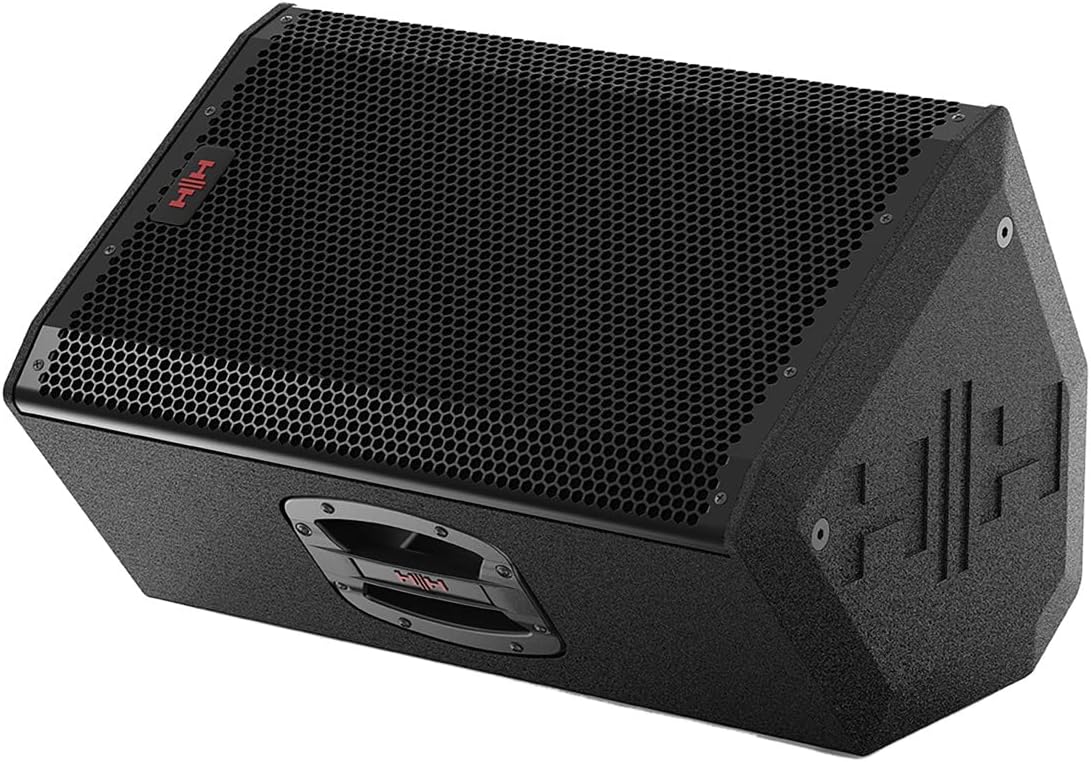

2 irudia: Aurrealde angeluatua view of the Tessen TNP-1201 speaker, highlighting its robust grille and cabinet design.

Konfigurazioa eta konexioak

Follow these steps to properly set up your Tessen TNP-1201 speaker cabinet:

1. Lekua: Position the speaker on a stable, flat surface or mount it using a compatible 35mm pole mount. Ensure adequate ventilation around the unit. The asymmetric profile allows for a 35° monitor angle when placed on its side.
2. Potentzia-konexioa: Connect the power cord to the AC inlet on the rear panel of the speaker and then to a suitable power outlet. Ensure the power switch is in the OFF position before connecting.
3. Audio sarrera: Connect your audio source (e.g., mixer, instrument) to the input connectors on the rear panel. The TNP-1201 typically uses standard XLR or 1/4" TRS connectors for audio input.
4. Output (if applicable): If linking multiple speakers, use the output connectors to send the audio signal to another speaker.
5. Hasierako piztea: Once all connections are secure, switch the power ON. Start with volume levels at minimum and gradually increase to the desired level.

3. irudia: Atzekoa view of the Tessen TNP-1201, detailing the input/output panel, power connection, and integrated handles.

Funtzionamendu-argibideak

The Tessen TNP-1201 is designed for straightforward operation. Familiarize yourself with the controls on the rear panel:

• Sarrera-maila kontrola: Adjusts the overall input sensitivity of the speaker. Start low and increase gradually to avoid distortion.
• EQ Controls (if present): Some models may include basic EQ adjustments (e.g., Bass, Treble) to fine-tune the sound to your environment.
• BIAmp Saihesteko etengailua: This speaker features a high-quality passive crossover with a bi-amp bypass switch. Consult advanced audio guides if you intend to use bi-amplification. For standard operation, ensure it is set correctly for passive mode.
• Potentzia adierazlea: An LED indicator typically illuminates when the unit is powered on.
• Clip/Limit Indicator: This LED illuminates when the input signal is too high, indicating potential distortion. Reduce the input level if this light frequently activates.

Always ensure that the input signal is clean and not overdriven from your source device to achieve optimal sound quality and prevent damage to the speaker.

Mantentzea eta zaintzea

Proper maintenance ensures the longevity and performance of your Tessen TNP-1201 speaker cabinet.

• Garbiketa: Clean the exterior of the cabinet with a soft, dry cloth. Do not use abrasive cleaners, solvents, or waxes. Avoid spraying liquids directly onto the speaker.
• Parrilla zaintzea: The steel grille with acoustic foam backing protects the drivers. Ensure it remains free of dust and debris. Do not attempt to remove the grille unless necessary for servicing by qualified personnel.
• Biltegiratzea: When not in use for extended periods, store the speaker in a dry, temperature-controlled environment, away from direct sunlight and extreme temperatures.
• Ikuskapena: Periodically inspect the power cord and all cables for any signs of damage. Replace damaged cables immediately.

4 irudia: Albokoa view of the Tessen TNP-1201, illustrating its asymmetric cabinet profile designed to prevent standing wave distortion and allow for monitor use.

Arazoak konpontzea

If you encounter issues with your Tessen TNP-1201, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact HH Electronics customer support or a qualified service technician.

Zehaztapenak

Detailed technical specifications for the HH Electronics Tessen TNP-1201 Speaker Cabinet:

Bermearen informazioa

HH Electronics products are manufactured to high standards and are warranted against manufacturing defects. Specific warranty terms and conditions may vary by region and retailer. Please retain your proof of purchase. For detailed warranty information, please refer to the official HH Electronics webgunea edo jarri harremanetan zure baimendutako saltzailearekin.

Bezeroarentzako Arreta

For technical assistance, service inquiries, or further information regarding your HH Electronics Tessen TNP-1201 Speaker Cabinet, please visit the official HH Electronics website or contact their customer support department. Contact details can typically be found on the manufacturer's webgunean edo produktuaren ontzian.
