BODI Starter Motor User Manual

1. Sarrera

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your new BODI Starter Motor. This starter motor is designed for specific JEEP GRAND CHEROKEE 3.6 V6 models. Please read this manual thoroughly before attempting any installation or service to ensure proper function and safety.

2. Produktuaren ezaugarriak

• New item with a life test exceeding 20,000 cycles.
• liburukiatage: 12V; Power: 1.3Kw; Teeth: 9T; Rotation: CW (Clockwise).
• Compatible with OEM part numbers: 19185N, 04801694AC, 04801852AB, 4280007210.
• Specifically designed for JEEP GRAND CHEROKEE 3.6 V6 vehicles.
• Manufactured under IATF 16949 quality standards.

3. Produktua Views

3.1. irudia: Angeludun view of the BODI starter motor, showcasing its main body and solenoid.

3.2. irudia: Aurrealdea view of the starter motor, highlighting the mounting flange and the drive gear (pinion).

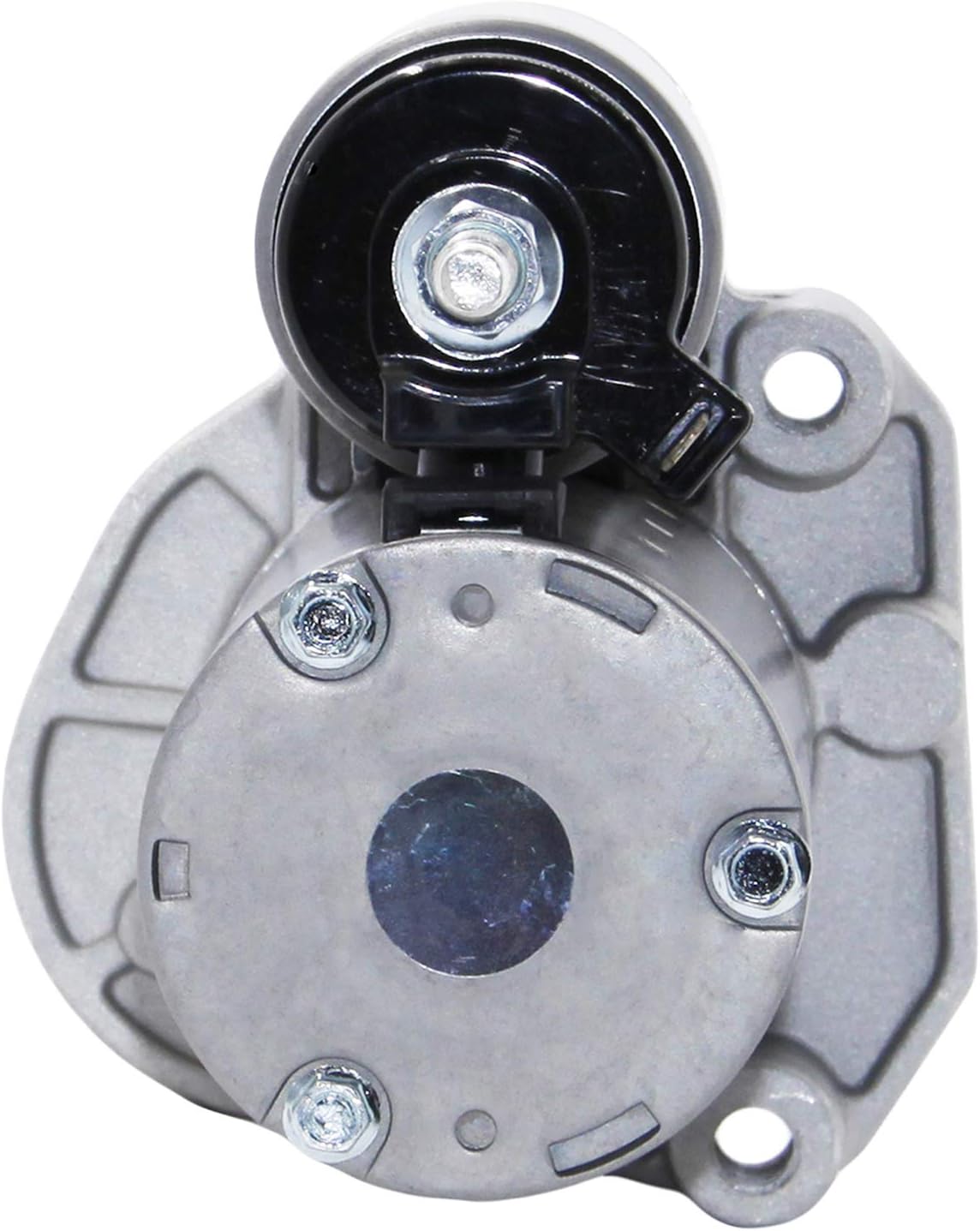

3.3. Irudia: Atzealdea view of the starter motor, displaying the solenoid and electrical terminals for connection.

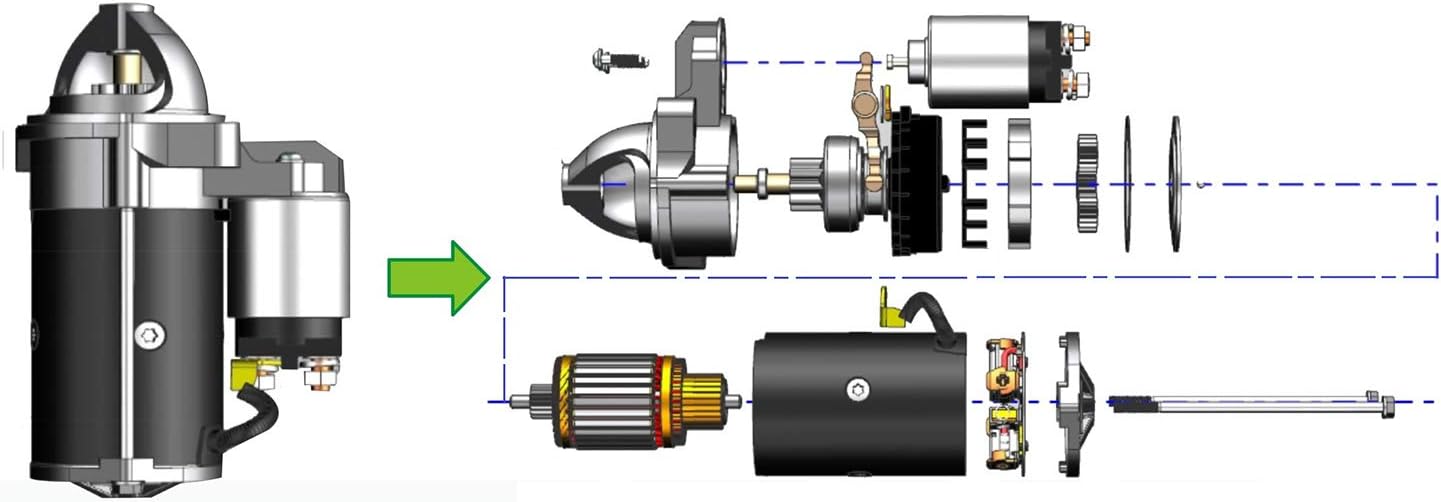

Figure 3.4: Exploded diagram illustrating the internal components of the starter motor, including the armature, field windings, and planetary gear set.

4. Konfigurazioa eta instalazioa

Installation of an automotive starter motor requires mechanical expertise and specialized tools. It is highly recommended that installation be performed by a certified automotive technician.

Segurtasun neurriak:

• Always disconnect the vehicle's negative battery terminal before beginning any work on the electrical system.
• Erabili babes pertsonaleko ekipamendu (BPE) egokia, segurtasun betaurrekoak eta eskularruak barne.
• Ziurtatu ibilgailua ondo eutsita dagoela gato-euskarrietan azpian lan egiten baduzu.
• Lanean hasi aurretik, utzi motorra guztiz hozten.

Instalazio Urrats Orokorrak (Kontsultatu zerbitzu eskuliburua ibilgailuaren argibide espezifikoak lortzeko):

1. Locate and identify the existing starter motor.
2. Disconnect all electrical connections from the old starter motor (battery cable, solenoid wire).
3. Remove the mounting bolts securing the old starter motor to the engine/transmission.
4. Carefully remove the old starter motor from the vehicle.
5. Compare the new BODI starter motor with the old unit to ensure compatibility.
6. Install the new starter motor, ensuring proper alignment with the flywheel/flexplate.
7. Secure the new starter motor with the mounting bolts, tightening to manufacturer specifications.
8. Reconnect all electrical connections to the new starter motor, ensuring they are clean and tight.
9. Konektatu berriro ibilgailuaren bateriaren terminal negatiboa.
10. Test the starter motor operation.

5. Funtzionamendu-argibideak

The BODI Starter Motor is an integral component of your vehicle's starting system. Its operation is automatic and initiated by turning the ignition key or pressing the start button. No direct user interaction with the starter motor itself is required during normal vehicle operation.

When the ignition is engaged, the starter motor receives electrical current from the battery, which activates the solenoid. The solenoid then pushes the starter's pinion gear into mesh with the engine's flywheel and simultaneously closes a high-current circuit to spin the motor, cranking the engine. Once the engine starts, the pinion gear disengages automatically.

6. Mantentzea

The BODI Starter Motor is designed for durability and requires minimal direct maintenance. However, its longevity and performance are dependent on the overall health of your vehicle's electrical system and regular vehicle maintenance.

Gomendioak:

• Bateria osasuna: Ensure your vehicle's battery is in good condition and fully charged. A weak battery can strain the starter motor.
• Konexio elektrikoak: Periodically inspect the electrical connections to the starter motor for corrosion or looseness. Clean and tighten as necessary (with the battery disconnected).
• Ibilgailuen mantentze-lanak: Adhere to your vehicle manufacturer's recommended maintenance schedule, especially for the charging system (alternator) and battery.
• Avoid Excessive Cranking: Do not crank the engine for more than 10-15 seconds at a time. Allow a brief pause (30-60 seconds) between attempts to prevent overheating the starter motor.

7. Arazoak

If you experience issues with your vehicle's starting system, consider the following common troubleshooting steps. Always ensure safety precautions are followed before inspecting any components.

Common Symptoms and Possible Causes:

• Biraderarik ez, klikik ez:
  • Dead or very low battery.
  • Bateriaren terminal solteak edo korrodituak.
  • Pizte etengailua akastuna.
  • Open circuit in the starter solenoid wire.
• Clicking Sound, No Crank:
  • Weak battery (not enough power to engage starter motor fully).
  • Loose or corroded battery cables or starter connections.
  • Faulty starter solenoid.
• Biradera motela:
  • Bateria ahula.
  • Corroded battery cables or connections.
  • High resistance in the starter circuit.
• Grinding Noise During Cranking:
  • Damaged starter pinion gear or flywheel teeth.
  • Improper starter motor alignment.

If these steps do not resolve the issue, or if you are unsure about diagnosing the problem, it is recommended to consult a qualified automotive technician.

8. Zehaztapenak

9. Bermearen informazioa

BODI provides a 1 urteko bermea for this starter motor from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, neglect, accident, or unauthorized repair.

10. Bezeroarentzako arreta

For technical assistance, warranty claims, or any questions regarding your BODI Starter Motor, please contact BODI customer support through the retailer where the product was purchased or refer to the contact information provided with your product packaging. When contacting support, please have your product model number and purchase details ready.
