1. Sarrera
Thank you for choosing the Hygger 9W Aquarium LED Light. This product is designed to provide optimal illumination for your freshwater or marine aquarium, supporting plant growth and enhancing the visual appeal of your aquatic environment. Featuring adjustable brightness, multiple color modes, and a convenient timer function, this light offers versatility and ease of use. Please read this manual thoroughly before installation and operation to ensure safe and efficient use.

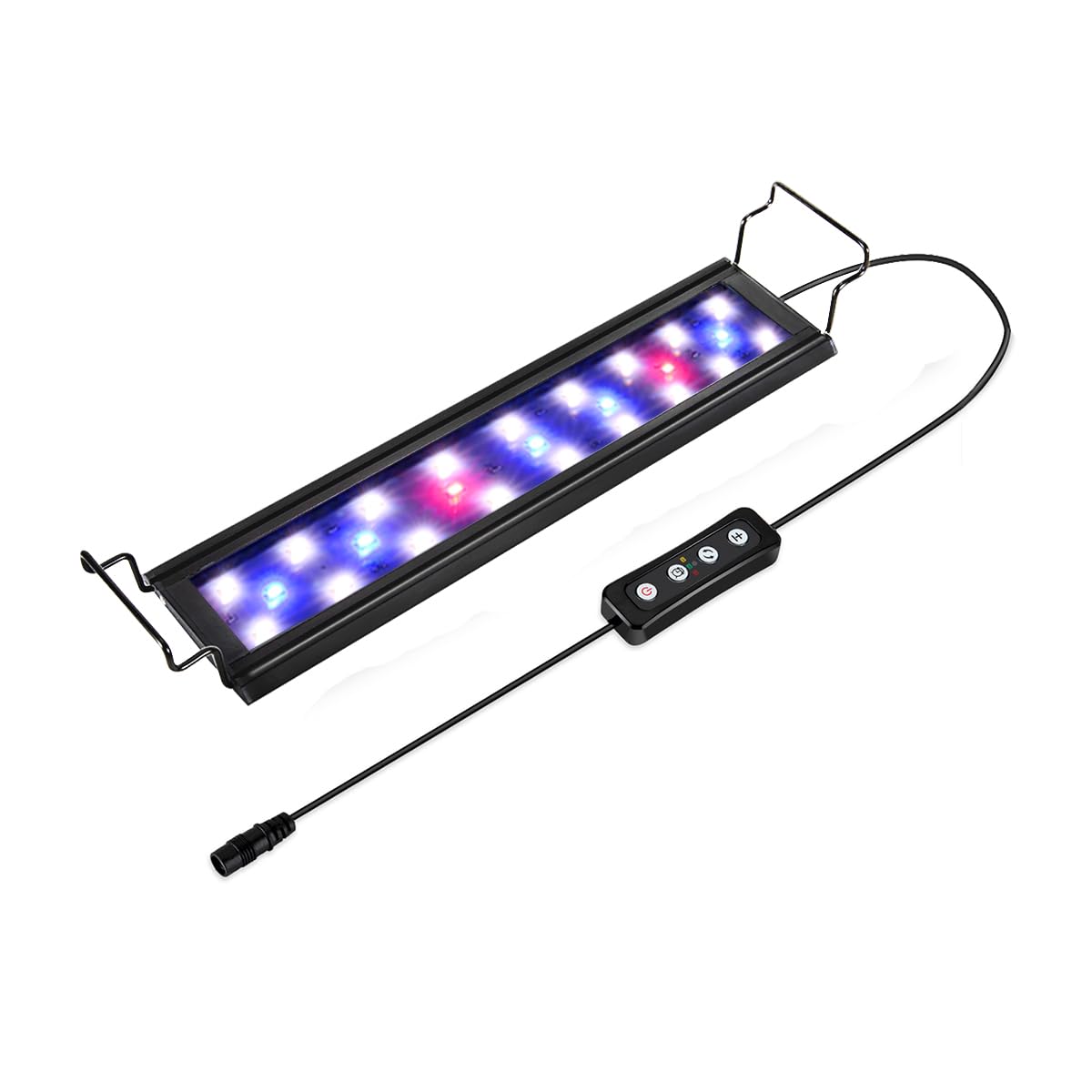

Figure 1: The Hygger 9W Aquarium LED Light, designed for optimal illumination of freshwater and saltwater aquariums.
2. Segurtasun-argibideak
To prevent electric shock or injury, please observe the following safety precautions:
- Irakurri arretaz argibide guztiak erabili aurretik.
- Do not immerse the light fixture in water. It is designed to be placed above the water surface.
- Ensure your hands are dry before handling the power adapter or controller.
- Always unplug the light from the power outlet before performing any maintenance, cleaning, or when not in use.
- Do not operate the light if any part is damaged, especially the power cord or adapter.
- Mantendu haurren eskura.
- Erabili hornitutako korronte-egokigailuarekin soilik.
3. Paketearen edukia
Egiaztatu elementu guztiak paketean daudela:
- Hygger 9W Aquarium LED Light
- Power Adapter with inline controller
- Adjustable Metal Brackets (2 pcs)
- Plastic Brackets (2 pcs)
- Argibide eskuliburua (dokumentu hau)
4. Produktua amaitu daview & Ezaugarriak
The Hygger 9W Aquarium LED Light is equipped with advanced features for a customizable and healthy aquatic environment:
- LED ultra-distiratsuak: DC12V / 9 watt, suitable for 28-48cm wide aquariums and low to medium light plants in both freshwater and marine setups.
- Parentesi erregulagarriak: Comes with removable metal and plastic brackets, allowing compatibility with most aquariums, with or without covers and spacers.
- Hiru kolore moduak: Easily switch between White LEDs, Blue + White + Red LEDs, and Red + Blue LEDs to create different lighting effects.
- Bost distira maila: Adjust light intensity from 100% down to 10% to meet the specific needs of your aquatic plants and inhabitants.
- Tenporizadore integratua: Set the lighting duration for 3, 6, or 12 hours.
- Eraikuntza iraunkorra: Features a flat aluminum profile for efficient heat dissipation and high-quality, energy-efficient LEDs with a lifespan of up to 20,000 hours.
2. irudia: Gehiegizko batview of the inline controller for the Hygger Aquarium Light, detailing buttons for brightness adjustment, color mode selection, and timer settings (3H, 6H, 12H).
Figure 3: Visual representation of the five adjustable brightness levels and three distinct color modes (White, Blue+White+Red, Blue+Red) available with the Hygger Aquarium Light.
Figure 4: Spectrum graph illustrating the light output of the Hygger Aquarium Light, optimized for plant growth and color rendering.
5. Zehaztapenak
| Ezaugarri | Zehaztapena |
|---|---|
| Marka | hygger |
| Eredua | HG918-9W |
| Boterea | 9 Watt |
| liburukiatage | 12 Volt |
| Produktuaren neurriak | 30 x 8 x 0.8 cm |
| Pisua | 490 g |
| Materiala | Aluminum (shell), Plastic (shade) |
| Argi Mota | LED (White, Blue, Red) |
| Argi kopurua | 24 |
| Ezaugarri bereziak | Erregulagarria, tenporizadorea |
| Kablearen luzera | 12 cm (controller cable) |

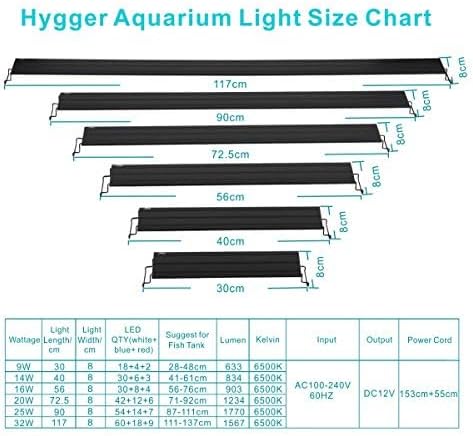

Figure 5: A detailed size chart providing specifications for various Hygger Aquarium Light models, including wattage, dimensions, LED configuration, and recommended aquarium sizes.
Figure 6: Official product data sheet for the Hygger Aquarium Light, listing technical parameters and compliance information.
Figure 7: The energy efficiency label for the Hygger HG918-9W Aquarium Light, indicating its energy class and consumption. For more details, visit https://eprel.ec.europa.eu/qr/1752440.
6. Konfiguratzeko argibideak
6.1 Attaching the Brackets
The Hygger Aquarium LED Light comes with both metal and plastic adjustable brackets. Choose the type that best suits your aquarium setup.
- Identify the bracket type you wish to use (metal or plastic).
- Slide the brackets into the slots on each end of the light fixture. Ensure they are securely fitted.
- Adjust the length of the brackets to match the width of your aquarium. The brackets are extendable to fit various tank sizes.
Figure 8: Hygger Aquarium Light with aluminum alloy shell and extendable metal brackets, ready for installation.
6.2 Mounting on the Aquarium
Once the brackets are attached and adjusted:
- Carefully place the light fixture on the edges of your aquarium, ensuring the brackets rest firmly on the tank walls.
- Make sure the light is centered and stable to prevent accidental falls.
6.3 Energia-konexioa
Connect the light to the power source:
- Connect the light's cable to the inline controller.
- Connect the inline controller to the power adapter.
- Entxufatu korronte-egokigailua entxufe elektriko egoki batean.
7. Funtzionamendu-argibideak
7.1 Inline Controller Overview
The light is controlled via an inline controller with four buttons:
- Brightness Adjustment Button (+/-): Argiaren intentsitatea doitzen du.
- Color Mode Button (Cycle Icon): Cycles through different color modes.
- Timer Button (Clock Icon): Sets the lighting duration.
- Power Button (On/Off Icon): Argia pizten edo itzaltzen du.
7.2 Piztu/Itzali
Sakatu Pizteko botoia once to turn the light on or off.
7.3 Color Mode Selection
The light offers three distinct color modes:
- LED zuriak: Provides bright, clear illumination.
- Blue + White + Red LEDs: A balanced spectrum for general viewing and plant growth.
- Red + Blue LEDs: Ideal for enhancing red plant coloration and creating a moonlight effect.
To cycle through these modes, press the Kolore moduan botoia (second button from top) repeatedly until your desired mode is active.
7.4 Distira doitzea
The light has five adjustable brightness levels (100%, 77%, 55%, 32%, 10%).
- Sakatu + botoia distira handitzeko.
- Sakatu - botoia distira gutxitzeko.
7.5 Tenporizadorearen funtzioa
The light features a timer for 3, 6, or 12 hours:
- Sakatu Tenporizadorearen botoia (third button from top) once for 3 hours.
- Press it twice for 6 hours.
- Press it three times for 12 hours.
The light will automatically turn off after the set duration. Note that the timer function does not include a gradual sunrise/sunset simulation; it is a simple on/off timer.
Video 1: This video provides a visual guide to the installation and operation of the Hygger 9W-32W Aquarium Light, showcasing its adjustable brightness, multiple color options, and integrated timer functionality.
8. Mantentzea
Regular maintenance ensures the longevity and optimal performance of your aquarium light.
8.1 Garbiketa
- Always unplug the light before cleaning.
- Wipe the light fixture with a soft, damp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
- Ensure the light is completely dry before plugging it back in.
8.2 Biltegiratzea
If storing the light for an extended period, ensure it is clean and dry. Store it in a cool, dry place away from direct sunlight.
9. Arazoak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Argia ez da pizten. | No power, loose connection, damaged adapter. | Check power outlet, ensure all connections are secure, try a different outlet. If adapter is damaged, replace it. |
| Argia ustekabean keinuka edo ahuldu egiten da. | Energia-iturri ezegonkorra, konexio soltea, barne-akatsa. | Check power connections. Ensure the power supply is stable. If the problem persists, contact customer support. |
| Tenporizadorearen funtzioa ez dabil. | Incorrect setting, power interruption. | Re-set the timer according to the operating instructions. If power is interrupted, the timer may reset. |
| Cannot change color modes or brightness. | Kontrolagailuaren funtzionamendu okerra. | Ensure the light is on. Try pressing the buttons firmly. If unresponsive, contact customer support. |
10. Bermea eta Laguntza
The Hygger 9W Aquarium LED Light comes with a urtebeteko bermea erosketa-datatik aurrera. Berme honek fabrikazio-akatsak eta erabilera normalaren ondoriozko matxurak estaltzen ditu.
If you encounter any issues or have questions regarding your product, please do not hesitate to contact us through Amazon's messaging system. Our customer support team aims to respond within 16 hours to assist you.
