Produktua amaituview
The VitrA V-care 1.1 Comfort Shower Toilet is a sophisticated wall-hung toilet system designed for enhanced personal hygiene and comfort. It features a rimless design for easy cleaning, integrated bidet functions, and smart controls via a remote.
Ezaugarri nagusiak
- VitrAclean Technology: Special double glazing process for stain and limescale resistance.
- Automatic lid open/close.
- Front and rear wash functions.
- Adjustable seat temperature, water pressure, and water temperature.
- Includes flexible hose, base, mounting instructions, and manual.
Image: The VitrA V-care 1.1 Comfort Shower Toilet, a sleek white wall-hung unit, is shown with its accompanying remote control. The toilet features a modern, minimalist design with a flat top lid.
Segurtasun Informazioa
Irakurri arretaz argibide guztiak instalatu eta erabili aurretik. Gorde eskuliburu hau etorkizunean erreferentzia gisa.
- Ziurtatu lurra elektriko egokia.
- Do not expose the unit to excessive moisture or direct water spray, except for intended cleaning.
- Deskonektatu korrontea mantentze-lan edo garbiketa egin aurretik.
- Tresna hau ez da gaitasun fisiko, sentsorial edo mental murriztua duten edo esperientzia eta ezagutza falta duten pertsonek (haurrak barne) erabiltzeko, baldin eta haien segurtasunaz arduratzen den pertsona batek gailuaren erabilerari buruz gainbegiratu edo jarraibiderik eman ez badu.
- Gainbegiratu haurrak aparatuarekin jolasten ez dutela ziurtatzeko.
Image: The VitrA V-care 1.1 Comfort Shower Toilet is installed in a contemporary bathroom with light grey walls and floor tiles. The toilet is wall-mounted, and its lid is open, revealing the internal bidet nozzle.
Instalazioa eta konfigurazioa
The VitrA V-care 1.1 Comfort Shower Toilet is designed for wall-mounted installation. Professional installation is recommended.
Instalazio aurreko egiaztapen-zerrenda
- Verify all components are present: toilet unit, remote control, flexible hose, base, mounting hardware.
- Ensure water supply and electrical connections are available at the installation point.
- Confirm wall structure can support the weight of the wall-hung toilet.
Instalazio Urratsak (Orokorra)view)
- Mount the support frame securely to the wall according to local building codes.
- Connect the water supply lines to the toilet unit.
- Konektatu elikadura elektrikoa.
- Secure the toilet unit to the support frame.
- Install the toilet seat and lid.
- Perform initial water flush and check for leaks.
- Power on the unit and test basic functions.
Irudia: Aurrealdea view of the VitrA V-care 1.1 Comfort Shower Toilet installed in a bathroom. The wall-mounted toilet is white, and above it, a black flush plate with two circular buttons is visible. A white remote control is mounted on the wall to the left of the toilet.
Funtzionamendu-argibideak
The VitrA V-care 1.1 Comfort Shower Toilet is operated primarily via its wireless remote control.
Urruneko Kontrol Funtzioak
The remote control allows for personalized settings and activation of various functions. Refer to the symbols on the remote for specific actions.
- Estalki automatikoa: The lid automatically opens when approached and closes after use. This feature can be enabled/disabled.
- Washing Functions:
- Atzeko garbiketa: Activates the posterior cleansing spray.
- Aurrealdeko garbiketa: Activates the feminine cleansing spray.
- Uraren presioaren doikuntza: Increase or decrease spray intensity.
- Uraren tenperaturaren doikuntza: Adjust water temperature for washing.
- Toberaren posizioaren doikuntza: Fine-tune the nozzle's position.
- Eserlekuaren tenperatura kontrola: Adjust the temperature of the heated seat.
- Lehortzeko funtzioa: Activates the warm air dryer.
- Desodorizazioa: Activates the air purification system.
- Child Function: Provides a gentler wash and lower water pressure suitable for children.
Initial Use and Personalization
Upon first use, familiarize yourself with the remote control. You can save preferred settings for water temperature, pressure, and nozzle position for quick access.
Mantentzea eta Garbiketa
Regular maintenance ensures optimal performance and hygiene of your VitrA V-care 1.1 Comfort Shower Toilet.
Eguneroko Garbiketa
- Use a soft cloth and mild, non-abrasive cleaner for external surfaces.
- Clean the nozzle regularly. Most units have a self-cleaning function for the nozzle before and after use.
descaling
The toilet features a descaling function. Use only VitrA-approved descaling agents to prevent damage. Follow the instructions provided with the descaling agent.
VitrAclean Technology
The special double glazing process of VitrAclean helps prevent water stains and limescale buildup, reducing the need for harsh chemical cleaners.

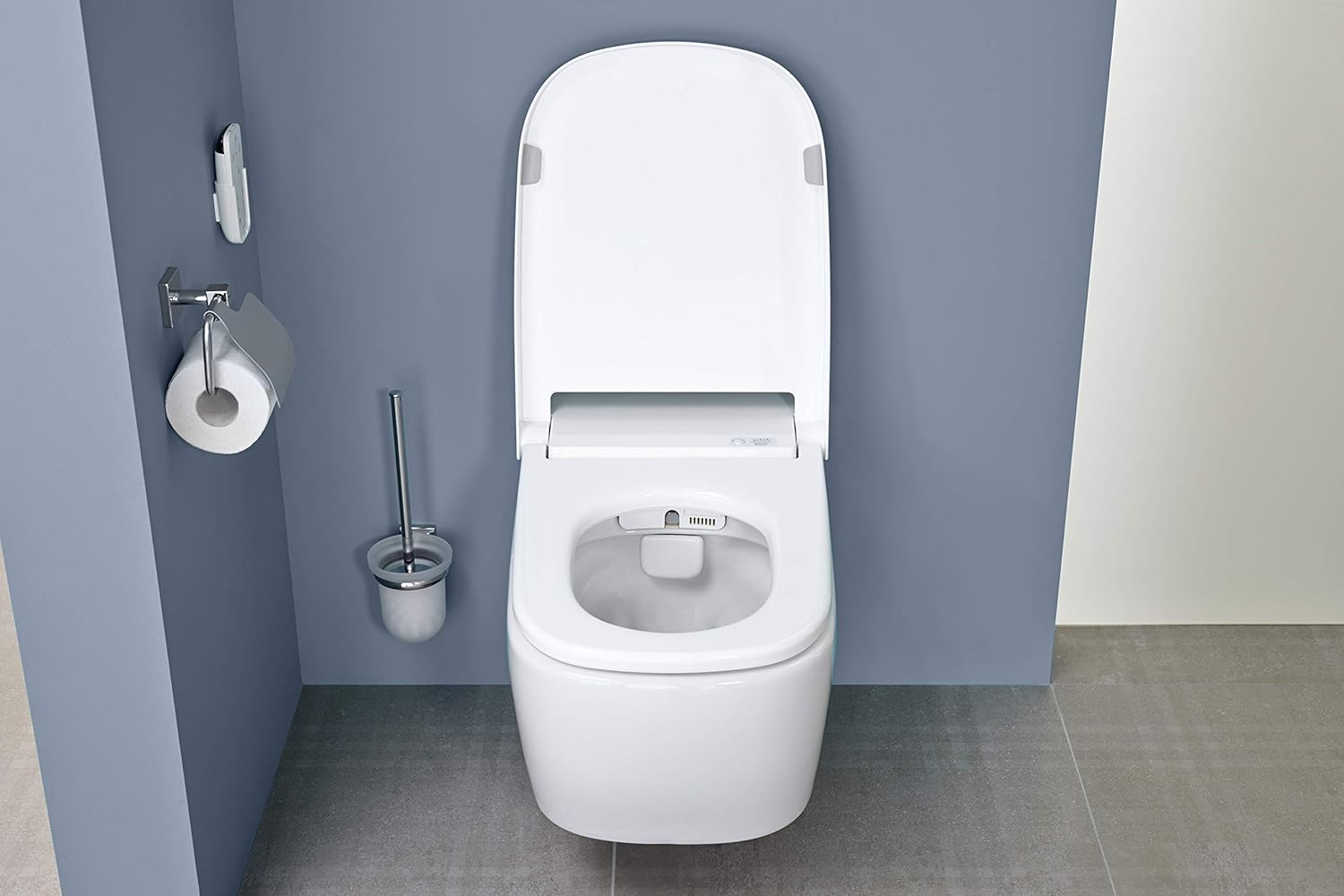

Irudia: Goiko planoa view of the VitrA V-care 1.1 Comfort Shower Toilet with its lid fully open. The image highlights the rimless bowl design and the bidet nozzle assembly located at the rear of the bowl.
Arazoak konpontzea
This section provides solutions to common issues. For problems not listed here, contact VitrA customer support.
Ohiko arazoak eta irtenbideak
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Botererik ez | Power cord unplugged, circuit breaker tripped | Check power connection, reset circuit breaker |
| Ur-ihinztatzerik ez | Water supply valve closed, clogged nozzle | Open water supply valve, clean nozzle |
| Urruneko kontrolak ez du erantzuten | Dead batteries, remote out of range | Replace batteries, move closer to unit |
| Usain desatsegina | Deodorizer filter needs cleaning/replacement | Clean or replace deodorizer filter |
| Lid not opening/closing automatically | Sensor obstructed, feature disabled | Clear obstruction, enable auto-lid function via remote |
Irudia: Alde bat view of the VitrA V-care 1.1 Comfort Shower Toilet, wall-mounted in a bathroom with blue and grey walls. The sleek, white design of the toilet is prominent, with the remote control visible on the adjacent wall.
Zehaztapenak
Detailed technical specifications for the VitrA V-care 1.1 Comfort Shower Toilet.
| Atributua | Balioa |
|---|---|
| Fabrikatzailea | VitrA |
| Zati zenbakia | 5674B003-6194 |
| Produktuaren neurriak | 60 x 38 x 45.5 cm |
| Kolorea | Marroia (Note: Product images show white, please verify color upon purchase) |
| Estiloa | Modern metropolis |
| Amaitu | Estaliak |
| Materiala | Zeramika |
| Forma | Horman zintzilik |
| Instalazio-metodoa | Hormako muntaia |
| Ezaugarri bereziak | Fully automatic, child function, descaling function, drying function, auto soft-close opening |
| Erabilera | Bainugela |
| Eskuragarri dagoen lehen data | 15ko urtarrilaren 2020a |
| Eserlekuaren material mota | Plastikoa |
Image: A wide shot of a modern bathroom showcasing the VitrA V-care 1.1 Comfort Shower Toilet on the right wall. The bathroom features a large window, a vanity with a sink, and a tall cabinet, all contributing to a clean, contemporary aesthetic.
Bermea eta Laguntza
For warranty information and customer support, please refer to the official VitrA webwebgunera edo jarri harremanetan zure tokiko banatzailearekin. Gorde erosketaren frogagiria berme-erreklamazioetarako.
- Fabrikatzailea: VitrA
- Eredua: V-care 1.1 Comfort
- Parte-zenbakia: 5674B003-6194
For technical assistance or service requests, please have your model number and purchase date ready.
