1. Sarrera eta Overview
The ESX INFOTAINMENT VN1015-MA-DAB-4G is an advanced Android-based naviceiver designed for vehicle integration, offering a comprehensive multimedia and navigation experience. This unit features a 10.1-inch anti-glare multi-angle touchscreen, Android operating system, 4G/LTE connectivity, DAB+ digital radio, and Google Maps navigation. It supports Bluetooth hands-free calling and audio streaming, USB and MicroSD media playback, and includes inputs for rearview cameras and auxiliary devices.
Ezaugarri nagusiak hauek dira:
- 10.1-inch high-resolution, anti-glare multi-angle touchscreen.
- Android Operating System for versatile app usage.
- Integrated 4G/LTE dongle for mobile internet (requires optional SIM card).
- DAB+ digital radio reception with station logos and AM/FM radio with RDS.
- Google Maps navigation (online and offline capabilities).
- Bluetooth hands-free system with audio streaming.
- Multiple connectivity options: 2x USB ports, 1x MicroSD slot, 1x camera input, 2x video outputs, 1x AUX/video input, 1x AUX/audio input.
- Support for steering wheel controls (optional adapter may be required).
2. Konfigurazioa eta instalazioa
Proper installation is crucial for the optimal performance of your ESX VN1015-MA-DAB-4G naviceiver. It is highly recommended that installation be performed by a qualified professional to ensure correct wiring and vehicle compatibility.
2.1. Osagaien identifikazioa
Familiarize yourself with the various ports and connections on the rear of the unit before installation.

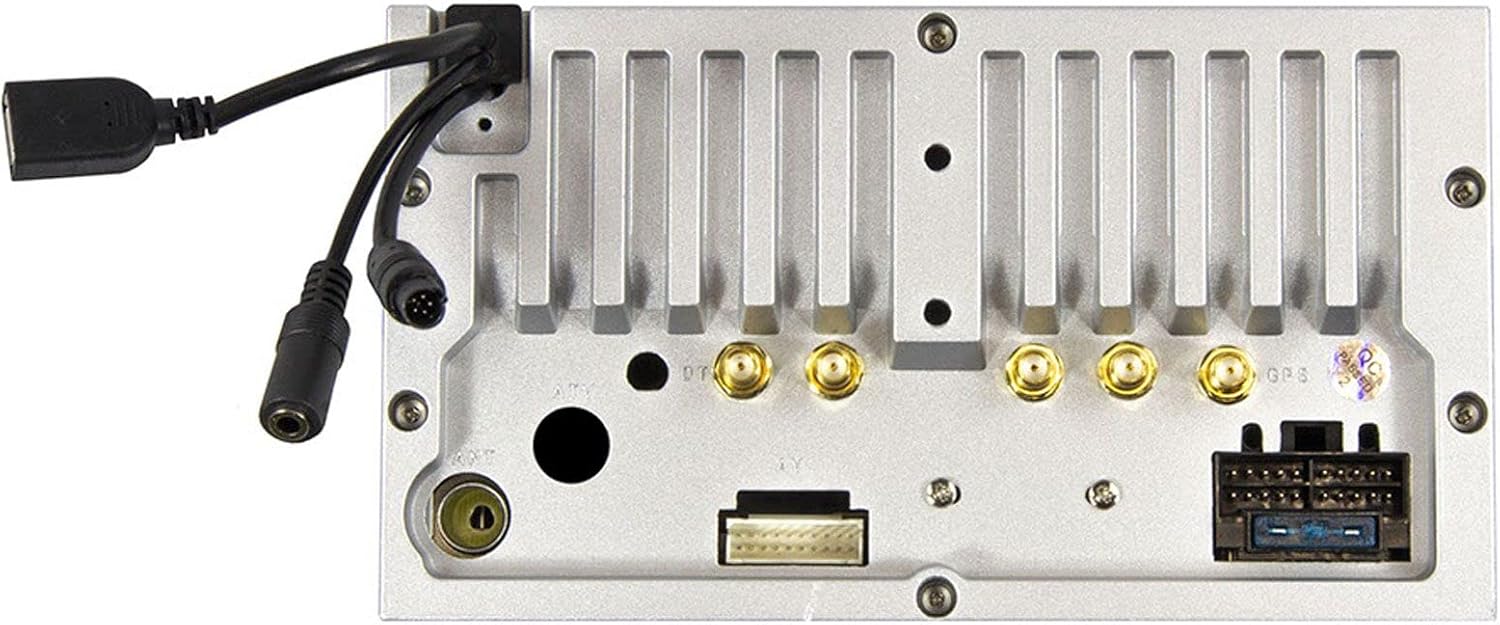

2.1. irudia: Atzekoa view of the ESX VN1015-MA-DAB-4G unit, illustrating the power harness, antenna inputs, USB ports, and auxiliary connections.
2.2. Kableatu konexioak
- Elikatze-iturria: Connect the main power harness to your vehicle's electrical system, ensuring correct positive, negative, and accessory (ACC) connections.
- Bozgorailuaren irteerak: Connect your vehicle's speakers to the corresponding outputs on the naviceiver.
- Antenen konexioak: Connect the FM/AM antenna. For DAB+ digital radio, connect the included DAB+ antenna to the designated port.
- GPS Antena: Connect the GPS antenna and mount it in a location with a clear view zeruaren seinalea modu optimoan jasotzeko.
- USB atakak: Connect external USB devices for media playback or smartphone connectivity.
- Mikrofonoa: Connect the external microphone (VNA-MIC-AND, optional) for improved hands-free call quality.
- Atzekoaview Kamera: Konektatu atzeko batview camera to the dedicated camera input. Ensure the reverse trigger wire is correctly connected for automatic display switching.
- Bideo irteerak: Utilize the two video outputs for connecting external monitors.
- AUX sarrerak: Connect external audio/video sources to the AUX/video and AUX/audio inputs.
- 4G/LTE Dongle: If using mobile internet via 4G/LTE, insert a compatible SIM card into the optional 4G/LTE dongle and connect it to a USB port.
- Bolantearen kontrola: If your vehicle supports steering wheel controls, an optional adapter may be required to integrate this functionality.
2.3. Hasierako piztea
After all connections are secure, turn on your vehicle's ignition. The naviceiver should power on. Follow any on-screen prompts for initial setup, such as language selection and time zone.
3. Funtzionamendu-argibideak
This section details the primary functions and operations of your ESX VN1015-MA-DAB-4G naviceiver.
3.1. Oinarrizko kontrolak eta interfazea
The unit features a responsive touchscreen and physical buttons for common functions.
3.1. irudia: The main screen showing the radio interface with frequency display and control buttons.
- Pizteko botoia: Press and hold to turn the unit on/off. A short press may mute audio or put the unit into standby.
- Bolumen kontrola: Doitu audio irteerako maila.
- Hasierako botoia: Android-en hasierako pantaila nagusira itzultzen da.
- Atzera botoia: Navigates back one step in menus or applications.
- Kameraren botoia: Direct access to the camera input display (e.g., rearview kamera).
3.2. Android sistema eragilea
The naviceiver runs on an Android operating system, allowing access to various applications and customization options.
3.2. irudia: The applications screen, displaying various pre-installed and user-installed Android apps.
- Aplikazioen abiarazlea: Access all installed applications from the app drawer.
- Widgetak: Customize your home screen with widgets for quick access to information or functions.
- Ezarpenak: Adjust system settings, network connections, display, audio, and more.
- Interneteko konexioa: Connect to the internet via a WiFi hotspot (from a compatible smartphone) or by inserting a SIM card into the 4G/LTE dongle.
3.3. Radio Functions (AM/FM/DAB+)
The unit supports both analog and digital radio broadcasts.
- Bandaren hautaketa: Switch between AM, FM, and DAB+ bands.
- sintonia: Manually tune or use the auto-scan function to find available stations.
- Aurrezarpenak: Gorde zure gogoko irratiak azkar sartzeko.
- RDS (FM): Radio Data System displays station information (e.g., station name, song title).
- DAB+ Features: Enjoy higher quality digital audio and view station logos where available.
3.4. Bluetooth konexioa
Pair your smartphone for hands-free communication and audio streaming.
- Parekatzea: Enable Bluetooth on your smartphone and search for the naviceiver. Select the unit and confirm the pairing code.
- Esku libreko deiak: Make and receive calls directly from the naviceiver screen.
- Audio erreprodukzioa: Play music from your smartphone wirelessly through the naviceiver.
3.5. Navigation (Google Maps)
Utilize Google Maps for turn-by-turn navigation.
3.3. irudia: The navigation interface showing a map with a selected destination.
- Lineako nabigazioa: Requires an active internet connection (WiFi hotspot or 4G/LTE).
- Lineaz kanpoko mapak: Download maps for specific regions to use navigation without an internet connection.
- Helmuga Sarrera: Enter addresses or points of interest using the touchscreen keyboard.
3.6. Multimedia erreprodukzioa
Erreproduzitu audioa eta bideoa files hainbat iturritatik.
- USBa: Connect USB drives containing media files.
- MicroSD: Insert a MicroSD card into the dedicated slot for media or navigation data.
- Onartutako formatuak: The unit supports a wide range of audio and video formats. Refer to the system settings for a complete list.
3.7. Camera Input
The naviceiver automatically displays the rearview camera feed when the vehicle is in reverse, or manually via the camera button.
3.4. irudia: Atzekoaview camera display with dynamic parking guidelines.
- Aktibazio automatikoa: When connected correctly, the rearview camera image appears automatically when shifting into reverse.
- Aparkatzeko jarraibideak: Adjustable parking lines assist with maneuvering.
4. Mantentzea
Regular maintenance ensures the longevity and optimal performance of your naviceiver.
- Pantaila garbitzea: Erabili zapi leun eta lihorik gabeko bat ukipen-pantaila astiro-astiro garbitzeko. Orban egoskorrak izanez gero, garbitu apur batampGarbitu zapi bat urarekin edo pantailarako segurua den garbitzaile batekin. Saihestu produktu kimiko gogorrak edo material urratzaileak.
- Software eguneraketak: Periodically check for available software updates through the system settings or the manufacturer's website. Updates can improve performance, add features, and fix bugs.
- Arreta orokorra: Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture. Ensure all connections remain secure.
5. Arazoak
This section addresses common issues you might encounter with your ESX VN1015-MA-DAB-4G naviceiver.
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Unitatea ez da pizten. | Ez dago energia-iturririk; fusiblea erreta; kableatu okerra. | Check vehicle's fuse box and the unit's power connections. Ensure ACC wire is receiving power. |
| Soinurik ez. | Volume too low; Mute activated; Incorrect speaker wiring; Audio source issue. | Increase volume. Check if mute is active. Verify speaker connections. Try a different audio source. |
| GPS signal loss or inaccurate navigation. | GPS antenna obstructed or disconnected; Outdated maps. | Ziurtatu GPS antenak argia duela view of the sky and is securely connected. Update maps if necessary. |
| Bluetooth konexio arazoak. | Device not in pairing mode; Interference; Unit not discoverable. | Ensure both devices are in pairing mode. Restart both devices. Check Bluetooth settings on the naviceiver. |
| Ukipen-pantailak ez du erantzuten. | System freeze; Software error. | Perform a soft reset (refer to the unit's specific reset procedure, often a small reset button). If persistent, a factory reset might be needed (data loss may occur). |
| DAB+ radio not receiving stations. | DAB+ antenna not connected or faulty; Poor signal area. | Check DAB+ antenna connection. Ensure the antenna is correctly installed. Try rescanning for stations in a different location. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact ESX customer support or your authorized dealer.
6. Zehaztapenak
Below are the technical specifications for the ESX VN1015-MA-DAB-4G Naviceiver:
| Ezaugarri | Xehetasuna |
|---|---|
| Marka | ESX |
| Eredua | VN1015-MA-DAB-4G |
| Pantailaren tamaina | 10.1 hazbete (25.6 cm) |
| Bistaratzeko mota | High-resolution, anti-glare multi-angle touchscreen |
| Sistema eragilea | Android |
| RAM | 4 GB |
| Flash Memoria | 64 GB |
| Konektibitatea | Bluetooth, USB, 4G/LTE (via dongle), WiFi (via hotspot) |
| Irrati Sintonizatzailea | AM/FM with RDS, DAB+ Digital Radio |
| Nabigazioa | Google Maps (online/offline) |
| Sarrerak | 1x Camera Input, 1x AUX/Video Input, 1x AUX/Audio Input, 2x USB Ports, 1x MicroSD Slot |
| Irteerak | 2x Video Outputs, Pre-amplified outputs (Front/Rear/Subwoofer) |
| Kontrol-metodoa | Ukipen-pantaila |
| Gailu bateragarriak | Smartphone |
7. Bermea eta Laguntza
Your ESX VN1015-MA-DAB-4G naviceiver comes with a Certificate of Authenticity. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact your authorized ESX dealer.
For technical support, troubleshooting assistance beyond this manual, or inquiries regarding parts and service, please contact your point of purchase or visit the official ESX webbezeroarentzako arreta-zerbitzuko harremanetarako informazioa lortzeko gunea.
