Gorgefine Rechargeable Hair Clipper & Trimmer (Model HC-01)

1. Sarrera

Eskerrik asko erosketagatik.asing the Gorgefine Rechargeable Hair Clipper & Trimmer. This professional cordless grooming kit is designed for precise and efficient hair cutting and trimming. It features a waterproof design, LED display, and multiple operating modes for versatile use. Please read this manual thoroughly before first use to ensure safe and optimal performance of your device.

2. Paketearen edukia

Mesedez, egiaztatu paketearen edukia kutxa irekitzean. Elementuren bat falta bada edo hondatuta badago, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.

• 1 x Gorgefine Electric Clipper
• 1 x Garbiketa eskuila
• 1 x Long Comb
• 1 x USB kargatzeko kablea
• 4 x Comb Attachments (3mm, 6mm, 9mm, 12mm)
• 1 x Biltegiratzeko poltsa
• 1 x Erabiltzailearen eskuliburua (dokumentu hau)

3. Produktuaren ezaugarriak

• Funtzionamendu Modu Bikoitzak: Features a Turbo Powerful Mode for increased motor speed and a Super Silent Mode for quieter operation, suitable for sensitive areas or children.
• Low Vibration & Quiet Design: Equipped with a precision motor, operating at approximately 40 dB, minimizing noise during use.
• Ceramic Titanium Blade: Self-sharpening ceramic titanium blade for high performance accuracy, reducing the risk of scratches and cuts.
• Diseinu iragazgaitza (IPX5): The hair trimmer is designed to be waterproof for easy cleaning under running water.
• USB Quick Charge & Long Duration: Powered by a 2500 mAh lithium battery, offering up to 200 minutes of runtime after a 3-hour full charge.
• LED adierazle adimenduna: Bateriaren ehuneko geratzen dena erakusten dutage and selected operating mode.
• Luzera-kontrol zehatza: Adjustable cutting lengths from 0.8mm to 2.5mm directly on the clipper, plus four comb attachments for 3mm, 6mm, 9mm, and 12mm.

Image: The Gorgefine hair clipper highlighting its IPX5 waterproof rating and LED display.

4. Segurtasun-argibideak

• Irakurri argibide guztiak tresna hau erabili aurretik.
• Keep the appliance away from water when charging. Do not immerse the charging cable or adapter in water.
• Ez erabili aparatua hondatuta badago edo gaizki funtzionatzen badu.
• Mantendu haurren eskura.
• Ziurtatu kargatzeko ataka lehor dagoela USB kargatzeko kablea konektatu aurretik.
• Erabili emandako USB kargatzeko kablea soilik.
• Ez saiatu gailua zeuk desmuntatzen edo konpontzen. Jarri harremanetan zerbitzu-langile kualifikatuekin.
• Saihestu bizarra erabiltzea azal narritatuan edo zauri irekietan.
• Always turn off the appliance before cleaning or attaching/detaching accessories.

5. Konfigurazioa

5.1 Ile-apaindegia kargatzea

1. Ziurtatu bizarra itzalita dagoela.
2. Konektatu USB kargatzeko kablea bizarra mozteko makinaren behealdean dagoen kargatzeko atakara.
3. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a USB port.
4. LED pantailak kargatze egoera eta bateriaren ehunekoa erakutsiko ditutage. Karga oso batek 3 ordu inguru behar ditu.
5. Guztiz kargatuta dagoenean, deskonektatu kargatzeko kablea.

Image: The hair clipper connected to a USB charging cable, illustrating the charging process.

5.2 Attaching Comb Guides

1. Ziurtatu bizarra itzalita dagoela.
2. Select the desired comb attachment (3mm, 6mm, 9mm, or 12mm).
3. Align the comb guide with the clipper head and push it firmly until it clicks into place.
4. To remove, gently pull the comb guide away from the clipper head.

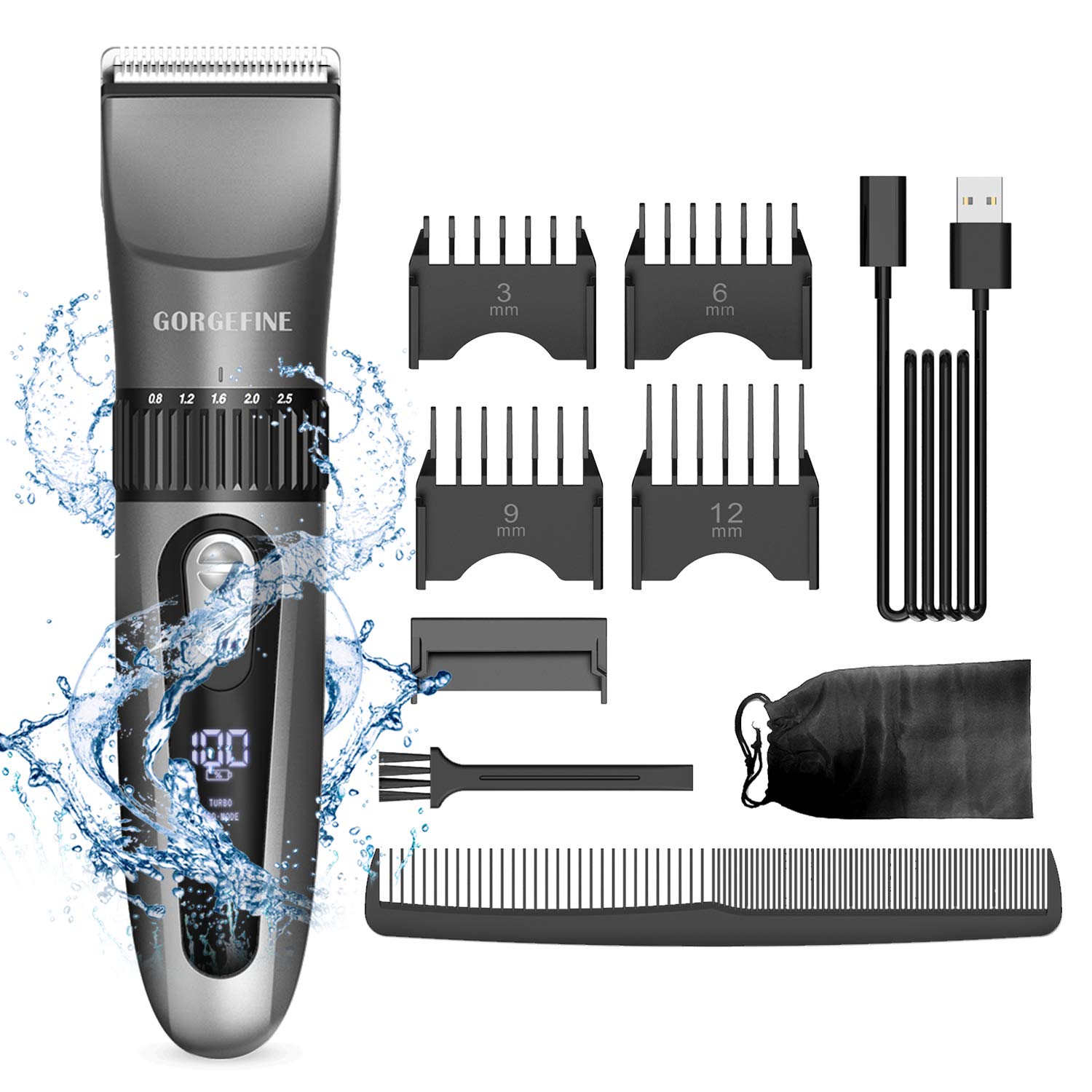

Image: The hair clipper displaying its four attachment guards (3mm, 6mm, 9mm, 12mm) and the LED screen.

6. Funtzionamendu-argibideak

6.1 Piztea/Itzaltzea eta Moduaren Hautaketa

• To turn on the clipper, slide the ON/OFF switch to position 1 for Silent Mode.
• To activate Turbo Powerful Mode, slide the ON/OFF switch to position 2. The motor speed will increase.
• To turn off the clipper, slide the ON/OFF switch back to the '0' position.
• The LED display will show the current battery percentage eta hautatutako modua.

6.2 Ebaketa-luzera doitzea

• Without Comb Attachments: The integrated adjustment wheel allows for precise length settings from 0.8mm to 2.5mm. Rotate the wheel to select the desired length.
• With Comb Attachments: Use the 3mm, 6mm, 9mm, or 12mm comb guides for longer cutting lengths. Ensure the comb guide is securely attached before use.

6.3 Ilea mozteko aholkuak

• Emaitza onenak lortzeko, ziurtatu ilea garbi eta lehor dagoela.
• Start with a longer comb guide and gradually reduce the length if desired.
• Eutsi bizarra-makinari pala buruaren kontra laua duela eta mugitu poliki-poliki ilearen hazkuntza-norabidearen aurka.
• Ebakidura berdina bermatzeko, gainjarri trazuak.
• Use the long comb to guide hair into the blades for a consistent trim.

Image: The hair clipper being used to trim hair, demonstrating its professional application.

7. Mantentzea eta Garbiketa

7.1 Palak garbitzea

1. Turn off the clipper and remove any comb attachments.
2. Erabili emandako garbiketa-eskuila palatik askatzen diren ile-xaflak kentzeko.
3. For a more thorough clean, the clipper is waterproof. You can rinse the blade assembly under running water. Ensure the clipper is turned off and unplugged from any power source before rinsing.
4. Allow the blades to air dry completely before reattaching comb guides or storing.

Irudia: Gertutik view of the clipper's skin-friendly ceramic and titanium tungsten blade design.

7.2 Biltegiratzea

• Store the clipper and its accessories in the provided storage bag.
• Keep the appliance in a cool, dry place, away from direct sunlight and extreme temperatures.

8. Arazoak

9. Zehaztapenak

• Eredua: HC-01
• Sarrerako potentzia: 100V-240V 50 / 60HZ
• Irteera: AC 5V 800mAh
• Lan bolumenatage: 3.7V
• Bateria: 2500 mAh litio-ioi
• Kargatzeko denbora: 3 ordu gutxi gorabehera
• Erabili denbora: Gehienez 200 minutu
• Pisu garbia: 431 g
• Produktuaren neurriak: 22.35 x 10.67 x 5.84 cm
• Pala materiala: Zeramikazko titanioa
• Iragazgaitzaren balorazioa: IPX5
• Dakarten osagaiak: Blades, Brush, Storage Bag, Trimmer, Comb Attachments, USB Charging Cable

10. Bermea eta Laguntza

The Gorgefine Rechargeable Hair Clipper & Trimmer is backed by a 12 hilabeteko kalitate-bermea erosketa-datatik aurrera. Berme honek erabilera normalaren ondoriozko fabrikazio-akatsak estaltzen ditu. Ez ditu estaltzen erabilera okerrak, istripuek, baimenik gabeko aldaketek edo higadura normalak eragindako kalteak.

For warranty claims, technical support, or any questions regarding your product, please contact your retailer or the manufacturer's customer service.
