ipega PG-9083S Wireless Gamepad Instruction Manual

1. Sarrera

Thank you for choosing the ipega PG-9083S Wireless Gamepad. This device is designed to enhance your mobile gaming experience on both iOS and Android smartphones and tablets. Please read this manual carefully before use to ensure proper operation and to maximize your enjoyment of the product.

2. Produktuaren Ezaugarriak eta Gehiagoview

The ipega PG-9083S offers a range of features for an immersive gaming experience:

• Haririk gabeko 4.0 konexioa: Provides a stable and efficient connection to your mobile devices.
• Telescopic Holder: Adjustable holder accommodates devices from 5 to 10 inches, with a maximum extension of 28cm (11 inches).
• Bateragarritasun zabala: Supports iOS (iPhone 8/XR/XS and newer) and Android mobile phones and tablets.
• Diseinu ergonomikoa: Engineered for comfortable grip during extended gaming sessions.
• Botoien mapa pertsonalizagarria: Allows for personalized control settings to suit various game types and player preferences.
• Zehaztasun handiko joystickak: Designed for accurate control and smooth operation in games.

Figure 2.1: The ipega PG-9083S Wireless Gamepad, showcasing its design with a tablet inserted. This image highlights the sleek feel and how it holds a device.

Figure 2.2: The gamepad's telescopic function, illustrating its ability to hold various devices including smartphones and tablets, with a maximum length of 28cm (11 inches).

Figure 2.3: Illustration of the gamepad's ergonomic design for comfort and its support for both vertical and horizontal screen orientations for tablets.

Figure 2.4: Depiction of the customizable button mapping feature, allowing users to set function keys according to personal habits for various game control needs.

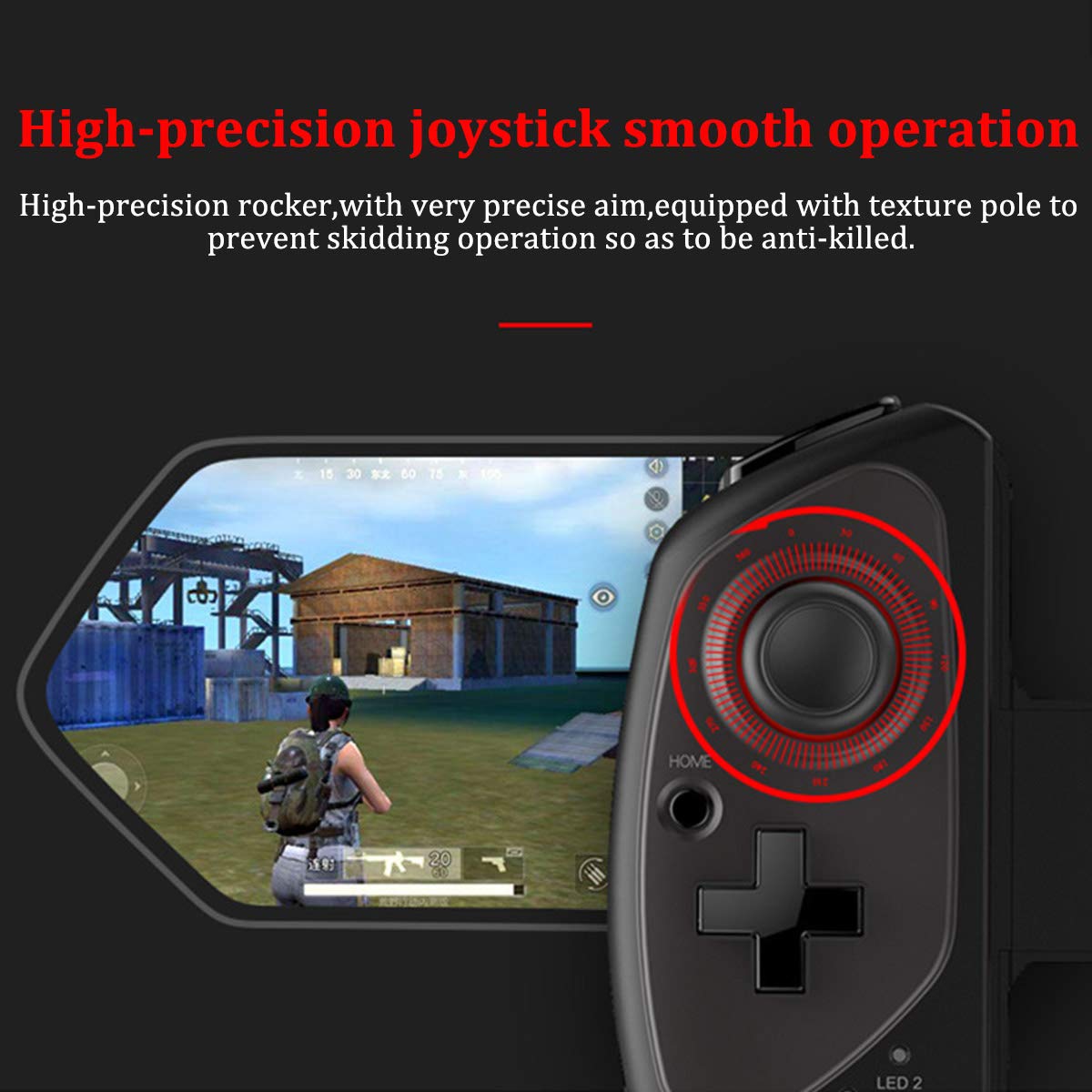

Figure 2.5: Close-up of the high-precision joystick, emphasizing its smooth operation and textured pole designed to prevent slipping during intense gameplay.

3. Konfigurazio gida

3.1 Gamepad-a kargatzea

Before initial use, fully charge the gamepad. Connect the provided USB charging cable to the gamepad's charging port and to a USB power source (e.g., computer, USB wall adapter). The LED indicator will show charging status and turn off or change color when fully charged.

3.2 Inserting Your Device

1. Pull the telescopic arm outwards to unlock and extend it.
2. Carefully place your smartphone or tablet into the holder, ensuring it is centered and securely seated.
3. Release the telescopic arm to allow it to retract and firmly grip your device. Ensure the device is locked in place before gaming.

3.1. irudia: Xehetasuna view of the security lock mechanism for the telescopic arm, illustrating how to extend and secure your device.

3.3 Bluetooth parekatzea

Gamepad-a zure gailura konektatzeko:

1. Piztu: Press and hold the Power button (usually the HOME button) for a few seconds until the LED indicator starts flashing, indicating it's in pairing mode.
2. Aktibatu Bluetootha: On your smartphone or tablet, go to your Bluetooth settings and turn on Bluetooth.
3. Bilatu Gailuak: Your device will scan for available Bluetooth devices. Look for "PG-9083S" or a similar name in the list.
4. Bikotea: Select the gamepad from the list to initiate pairing. Once connected, the LED indicator on the gamepad will typically become solid.
5. Moduaren hautaketa (aplikagarria bada): Some games or operating systems may require specific modes. Refer to your game's settings or the gamepad's quick start guide for specific mode switching instructions (e.g., Android Standard, iOS Direct Play).

4. Funtzionamendu-argibideak

4.1 Piztu/Itzali

• Piztu: Eduki sakatuta ETXERA button for approximately 3 seconds. The indicator light will flash.
• Itzali: Eduki sakatuta ETXERA button for approximately 5 seconds until the indicator light turns off. The gamepad will automatically power off after a period of inactivity to save battery.

4.2 Gamepad Modes

The PG-9083S supports different operating modes for optimal compatibility with various platforms. Typically, these modes are activated by holding a specific button combination while powering on the gamepad.

• Android modu estandarra: Often activated by holding X + ETXERA. For general Android gaming.
• iOS Direct Play Mode: Often activated by holding Y + ETXERA. For iOS games that support direct gamepad input.
• Beste modu batzuk: Consult the quick start guide included with your product for any additional specific modes or button combinations for advanced functionality or specific game titles.

4.3 In-Game Control

Once connected, the gamepad will function as your primary input device for compatible games. The layout includes:

• Bi analogiko makilak: Mugimendu zehatza eta kameraren kontrola lortzeko.
• D-Pad: For directional input, often used in retro games or menu navigation.
• Ekintza botoiak (A, B, X, Y): Joko barruko ekintzetarako.
• Sorbaldako botoiak (L1, R1) eta abiarazleak (L2, R2): For additional actions, often firing or accelerating.
• SELECT/BACK, START/MENU, HOME Buttons: For system functions and game menus.

Refer to individual game settings for specific button assignments and customization options.

5. Mantentzea

• Garbiketa: Use a soft, dry cloth to wipe the surface of the gamepad. Do not use harsh chemicals or abrasive cleaners.
• Biltegiratzea: Gorde gamepad-a leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik babestuta.
• Bateria zaintzea: Bateriaren iraupena luzatzeko, saihestu bateria maiz erabat deskargatzea. Kargatu gamepad-a aldizka, denbora luzez erabiltzen ez baduzu ere.
• Saihestu tantoak: Babestu gailua erorketetatik eta kolpeetatik, barneko osagaiak kaltetu baititzakete.

6. Arazoak

6.1 Gamepad Not Connecting/Pairing

• Ziurtatu gamepad-a kargatuta dagoela.
• Ziurtatu Bluetootha gaituta dagoela zure gailuan.
• Saiatu gailua telefonoaren Bluetooth ezarpenetan ahaztu eta berriro parekatzen.
• Ensure the gamepad is in the correct pairing mode for your operating system (Android/iOS).
• Berrabiarazi zure gailu mugikorra eta gamepad-a.

6.2 Buttons or Joysticks Unresponsive/Inaccurate

• Verify the gamepad is properly connected and in the correct operating mode for the game.
• Some games may require specific controller configurations or do not fully support external gamepads. Check the game's settings.
• Ziurtatu botoiak sakatzea edo joystick-a mugitzea eragozten duen oztopo fisikorik ez dagoela.
• If experiencing issues with joystick sensitivity or "dead zones," check if the game offers in-game calibration or sensitivity adjustments.

6.3 Gamepad Not Charging

• Check the charging cable and USB power source. Try a different cable or adapter.
• Ensure the charging port on the gamepad is clean and free of debris.

6.4 Device Not Fitting Securely

• Ensure your device's dimensions are within the specified telescopic holder range (5-10 inches, up to 28cm/11 inches).
• Remove any bulky cases from your device that might prevent a secure fit.

7. Zehaztapenak

8. Segurtasun informazioa

• Do not expose the gamepad to extreme temperatures, humidity, or direct sunlight.
• Do not attempt to disassemble or modify the gamepad. This will void any potential warranty and may cause damage.
• Mantendu gailua uretatik eta beste likidoetatik urrun.
• Dispose of the battery according to local regulations. Do not dispose of batteries in household waste.
• Mantendu haur txikien eskura.
