Sinopé Smart Wi-Fi Thermostat TH1124WF User Manual

Sarrera

The Sinopé TH1124WF Smart Wi-Fi Thermostat is designed for precise control of electric baseboard heaters, convectors, fan-forced convectors, and radiant ceiling heating systems. This thermostat integrates seamlessly with popular smart home platforms such as Apple HomeKit, Amazon Alexa, Google Home, and Neviweb, offering enhanced comfort and energy management through its advanced features like scheduling, geofencing, and energy reporting. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your device.

Image: The Sinopé TH1124WF thermostat mounted on a wall, demonstrating its sleek design and integration into a modern living space with a baseboard heater.

Segurtasun Informazioa

Please read all instructions carefully before installing and operating the thermostat. Failure to follow these instructions could result in fire, electric shock, serious injury, or property damage.

• OHARRA: Goi Boltage. Disconnect power at the circuit breaker before servicing.
• Instalazioa elektrizista kualifikatu batek egin behar du, tokiko eta estatuko araudi elektrikoen arabera.
• Do not install if the thermostat is damaged.
• Ensure the thermostat is compatible with your heating system (electric baseboard, convectors, fan-forced convectors, radiant ceiling heating). Not compatible with HVAC systems or heating floors.
• Keep the thermostat away from water and moisture.

Produktua amaituview

The TH1124WF thermostat features a clear LED display, intuitive controls, and robust connectivity options. It is designed for universal installation, compatible with both 2-wire and 4-wire connections.

Irudia: Aurrealdea view of the TH1124WF thermostat, highlighting its digital display with time, outdoor temperature, and indoor temperature, along with two control buttons.

Ezaugarri nagusiak:

• Wi-Fi konexioa: Connects directly to your home Wi-Fi network (2.4 GHz) without a separate hub.
• Etxe adimendunaren integrazioa: Works with Apple HomeKit, Amazon Alexa, Google Home, and Neviweb.
• Tenperaturaren kontrol zehatza: Utilizes triac switching for unequaled temperature accuracy.
• Programa daitezkeen ordutegiak: Create up to 8 periods per day for customized heating.
• Geofencing: Automatically adjusts heating based on your presence.
• Energia txostenak: Monitor your energy consumption and savings in real-time via the Neviweb aplikazioa.
• Pantaila: Clear LED display showing time, indoor temperature, and outdoor temperature.

Konfigurazioa eta Instalazioa

Follow these steps carefully to install your Sinopé TH1124WF thermostat.

1. Aurreinstalazioa

1. Itzali energia: Locate your electrical panel and turn off the circuit breaker for the heating system you are working on. Verify the power is off using a voltage probatzailea.
2. Kendu termostato zaharra: Carefully remove your existing thermostat from the wall.
3. Identifikatu kableak: Note the number of wires (2 or 4) and their connections. The TH1124WF is compatible with both.

2. Kableatzeko jarraibideak

The TH1124WF thermostat has two non-polarized wires for connection. Use the included wire nuts to secure connections.

Irudia: Atzealdea view of the TH1124WF thermostat, illustrating the wiring terminals and caution labels for high voltage. Ensure power is disconnected before handling.

• 2 harizko konexioa: Connect one thermostat wire to each of the two wires from your electrical box.
• 4 harizko konexioa: Connect one thermostat wire to the two wires coming from the power source (line) and the other thermostat wire to the two wires going to the heater (load).

Ensure all wire nuts are screwed on as tightly as possible to prevent loose connections and overheating.

3. Muntaketa

1. Carefully push the connected wires back into the electrical box.
2. Secure the thermostat to the electrical box using the provided mounting screws.
3. Ensure the thermostat is flush with the wall.

4. Initial Power-Up and Wi-Fi Connection

1. Restore power at the circuit breaker. The thermostat display should light up.
2. Deskargatu Neviweb app from your device's app store (iOS or Android).
3. Follow the in-app instructions to create an account and add your new thermostat. You will need your Wi-Fi network name (SSID) and password. The thermostat requires a 2.4 GHz Wi-Fi network.
4. Once connected, the thermostat will display the current time and temperature.

5. Smart Home Platform Integration

The TH1124WF is compatible with multiple smart home ecosystems. Features may vary between platforms.

Image: Compatible platforms and voice assistants, including Neviweb, SmartThings, Apple HomeKit, Amazon Alexa, and Google Assistant.

• Apple HomeKit: Open the Home app on your iOS device and scan the HomeKit code on the thermostat or its packaging.
• Amazon Alexa / Google Home: Enable the Sinopé skill/action in the Alexa or Google Home app and link your Neviweb kontua.
• SmartThings: Add the Sinopé device through the SmartThings app and follow the pairing instructions.

Funtzionamendu-argibideak

Learn how to use your TH1124WF thermostat for optimal comfort and energy efficiency.

1. Basic Temperature Control

Use the up and down buttons on the thermostat to adjust the set temperature. The display will show the current setpoint.

Irudia: Xehetasun handikoa view of the thermostat's LED display, indicating current time, outdoor temperature, and the set indoor temperature.

2. Neviweb Aplikazioaren Ezaugarriak

Nevi ibaiaweb app unlocks the full potential of your thermostat.

• Ordutegiak: Create personalized heating schedules with up to 8 periods per day to match your routine.
• Geofencing: Set up geofencing to automatically adjust the temperature when you leave or return home, saving energy when you're away.
• Energia txostenak: View detailed energy consumption reports (24 hours, 30 days, 24 months) to track your usage and identify savings opportunities. You can input your electricity cost to see spending per radiator.
• Urruneko kontrola: Adjust settings and monitor your thermostat from anywhere using the app.
• Bistaratzeko konfigurazioa: Customize what information is shown on the thermostat display and enable/disable the backlight.

Image: A map displaying a geofencing zone, demonstrating how the thermostat can adjust settings based on your proximity to home.

Image: Screenshot from the Neviweb app displaying an energy consumption graph, allowing users to track their heating costs over time.

3. Ahots kontrola

Once integrated with Amazon Alexa or Google Home, you can control your thermostat using voice commands. Examples include: "Alexa, set living room thermostat to 72 degrees" or "Hey Google, what's the temperature in the bedroom?"

Mantentzea

The Sinopé TH1124WF thermostat requires minimal maintenance.

• Garbiketa: Garbitu termostatoaren gainazala astiro-astiro zapi leun etaamp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
• Firmware eguneraketak: Ensure your thermostat's firmware is up-to-date through the Neviweb app to benefit from the latest features and improvements.

Arazoak konpontzea

If you encounter issues with your thermostat, refer to the following common problems and solutions.

For further assistance, please contact Sinopé customer support.

Zehaztapenak

Detailed technical specifications for the Sinopé TH1124WF Smart Wi-Fi Thermostat.

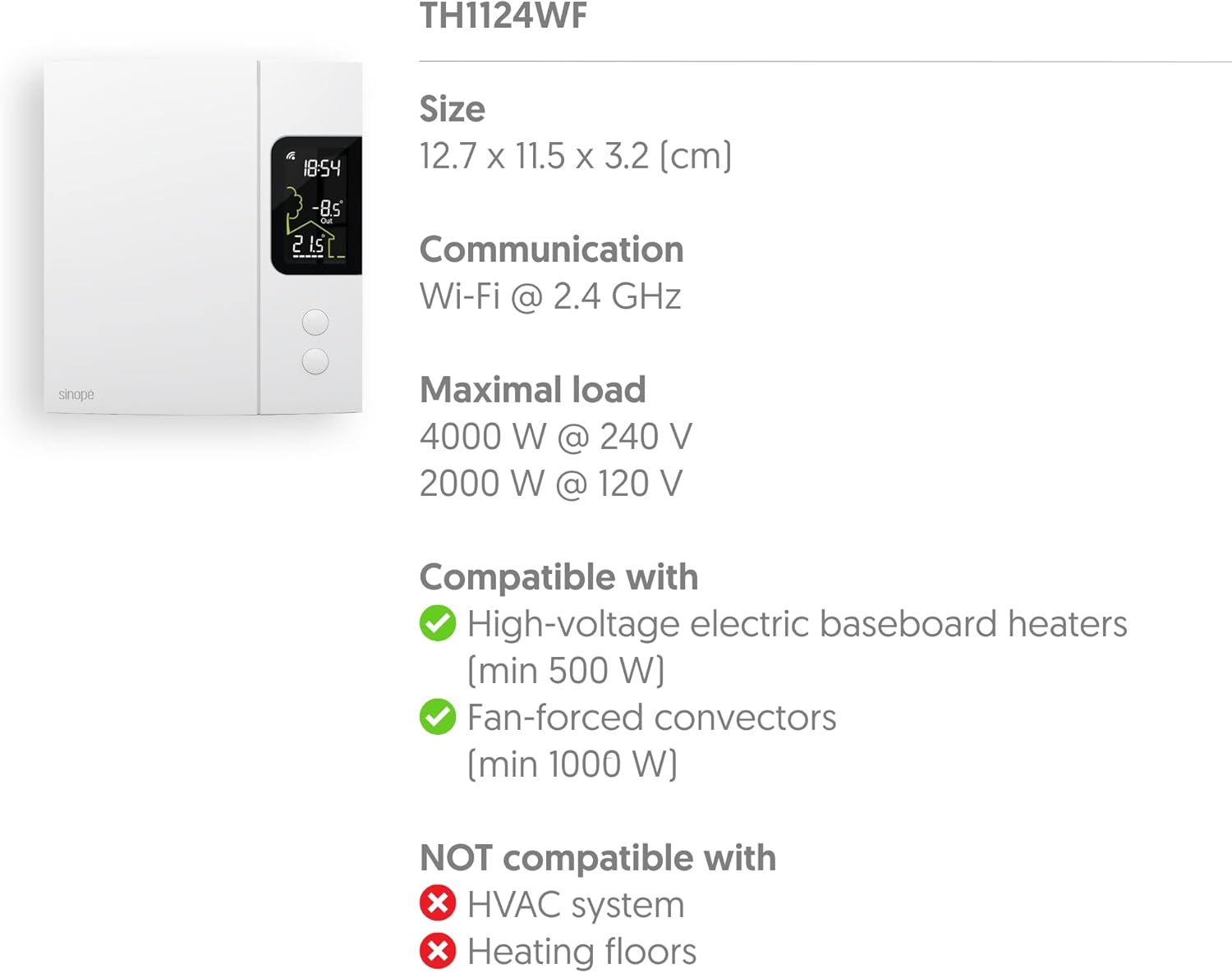

Image: Technical specifications diagram for the TH1124WF, detailing its physical dimensions, Wi-Fi communication, maximum load capacity, and heating system compatibility.

Produktuaren bideo ofiziala

Watch this official video from Sinopé Technologies for an overview of the Smart Wi-Fi baseboard thermostat.

Bermea eta Laguntza

Sinopé Technologies stands behind the quality of its products. For warranty information, technical support, or service inquiries, please refer to the official Sinopé webwebgunera edo jarri harremanetan zuzenean bezeroarentzako arreta-zerbitzura. Gorde erosketaren frogagiria berme-erreklamazioetarako.

Webgunea: www.sinopetech.com
