1. Sarrera
Thank you for choosing the CIARRA CBTIH2 Double Induction Cooktop. This manual provides essential information for the safe and efficient operation of your appliance. Please read all instructions carefully before use and retain this manual for future reference.
The CIARRA CBTIH2 is a portable double induction cooktop designed for versatile cooking. It features two cooking zones, touch controls, multiple power and temperature settings, and various safety functions.
2. Segurtasun-argibide garrantzitsuak
To reduce the risk of fire, electric shock, injury to persons, or damage to the appliance, basic safety precautions should be followed, including the following:
- Irakurri argibide guztiak aparatua erabili aurretik.
- Ez ukitu gainazal beroak. Erabili heldulekuak edo eskutokiak.
- Deskarga elektrikoetatik babesteko, ez murgildu kablea, entxufeak edo gailua uretan edo beste likido batean.
- Gainbegiratzea beharrezkoa da aparaturen bat umeek edo umeen ondoan erabiltzen dutenean.
- Deskonektatu entxufetik erabiltzen ez duzunean eta garbitu aurretik. Utzi hozten piezak jarri edo kendu aurretik.
- Ez erabili aparaturik kablea edo entxufea hondatuta dagoenean, edo aparatuak gaizki funtzionatzen duenean edo nolabait hondatu ondoren.
- Gailuaren fabrikatzaileak gomendatzen ez dituen osagarriak erabiltzeak lesioak eragin ditzake.
- Ez erabili kanpoan.
- Ez utzi kablea mahaiaren edo erakusmahaiaren ertzetik zintzilik zintzilik, ezta gainazal beroak ukitu ere.
- Ez jarri gas edo erregailu elektriko bero baten gainean edo inguruan, edo berotutako labe batean.
- Kontuz ibili behar da olio beroa edo beste likido beroa duen tresna bat mugitzean.
- Beti konektatu entxufea lehenik etxetresna elektrikora, eta gero konektatu kablea hormako entxufean. Deskonektatzeko, jarri edozein kontrol "itzali" posizioan, eta gero atera entxufea hormako entxufetik.
- Ez erabili aparatua aurreikusitako erabilera ez den beste baterako.
- Ziurtatu sukaldeko plakaren inguruan behar bezala aireztatuta dagoela funtzionamenduan zehar.
- Indukzioarekin bateragarriak diren sukaldeko tresnak bakarrik erabili.
3. Produktua amaitu daview
The CIARRA CBTIH2 Double Induction Cooktop features a sleek design with two independent cooking zones and an intuitive touch control panel.
The CIARRA CBTIH2 double induction cooktop features intuitive touch controls for easy operation. A user's hand is shown interacting with the control panel, highlighting the sleek design and user-friendly interface.
Osagaiak:
- Beira zeramikazko gainazala
- Ezker Sukaldaritza Gunea
- Eskuin Sukaldaritza Gunea
- Ukitu Control Panel
- Pantaila digitala
- Elikatze kablea
4. Konfigurazioa eta instalazioa
- Despaketatzea: Carefully remove the cooktop from its packaging. Inspect for any damage.
- Lekua: Place the cooktop on a stable, flat, heat-resistant surface. Ensure there is adequate space around the unit for ventilation (at least 10 cm from walls or other appliances). Do not block the ventilation openings.
- Potentzia-konexioa: Entxufatu elikatze-kablea lurrera konektatutako entxufe elektriko batera. Ziurtatu bolumenatage tresnaren zehaztapenekin bat dator (220 Volt).
5. Funtzionamendu-argibideak
5.1. Sukaldeko tresneria bateragarria
Induction cooktops require cookware made of ferromagnetic material. To check if your cookware is compatible, hold a magnet to the bottom of the pot or pan. If the magnet sticks, the cookware is suitable for induction cooking.
This image clarifies cookware compatibility for the induction cooktop. Compatible types include stainless steel with magnetic bottom, magnetic pots, cast iron pans, and cast iron woks. Incompatible types are enamel, copper/aluminum, ceramic, and glass.
A hand is shown using a magnet to check the compatibility of a pot with the induction cooktop, demonstrating the simple test for magnetic cookware.
5.2. Oinarrizko Funtzionamendua
- Piztu: Place compatible cookware with food on the desired cooking zone. Press the "On/Off" button on the touch control panel.
- Aukeratu Sukaldaritza Eremua: If using both zones, select the zone you wish to adjust.
- Potentzia/Tenperatura doitzea: Use the "+" and "-" buttons to adjust the power level (9 levels) or temperature (10 levels). The digital display will show the selected setting. The cooktop offers a total power of 3500W when both zones are in use.
- Tenporizadorearen funtzioa: Press the timer button and use "+" and "-" to set the desired cooking time, up to 180 minutes. The cooktop will automatically shut off when the timer expires.
- Haurrentzako blokeoa: Activate the child lock function to prevent accidental changes to settings during cooking or when the cooktop is not in use.
- Itzali: Press the "On/Off" button to turn off the cooktop. The residual heat indicator will show if the surface is still hot.
Xehetasun bat view of the CIARRA CBTIH2 control panel, showing the digital display for temperature and power settings, ranging from 60°C (200W) to 240°C (2000W).
The CIARRA CBTIH2 cooktop in use with two pans, illustrating its combined 3500W power output for simultaneous cooking on both zones.
An infographic summarizing the main features of the CIARRA CBTIH2 cooktop: Touch Control, Child Lock, Easy Cleaning, Rapid Heating, and Auto-Off function.
6. Mantentzea eta Garbiketa
Garbiketa eta mantentze erregularrak zure sukaldeko plakaren iraupena eta errendimendu optimoa bermatuko ditu.
- Garbitu aurretik: Deskonektatu beti sukaldeko plaka korronte-hartunetik eta utzi guztiz hozten.
- Gainazalaren garbiketa: Garbitu zeramikazko beirazko gainazala oihal leun etaamp cloth and a mild detergent. For stubborn stains, use a non-abrasive ceramic hob cleaner. Do not use abrasive pads, harsh chemicals, or sharp objects.
- Kontrol-panela: Garbitu ukipen-kontroleko panela zapi leun eta lehor batekin.
- Aireztapen-zuloak: Ziurtatu aireztapen-irekidurak hautsik eta hondakinik gabe daudela gehiegi berotzea saihesteko.
A hand is shown cleaning the smooth surface of the CIARRA CBTIH2 induction cooktop with a cloth and cleaning solution, emphasizing its easy-to-clean design.
7. Arazoak
Sukaldeko plakarekin arazoak badituzu, jo ezazu honako arazo eta irtenbide ohikoenei:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Sukaldeko plaka ez da pizten. | No power supply; Cooktop not plugged in; Power outlet malfunction. | Egiaztatu elikatze-kablearen konexioa; Probatu entxufea beste etxetresna elektriko batekin; Egiaztatu zirkuitu-hauslea. |
| Cooktop beeps and displays an error code. | Incompatible cookware; No cookware on zone; Overheating. | Use induction-compatible cookware; Place cookware on the zone; Allow cooktop to cool down. |
| Sukaldaritza gunea ez da berotzen. | Cookware not centered; Cookware too small/large; Faulty cookware. | Center cookware; Use appropriate size cookware; Try different cookware. |
| Ezohiko zarata funtzionamenduan. | Haizagailuaren funtzionamendu normala; Sukaldeko tresnen bibrazioa. | This is often normal. Ensure cookware is flat on the surface. |
Konponbide hauek saiatu ondoren arazoa konpontzen ez bada, jarri harremanetan bezeroarentzako arreta-zerbitzuarekin.
8. Zehaztapenak
Detailed technical specifications for the CIARRA CBTIH2 Double Induction Cooktop:
- Modelo zenbakia: CBTIH2
- Marka: CIARRA
- Kolorea: Beltza
- Neurriak (L x W x H): 60.5 x 37 x 5.8 cm (23.8 x 14.6 x 2.3 hazbete)
- Pisua: 4.9 kg (10.8 lb)
- Potentzia: 2800 Watts (Total, up to 3500W peak)
- liburukiatage: 220 Volt
- Berogailuak: 2 (Indukziozko erregailuak)
- Kontrol mota: Ukitu
- Potentzia maila: 9
- Tenperatura mailak: 10
- Itzaltze automatikoaren funtzioa: Bai
- Ezaugarri bereziak: Temperature levels, Automatic Pan Detection, Residual Heat Indicator, Overheat Protection, Timer (up to 180 min)
- Jatorrizko herrialdea: Txina

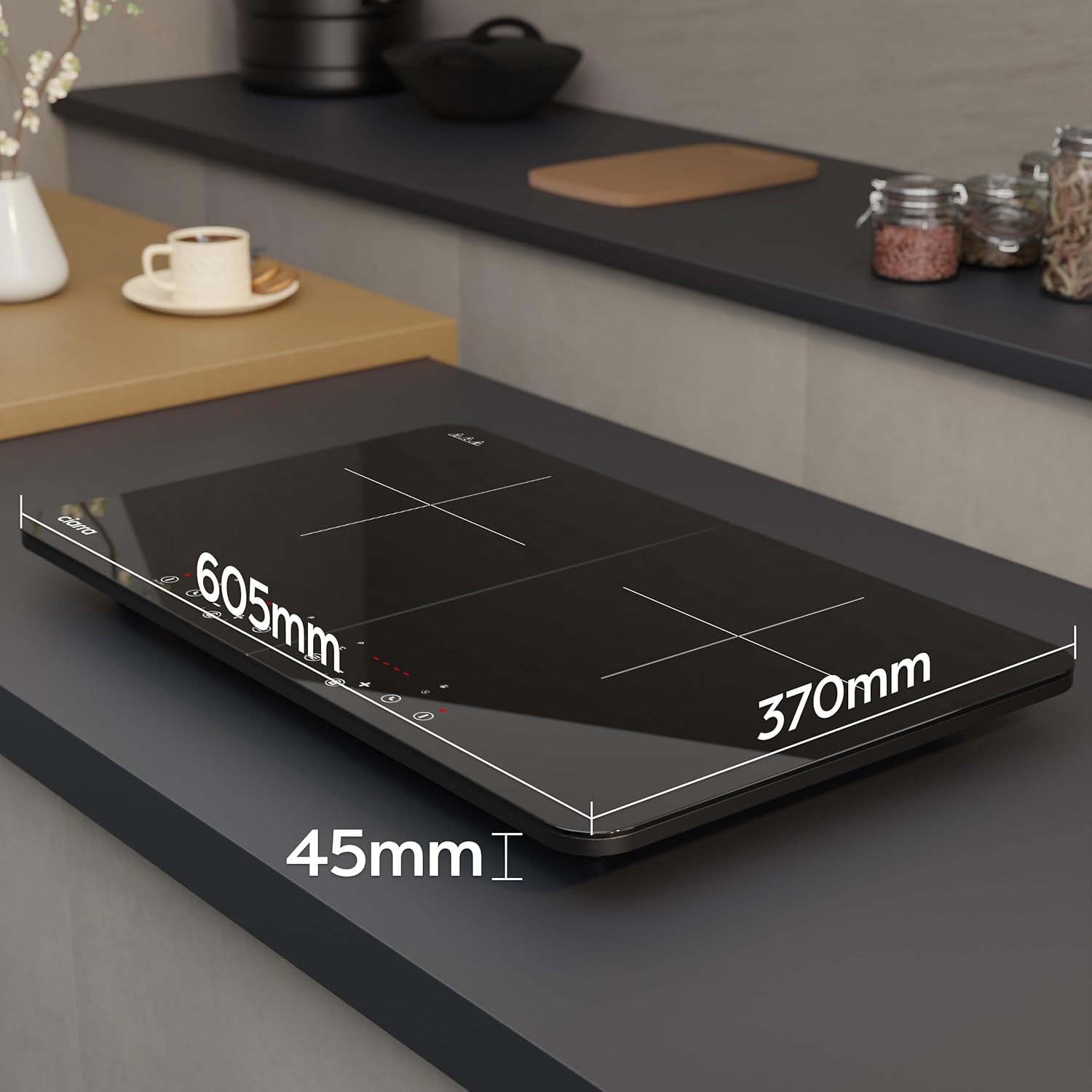

The image displays the physical dimensions of the CIARRA CBTIH2 cooktop: 605mm length, 370mm width, and 45mm height, providing essential information for placement and installation.
9. Bermea eta Laguntza
The CIARRA CBTIH2 Double Induction Cooktop comes with a 2-year availability of spare parts. For warranty claims, technical support, or any questions regarding your product, please contact CIARRA customer service.
Please have your model number (CBTIH2) and purchase information ready when contacting support.
