Scheppach DM600VARIO Wood Lathe Instruction Manual

1. Sarrera

The Scheppach DM600VARIO Wood Lathe is designed for turning wood and soft materials in a home workshop environment. Its compact and lightweight design makes it suitable for small workspaces, offering optimal stability when securely mounted to a workbench. This lathe is ideal for beginners and model makers, allowing for the machining of workpieces up to 60 cm in length and 25 cm in diameter.

This manual provides essential information for the safe assembly, operation, and maintenance of your DM600VARIO wood lathe. Please read it thoroughly before using the machine and keep it for future reference.

2. Segurtasun-argibideak

Bete beti oinarrizko segurtasun neurriak sute, deskarga elektriko eta lesio pertsonalen arriskua murrizteko tresna elektrikoak erabiltzean.

Segurtasun abisu orokorrak:

• Irakurri eskuliburu osoa: Understand all instructions and warnings before operating the lathe.
• Lan eremuko segurtasuna: Keep your work area clean, well-lit, and free from clutter. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Segurtasun elektrikoa: Ensure the power supply matches the specifications on the machine's rating plate. Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
• Segurtasun pertsonala: Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and a dust mask. Do not wear loose clothing, jewelry, or long hair that could get caught in moving parts.
• Machine stability: Securely bolt the lathe to a sturdy workbench before use to prevent movement and ensure stable operation.
• Workpiece security: Ensure the workpiece is properly secured in the headstock and tailstock or on the faceplate before starting the lathe.
• Tool rest adjustment: Adjust the tool rest close to the workpiece, but not touching it, before starting the machine.
• Larrialdi geldialdia: Familiarize yourself with the location of the ON/OFF switch for quick shutdown in an emergency.

3. Osagaiak baino gehiagoview

The Scheppach DM600VARIO wood lathe consists of several key components that work together to facilitate woodturning operations.

3.1. irudia: Osoa view of the Scheppach DM600VARIO wood lathe, showing all major components.

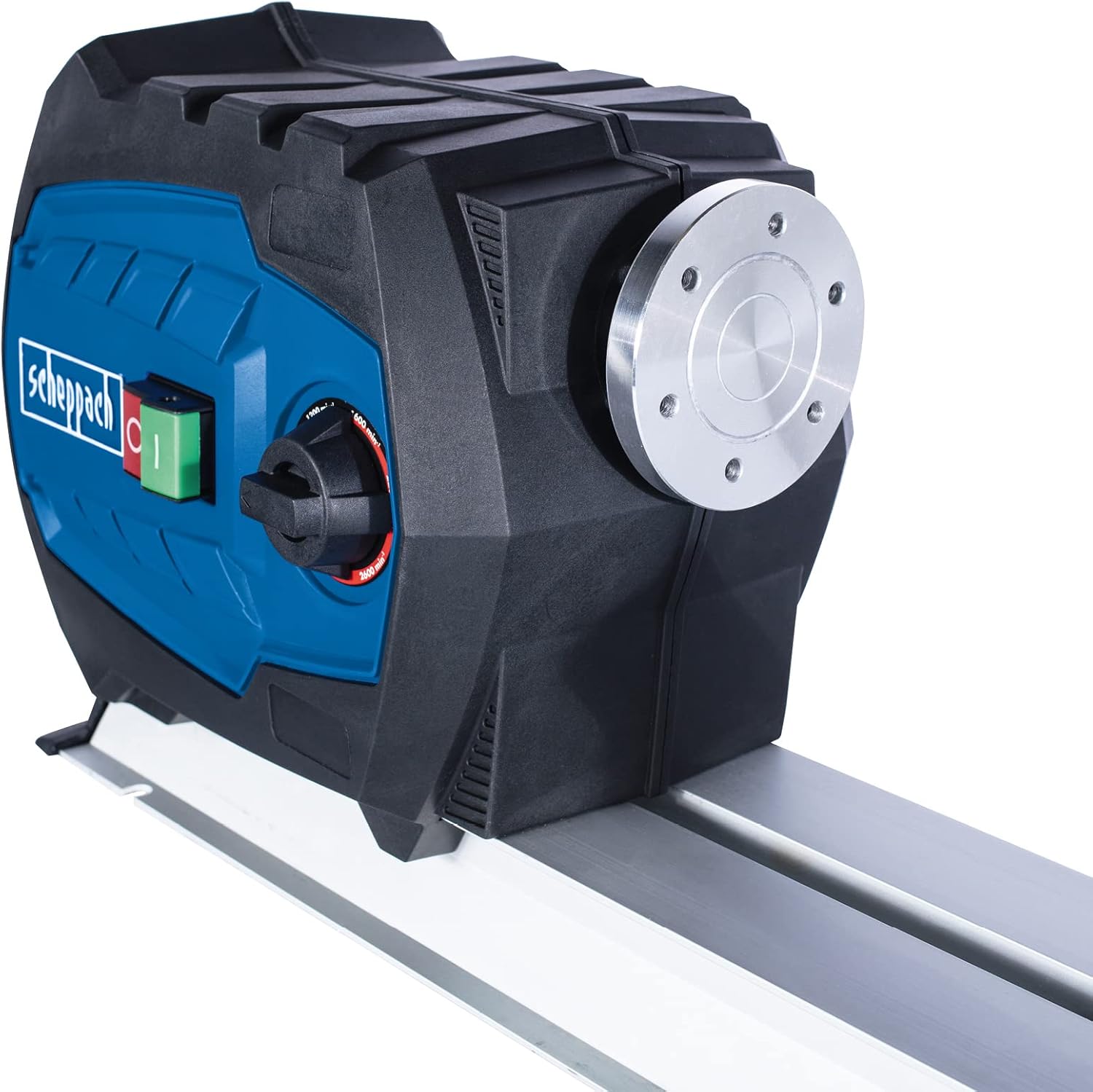

Figure 3.2: Close-up of the headstock, featuring the speed control knob and power switch.

Figure 3.3: Close-up of the tailstock, showing the quick-release lever and live center.

Figure 3.4: Close-up of the adjustable tool rest, which supports turning tools during operation.

Figure 3.5: The headstock with the circular faceplate attached, used for mounting irregular workpieces.

Funtsezko osagaiak:

• Burua: Contains the motor, spindle (M18 thread), and speed control. It drives the workpiece.
• Taila: Supports the opposite end of the workpiece. It features a quick-release lever and a live center.
• Machine Bed: The aluminum base on which the headstock, tailstock, and tool rest are mounted and can be adjusted.
• Erremintaren atsedena: An adjustable support for hand-held turning tools, allowing for precise control during operation.
• Abiadura Kontrolatzeko Botoia: Located on the headstock, it allows continuous adjustment of the spindle speed.
• faceplate: An 80 mm diameter circular plate with 6 holes, included for mounting irregular workpieces that cannot be held between centers.

4. Konfigurazioa

Proper setup is crucial for safe and effective operation of your wood lathe.

4.1 Desontziratzea eta ikuskatzea:

1. Kontu handiz kendu osagai guztiak ontzitik.
2. Inspect the machine for any signs of damage that may have occurred during transit. If damage is found, do not operate the machine and contact your supplier.
3. Ensure all listed components and accessories are present.

4.2 Mounting the Lathe:

The DM600VARIO must be securely bolted to a stable workbench to ensure optimal stability and reduce vibration during operation.

• Position the lathe on a sturdy, level workbench.
• Use appropriate bolts and washers (included) to fasten the lathe's base to the workbench through the designated mounting holes.
• Ziurtatu lokailu guztiak ondo estututa daudela.

4.3 Attaching Components:

1. Erremintaren atsedena: Slide the tool rest base onto the machine bed and secure it at the desired position using its locking mechanism.
2. Taila: Slide the tailstock onto the machine bed. It can be moved closer to or further from the headstock and locked into place with its quick-release lever.
3. Drive Center (Headstock): Insert the 4-tooth drive center into the headstock spindle.
4. Live Center (Tailstock): Insert the live center into the tailstock quill.

5. Funtzionamendu-argibideak

Follow these steps for safe and effective woodturning.

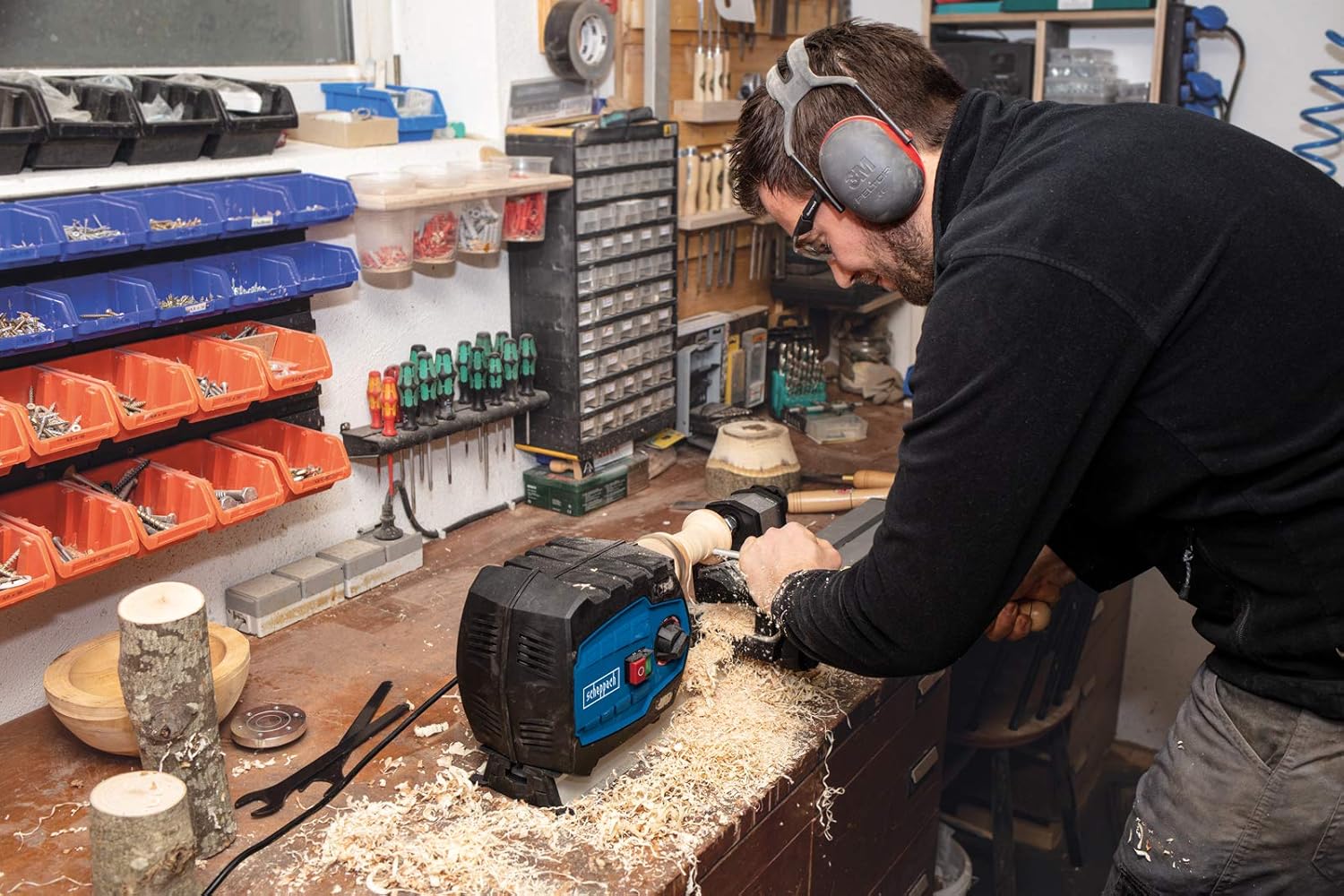

Figure 5.1: Operator demonstrating woodturning with the Scheppach DM600VARIO.

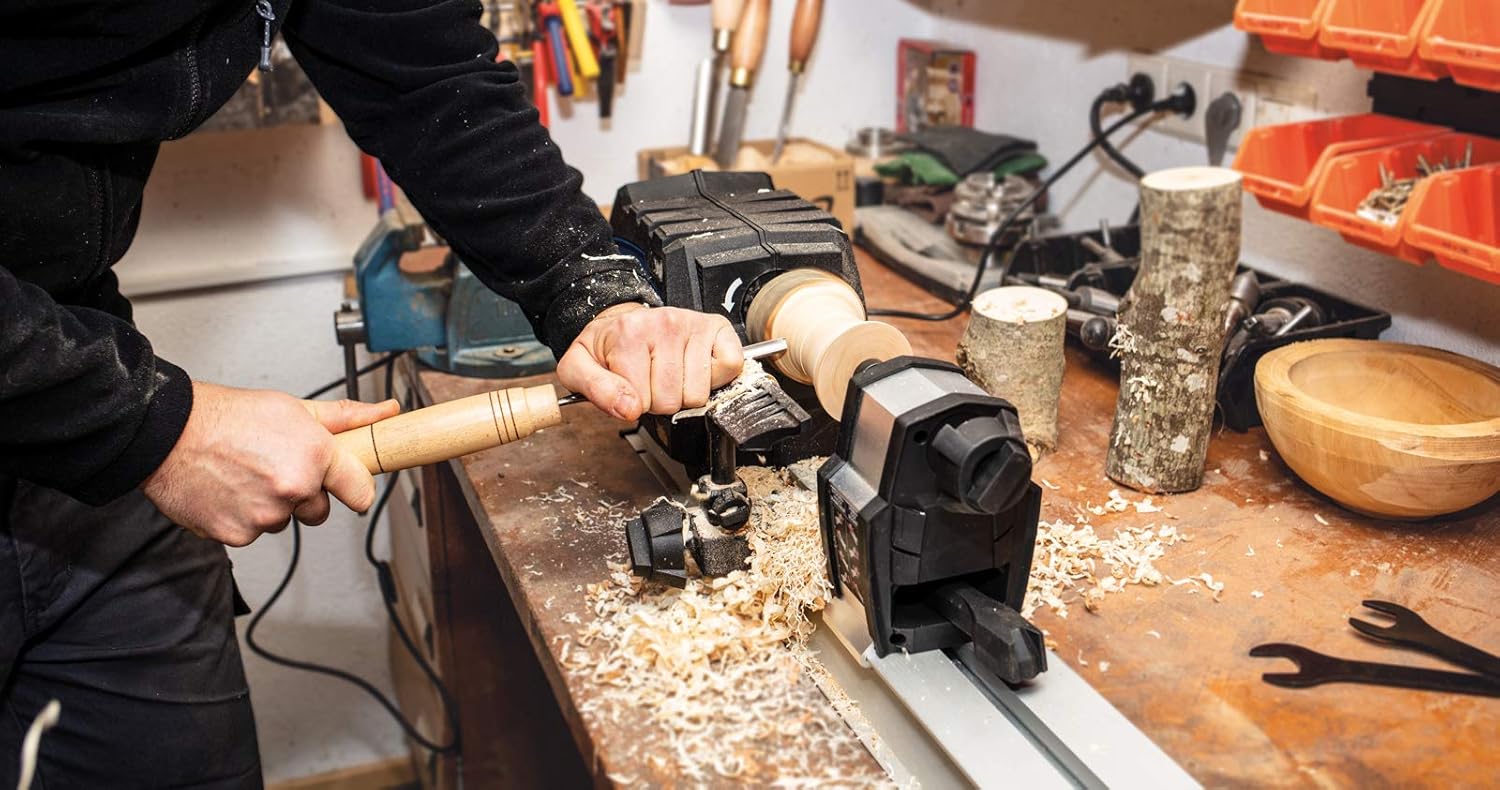

5.2. irudia: Goikoa view of the lathe in operation, showing the workpiece and tool rest.

5.1 Workpiece Preparation:

• Select a suitable piece of wood, free from knots, cracks, or foreign objects.
• Ensure the workpiece dimensions do not exceed the lathe's capacity (max. 60 cm length, 25 cm diameter).
• Mark the center points on both ends of the workpiece for mounting between centers.

5.2 Mounting the Workpiece:

• Zentroen artean: Place one end of the workpiece onto the headstock's 4-tooth drive center. Bring the tailstock forward and engage its live center into the marked center of the workpiece. Lock the tailstock firmly on the machine bed and advance the tailstock quill to apply sufficient pressure to hold the workpiece securely.
• On Faceplate: For irregular or short workpieces, attach the workpiece to the 80mm faceplate using screws. Then, screw the faceplate onto the M18 threaded spindle of the headstock.

5.3 Adjusting the Tool Rest:

• Position the tool rest as close as possible to the workpiece without touching it.
• Ensure the top of the tool rest is slightly below the center line of the workpiece.
• Lock the tool rest securely in place.

5.4 Setting Speed and Operation:

1. Abiadura doitzea: Use the rotary knob on the headstock to set the desired spindle speed. The variable speed ranges from 800 to 3000 rpm. Start with a lower speed for roughing and larger diameters, increasing as the workpiece becomes balanced and smaller.
2. Piztu: Press the green 'I' button to start the lathe.
3. Biraketa: With the workpiece rotating, gently bring your turning tool into contact with the workpiece, resting it on the tool rest. Apply steady pressure to remove material.
4. Itzali: To stop the lathe, press the red 'O' button.

6. Mantentzea

Regular maintenance ensures the longevity and safe operation of your Scheppach DM600VARIO wood lathe.

Mantentze-aholku orokorrak:

• Deskonektatu energia: Always unplug the machine from the power supply before performing any maintenance or cleaning.
• Garbiketa: After each use, clean the machine bed, headstock, tailstock, and tool rest to remove wood dust and chips. Use a brush or compressed air. Do not use solvents that may damage plastic parts.
• Lubrifikazioa: Periodically apply a light machine oil to the tailstock quill and other moving parts to ensure smooth operation.
• Lotzeko elementuak egiaztatu: Regularly check all nuts, bolts, and screws for tightness. Tighten any loose fasteners.
• Elikatze-kablearen ikuskapena: Inspect the power cord for any signs of damage, cuts, or fraying. Replace damaged cords immediately.
• Motor aireztapena: Ziurtatu motorraren aireztapen-irekiduretatik hautsik eta hondakinik gabe dagoela gehiegi berotzea saihesteko.

7. Arazoak

Atal honek zure egurrezko tornuarekin aurki ditzakezun arazo ohikoenei buruzkoa da.

8. Zehaztapenak

Technical data for the Scheppach DM600VARIO Wood Lathe.

9. Bermea eta Laguntza

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Scheppach webgunea. Gorde erosketaren egiaztagiria berme-erreklamazioetarako.

Ordezko piezen erabilgarritasuna: Modelo honen ordezko piezak, oro har, erosketa-datatik 7 urtera arte daude eskuragarri.

For technical assistance or service, please contact Scheppach customer service or an authorized service center.
