Benro Tortoise Columnless Carbon Fiber Three Series Tripod Kit with GX35 Ball Head User Manual

Sarrera

The Benro Tortoise Series Tripod is designed as a compact, lightweight travel tripod, offering significant weight capacity and stability. Its columnless design results in a compact folded diameter, enhancing portability. This manual provides detailed instructions for the proper setup, operation, maintenance, and troubleshooting of your Benro Tortoise Columnless Carbon Fiber Three Series Tripod Kit with GX35 Ball Head. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Kutxan dagoena

• Benro Tortoise Columnless Carbon Fibre Three Series Tripod with GX35 Ball Head
• Eramateko zorroa
• Spiked Feet (for outdoor use)
• Hex Keys (for adjustments)

Image: Contents of the Benro Tortoise Tripod Kit, showing the folded tripod, its dedicated carrying case, a set of spiked feet, and hex keys for maintenance.

Konfigurazio Argibideak

1. Tripodea zabaltzea

1. Grasp the tripod legs and gently pull them outwards until they lock into one of the available leg angle positions. The tripod features automatic leg angle adjustment, allowing changes with a push of a button.
2. Extend the leg sections by twisting the leg locks counter-clockwise to loosen, pulling out the desired section, and then twisting clockwise to secure. Repeat for all leg sections on each leg.

Image: The Benro Tortoise Tripod fully extended, demonstrating its maximum height and stable leg spread.

2. Attaching the Ball Head (if not pre-attached)

The GX35 Ball Head is typically pre-attached. If not, ensure it is securely screwed onto the tripod's mounting plate. Tighten firmly to prevent rotation.

3. Zure kamera muntatzea

1. Locate the Arca-Swiss style quick release plate on the GX35 Ball Head.
2. Attach the quick release plate to the bottom of your camera by screwing the D-ring or coin slot screw into the camera's tripod socket. Ensure it is tight and secure.
3. Ireki clamp on the ball head by turning the locking knob.
4. Sartu kamera erantsitako askapen azkarreko plakarekin giltza barruan.amp. Ensure it is seated correctly.
5. Tighten the locking knob firmly to secure the camera. Always double-check that the camera is securely mounted before releasinzure heldulekua eutsi.

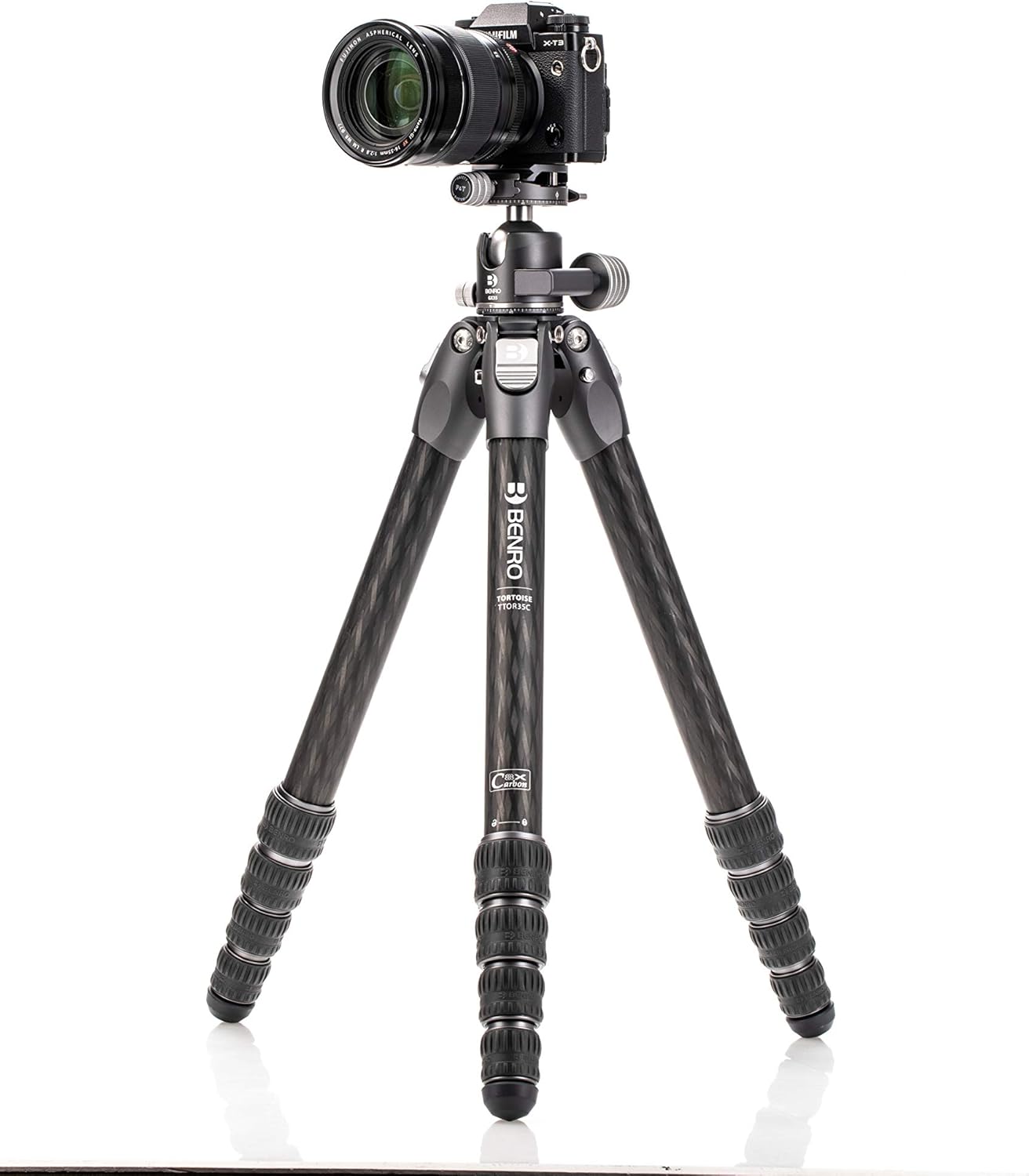

Image: A camera securely mounted on the Benro Tortoise Tripod, demonstrating the GX35 Ball Head's functionality.

Funtzionamendu-argibideak

Hanken angeluak doitzea

Each leg features an automatic leg angle adjustment mechanism. Press the button near the top of each leg to release the lock and adjust the leg to one of the predefined angles. This allows for stable positioning on uneven terrain or for low-angle shots.

Irudia: Xehetasun zehatza view of the leg angle adjustment button on the Benro Tortoise Tripod, highlighting its ergonomic design.

Using the GX35 Ball Head

• Main Locking Knob: This large knob controls the movement of the ball. Loosen it to adjust the camera's angle freely, then tighten to lock it in position.
• Panoramikoaren blokeo-botoia: A smaller knob typically located at the base of the ball head. Loosen this to rotate the camera horizontally (panning) without affecting the tilt. Tighten to lock the panning movement.
• Friction Control (if present): Some ball heads have a separate friction control knob, often integrated with the main locking knob, to adjust the resistance of the ball movement when loosened. This helps prevent sudden drops of heavy cameras.

Image: A close-up of the Benro GX35 Ball Head, showing the main locking knob, panning lock, and quick release plate mechanism.

Low-Angle Shooting

To achieve extremely low angles, spread the tripod legs to their widest angle setting. The columnless design allows the tripod to get very close to the ground, providing maximum stability for low-perspective shots.

Image: The Benro Tortoise Tripod configured for low-angle photography, with legs spread wide and close to the ground.

Mantentzea

• Garbiketa: After use, especially in dusty, sandy, or wet environments, wipe down the tripod legs and ball head with a clean, damp oihal. Saihestu produktu kimiko gogorrak erabiltzea.
• Hanka blokeatzeak: Periodically check that the leg locks are functioning smoothly. If they become stiff, clean any debris and apply a small amount of silicone-based lubricant (avoid oil-based lubricants).
• Buru esferikoa: Keep the ball head clean and free of dust. Do not disassemble the ball head unless you are experienced with such repairs, as it may affect its performance and warranty.
• Biltegiratzea: Store the tripod in its carrying case in a dry, cool place when not in use.

Arazoak konpontzea

Zehaztapenak

Bermearen informazioa

Benro products are typically covered by a limited warranty against defects in materials and workmanship. For specific warranty terms, duration, and registration, please refer to the official Benro webwebgunean edo produktuarekin batera datorren berme-txartelean. Gorde erosketaren frogagiria berme-erreklamazioetarako.

Bezeroarentzako Arreta

For further assistance, technical support, or spare parts, please contact Benro customer service. You can find contact information on the official Benro webgunea:

Benro Official Webgunea: www.benro.com

When contacting support, please have your product model number (TTOR35CGX35) and purchase date available.
