1. Sarrera
This manual provides detailed instructions for the safe and efficient setup, operation, and maintenance of your iPower 1000 Watt HPS & MH Bulbs Digital Dimmable Ballast Grow Light System Kit. This system is designed for horticultural applications, offering versatile lighting solutions for both vegetative and flowering growth stages.
The kit includes a high-quality gull wing reflector, a digital dimmable electronic ballast, both High Pressure Sodium (HPS) and Metal Halide (MH) bulbs, adjustable rope hangers, and a mechanical timer. Please read all instructions carefully before installation and use to ensure optimal performance and safety.
2. Segurtasun informazioa
WARNING: Electrical Shock and Burn Hazard. Always disconnect power before servicing or installing components. Allow bulbs to cool completely before handling.
- Ensure all electrical connections are secure and meet local electrical codes.
- Do not operate the system with damaged cords or components.
- Avoid touching bulbs with bare hands. Oils from skin can create hot spots and reduce bulb lifespan. Use a clean cloth or gloves when handling.
- Allow bulbs to cool for at least 15-20 minutes after turning off before attempting to handle them. They can reach very high temperatures.
- Ensure adequate ventilation to prevent overheating, especially when operating in enclosed spaces like grow tents.
- Keep the ballast in a well-ventilated area, away from water and excessive humidity.
- Ez gainditu gehienezko wat-atage rating of the ballast or bulbs.
3. Osagaiak baino gehiagoview
Your iPower 1000W Grow Light System Kit includes the following components:
3.1 iPower Basic Gull Wing Reflector Hood
A lightweight and sturdy reflector designed to intensify light and enlarge the lighting area. Features a built-in 10-ft heavy-duty lamp cord with an E39 ceramic mogul socket and standard hydroponic S-plug. Made from 0.4mm highly 95% reflective textured German aluminum with a heavy-duty galvanized steel mounting bracket.
Image: iPower Basic Gull Wing Reflector Hood, showing its reflective surface and bulb socket.
3.2 iPower 1000W Digital Dimmable Electronic Ballast
This electronic ballast supports 120V/240V input and offers dimmable options at 50%, 75%, and 100% power levels. It provides 30% more lumens than magnetic ballasts for improved yields, fast lamp ignition (1-2 minutes max), and stable voltage output. Features a built-in cooling fan and graduating fin design to minimize ballast temperature, along with protection against short circuit, power surge, ignition failure, overheat, and end-of-bulb-life.

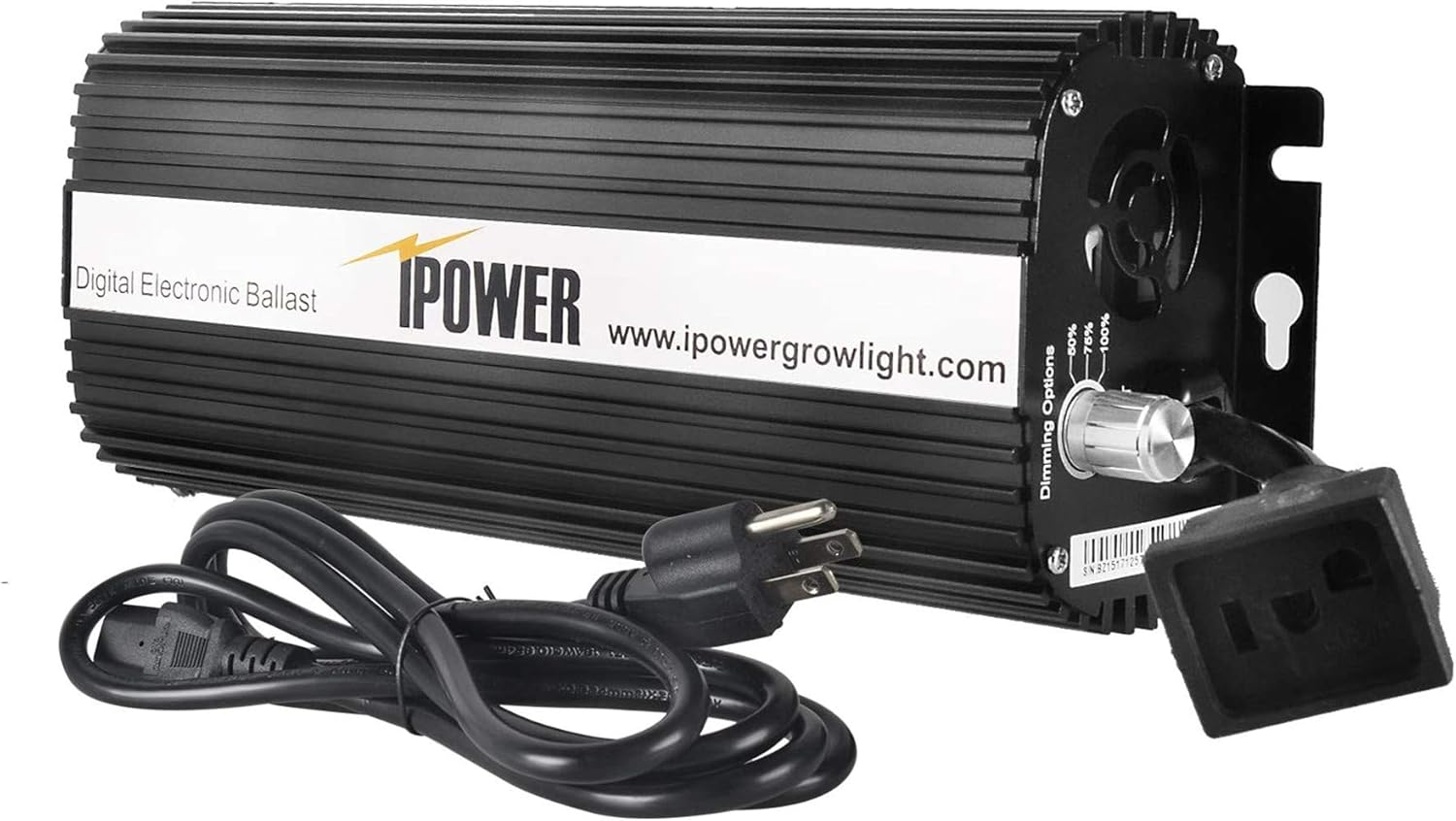

Image: iPower 1000W Digital Dimmable Electronic Ballast, showing the dimming knob and power cords.
3.3 iPower 1000W High Pressure Sodium (HPS) Grow Light Bulb
Designed for the flowering growth stage, this HPS bulb provides a red & orange spectrum with high PAR (photosynthetic active radiation) to stimulate flower growth and enhance fruiting. Initial Lumen: 140,000 lumens. Color Temperature: 2,100K. Bulb Lifespan: 24,000 hours. Compatible with electronic and magnetic ballasts. Maintains over 90% of initial lumen output after 5,000 hours.

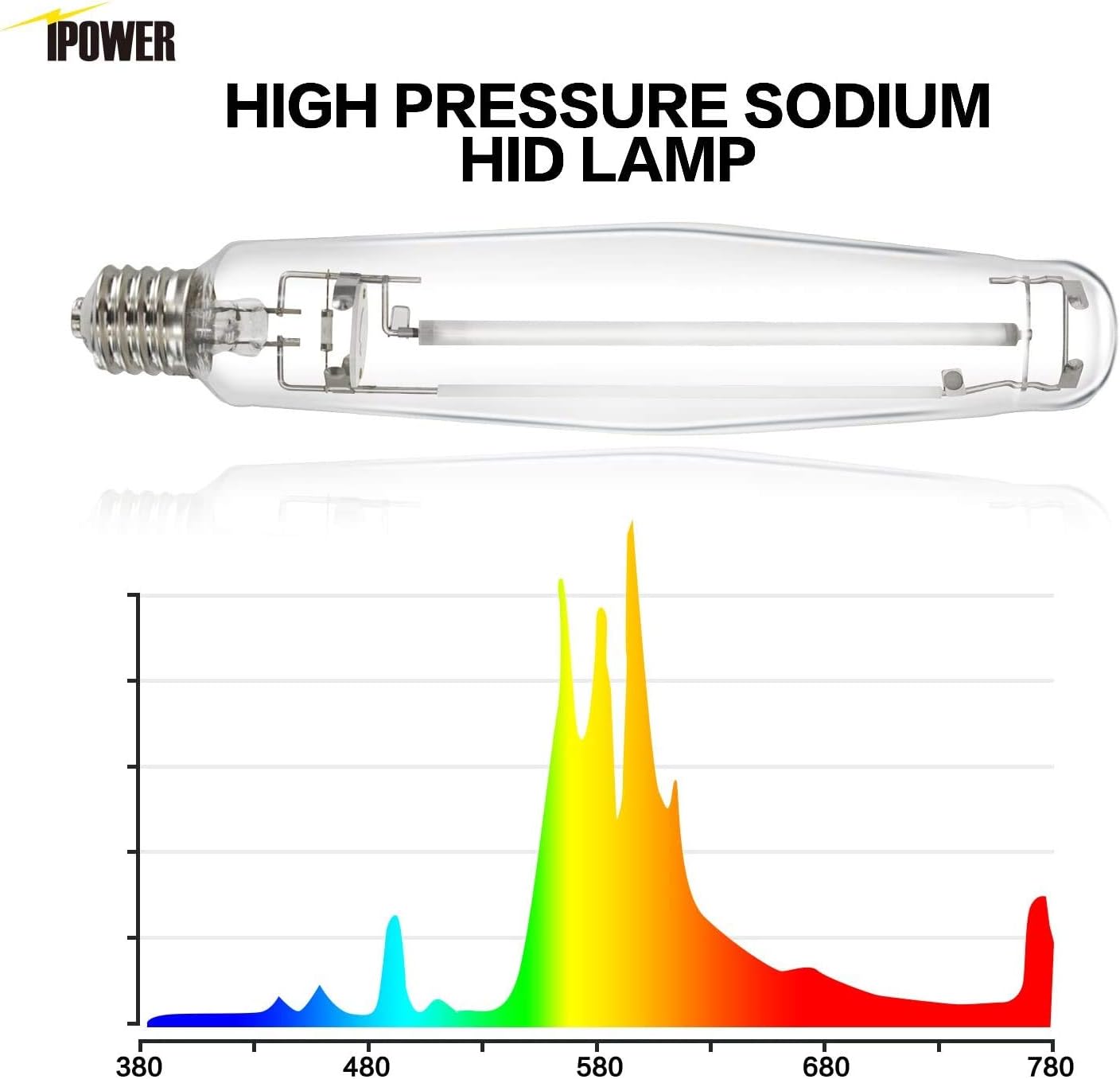

Image: Spectral graph for the iPower 1000W HPS bulb, illustrating its light output across different wavelengths.
3.4 iPower 1000W Metal Halide (MH) Grow Light Lamp Bonbilla
Ideal for the rapid vegetative growth phase of plants, this MH bulb offers a blue & violet spectrum with high PAR (photosynthetic active radiation) to stimulate vegetative growth. Initial Lumen: 95,000 lumens. Color Temperature: 6,000K. Bulb Lifespan: 24,000 hours. Compatible with electronic and magnetic ballasts. Maintains over 90% of initial lumen output after 5,000 hours.
Image: Spectral graph for the iPower 1000W MH bulb, illustrating its light output across different wavelengths.
3.5 iPower 1/8 Inch 8-Feet Long Heavy-Duty Adjustable Rope Clip Hanger Rope
A pair of adjustable rope hangers with a heavy-duty 150-pound weight capacity. Made with braided polypropylene rope and zinc-plated steel/metal internal gears for durability. Fully adjustable and locking for convenient fixture height adjustment.
Image: A pair of iPower adjustable rope clip hangers with carabiner clips.
3.6 iPower 24 Hour Plug-in Mechanical Timer
A mechanical timer with 24-hour settings and 15-minute increments for On/Off cycles. Rated Voltage: 125V AC, 60 Hz, 1/2HP. Grounded design for safety. Essential for automating lighting schedules.
Image: iPower 24 Hour Plug-in Mechanical Timer, showing the dial and outlet.
4. Konfiguratzeko argibideak
4.1 Reflector Assembly
Assemble the gull wing reflector according to the included diagrams. Ensure all screws are tightened to secure the reflective panels and the lamp euskarria muntaia.

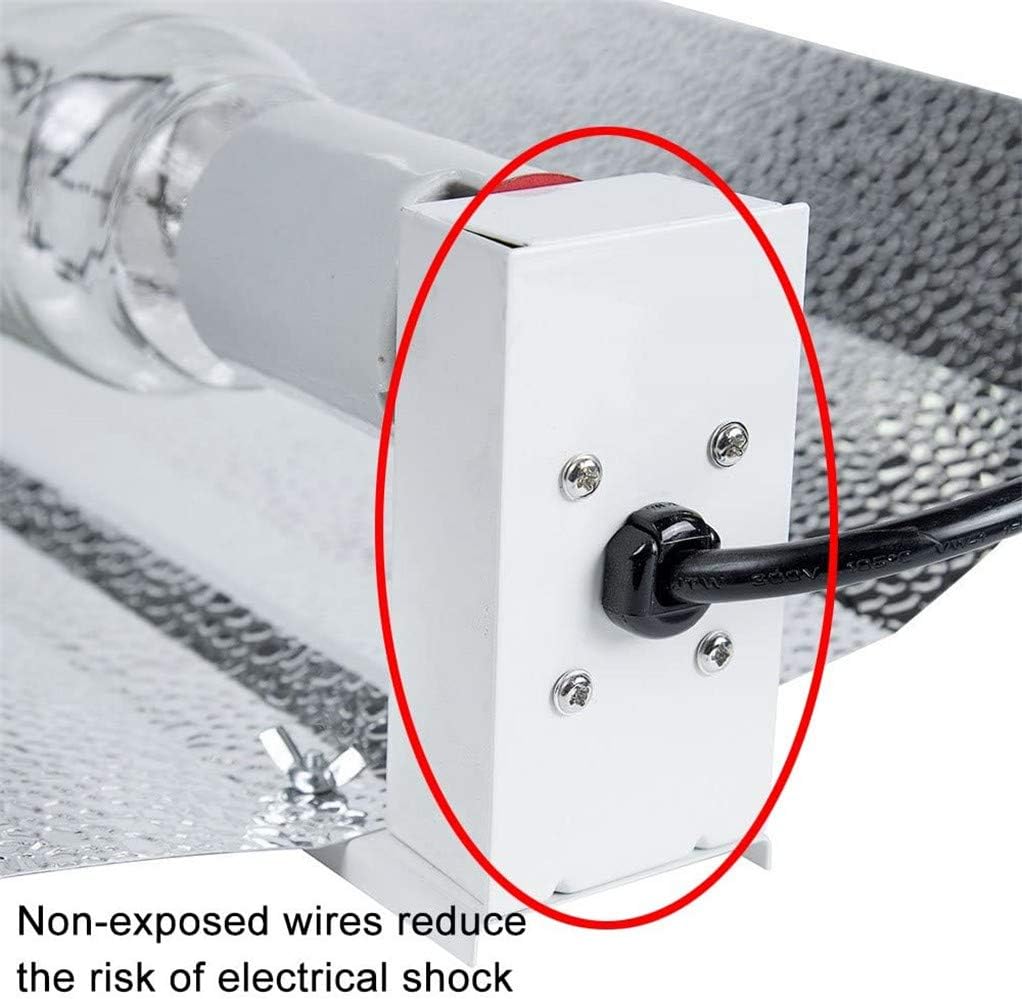

Image: Close-up of the reflector's socket wiring, showing non-exposed wires for safety.
4.2 Bonbilla instalazioa
Carefully unpackage your chosen bulb (HPS or MH). Using a clean cloth or gloves, screw the bulb firmly into the E39 ceramic mogul socket of the reflector. Do not overtighten. Ensure the bulb is securely seated.
4.3 Connecting the Ballast
Connect the reflector's S-plug cord to the output port of the digital dimmable electronic ballast. Ensure a snug fit. Connect the ballast's power cord to a grounded electrical outlet or the mechanical timer.
4.4 Hanging the Light System
Attach the adjustable rope clip hangers to the mounting points on the reflector hood. Securely hang the light system from a sturdy support structure (e.g., grow tent frame) at the desired height above your plants. Adjust the height as needed using the rope ratchets.

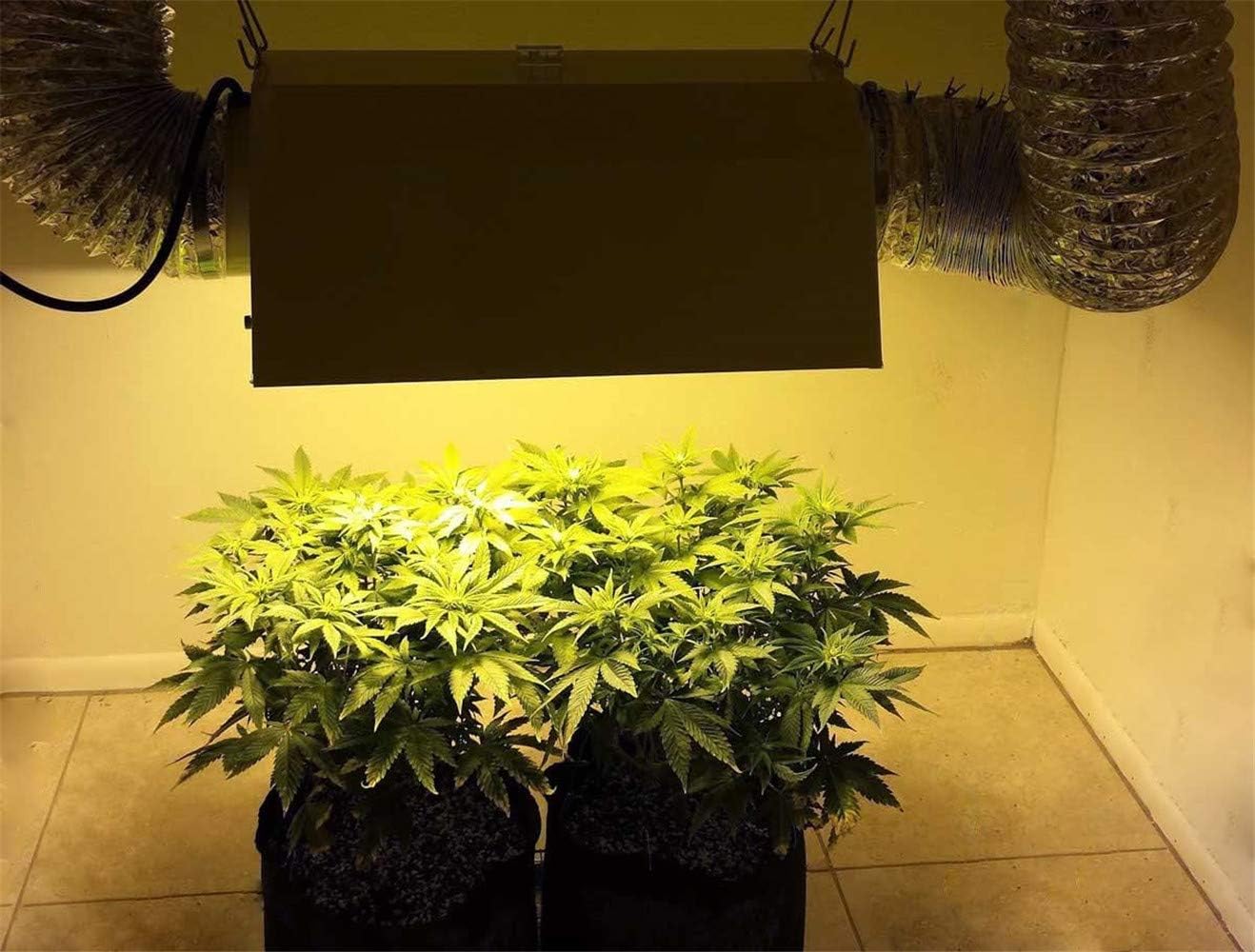

Image: An iPower grow light system installed inside a grow tent, illuminating plants.
4.5 Setting up the Timer
If using the mechanical timer, plug it into a grounded wall outlet. Push down the segments on the timer dial corresponding to the desired ON times and leave segments up for OFF times. Rotate the dial clockwise to align the current time with the pointer. Plug the ballast's power cord into the timer's outlet.
5. Funtzionamendu-argibideak
5.1 Selecting Wattage
Before turning on the system, select the desired wattage (50%, 75%, or 100%) on the digital ballast using the dimming knob. Ensure the selected wattage matches the bulb's rating for optimal performance and lifespan.
5.2 Initial Ignition and Warm-up
After connecting all components and selecting the wattage, turn on the power. The bulb will take approximately 1-2 minutes to ignite and 3-5 minutes to reach full brightness and stable color temperature. Do not interrupt the warm-up cycle.
5.3 Switching Bulbs (HPS/MH)
To switch between HPS and MH bulbs, first turn off the power to the system and unplug the ballast from the power source. Allow the bulb to cool completely (15-20 minutes) before carefully removing it and installing the alternative bulb. Reconnect power and follow the initial ignition steps.
5.4 Using the Timer for Automated Cycles
The mechanical timer allows for automated ON/OFF cycles. Set the timer according to your plant's specific light cycle requirements (e.g., 18 hours ON / 6 hours OFF for vegetative growth, 12 hours ON / 12 hours OFF for flowering). This ensures consistent lighting without manual intervention.
6. Mantentzea
6.1 Cleaning the Reflector
Periodically clean the reflective surface of the hood with a soft, damp cloth to remove dust and debris. Ensure the system is off and cool before cleaning. A clean reflector maximizes light output.
6.2 Bonbilla ordezkatzea
Bulbs have a limited lifespan (approximately 24,000 hours). It is recommended to replace bulbs before they fail completely, as light output degrades over time. Follow safety precautions for handling hot bulbs. Replace with compatible 1000W HPS or MH bulbs.
6.3 Ballast Care
Keep the ballast free from dust and ensure its cooling fan is not obstructed. The built-in fan helps maintain optimal operating temperature. Do not open the ballast housing.
7. Arazoak
7.1 Argia ez da pizten
Check all power connections, including the wall outlet, timer (if used), and ballast connections. Ensure the ballast is plugged in and the timer is set correctly. Verify the bulb is securely screwed into the socket. If the bulb is old, it may need replacement.
7.2 Flickering or Dim Light
This can indicate an aging bulb, an unstable power supply, or a loose connection. Check connections and consider replacing the bulb. Ensure the ballast wattage setting is appropriate for the bulb.
7.3 Gehiegi berotzea
Ensure adequate ventilation in your grow space. Check that the ballast's cooling fan is operating and not obstructed. Reduce ambient room temperature if necessary. The ballast has built-in overheat protection that may shut down the system if temperatures are too high.
7.4 Ballast Noise
A slight hum from the ballast is normal due to the internal cooling fan. Excessive or unusual noise may indicate an issue. Ensure the ballast is placed on a stable surface and not vibrating against other objects.
8. Zehaztapenak
| Osagaia | Zehaztapena |
|---|---|
| Sistema Wattage | 1000 Watt |
| Ballast Input Voltage | 120V/240V |
| Ballast Dimmable Options | %50, %75, %100 |
| HPS Bulb Initial Lumen | 140,000 lumen |
| HPS Bulb Color Temperature | 2,100K |
| MH Bulb Initial Lumen | 95,000 lumen |
| MH Bulb Color Temperature | 6,000K |
| Bulb Lifespan (HPS/MH) | 24,000 ordu |
| Reflector Coverage | Gehienez 4' x 4' |
| Material islatzailea | 0.4mm 95% reflective textured German aluminum |
| Hanger Rope Length | 8 oin |
| Hanger Rope Capacity | 150 kilo |
| Tenporizadorearen ezarpenak | 24 hours, 15-minute increments |
| Produktuaren neurriak | 19 x 19 x 6 hazbete |
| Elementuaren pisua | 13.79 kilo |
9. Bermea eta Laguntza
For warranty information, technical support, or assistance with your iPower 1000W Digital Dimmable Grow Light System Kit, please refer to the warranty card included with your product or visit the official iPower website. You may also contact iPower customer service directly for further assistance.
