1. Sarrera
The RSHTECH 5-Port Powered USB Hub is designed to expand the USB 3.0 connectivity of your notebook, desktop computer, smart TV, or game console. It features four USB 3.0 data ports for high-speed data transfer and one dedicated USB fast charging port. This hub is engineered for efficiency and convenience, providing a reliable solution for managing multiple USB devices.
Each USB 3.0 data port supports data transfer speeds of up to 5Gbps, ensuring quick syncing of files. The dedicated fast charging port can deliver up to 2.4 amps, allowing for rapid charging of compatible mobile phones, tablets, and other devices.
Image 1.1: The RSHTECH 5-Port Powered USB Hub, showcasing its compact design, included power adapter, and USB 3.0 data cable.
2. Paketearen edukia
Mesedez, egiaztatu elementu guztiak paketean daudela:
- RSHTECH 5-Port USB Hub
- 12V/2A korronte egokitzailea
- 100cm Long USB 3.0 A Male to B Male Cable
- Erabiltzailearen eskuliburua (dokumentu hau)
Image 2.1: Front of the product packaging for the RSHTECH 5-Port USB 3.0 Hub.
Image 2.2: Back of the product packaging, detailing product introduction and key features.
3. Ezaugarriak
- 4 USB 3.0 Data Ports: Provides instant expansion with four USB 3.0 ports, offering data transfer speeds up to 5Gbps. These ports are hot-swappable and plug-and-play compatible.
- 1 Quick Charge Port: A dedicated port designed for fast charging of mobile devices, delivering up to 2.4 amps. This port is for charging only and does not support data transfer.
- Premium Aluminum Alloy Design: Constructed from durable aluminum alloy, ensuring good heat dissipation and corrosion resistance for enhanced longevity.
- Banakako pizteko/itzaltzeko etengailuak: Each USB 3.0 data port features an independent on/off switch and an LED indicator, allowing for easy control and monitoring of connected devices.
- Bateragarritasun zabala: Compatible with a wide range of operating systems including Windows (XP/7/10), Mac OS, and Linux. No drivers are required for installation.
- Kanpoko elikadura iturria: Includes a 12V/2A power adapter to ensure sufficient power delivery for all connected devices, supporting simultaneous data transfer and charging.
Image 3.1: The hub connected to a laptop, demonstrating its high-speed 5Gbps data transfer capability.
Image 3.2: The hub providing 24W of power to connected devices, such as a laptop and tablet.
Image 3.3: Illustration of the hub's broad compatibility with various USB devices, including mobile phones, tablets, digital cameras, USB drives, and external hard drives.
4. Konfiguratzeko argibideak
Follow these steps to set up your RSHTECH 5-Port Powered USB Hub:
- Konektatu korronte-moldagailua: Plug the included 12V/2A power adapter into the DC IN port on the back of the USB hub. Then, plug the power adapter into a standard wall outlet.
- Konektatu zure ordenagailura: Use the provided 100cm USB 3.0 A Male to B Male cable. Connect the USB-B end of the cable to the USB 3.0 IN port on the back of the hub. Connect the USB-A end of the cable to an available USB 3.0 port on your computer (laptop, desktop), smart TV, or game console.
- Piztu: The hub is plug-and-play. Once connected, it should be recognized by your operating system automatically without the need for additional drivers.
- Konektatu USB gailuak: You can now connect your USB devices (e.g., flash drives, external hard drives, keyboards, mice, charging cables) to the available USB 3.0 data ports or the fast charging port on the hub.
Image 4.1: Connection diagram illustrating the proper setup of the USB hub with its power adapter and data cable.
5. Funtzionamendu-argibideak
Operating the RSHTECH 5-Port Powered USB Hub is straightforward:
- Datuen transferentzia: For data transfer, plug your USB 3.0 or USB 2.0 devices into any of the four blue USB 3.0 data ports. The blue LED indicator next to each port will illuminate when the port is active.
- Portu Banakako Kontrola: Each data port has an independent on/off switch. Press the button next to the desired port to toggle its power and data connection. This allows you to disconnect devices without physically unplugging them.
- Karga azkarra: The red USB port is dedicated solely for fast charging. Connect your mobile phone, tablet, or other compatible device to this port for rapid charging. This port does not support data transfer.
- Truke beroa: You can connect or disconnect USB devices from the hub while your computer is running without needing to restart.

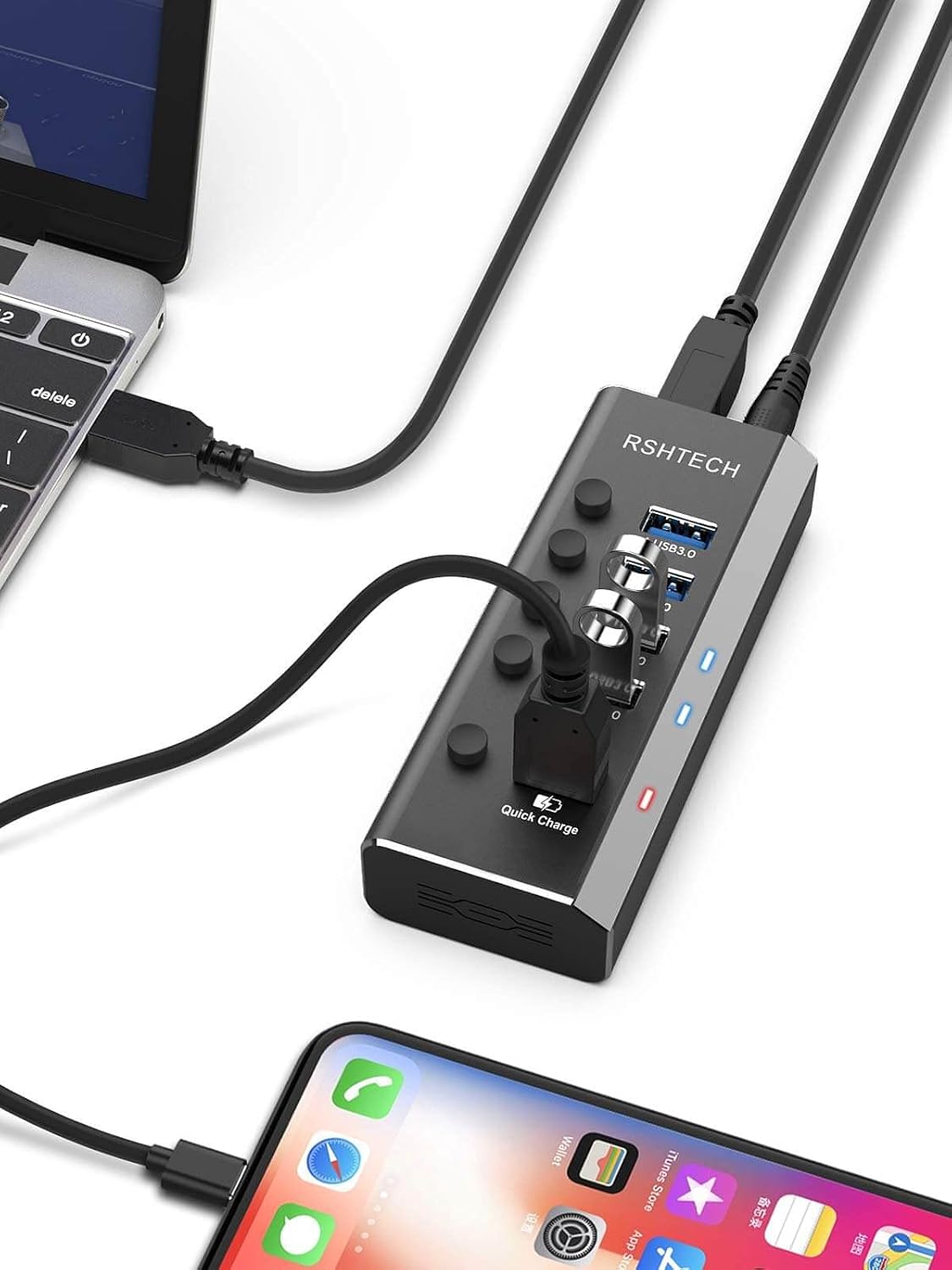

Image 5.1: The hub actively charging a smartphone via its dedicated fast charging port, connected to a laptop.
6. Mantentzea
To ensure the longevity and optimal performance of your RSHTECH USB Hub, follow these maintenance guidelines:
- Garbiketa: Use a soft, dry cloth to clean the exterior of the hub. Avoid using liquid cleaners, aerosols, or abrasive solvents, as these may damage the finish or internal components.
- Biltegiratzea: Denbora luzez erabiltzen ez duzunean, gorde hub-a leku fresko eta lehor batean, eguzki-argitik eta muturreko tenperaturetatik babestuta.
- Manipulazioa: Handle the hub with care. Avoid dropping it or subjecting it to strong impacts, which could damage the internal circuitry or the aluminum casing.
- Aireztapena: Ensure the hub is placed in an area with adequate ventilation to allow for proper heat dissipation, especially during prolonged use with multiple devices. The aluminum alloy housing is designed to aid in heat management.
7. Arazoak
If you encounter issues with your RSHTECH USB Hub, refer to the following common problems and solutions:
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Ordenagailuak ez du Hub-a ezagutzen | Loose connection; insufficient power; faulty USB port on computer. | Ensure all cables (power adapter, USB data cable) are securely connected. Try connecting the hub to a different USB port on your computer. Verify the power adapter is plugged into a working outlet. |
| Connected device not working | Port switch off; device driver issue; device power requirements. | Press the individual on/off switch for the specific port to ensure it is active (LED should be on). Try connecting the device to a different port on the hub or directly to the computer. Ensure the device has necessary drivers installed on your computer. |
| Datuen transferentzia abiadura motela | Device connected to USB 2.0 port (if applicable); cable quality; system load. | Ensure you are using a USB 3.0 device and it is connected to one of the blue USB 3.0 data ports. Use the provided high-quality USB 3.0 cable. Reduce the number of simultaneous high-bandwidth transfers. |
| Gailua ez da kargatzen edo poliki kargatzen ari da | Connected to data port instead of charging port; device not compatible with fast charging; insufficient power. | Ensure the device is connected to the dedicated red fast charging port. Verify the power adapter is securely connected and providing power. Some devices may not support fast charging standards. |
8. Zehaztapenak
| Atributua | Balioa |
|---|---|
| Modelo zenbakia | RSH-A35 |
| Produktuaren neurriak | 11.4 x 64 x 2.5 cm |
| Pisua | 320 g |
| Marka | RSHTECH |
| Kolorea | Beltza |
| Hardware interfazea | USB 3.0 |
| Datuen transferentzia-tasa | Gehienez 5 Gbps (USB 3.0) |
| Kargatzeko ataka irteera | 2.4A arte |
| Elikatze Hornidura | 12V/2A korronte egokitzailea |
| Ezaugarri bereziak | Indicator Light, Fast Charging, Powered, Plug and Play, Individual On/Off Switches |
| Gailu bateragarriak | Mouse, Keyboards, Hard Disk Drive, Card Readers, Digital Cameras, MP3 Players, Printers |
| Jatorrizko Herrialdea | Txina |
9. Bermea eta Laguntza
RSHTECH products are designed for reliability and performance. For any product-related inquiries, technical support, or warranty claims, please refer to the contact information provided with your purchase or visit the official RSHTECH webgunea. Gorde erosketaren egiaztagiria bermearen ondorioetarako.
For additional support and product information, you may visit the RSHTECH Store on Amazon: RSHTECH Amazon Store.
