ORIA Motion Sensor Light User Manual

1. Sarrera

Eskerrik asko erosketagatik.asing the ORIA Motion Sensor Light. This battery-powered LED night light is designed to provide convenient, automatic illumination in various areas of your home. Please read this manual carefully before installation and use to ensure proper operation and longevity of your device.

2. Paketearen edukia

• 3 x ORIA Motion Sensor Night Light
• 6 x Torlojuak
• 1 x Alde biko zinta itsasgarria
• 1 x Erabiltzailearen eskuliburua

3. Zehaztapenak

4. Segurtasun informazioa

• Ez nahastu bateria zaharrak eta berriak.
• Ez nahastu bateria alkalinoak, estandarrak (karbonoa-zinka) edo kargagarriak (nikel-kadmioa).
• Ziurtatu bateriak polaritate zuzenarekin sartuta daudela (+ eta -).
• Kendu bateriak argia denbora luzez erabiliko ez bada.
• Gailu hau barrualdean erabiltzeko soilik da.
• Ez jarri uraren edo gehiegizko hezetasunaren eraginpean.
• Mantendu haurren eskura.

5. Konfigurazioa

5.1 Bateriaren instalazioa

1. Argiaren atzeko estalkia astiro-astiro biratu erlojuaren orratzen kontrako noranzkoan bateriaren konpartimentua irekitzeko.
2. Insert 3 AAA batteries (not included) into the compartment, ensuring correct polarity.
3. Replace the back cover by aligning the marks and twisting clockwise until secure.

5.2 Muntatzeko aukerak

The ORIA Motion Sensor Light offers two installation methods:

Image: Demonstrates the two installation methods: using screws for a permanent fixture or double-sided adhesive tape for a temporary, non-damaging mount.

1. aukera: Torlojuen muntaketa

• Choose a desired location for the light.
• Mark the positions for the two screw holes on the mounting surface.
• Behar izanez gero, zulo pilotuak egin.
• Lotu argia gainazalera emandako torlojuak erabiliz.

Option 2: Adhesive Tape Mounting

• Clean and dry the desired mounting surface thoroughly.
• Peel off one side of the double-sided adhesive tape and apply it firmly to the back of the light.
• Peel off the other side of the tape and press the light firmly onto the mounting surface for at least 30 seconds.
• Allow 24 hours for the adhesive to fully cure before applying significant pressure.

6. Funtzionamendu-argibideak

The ORIA Motion Sensor Light features three operating modes: ON, OFF, and AUTO.

Image: Illustrates the light's behavior: off during daylight, activating upon motion detection, and automatically turning off after 30 seconds of no motion.

6.1 Modu hautaketa

Locate the switch on the side of the light to select your desired mode:

• ON: The light will remain continuously on, regardless of ambient light or motion.
• DESaktibatuta: Argia itzalita egongo da.
• AUTO (Mugimendu-sentsorearen modua): The light will automatically turn on when motion is detected in a dark environment. It will turn off approximately 30 seconds after motion ceases.

6.2 Mugimendu-sentsorearen funtzionaltasuna

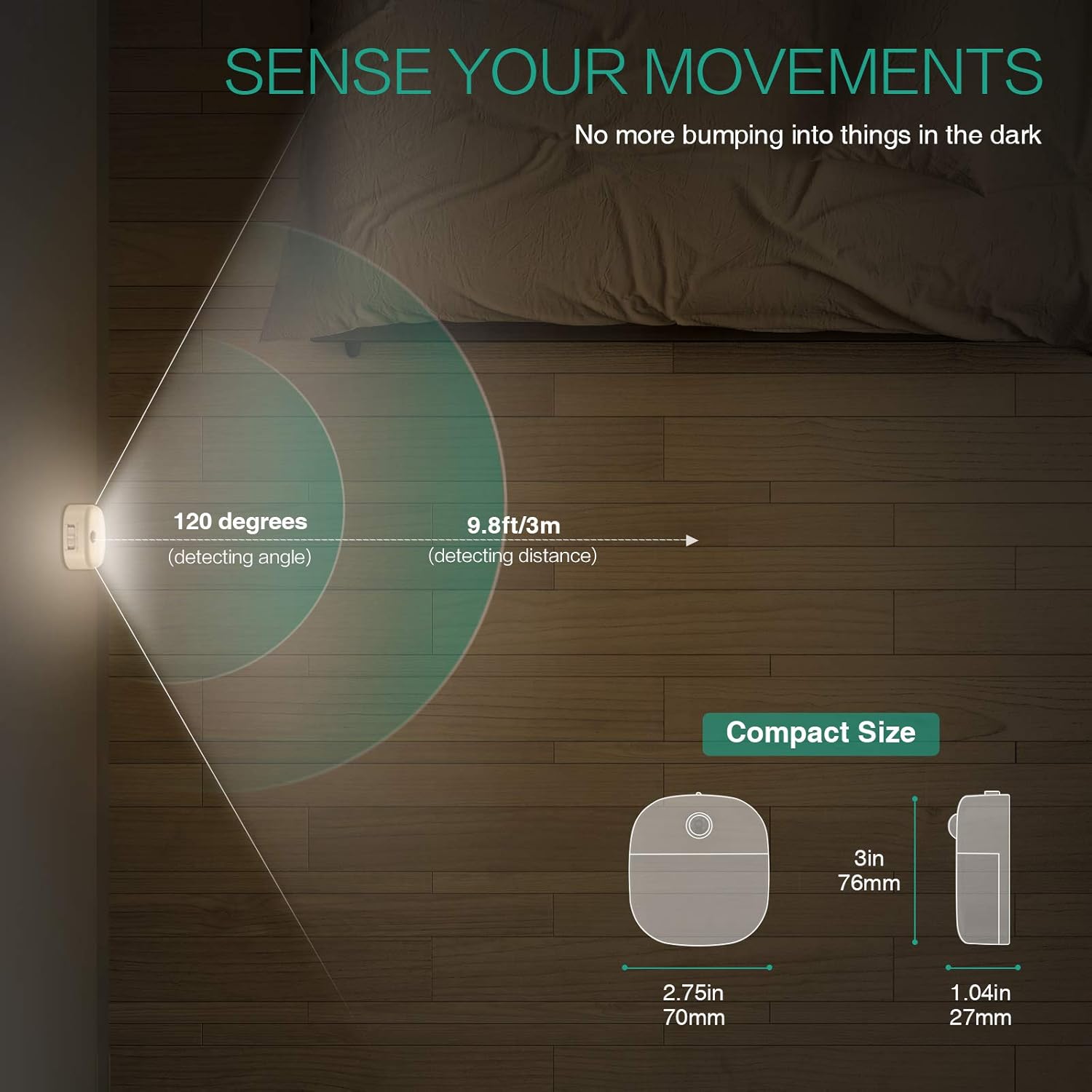

Image: A motion sensor light mounted on a wall, illuminating a staircase as a person ascends, demonstrating its practical application.

• Detekzio angelua: 120 gradu
• Detektatzeko distantzia: Gehienez 9.8 oin (3 metro)
• The sensor is designed to activate only in low-light conditions to conserve battery life.
• Avoid placing the light in direct sunlight or near heat sources, as this may affect sensor performance.

7. Mantentzea

• Garbiketa: Wipe the light with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
• Bateria ordezkatzea: When the light dims or fails to activate, replace all 3 AAA batteries with new ones. Ensure correct polarity.
• Sentsoreen zainketa: Keep the motion sensor lens clean and unobstructed for optimal performance.

8. Arazoak

9. Bermea eta Laguntza

ORIA products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official ORIA webgunea.

Mesedez, gorde eskuliburu hau etorkizuneko erreferentzia izateko.
