AEG Induction Hob IKE42640KB User Manual

1. Segurtasun informazio garrantzitsua

Read these instructions carefully before installing and using the appliance. Keep this manual for future reference. The manufacturer is not responsible for any injuries or damages resulting from incorrect installation or usage.

• Tresna hau etxeko erabilerarako soilik da.
• Ziurtatu tresna pertsona kualifikatu batek behar bezala instalatu duela.
• Keep children away from the appliance during operation. The surface can become hot.
• Ez gorde elementuak sukaldeko gainazalean.
• Erabili beti indukzio-plaketarako sukaldeko tresna egokiak.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the hob surface.
• Deskonektatu gailua elikadura-iturritik garbiketa edo mantentze-lanak egin aurretik.

2. Produktua amaitu daview

The AEG IKE42640KB is a 2-burner induction hob designed for efficient and precise cooking. It features touch controls, programmable functions, and a safety lock for enhanced user experience and safety.

Image: Close-up of the AEG Induction Hob's control panel with a pot on one of the cooking zones. The touch controls for power levels and functions are visible.

Irudia: Xehetasun handikoa view of the AEG Induction Hob's touch control panel, displaying power levels from 0 to 9, a 'P' for PowerBoost, and a lock icon for the safety lock feature.

3. Instalazioa

The AEG IKE42640KB induction hob is designed for recessed installation. Proper ventilation and clearance are crucial for safe and efficient operation.

3.1. Cut-out Dimensions

Refer to the diagram below for precise cut-out dimensions required for installation into your countertop. Ensure minimum clearances are maintained as specified.

• Minimum depth of countertop: 55 mm.
• Minimum clearance below the hob: 12 mm.
• Power cable length: Minimum 1500 mm.

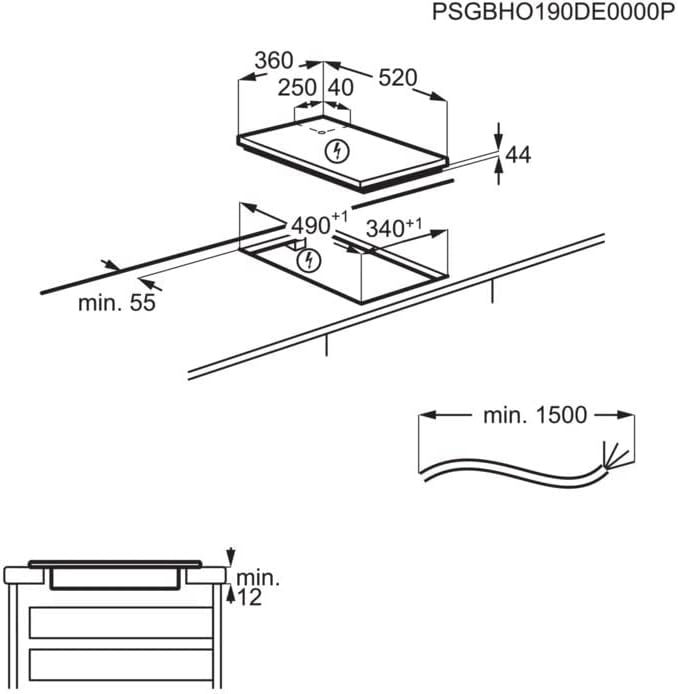

Image: Technical diagram illustrating the required cut-out dimensions for recessed installation of the AEG Induction Hob. Key measurements include width (520 mm), depth (360 mm), and minimum clearances for ventilation and cable routing.

3.2. Konexio elektrikoa

The electrical connection must be performed by a qualified electrician in accordance with local regulations. Ensure the power supply matches the appliance's specifications (3700 watts).

4. Funtzionamendu-argibideak

The hob is operated using touch controls. Ensure your fingers are clean and dry when interacting with the control panel.

4.1. Piztu/Itzaltzea

• Pizteko: Sakatu energia nagusiaren ikurra.
• Itzaltzeko: Sakatu berriro energia nagusiaren ikurra.

4.2. Selecting a Cooking Zone and Setting Power Level

• Jarri sukaldeko tresna egokiak nahi duzun sukaldaritza-eremuan.
• Touch the corresponding cooking zone selection control.
• Use the '+' or '-' symbols to adjust the power level from 1 (low) to 9 (high).
• For rapid heating, select 'P' (PowerBoost) if available for the zone.

4.3. Segurtasuneko blokeoa

The safety lock prevents accidental operation of the hob, especially useful to prevent children from turning it on.

• To activate: With the hob off, touch and hold the lock symbol for a few seconds until an indicator light appears.
• To deactivate: Touch and hold the lock symbol again until the indicator light disappears.

4.4. Programmable Features

This hob includes programmable features, such as a timer function. Consult the full manual for detailed instructions on setting and using these features.

5. Sukaldaritza aholkuak

Induction cooking offers fast and precise heat control. Here are some tips for optimal results:

• Sukaldaritza: Use pots and pans with a magnetic base. Cast iron, enameled steel, and stainless steel with a magnetic base are suitable. Glass, ceramic, and aluminum without a magnetic base will not work.
• Irakitea: Induction heats water very quickly. Use the PowerBoost function for rapid boiling.
• Urtzea: For delicate tasks like melting chocolate, use a low heat setting (e.g., power level 1 or 2) to prevent burning.

Image: A pot of water rapidly boiling on the AEG Induction Hob, demonstrating the efficient heating capability of induction technology.

Image: Chocolate melting gently in a saucepan on the AEG Induction Hob, illustrating precise temperature control for delicate cooking tasks.

6. Garbiketa eta Mantentze-lanak

Garbiketa eta mantentze erregularrak zure indukzio-plakaren iraupena eta errendimendu optimoa bermatuko ditu.

6.1. Eguneko garbiketa

• Ziurtatu beti sukaldeko plaka hoztuta dagoela garbitu aurretik.
• Wipe the surface with a soft cloth and warm soapy water.
• Orban egoskorretarako, erabili zeramikazko plaketarako garbitzailea.
• Rinse thoroughly and dry with a clean cloth to prevent water marks.

Image: Spilled milk on the black surface of the AEG Induction Hob, with a cleaning cloth nearby, demonstrating the ease of cleaning the smooth surface.

6.2. Kalteak saihestea

• Ez erabili belaki urratzailerik, estropajoirik edo garbitzaile kimiko gogorrik.
• Saihestu objektu astunak edo zorrotzak sukaldeko gainazalean erortzea.
• Ez arrastatu sukaldeko tresnak gainazalean zehar, horrek marradurak eragin ditzakeelako.

7. Arazoak

Zerbitzuarekin harremanetan jarri aurretik, egiaztatu honako arazo eta irtenbide ohikoenak:

8. Zehaztapenak

9. Bermea eta Laguntza

For warranty information, technical support, or to schedule service, please refer to the warranty card included with your appliance or visit the official AEG webgunea. Gorde erosketaren egiaztagiria bermearen erreklamazioetarako.

Always ensure that any repairs or maintenance not covered in this manual are performed by authorized service personnel.
