Scheppach DM1100T Wood Lathe User Manual

1. Sarrera

Thank you for choosing the Scheppach DM1100T Wood Lathe. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new wood lathe. Please read these instructions carefully before initial use and keep them for future reference. Proper use and maintenance will ensure the longevity and optimal performance of your machine.

2. Segurtasun-argibideak

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Familiarize yourself with all controls and proper use of the machine.

• Norberaren Babeserako Ekipamendua (PPE): Always wear safety glasses, hearing protection, and a dust mask. Do not wear loose clothing, gloves, neckties, or jewelry that could get caught in moving parts. Tie back long hair.
• Lan eremua: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Ensure adequate ventilation to remove wood dust.
• Segurtasun elektrikoa: Ensure the power supply matches the specifications on the machine's rating plate. Do not operate power tools in damp or wet locations. Avoid body contact with earthed or grounded surfaces.
• Lan-piezaren segurtasuna: Always ensure the workpiece is securely mounted between centers or on the faceplate before starting the lathe. A loose workpiece can be ejected with considerable force.
• Erremintaren atsedena: Position the tool rest as close as possible to the workpiece without touching it. Adjust the tool rest height to be slightly above the center line of the workpiece.
• Larrialdi geldialdia: Know the location of the emergency stop button and how to use it quickly in an emergency.
• Mantentzea: Disconnect the machine from the power supply before making any adjustments, changing accessories, or performing maintenance.

3. Produktua amaitu daview

The Scheppach DM1100T is a robust wood lathe designed for various turning projects. Below are key components and their functions.

3.1. irudia: Osatua view of the Scheppach DM1100T Wood Lathe, showing the headstock, bed, tailstock, and tool rest assembly.

3.2. irudia: Xehetasuna view of the DM1100T wood lathe, highlighting its sturdy construction and main components.

Funtsezko osagaiak:

• Burua: Contains the motor, spindle, and speed control mechanism.
• Taila: Lan-piezaren mutur librea eusten du, ohean zehar erregulagarria.
• Lathe Bed: The main frame that supports the headstock, tailstock, and tool rest.
• Erremintaren atsedena: Provides a stable support for turning tools during operation.
• Burua: The rotating shaft in the headstock where workpieces are mounted. Features an M18 x 2.5 mm thread.
• Motorra: 400W induction motor for smooth and quiet operation.

Figure 3.3: Key technical features including M18 x 2.5 mm spindle thread, maximum workpiece diameter of 350 mm, 400 Watt induction motor, and the included 4-prong drive center with a live center.

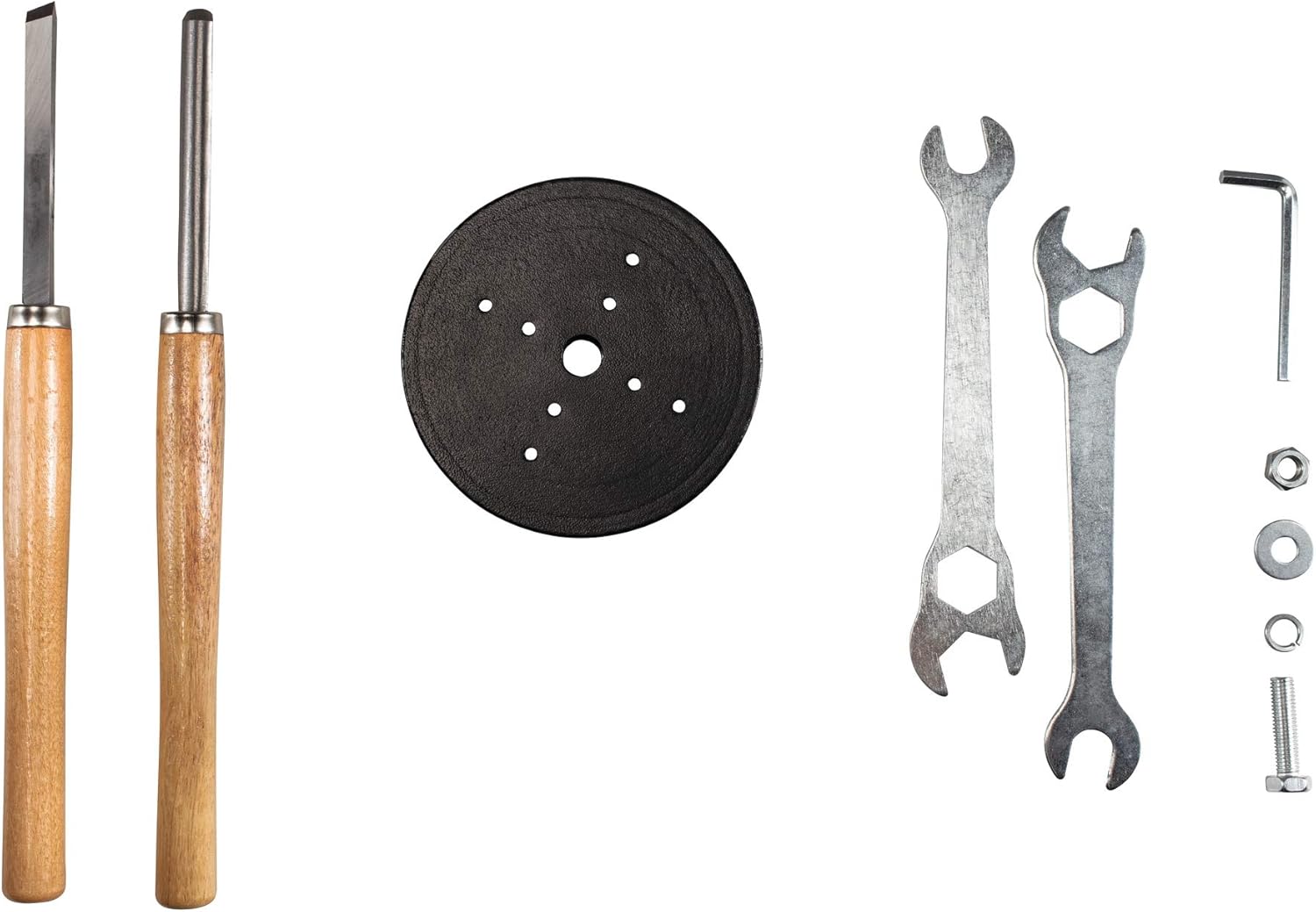

Figure 3.4: Standard accessories provided with the lathe, including turning tools, faceplate, and assembly tools.

4. Konfigurazioa

The Scheppach DM1100T requires some assembly before first use. Follow these steps carefully.

1. Despaketatzea: Carefully remove all components from the packaging. Check for any damage or missing parts against the packing list.
2. Mounting the Lathe Bed: Secure the lathe bed to a sturdy workbench using appropriate bolts and washers. Ensure the lathe is stable and level to prevent vibration during operation.
3. Attaching the Headstock and Tailstock: The headstock is typically pre-mounted. Slide the tailstock onto the lathe bed and secure it in place with its locking lever.
4. Installing the Tool Rest Assembly: Mount the tool rest base onto the lathe bed and insert the tool rest. Ensure it can be adjusted freely and locked securely.
5. Konexio elektrikoa: Connect the power cord to a grounded electrical outlet. Ensure the power switch is in the 'OFF' position before plugging in.

Figure 4.1: The wood lathe properly set up and secured on a workbench, ready for operation.

5. Funtzionamendu-argibideak

Follow these steps for safe and effective woodturning.

5.1. Abiadura Hautaketa

The DM1100T offers 4 speed settings. Speed is adjusted by changing the belt position on the pulleys located inside the headstock. Always disconnect power before changing belt positions.

• Open the headstock cover.
• Loosen the motor tensioning lever.
• Move the drive belt to the desired pulley combination for the required speed.
• Re-tension the motor and close the headstock cover.
• Consult the speed chart (usually inside the headstock cover) for appropriate speeds for different workpiece diameters and wood types.

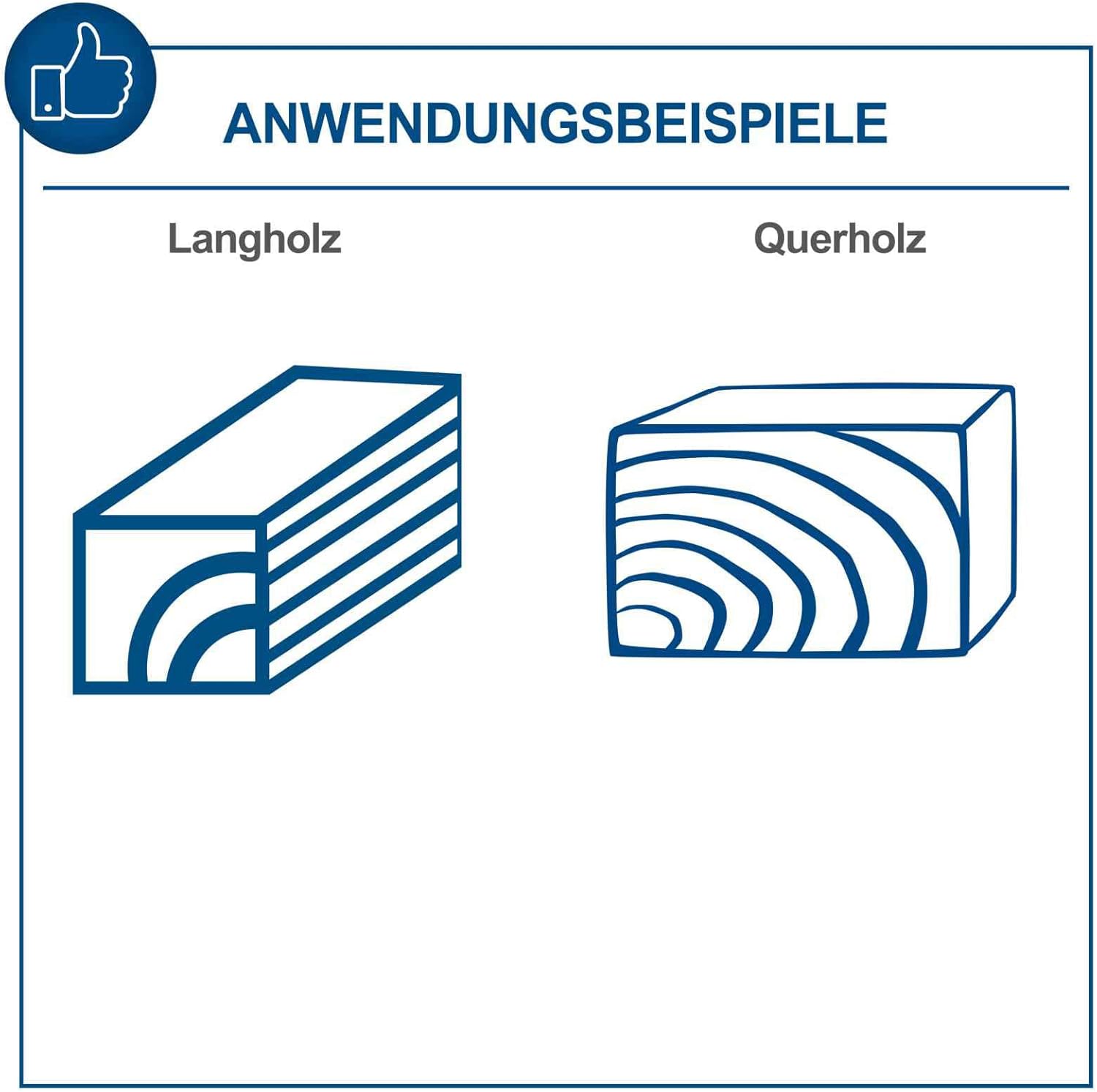

5.2. Mounting the Workpiece

Workpieces can be mounted between centers or using a faceplate.

• Zentroen artean: Mark the center points on both ends of your workpiece. Insert the 4-prong drive center into the headstock spindle and the live center into the tailstock quill. Mount the workpiece between the centers, ensuring it is firmly seated. Advance the tailstock quill to apply firm pressure, then lock the tailstock.
• Faceplate Turning: For wider, shorter pieces, attach the faceplate to the headstock spindle. Secure the workpiece to the faceplate using screws. Ensure screws are long enough for a secure hold but do not protrude through the workpiece.

5.3. Adjusting the Tool Rest

Position the tool rest approximately 3mm (1/8 inch) from the workpiece. The top of the tool rest should be slightly above the center line of the workpiece. Lock the tool rest securely before starting the lathe.

5.4. Turning Operation

Figure 5.1: A user demonstrating the turning process on the DM1100T, carefully shaping a wooden piece.

5.2. irudia: Gehiegizko batview of the turning process, showing the lathe in action with wood shavings being produced.

• Before starting, manually rotate the workpiece to ensure it clears the tool rest and any other parts.
• Turn on the lathe. Allow it to reach full speed before beginning to cut.
• Hold turning tools firmly against the tool rest. Apply light, controlled pressure to the workpiece.
• Always cut from a larger diameter to a smaller diameter.
• Never force the cutting tool. Let the tool do the work.
• Regularly stop the lathe to check the workpiece and adjust the tool rest as needed.

6. Mantentzea

Regular maintenance ensures the longevity and safe operation of your Scheppach DM1100T wood lathe.

• Garbiketa: After each use, clean the lathe thoroughly. Remove all wood dust and shavings from the bed, headstock, tailstock, and motor area. Use a brush or vacuum cleaner; avoid compressed air as it can force dust into bearings.
• Lubrifikazioa: Periodically apply a light machine oil to the tailstock quill and the lead screw (if applicable) to ensure smooth movement. Do not over-lubricate.
• Gerriko tentsioa: Check the drive belt tension regularly. A loose belt can slip, reducing power and causing inconsistent speeds. Adjust tension as per instructions in Section 5.1.
• Loturak: Periodically check all nuts, bolts, and screws for tightness. Tighten any loose fasteners to prevent vibration and ensure stability.
• Tresnen zorrozketa: Keep your turning tools sharp. Dull tools can cause excessive heat, poor cuts, and are more dangerous to use.

7. Arazoak

Atal honek zure egurrezko tornuarekin aurki ditzakezun arazo ohikoenei buruzkoa da.

8. Zehaztapenak

Detailed technical specifications for the Scheppach DM1100T Wood Lathe.

Figure 8.1: Visual representation of the maximum workpiece length and the robust, low-vibration steel bed construction.

9. Bermea eta Laguntza

Scheppach products are manufactured to high-quality standards. In the unlikely event of a defect or malfunction, please refer to your purchase documentation for warranty details.

For technical support, spare parts, or service inquiries, please contact Scheppach customer service or your authorized dealer. When contacting support, please have your model number (DM1100T) and article number (SC-DM500T) ready.

You can find more information and contact details on the official Scheppach webgunea: www.scheppach.com
