1. Sarrera
The FLAMMA FS07 Stereo Cabinet Simulation Pedal is a high-quality effects unit designed for electric guitarists. It offers advanced cabinet simulation and Impulse Response (IR) loading capabilities, allowing users to achieve diverse tonal characteristics. With 7 user preset slots, each capable of storing two different cabinet settings, and support for third-party IR files, the FS07 provides extensive sound customization. This manual details the pedal's features, setup, operation, and maintenance to ensure optimal performance.
2. Segurtasun-argibideak
- Use only a 9V DC power supply with a minimum current of 304mA. Insufficient current may cause operational issues.
- Ensure the power supply polarity is center negative.
- Ez jarri unitatea euripean, hezetasunean edo muturreko tenperaturetan.
- Saihestu unitatea erortzea edo kolpe gogorren eraginpean jartzea.
- Ez saiatu unitatea zeuk desmuntatzen edo konpontzen. Mantendu mantentze-lan guztiak langile kualifikatuen esku.
3. Paketearen edukia
The FLAMMA FS07 Stereo Cabinet Simulation Pedal package includes the following items:
- FLAMMA FS07 Pedal
- USB kablea
- Hasierako gida azkarra
Figure 1: FLAMMA FS07 pedal, USB cable, and quick start guide as packaged.
4. Kontrolak eta Ezaugarriak
The FLAMMA FS07 features intuitive controls for easy sound shaping and preset management.
2 Irudia: Gainetikview of FLAMMA FS07 controls.
- MAILA botoia: Pedalaren irteerako bolumen orokorra doitzen du.
- MOTA KUTA: Selects one of the 11 factory cabinet simulations or loaded IRs.
- LATENCY Knob: Adjusts the latency of the cabinet simulation.
- BAXU-MOZKETA botoia: Controls the low-frequency cutoff point.
- HIGH CUT botoia: Controls the high-frequency cutoff point.
- SAVE A/B Button: Used to save current settings to a preset slot. Each slot can store two different cabinet settings (A and B).
- Preset LEDs (1-7): Indicate the currently selected preset slot.
- Oinen etengailua: Activates/bypasses the effect or cycles through presets, depending on its assigned mode.
5. Konexioak
The FS07 offers flexible connectivity options for various setups.
Figure 3: Pedalboard connection diagrams.
- INPUT L (MONO) / INPUT R Jacks: Connect your guitar or other effects pedals here. Use INPUT L for mono input.
- OUTPUT L (MONO) / OUTPUT R Jacks: Konektatu zure amplifier, mixer, audio interface, or FRFR system. Use OUTPUT L for mono output.
- DC 9V sarrera: Connect a 9V DC center-negative power supply (minimum 304mA).
- USB ataka: Connect to a computer for software editing and IR loading.
Konexio-diagramak:
- Mono konfigurazioa: Guitar -> Stompbox/Effect Pedals/Preamp -> FS07 Input L (Mono) -> FS07 Output L (Mono) -> Mixer/Monitor/Audio Interface/FRFR System.
- Estereoaren konfigurazioa: Guitar -> Stompbox/Effect Pedals/Preamp -> FS07 Input L (Mono) & Input R -> FS07 Output L & Output R -> Mixer/Monitor/Audio Interface/FRFR System.
- Multi-Effect Setup: Guitar -> Multi-Effect Board -> FS07 Input L (Mono) -> FS07 Output L (Mono) -> Mixer/Monitor/Audio Interface/FRFR System.
- FX LOOP-rekin Ampbiziagoa: Guitar -> Multi-Effect Board (Send) -> FS07 Input L (Mono) -> FS07 Output L (Mono) -> Mixer/Monitor/Audio Interface/FRFR System. Multi-Effect Board (Return) -> Amplifier. (Note: In this setup, connect the output to the amplifier to bypass the cab sim. The other output connecting to the mixer/FRFR system should have the cab sim on.)
6. Factory Cabinet Simulations
The FS07 comes pre-loaded with 11 high-quality factory cabinet simulations. These can be selected using the TYPE knob.
Figure 4: Factory Cabinet Simulation List.
| Izena | Deskribapena |
|---|---|
| AEBetako DLX 112 | Based on Fender® '65 Deluxe reverb 112 cabinet |
| URDINA 112 | Based on Fender® Blues Deluxe 112 cabinet |
| SONIC 112 | Based on Fender® Super Sonic 112 cabinet |
| US BASS 410 | Based on Fender® '59 Bassman 410 cabinet |
| AEBetako TWN 212 | Based on Fender® '65 Twin Reverb 212 cabinet |
| Erresuma Batua 212 | Based on VOX® AC30 212 cabinet |
| BLUENO 212 | Based on Bruno® 212 Football cabinet |
| REC 412 | Based on MESA/Boogie® Rectifier® STD 412 cabinet |
| CALI 412-1 | Based on MESA/Boogie® Recto Trad 412 cabinet |
| VHS 412 | Based on Diezel® 412 FV 412 cabinet |
| EV 5050 412 | Based on EVH® 5150 412 cabinet |
*NOTES: All product names belong to their owners and are only used in this product and manual as a reference to tone types.
7. Software Editor and IR Loading
The FLAMMA FS07 comes with specialized editor software for quick management of your presets and loading third-party Impulse Response (IR) files.
Figure 5: FS07 connected to the editor software.
- Connect the pedal to your computer via the USB port.
- Use the editor software to customize parameters, organize presets, and load your own IR files into the pedal's 7 user preset slots.
Produktu Ofizialen Bideoak:
Video 1: FLAMMA FS07 Stereo Cabinet Simulation Guitar Pedal Cab Simulator. This video demonstrates the features and sound of the FS07 pedal.
Video 2: FLAMMA FS07 Cabinet Simulation Pedal Connection Guide. This video provides a guide on connecting the FS07 pedal in various setups.
Video 3: FLAMMA FS07 Cabinet Simulation Effects Pedal Demo. This video showcases the different effects and sounds achievable with the FS07 pedal.
Video 4: FLAMMA FS07 Stereo Cabinet Simulation Guitar Pedal 7 User Preset Slots Support IR Load. This video highlights the preset management and IR loading features of the FS07.
8. Footswitch Modes
The footswitch on the FS07 can be customized to operate in different modes, offering flexibility during live performance or practice.

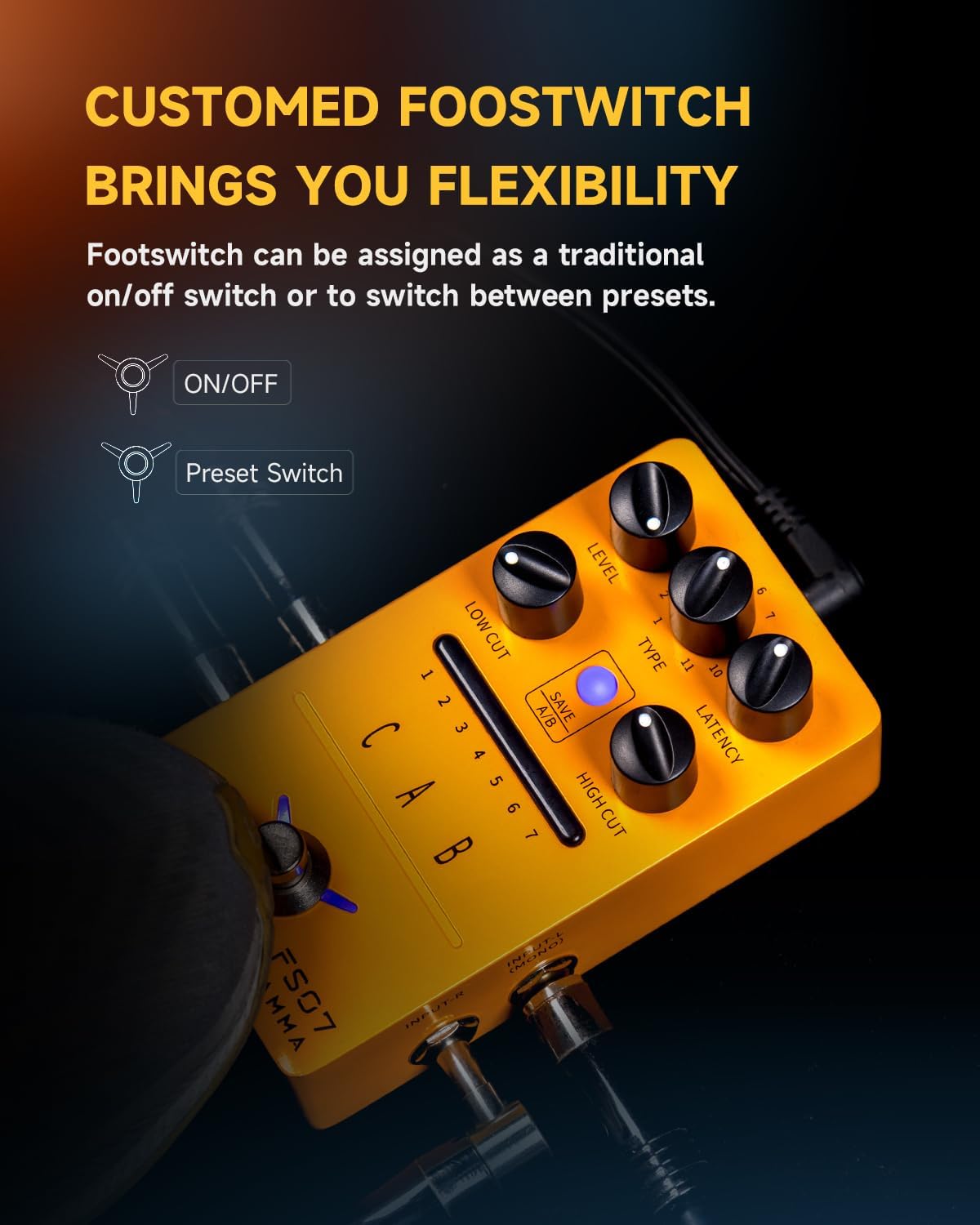

Figure 6: Footswitch functionality options.
- ON/OFF modua: In this mode, a single press of the footswitch toggles the effect on or off.
- Preset Switch Mode: In this mode, a single press of the footswitch cycles through the saved presets (1-7).
Refer to the editor software for instructions on how to assign the footswitch mode.
9. Zehaztapenak
Detailed technical specifications for the FLAMMA FS07 pedal.
| Zehaztapena | Balioa |
|---|---|
| Elementuaren pisua | 10.6 ontza (0.3 kilogramo) |
| Produktuaren neurriak | 2.76 x 1.99 x 4.78 hazbete |
| Gorputzaren Materiala | Metala |
| Kolorea | FS07 Cab Sim (Orange) |
| Konektore mota | 1/4 hazbeteko (6.35 mm) audio-konektorea |
| Hardware interfazea | 1/4-inch Audio, USB |
| Seinalearen formatua | Analogikoa |
| Onartutako softwarea | FS07 CAB Edit |
| Energia iturria | Corded Electric (9V DC, center negative, >304mA) |
10. Arazoak
- Soinurik ez: Check all cable connections, ensure the power supply meets specifications (9V DC, >304mA, center negative), and verify the pedal is not in bypass mode.
- Soinu kalitate eskasa: Ensure correct input/output connections, check instrument cables, and adjust the LOW CUT/HIGH CUT knobs to fine-tune the tone.
- Pedalak ez du erantzuten: Disconnect and reconnect the power supply. If issues persist, try resetting the pedal via the editor software (if available).
- Softwarearen konexio arazoak: Ensure the USB cable is securely connected and the correct drivers are installed (if required). Try restarting the software and your computer.
11. Mantentzea
- Clean the pedal's exterior with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- Store the pedal in a dry environment away from direct sunlight and extreme temperatures.
- When not in use for extended periods, disconnect the power supply.
12. Bermea eta Laguntza
FLAMMA products are covered by a limited warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official FLAMMA website. For technical support, troubleshooting assistance, or service inquiries, please contact FLAMMA customer support through their official channels.
