Rowenta Silence Force RO7457EA Bagged Vacuum Cleaner User Manual

1. Sarrera

Thank you for choosing the Rowenta Silence Force RO7457EA Bagged Vacuum Cleaner. This appliance is designed to provide powerful and quiet cleaning performance for your home. With its advanced filtration system and efficient motor, it ensures thorough dust removal and a comfortable user experience.

This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your vacuum cleaner. Please read it carefully before first use and keep it for future reference.

Image 1.1: The Rowenta Silence Force RO7457EA vacuum cleaner shown with its main body, hose, telescopic tube, Power Air floor head, and various accessories including a crevice tool, upholstery nozzle, and XXL flexible crevice tool.

2. Segurtasun-argibideak

To prevent injury or damage to your appliance, please observe the following safety precautions:

• Ziurtatu beti liburukiatage indicated on the appliance's rating plate matches your mains voltage konektatu aurretik.
• Do not use the appliance if the power cord is damaged. Contact an authorized service center for repair.
• Tresna hau ez da gaitasun fisiko, sentsorial edo mental murriztua duten edo esperientzia eta ezagutza falta duten pertsonek (haurrak barne) erabiltzeko, baldin eta haien segurtasunaz arduratzen den pertsona batek gailuaren erabilerari buruz gainbegiratu edo jarraibiderik eman ez badu.
• Do not vacuum liquids, hot ashes, large sharp objects (glass), or hazardous materials (solvents, corrosive products).
• Ez sartu inoiz aparatua uretan edo beste likidoren batean.
• Unplug the appliance from the mains socket before any cleaning or maintenance operation.
• Mantendu ilea, arropa solteak, behatzak eta gorputzeko atal guztiak irekiguneetatik eta atal mugikorretatik urrun.

3. Konfigurazioa eta Muntaketa

Jarraitu urrats hauek zure xurgagailua lehen erabilerarako prestatzeko:

1. Despaketatzea: Carefully remove all components from the packaging. Ensure all parts listed in the 'Components Included' section are present.
2. Mahuka lotzea: Insert the flexible hose into the suction inlet on the main body of the vacuum cleaner until it clicks securely into place. To remove, press the release buttons and pull.
3. Connecting the Telescopic Tube: Attach the handle end of the hose to the telescopic tube. Adjust the tube length by pressing the adjustment button and extending or retracting it to a comfortable height.
4. Attaching the Floor Head: Connect the Power Air floor head to the end of the telescopic tube. Ensure it is firmly attached.
5. Hauts-poltsa sartzea: Open the dust bag compartment cover. Insert a new Hygiene+ dust bag, ensuring it is correctly seated in the holder. Close the compartment cover securely.

3.1. irudia: Plano hurbila view of the main body of the Rowenta Silence Force vacuum cleaner, showing the hose connection point, dust bag compartment, and control panel.

4. Funtzionamendu-argibideak

Your Rowenta Silence Force vacuum cleaner is designed for efficient and quiet cleaning across various surfaces.

4.1 Piztea/itzaltzea eta xurgapenaren kontrola

• Piztu: Plug the power cord into a suitable electrical outlet. Press the On/Off button located on the main body of the vacuum cleaner.
• Xurgapenaren doikuntza: The vacuum cleaner features 2 speeds/power levels. Use the power selector on the main unit to adjust the suction power according to the cleaning task and surface type.
• Itzali: Press the On/Off button again to switch off the appliance. Unplug the power cord from the outlet and press the cord rewind button to retract the cord. The operating radius is 11 meters.

4.2 Osagarriak erabiltzea

The vacuum cleaner comes with several accessories to optimize cleaning for different areas:

• Power Air Floor Head: This high-efficiency 2-position suction head is suitable for both hard floors and carpets/rugs. Adjust the brush setting as needed for optimal performance on each surface.
• Zirrikitu tresna: Ideal for reaching tight corners, edges, and narrow gaps.
• Flat Upholstery Nozzle: Designed for gentle cleaning of furniture, curtains, and other delicate fabrics.
• XXL Flexible Crevice Tool (60 cm): Perfect for accessing difficult-to-reach areas, such as between car seats or behind radiators.

Image 4.1: A person using the Rowenta Silence Force vacuum cleaner with the Power Air floor head on a carpeted surface, demonstrating its ease of use.

Image 4.2: The upholstery nozzle being used to clean a fabric sofa, highlighting its effectiveness on furniture.

Image 4.3: The crevice tool in action, cleaning dust and debris from along a baseboard and wall junction.

Image 4.4: The XXL flexible crevice tool being used to clean the narrow space between car seats, demonstrating its extended reach.

5. Mantentzea

Mantentze-lan erregularrak zure xurgagailuaren errendimendu optimoa bermatzen du eta bizitza luzatzen du.

5.1 Changing the Dust Bag

The Rowenta Silence Force uses Hygiene+ 4.5 L dust bags. Replace the dust bag when the bag full indicator appears or when suction power noticeably decreases.

1. Deskonektatu xurgagailua korronte-hartunetik.
2. Ireki hauts-poltsaren konpartimentuaren estalkia.
3. Carefully remove the full dust bag by pulling the cardboard collar. The bag's opening will automatically seal to prevent dust leakage.
4. Dispose of the full bag in household waste.
5. Insert a new Hygiene+ dust bag, ensuring it is fully unfolded inside the compartment and correctly seated in the holder.
6. Itxi hauts-poltsaren konpartimentuaren estalkia klik egin arte.

Image 5.1: A Rowenta Hygiene+ dust bag, designed for optimal dust retention and hygienic disposal.

5.2 Iragazkien mantentze-lanak

Your vacuum cleaner features 3 levels of filtration and an ultra-efficient permanent filter. Regular cleaning of the filters is crucial for maintaining suction performance and air quality.

• Motorraren Babeserako Iragazkia: This filter is located behind the dust bag. Check it regularly and clean it by tapping it gently to remove dust. Replace it if it appears heavily soiled or damaged.
• Ihes-iragazkia: The permanent exhaust filter is located at the rear of the appliance. It can be cleaned by rinsing it under cold running water. Ensure it is completely dry before reinserting it into the vacuum cleaner. Do not use detergents or hot water.
• Maiztasuna: Clean filters at least once every 6 months, or more frequently with heavy use.

5.3 Garbiketa orokorra

• Garbitu xurgagailuaren kanpoaldea oihal leun etaamp oihal. Ez erabili garbitzaile edo disolbatzaile urratzailerik.
• Check the floor head and accessories for any blockages (hair, threads, debris) and remove them.

6. Arazoak

Zure xurgagailuarekin arazoak badituzu, jo ezazu hurrengo taulara arazo ohikoenak eta irtenbideak ikusteko:

Irtenbide hauek probatu ondoren arazoa konpontzen ez bada, jarri harremanetan Rowenta bezeroarentzako arreta-zerbitzuarekin.

7. Zehaztapenak

8. Bermea eta Laguntza

Your Rowenta Silence Force RO7457EA vacuum cleaner comes with a 2 urteko bermea, covering manufacturing defects from the date of purchase. Please retain your proof of purchase for warranty claims.

Rowenta is committed to product longevity and environmental responsibility. This appliance is designed for 15 urteko konponketa-gaitasuna prezio bidezkoan, ensuring that spare parts and technical assistance are available for an extended period.

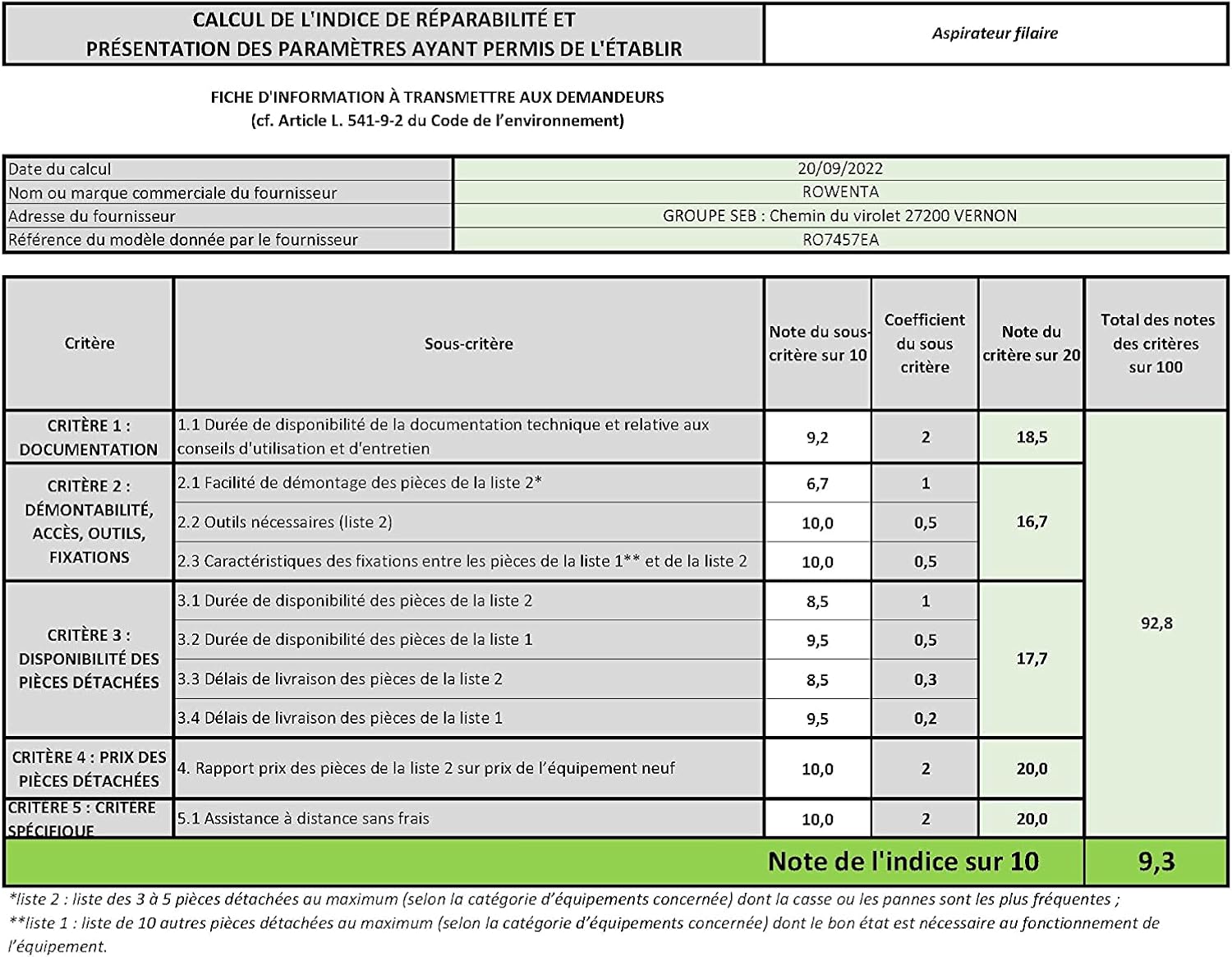

Image 8.1: The repairability index for the Rowenta RO7457EA, indicating a high score for ease of repair and availability of spare parts.

For technical support, spare parts, or warranty service, please contact your local Rowenta authorized service center or visit the official Rowenta webinformazio gehiago eskuratzeko gunea.
